Direct Control Over Your Stream Audio
The TC Helicon GoXLR MINI is an all-in-one USB audio interface and broadcast mixer created for streamers, gamers and content creators who want faster control over microphone, game, chat, music and application audio without constantly switching between software windows.
Four physical faders put important audio levels directly under your hand, while the ultra-low-noise Midas microphone preamp, onboard EQ, compression and gating provide the core tools needed to build a cleaner and more controlled voice signal.
Complete the audio side of your creator setup with compatible microphones, headphones and other
audio equipment
available from AX Store Kuwait.

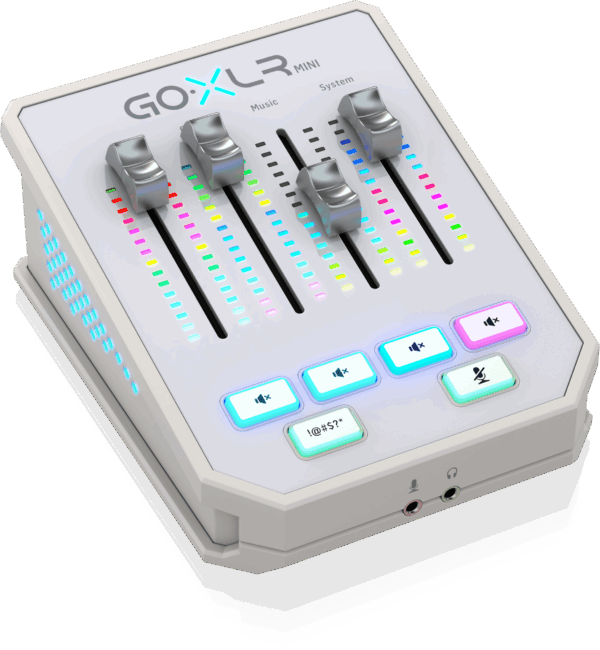

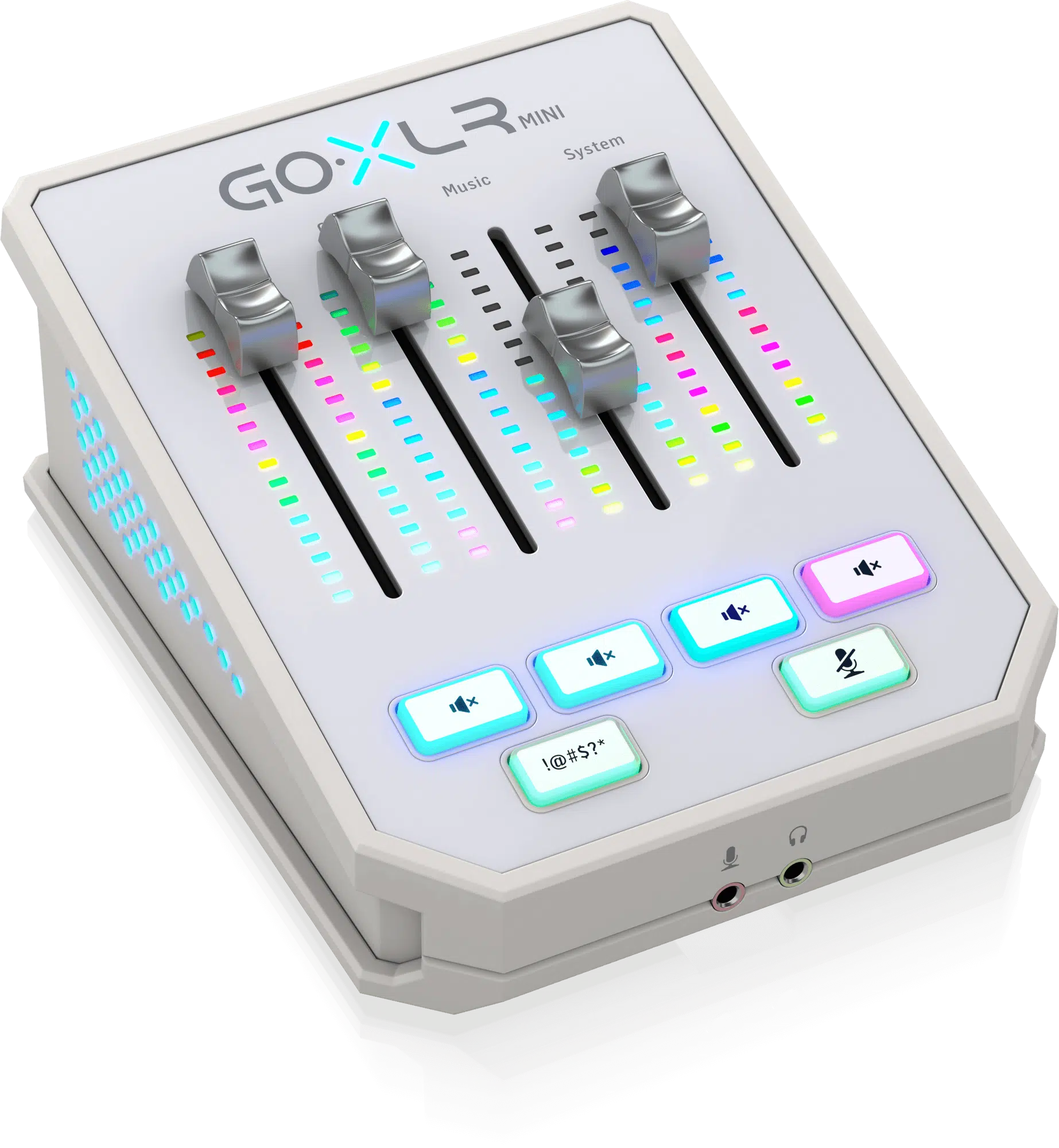

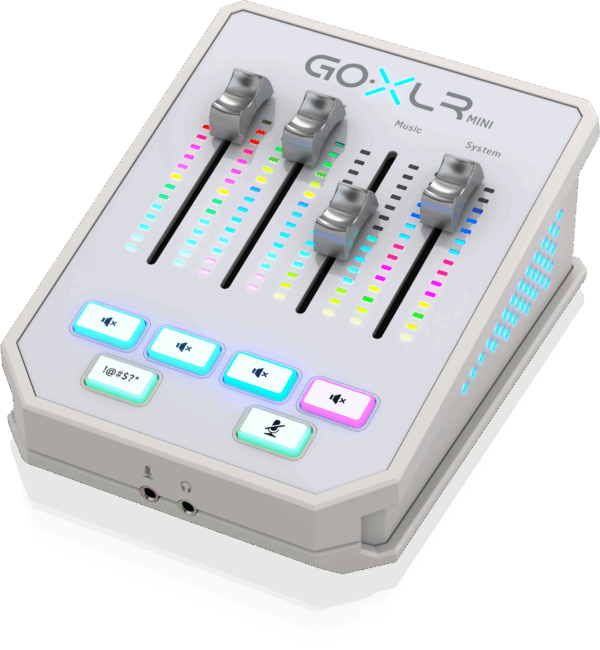

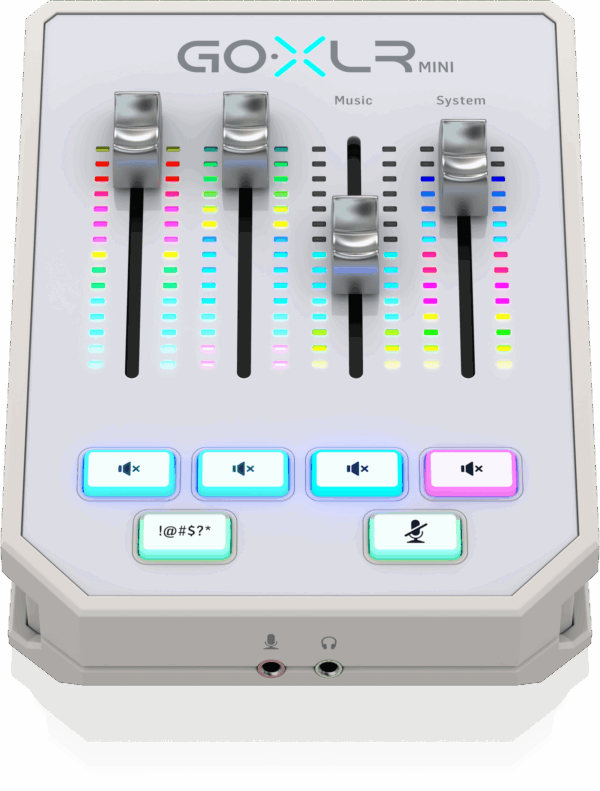

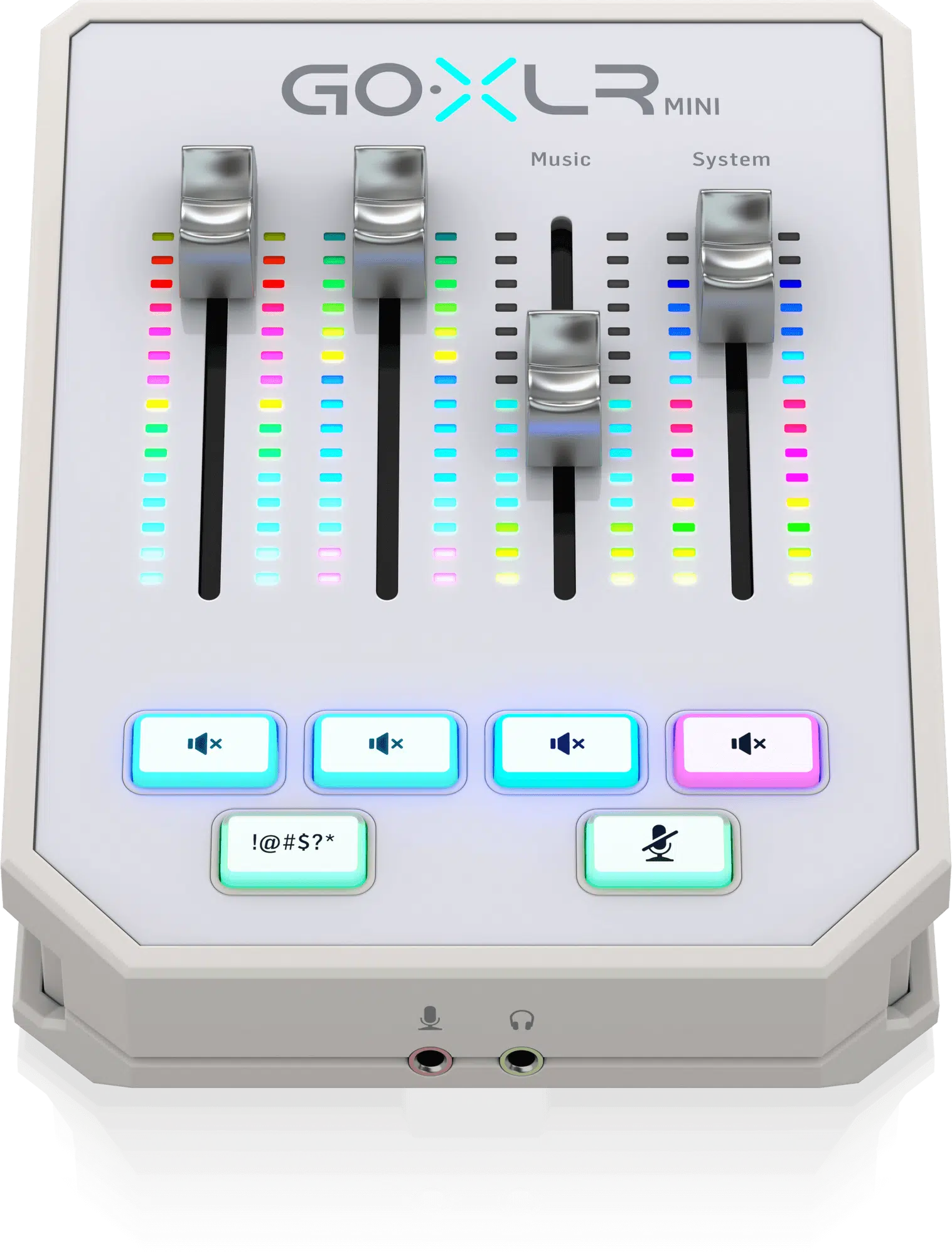

Compact Desktop Mixer Design

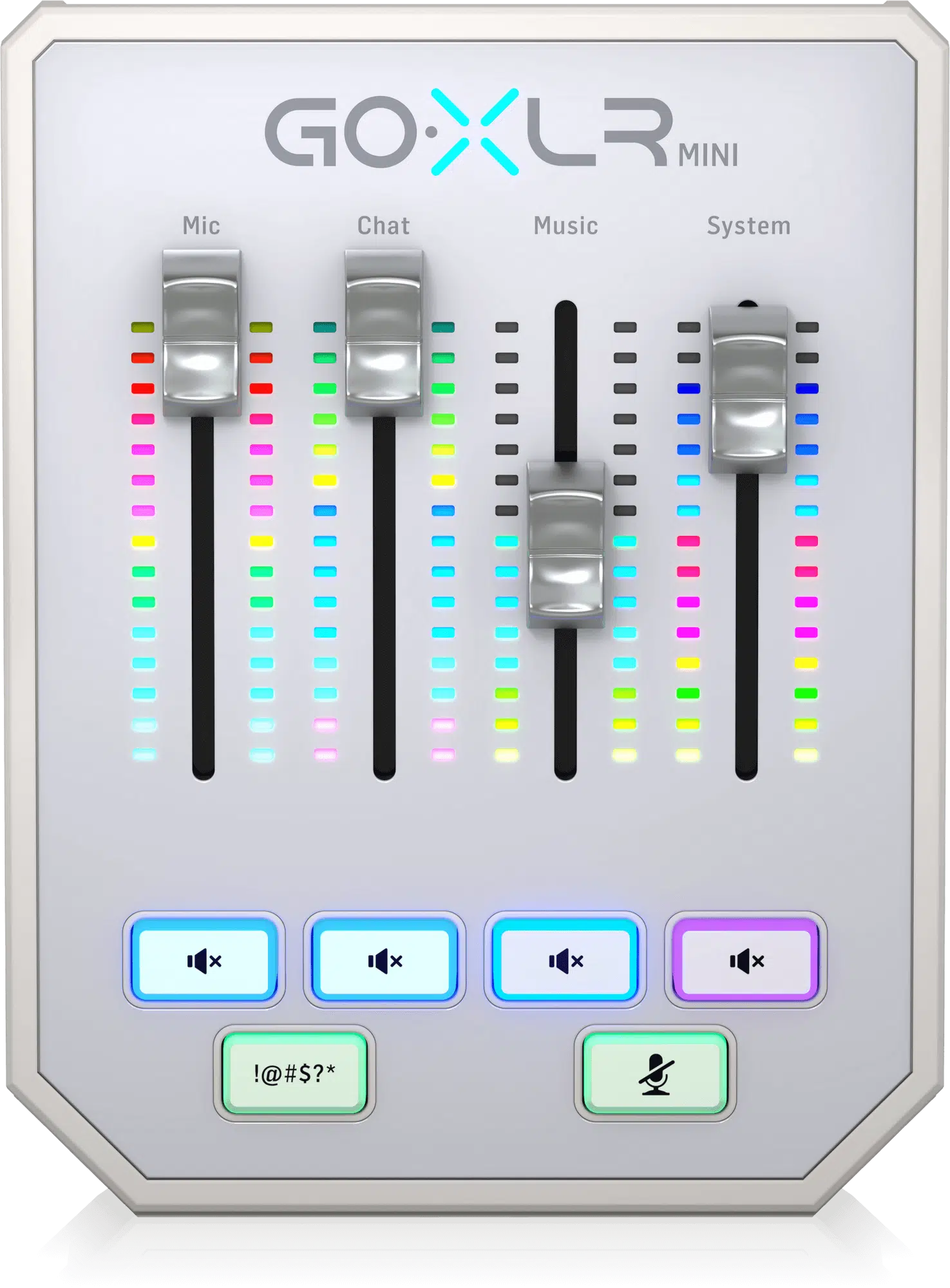

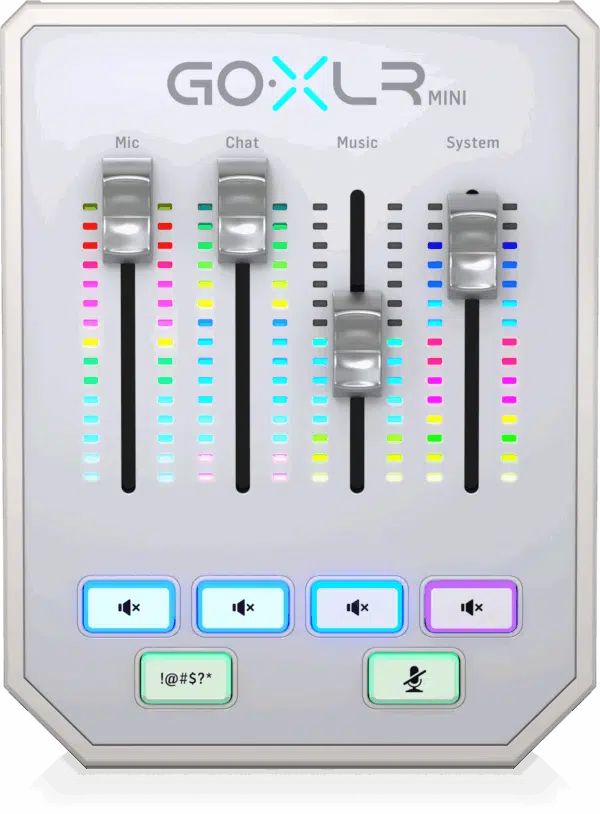

Four Dedicated Audio Faders
GoXLR MINI provides four physical channel faders so the audio sources you use most often can remain immediately accessible during a stream, gaming session or voice call.
Different Windows audio devices and applications can be assigned to separate mixer channels, allowing you to change one source without changing everything else in the mix.
When GoXLR MINI is part of a gaming and streaming desk, a capable
gaming PC
provides the system side of a flexible creator setup.
Multiple USB Audio Devices in Windows
GoXLR MINI establishes multiple USB audio devices in Windows so compatible applications can be routed independently instead of being combined into one master computer output.
This makes it possible to keep sources such as game audio, chat, music and other applications on separate controls, giving the creator quicker access to the parts of the mix that change most often.
Ultra-Low-Noise Midas Microphone Preamp
The balanced XLR microphone input is paired with TC Helicon's ultra-low-noise Midas microphone preamp, giving compatible broadcast, dynamic and condenser microphones a dedicated input path through the mixer.
Switchable +24V phantom power can be enabled through the control application for compatible microphones that require phantom power.
Built-In Microphone Processing
EQ
Equalization provides control over the tonal balance of the microphone signal so the voice can be adjusted for the setup and microphone being used.
Compression
Compression helps manage changes in vocal level and can make the microphone signal more consistent during live use.
Gate
Gating provides control over low-level unwanted sound when the microphone signal falls below the configured threshold.
Cough Button
The dedicated Cough control quickly mutes the microphone while the button is held, giving the creator immediate control without opening software.
Bleep Button
A dedicated censor control provides an instant bleep function for live broadcasts and streams.

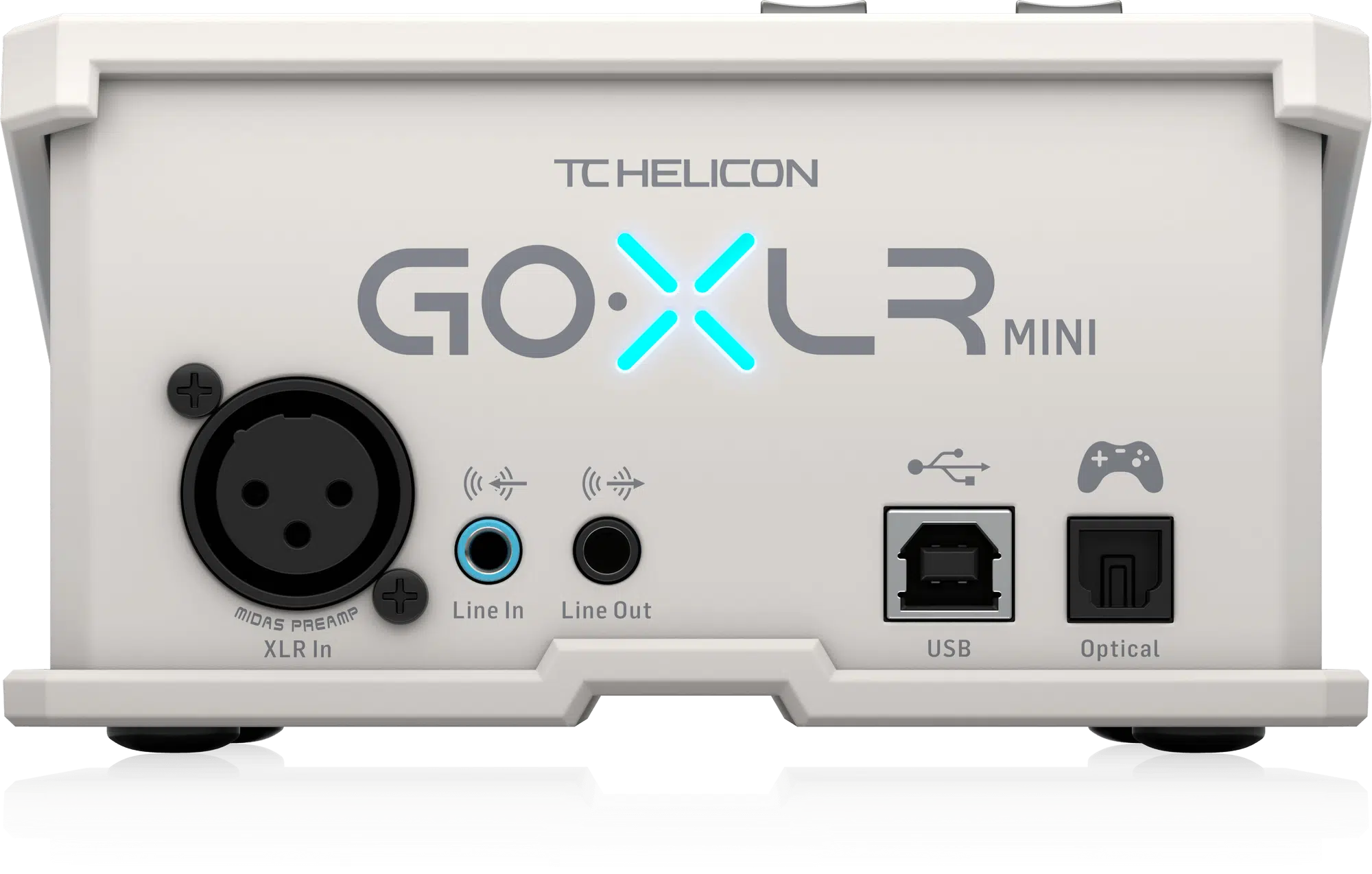

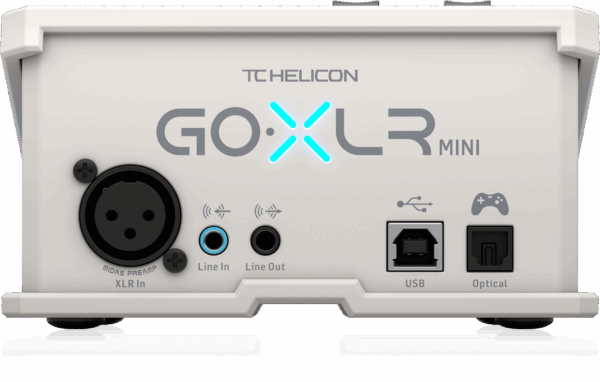

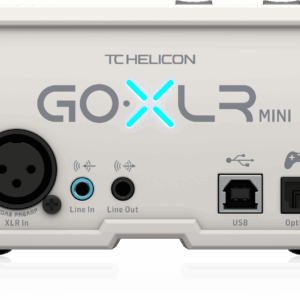

Flexible Analog and Digital Connections
Analog connectivity includes a balanced XLR microphone input or 3.5mm microphone input, stereo line input, stereo line output and stereo headphone output.
Digital connectivity includes USB 2.0 Type-B for the computer connection and an optical Toslink input for compatible digital audio sources.
Add a compatible
headset or headphones
for monitoring, gaming audio and communication at the same desk.
24-bit / 48kHz
A/D and D/A audio conversion.
10Hz–20kHz
Specified frequency response of +0 / -2dB.
>110dB
Specified dynamic range.
GoXLR MINI App Control
The GoXLR MINI App provides centralized control over audio routing, lighting, mute modes and profiles, allowing the hardware to be configured around different creator workflows.
Profiles make it easier to switch between gaming, streaming, work and other configurations without rebuilding the entire routing setup each time.
Customizable RGB Lighting
Integrated RGB lighting makes the mixer easier to identify at a glance while allowing its visual appearance to be adjusted through the GoXLR MINI App to suit the rest of the desk setup.
Windows Software Compatibility
The GoXLR MINI App officially supports Windows 7, Windows 8, Windows 10 and Windows 11.
TC Helicon does not provide official macOS or Linux support for the GoXLR MINI App.
Available in Black and White
GoXLR MINI - Black
The Black variant uses the standard GoXLR MINI finish with customizable illuminated controls.
GoXLR MINI-WH - White
The White variant provides the same GoXLR MINI platform in a lighter finish for white or bright creator setups.
What's in the Box
- TC Helicon GoXLR MINI in the selected color
- USB Cable
Complete Your Streaming Setup
GoXLR MINI can act as the audio-control center of a wider streaming desk. Browse
audio products
for compatible microphones and headphones, or add
speakers
for external desktop playback.
More gaming and creator equipment is available through the
AX Store Kuwait shop.
Frequently Asked Questions
What is the TC Helicon GoXLR MINI used for?
The TC Helicon GoXLR MINI is a USB audio interface and broadcast mixer designed to give streamers and content creators direct control over microphone, game, chat, music and application audio.
How many faders does the TC Helicon GoXLR MINI have?
The TC Helicon GoXLR MINI has four dedicated physical faders that can be assigned to compatible audio sources and Windows audio devices.
Does the TC Helicon GoXLR MINI support XLR microphones and phantom power?
Yes. The GoXLR MINI includes a balanced XLR microphone input with an ultra-low-noise Midas microphone preamp and switchable +24V phantom power for compatible microphones.
What microphone processing does the TC Helicon GoXLR MINI provide?
The TC Helicon GoXLR MINI provides built-in EQ, compression and gating for microphone processing.
What audio connections does the TC Helicon GoXLR MINI have?
The TC Helicon GoXLR MINI provides an XLR or 3.5mm microphone input, stereo line input, stereo line output, stereo headphone output, USB 2.0 Type-B connection and optical Toslink input.
Which operating systems are officially supported by the GoXLR MINI App?
The GoXLR MINI App officially supports Windows 7, Windows 8, Windows 10 and Windows 11. TC Helicon does not provide official macOS or Linux support.
Which colors are available for the TC Helicon GoXLR MINI?
The TC Helicon GoXLR MINI is available in Black and White variants.
What warranty is included with the TC Helicon GoXLR MINI?
The TC Helicon GoXLR MINI includes a 1-year warranty.
Why Buy from AX Store Kuwait?
AX Store Kuwait offers gaming, streaming and professional audio equipment for building complete creator setups. Available payment methods include KNET, Credit Card, Deema and Taly.
For information about applicable return conditions,
view the AX Store return policy.
Technical Specifications
| Brand |
TC Helicon |
| Product |
GoXLR MINI |
| Variants |
GoXLR MINI Black / GoXLR MINI-WH White |
| Model Codes |
0803-AAB / 0803-AAI |
| Available Colors |
Black / White |
| Product Type |
Online Broadcast Mixer with USB Audio Interface |
| Faders |
4 |
| Buttons |
6 |
| Lighting |
RGB |
| Microphone Preamp |
Ultra-Low-Noise Midas Preamp |
| Microphone Input |
1 × XLR Balanced or 1 × 3.5mm TS Unbalanced |
| Phantom Power |
+24V, Switchable via Control App |
| Line Input |
1 × 3.5mm TRS Stereo |
| Line Output |
1 × 3.5mm TRS Stereo |
| Headphone Output |
1 × 3.5mm TRS Stereo |
| USB |
1 × USB 2.0 Type-B |
| Optical Input |
1 × Toslink |
| A/D - D/A Conversion |
24-Bit / 48kHz |
| Microphone Processing |
EQ / Compression / Gate |
| Frequency Response |
10Hz–20kHz, +0 / -2dB |
| Dynamic Range |
>110dB |
| Signal-to-Noise Ratio |
>101dB |
| Software |
GoXLR MINI App |
| Windows Support |
Windows 7 / 8 / 10 / 11 |
| macOS Support |
No Official Support |
| Linux Support |
No Official Support |
| Power Input |
USB Power, 5V DC / 0.5A |
| Power Consumption |
2.5W |
| Dimensions |
70 × 132 × 168 mm |
| Weight |
0.68 kg |
| Warranty |
1 Year |
