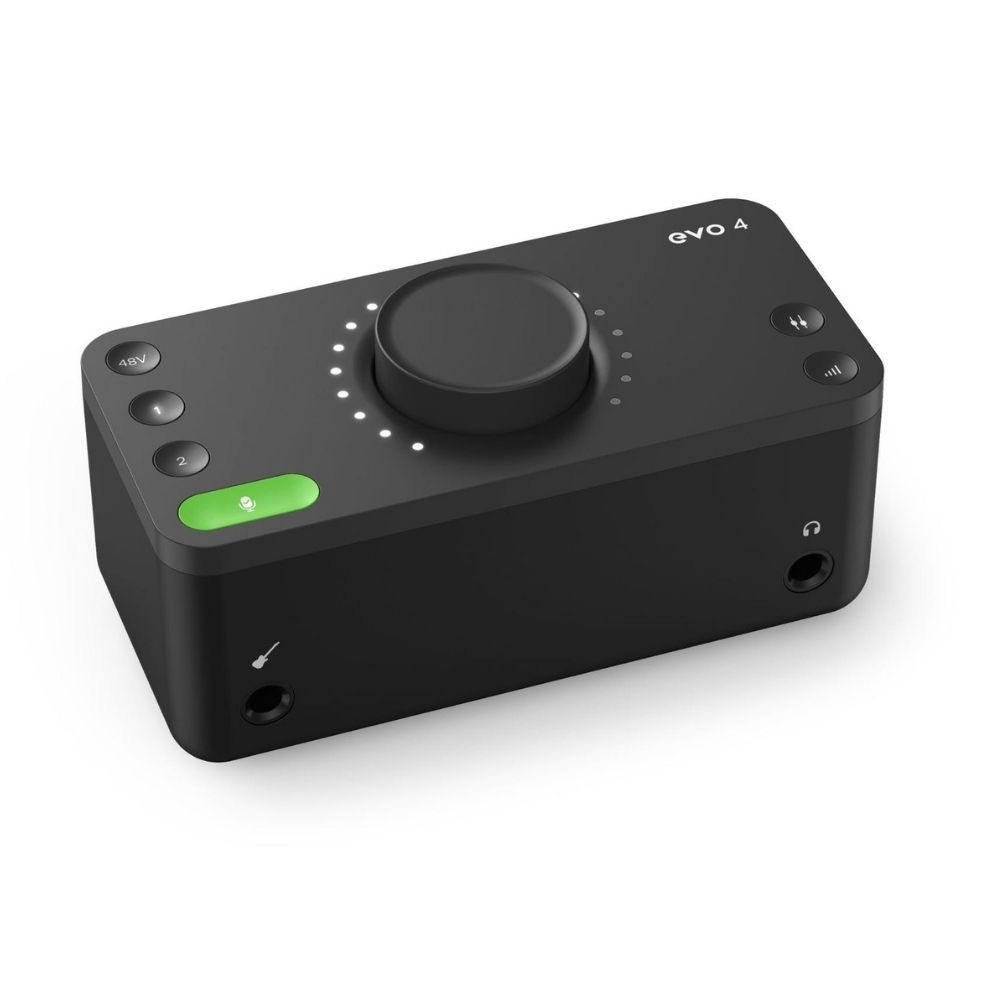

AUDIENT EVO 4 2-Channel Audio Interface
- For Musicians, Podcasters, and More
- High Speed USB 2.0 Computer Interface
- 2 High-Quality Mic/Line Inputs
- JFET Instrument Input
49.00 د.ك
Out of stock
Share
Brand
GET IN THE KNOW
Product description
GET IN THE KNOW
Product description
Audient EVO4Â Specs
| Form Factor | Tabletop |
| Display | 1 x Multi-Segment LED Meter |
| Channels of I/O | Analog: 2 Inputs / 2 Outputs at 96 kHz |
| Max Sample Rate/Resolution | 96 kHz / 24-Bit |
| Number of Mic Preamps | 2 |
| Input Level Adjustment | 2 x Automatic 1 x Knob |
| Solo/Mute | Mute per Input Channel, Master |
| Pad | None |
| High-Pass Filter | None |
| Expansion Slots | None |
Connectivity
| Analog Audio I/O | 2 x Combo XLR-1/4″ TRS Balanced Mic/Line Input 1 x 1/4″ TS Unbalanced Hi-Z Input 2 x 1/4″ TRS Balanced Monitor Output 1 x 1/4″ TRS Unbalanced Headphone Output |
| Phantom Power | +48 V ± 4 V, Selectable On/Off (Selectable on Individual Inputs) |
| Phantom Power Current | 10 mA per Channel |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB Type-C (USB 2.0) |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless Connectivity | None |
| Memory Card Slot | None |
Performance
| Frequency Response | Mic Inputs: 10 Hz to 40 kHz ±0.5 dB Line, Hi-Z Inputs: 10 Hz to 20 kHz ±0.5 dB A/D Converters: 10 Hz to fs/2 ±0.5 dB D/A Converters: 10 Hz to fs/2 ±0.5 dB Headphone Outputs: 10 Hz to fs/2 ±0.5 dB |
| Gain/Trim Range | Mic/Line/Hi-Z Inputs: 58 dB |
| Max Input Level | Mic Inputs: +16 dBu Hi-Z Inputs: +10 dBu |
| Max Output Level | D/A Converters: +11 dBu |
| Headphone Output Power | 45 mW into 30 Ohms (Max) 52 mW into 60 Ohms (Max) 20 mW into 600 Ohms (Max) |
| Impedance | Mic Inputs: > 3 Kilohms (Balanced) Line Inputs: > 10 Kilohms (Balanced) Hi-Z Inputs: 1 Megohm (Unbalanced) |
| Dynamic Range | AD/DA Converters: 113 dBA |
| SNR | Mic/Line/Hi-Z Inputs: 100 dB |
| THD+N | A/D Converters: < 0.001% (1 kHz, at -1 dBFS) D/A Converters: < 0.0015% (1 kHz, at -1 dBFS) Headphone Outputs: < 0.0015% (1 kHz, at -1 dBFS) Hi-Z Inputs: < 0.3% (1 kHz) Mic/Line Inputs: < 0.0015% (1 kHz) |
| Crosstalk | Mic/Line Inputs: < -105 dBu Monitor Outputs: < 110 dBu Headphone Outputs: < -110 dBu Inputs: -105 dBu |
| EIN | Mic/Line Inputs: < -128 dB |
| CMRR | Mic/Line Inputs: > 85 dB |
Digital Audio
| dBFS Reference Level | Inputs: +8 dBu = 0 dBFS Outputs: +11 dBu = 0 dBFS |
| Sample Rates | Up to 96 kHz |
| Sample Rate Conversion | None |
| Bit Depths | Up to 24-Bit |
| Latency | 5 ms at 44.1 kHz (Dependent on Buffer Size, Input to Output) 4.1 ms at 96 kHz (Dependent on Buffer Size, Input to Output) |
| Sync Sources | Internal |
Compatibility
| OS Compatibility | macOS 10.7.5 or Later Windows 7 or Later (32-Bit, 64-Bit) iOS 6 or Later |
| Included Software | Cubase LE |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Supported Drivers/API & Plug-Ins | Core Audio (Mac) ASIO |
| Processor Requirement | Mac: Intel PC: 1.6 GHz Intel Core 2 AMD |
| RAM Requirements | 1 GB |
| Required Hardware | Available USB 2.0 Port USB Cable (Included) |
| Internet Connection | Required for Registration, Software/Driver Download |
Power
| Power Requirements | USB Bus Power |
Physical
| Dimensions | 5.51 x 2.64 x 2.64″ / 14 x 6.71 x 6.71Â cm |
| Weight | 12.7Â oz / 360.0Â g |
Packaging Info
| Package Weight | 1.29 lb |
| Box Dimensions (LxWxH) | 6.8 x 3.85 x 3.55″ |
