ASUS

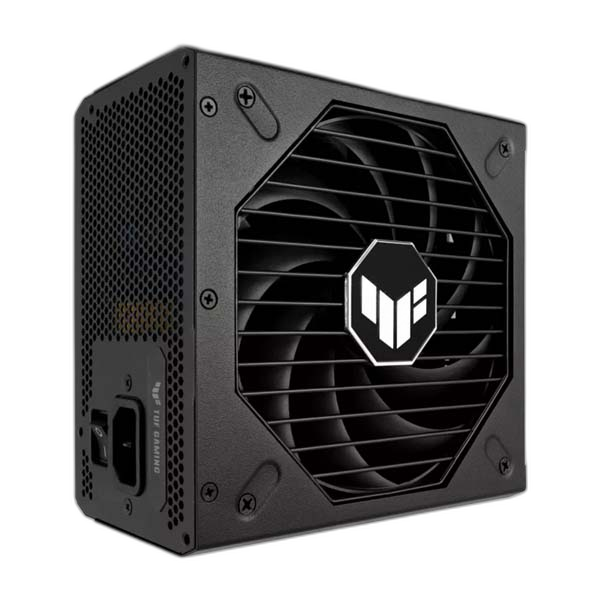

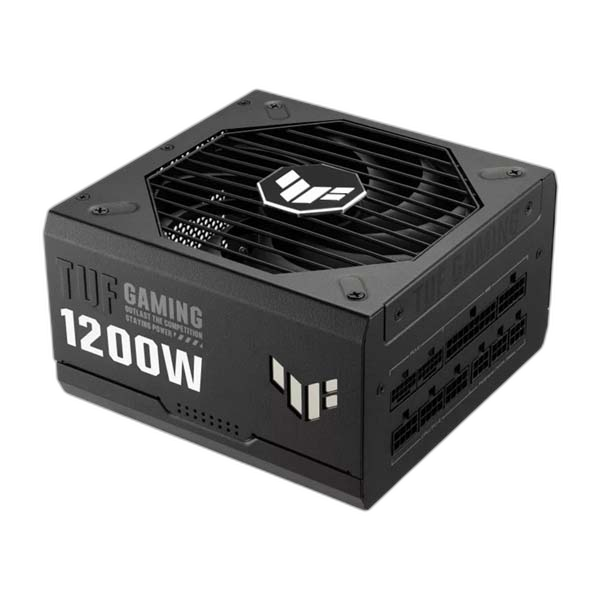

ASUS TUF GAMING 1200W 80 Plus Gold PSU
ASUS TUF Gaming 1200W Gold is a fully modular ATX power supply with 80 PLUS Gold efficiency, etched cables and an Axial-tech dual ball-bearing fan. Protective PCB coating supports its durability-focused design. Measures 150 × 150 × 86 mm; the current official specification lists ATX 3.1 and PCIe 16-pin support.
Overview
ASUS TUF GAMING 1200W GOLD
ASUS TUF Gaming 1200W Gold
ASUS TUF Gaming 1200W Gold combines a fully modular cable system with 80 PLUS Gold efficiency and an Axial-tech cooling fan. Protective PCB coating and tested components are central to its durability-focused design. The ATX-format unit measures 150 × 150 × 86 mm, with connectors for the motherboard, CPU, graphics card and storage. Available from AX Store in Kuwait.
1200 W
Rated Output
80+ Gold
Efficiency Certification
Fully Modular
Cable Design
Active PFC
Power Factor Correction
Plan around the power your build needs
The 1200 W rating describes the PSU’s output capacity, giving you a specification to compare against the combined needs of your components. The official power table lists up to 1188 W on the +12 V rail. Choose the power supply around your processor, graphics card and other hardware, including the requirements published by the component manufacturers.
Connect the cables your system uses
The fully modular layout lets you fit the required cables and leave unused connections out of the build. ASUS supplies etched cables intended to remain flexible while helping you arrange a tidy route behind the motherboard tray. Plan the paths before connecting the graphics card and CPU power leads so the finished layout stays accessible.
80 PLUS Gold efficiency
The PSU carries 80 PLUS Gold certification and uses Japanese capacitors as part of its efficiency-focused design. Efficiency concerns how much input power is converted into useful DC output rather than being lost as heat. It is a separate characteristic from the 1200 W capacity, so both figures are useful when comparing power supplies for a build.
Axial-tech cooling with dual ball bearings
The fan design combines a smaller central hub, longer blades and a barrier ring to direct airflow through the PSU. Dual ball bearings are used for the fan’s support. The unit operates in its automatic 0dB mode by default, with the fan starting when the load reaches the required level; the specification lists no separate 0dB control button.
A protective layer around the circuit board
ASUS applies a conformal PCB coating to help guard against moisture, dust and debris that could contribute to short circuits. The durability programme also includes component and environmental testing. These features are part of the PSU’s construction, while normal installation still calls for a suitable case, airflow and a clean operating environment.
Connections for current PC hardware
The current official specification lists ATX 3.1 support, two PCIe 16-pin connections, three PCIe 8-pin connections and two CPU 4+4-pin connections. SATA and peripheral power connections support the rest of the system. Use the supplied compatible cables and seat the connectors fully, following the component and PSU installation instructions.
Plan Power, Connectors and Case Fit
Check the system power requirements, required connectors and case clearance for the exact unit. Use cables approved for that specific power supply; modular cables are not universally interchangeable. Compare related options such as Silver Stone Hela Series 1200R ATX 1200W Power Supply - Black or Cooler Master XG850 ARGB Platinum 850W Fully Modular Power Supply, keeping the exact model and configuration in the decision. For the wider setup, explore ASUS Hyperion GR701 Full Tower E-ATX Gaming Case and check the connection, size or mounting requirements before pairing accessories. Browse the ASUS range at AX for more choices.
ASUS TUF Gaming 1200W Gold Setup Choices
Check the system power requirements, required connectors and case clearance for the exact unit. Use cables approved for that specific power supply; modular cables are not universally interchangeable.
Frequently Asked Questions
What output and efficiency does this model specify?
1200 W rated output with 80 PLUS Gold certification.
Which CPU and GPU power connections are listed?
CPU: Two 4+4-pin. PCIe 16-pin: Two, on both PSU and component sides. PCIe 8-pin: Three.
How does the fan and quiet mode work?
Axial-tech with dual ball bearings. 0dB operation is automatic by default; no separate 0db fan button.
What size is the PSU and which protection features are specified?
150 × 150 × 86 mm. Protections: OPP, OVP, UVP, SCP, OCP and OTP.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Power and construction
TUF Gaming 1200W Gold
1200 W
ATX12V
ATX 3.1
Active PFC
80 PLUS Gold
100–240 Vac
Fully modular, etched cables
150 × 150 × 86 mm
2.66 kg, PSU only
>120,000 hours at 40°C
Compliant
DC outputs and protection
25 A
25 A
130 W
99 A / 1188 W
0.8 A / 9.6 W
3 A / 15 W
OPP, OVP, UVP, SCP, OCP and OTP
Connections and cooling
One 24/20-pin
Two 4+4-pin
Two, on both PSU and component sides
Three
Five
Four
Axial-tech with dual ball bearings
Yes
Automatic by default; no separate 0dB fan button
No
Included cables and accessories
One, 610 mm
Two, 650 mm each
Two, 675 mm each
One, 675 mm
One, 675 mm
One 1-to-2 (400 + 120 mm) and one 1-to-3 (400 + 120 + 120 mm)
One 1-to-4 (400 + 150 + 150 + 150 mm)
Power cord, three TUF Gaming cable ties and user manual
