AZZA Legionaire ATX Mid Tower Gaming Case with 4 ARGB Fans - Black
AZZA Legionaire CSAZ-470 combines a Sliding Iron-Mesh Side with Four Supplied ARGB Fans. The Legionaire uses a sliding iron-mesh left panel rather than a glass display window.
Regular price
30.500 KWD
or 4 payments of 7.625 KWD with
Pay with card & save
29.000 KWD
Save 1.500 KWD
Overview
AZZA LEGIONAIRE CSAZ-470
A Sliding Iron-Mesh Side with Four Supplied ARGB Fans
AZZA Legionaire CSAZ-470 combines a Sliding Iron-Mesh Side with Four Supplied ARGB Fans. The Legionaire uses a sliding iron-mesh left panel rather than a glass display window.
400 mm
GPU length clearance
4 ARGB fans
Supplied front and rear
170 mm
CPU-cooler clearance
Iron mesh
Sliding side panel
The Chassis Design
The Legionaire uses a sliding iron-mesh left panel rather than a glass display window. The black chassis measures 483 H × 220 W × 440 D mm and weighs 6.1 kg, with an ATX mid-tower layout supporting larger motherboard formats. Consider its complete exterior dimensions alongside the available desk or floor space, leaving access for the rear cables and the panels used during assembly.
Included Cooling and Lighting
Three LFO-3812D 120 mm ARGB fans are supplied at the front, with a fourth 120 mm ARGB fan at the rear. The manufacturer explicitly identifies the rear fan as PWM; the front fan-control type should be checked against its supplied wiring. Connect fan power and any separate lighting leads to their specified interfaces. Choose additional cooling around the installed components and the positions that remain available.
Radiator and Fan Positions
The front supports 280 or 360 mm radiators, with 240 or 280 mm at the top. Fan mounts accommodate three 120 mm or three 140 mm units in front, three 120 mm or two 140 mm units above, one rear 120 mm and two shroud 120 mm fans. Plan one compatible assembly for each mounting position, accounting for the full fan-and-radiator thickness around memory, motherboard connections and adjacent cooling hardware.

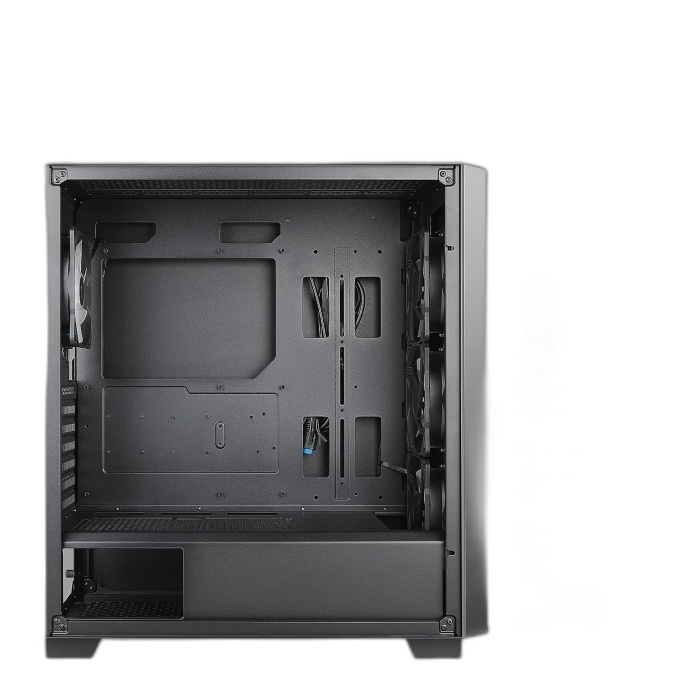

Motherboard and Component Fit
E-ATX, ATX, Micro-ATX and Mini-ITX motherboards are listed. Graphics-card length clearance is 400 mm and CPU-cooler height clearance is 170 mm. The seven-slot motherboard area is paired with a separately selected, bottom-mounted ATX power supply. Compare complete component dimensions, including protruding plugs and graphics power cables, before securing the final mounting positions. The listed clearances describe individual limits rather than every possible combined installation.
Storage, Access and Routing
Four 2.5-inch SSD positions and two 3.5-inch HDD positions provide storage choices. The sliding mesh side opens the main hardware area, while the selected drive and cable layout can be arranged around the lower power-supply section. Position the selected drives together with the power and data leads, keeping the cooling paths clear. Leave enough slack at the connectors to remove the relevant panels for maintenance.
Model
AZZA Legionaire CSAZ-470
Case size
Mid Tower
Motherboard support
E-ATX / ATX / Micro-ATX / Mini-ITX

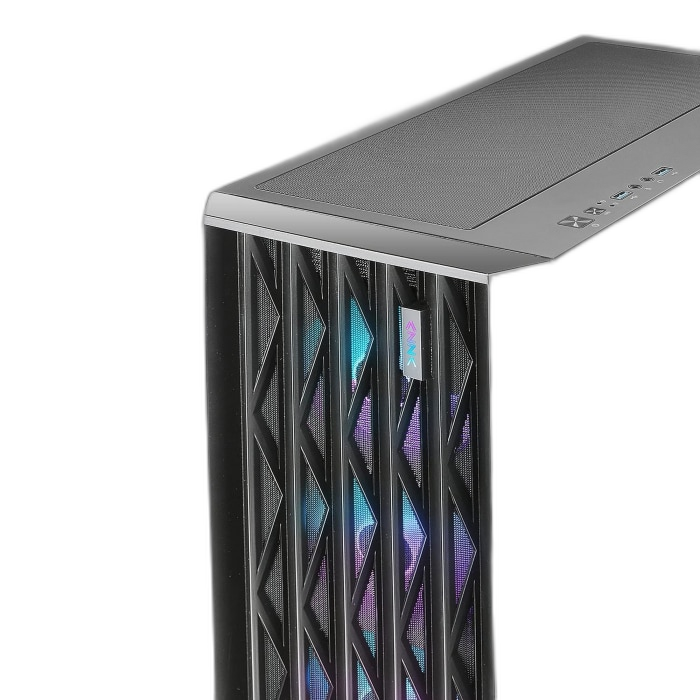

Everyday Connections
Two USB-A 3.0 ports and HD audio provide the main case I/O. The LED button controls the supported addressable-lighting arrangement, with motherboard synchronisation available through the corresponding compatible connection and software. Route the internal front-panel leads to the corresponding motherboard headers during assembly. USB performance and available lighting-control features depend on the connected host hardware and supported control arrangement.
Complete Your Workspace
Explore PC Cases to compare suitable options and complete your setup.
Frequently Asked Questions
Which motherboard formats fit AZZA Legionaire CSAZ-470?
E-ATX / ATX / Micro-ATX / Mini-ITX.
Which fans are included?
3 × LFO-3812D 120 mm front ARGB; 1 × 120 mm rear ARGB PWM.
What graphics-card length fits?
400 mm.
What CPU-cooler height fits?
170 mm.
Which radiator positions are available?
Front: 280 / 360 mm; top: 240 / 280 mm.
Which front connections are available?
2 × USB-A 3.0; HD audio; LED button.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
Compare Azza Prime ATX Mid-Tower Case With 3 ARGB Fans. Match the exact model, connection and configuration to your setup.
THE DETAILS
Technical specifications
Case Hardware
AZZA Legionaire CSAZ-470
Mid Tower
E-ATX / ATX / Micro-ATX / Mini-ITX
CSAZ-470
483 H × 220 W × 440 D mm
6.1 kg
Sliding iron mesh; not tempered glass
3 × LFO-3812D 120 mm front ARGB; 1 × 120 mm rear ARGB PWM
400 mm
170 mm
Bottom-mounted ATX; selected separately
Front: 280 / 360 mm; top: 240 / 280 mm
Front: 3 × 120 or 140; top: 3 × 120 or 2 × 140; rear: 120; PSU shroud: 2 × 120 mm
4 × SSD; 2 × HDD
7
2 × USB-A 3.0; HD audio; LED button
Case LED button or compatible motherboard ARGB synchronisation
