Broadlink RM Mini3 Smart WiFi IR Home Hub

BroadLink RM mini3 connects a compatible 2.4 GHz Wi-Fi network to infrared-controlled home equipment. Automatic code matching, manual IR learning and scheduled timers support a phone-controlled setup for compatible televisions, audio equipment and air conditioners, with a compact Micro-USB-powered hub.

SKU: 8541545902

Regular price 14.500 KWD

or 4 payments of 3.625 KWD with

Pay with card & save

14.000 KWD Save 0.500 KWD

Overview

BROADLINK RM MINI3

Wi-Fi Control for Compatible Infrared Devices

2.4 GHz

Wi-Fi connection band

Infrared

Compatible appliance control

15 Timers

Maximum scheduled timer count

Micro USB

5 V, 1 A power input

Bring Infrared Controls into One Setup

The RM mini3 works with compatible infrared-controlled equipment such as televisions, audio systems, DVD players and air conditioners. It provides a central point for sending supported IR commands. Place the hub where the infrared signal can reach the devices that belong in the intended room arrangement.

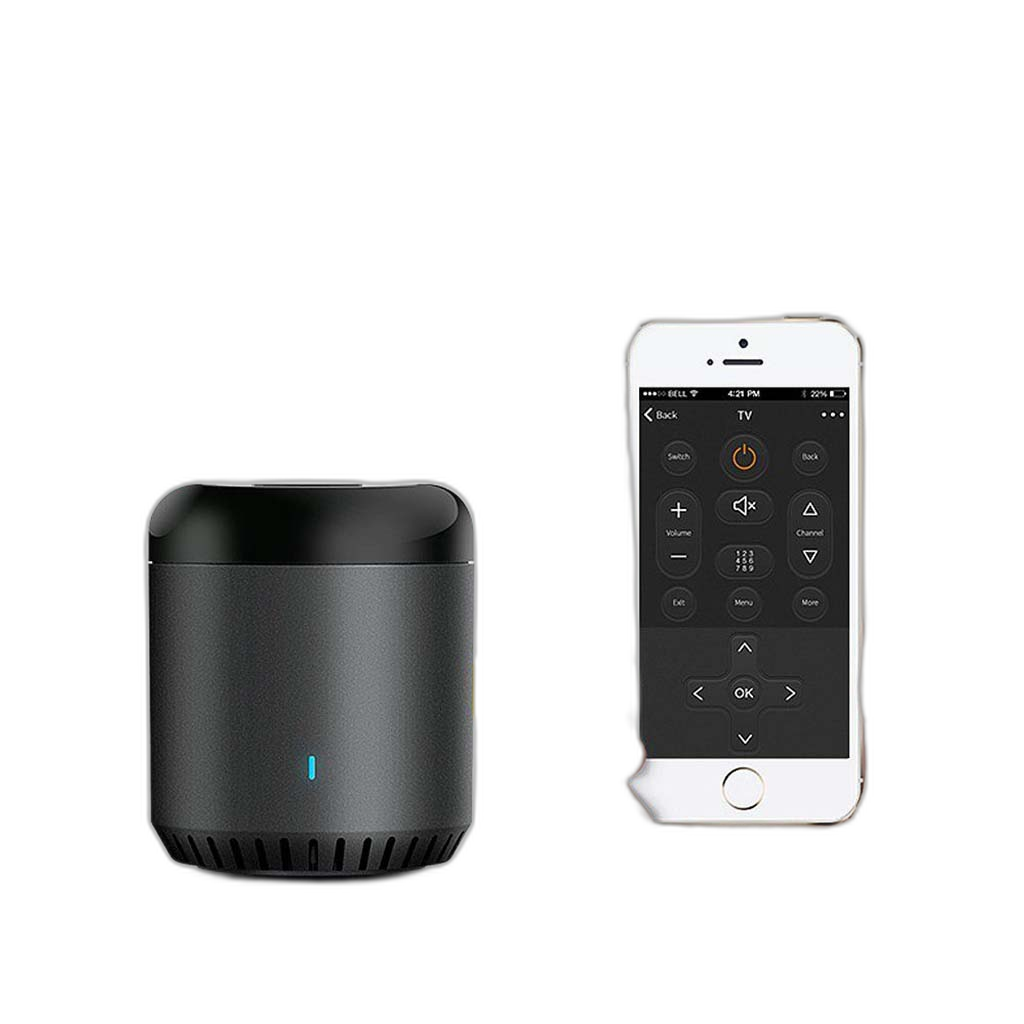

Connect over 2.4 GHz Wi-Fi

The manufacturer specifies 802.11 b/g/n Wi-Fi on the 2.4 GHz band. The hub uses that network connection for the supported control workflow, while a phone can reach the service through an appropriate network connection. The mobile data reference describes phone access, rather than a cellular modem inside the hub.

Automatic IR Code Matching

The original model supports an automatic code-matching workflow for compatible infrared equipment. This helps locate suitable commands without rebuilding every control manually. Device support remains dependent on the available IR codes and the functions implemented by the equipment being controlled.

Manual Learning and Cloud Codes

Manual infrared-code learning provides another way to arrange supported remote commands. The manufacturer also lists cloud IR code updates for the platform. Use the suitable setup application and model instructions to identify the appliance and test its controls before relying on a scheduled action.

Scheduled Control

The original datasheet specifies support for up to fifteen scheduled timers. Timers can become part of a routine for compatible equipment after the relevant commands have been tested. Keep the network connection and device power arrangement in mind when choosing the actions and timing for the room.

Dimensions

55 × 55 × 65 mm

Power input

5 V DC, 1 A; Micro USB

Operating environment

0–50°C; relative humidity up to 85%

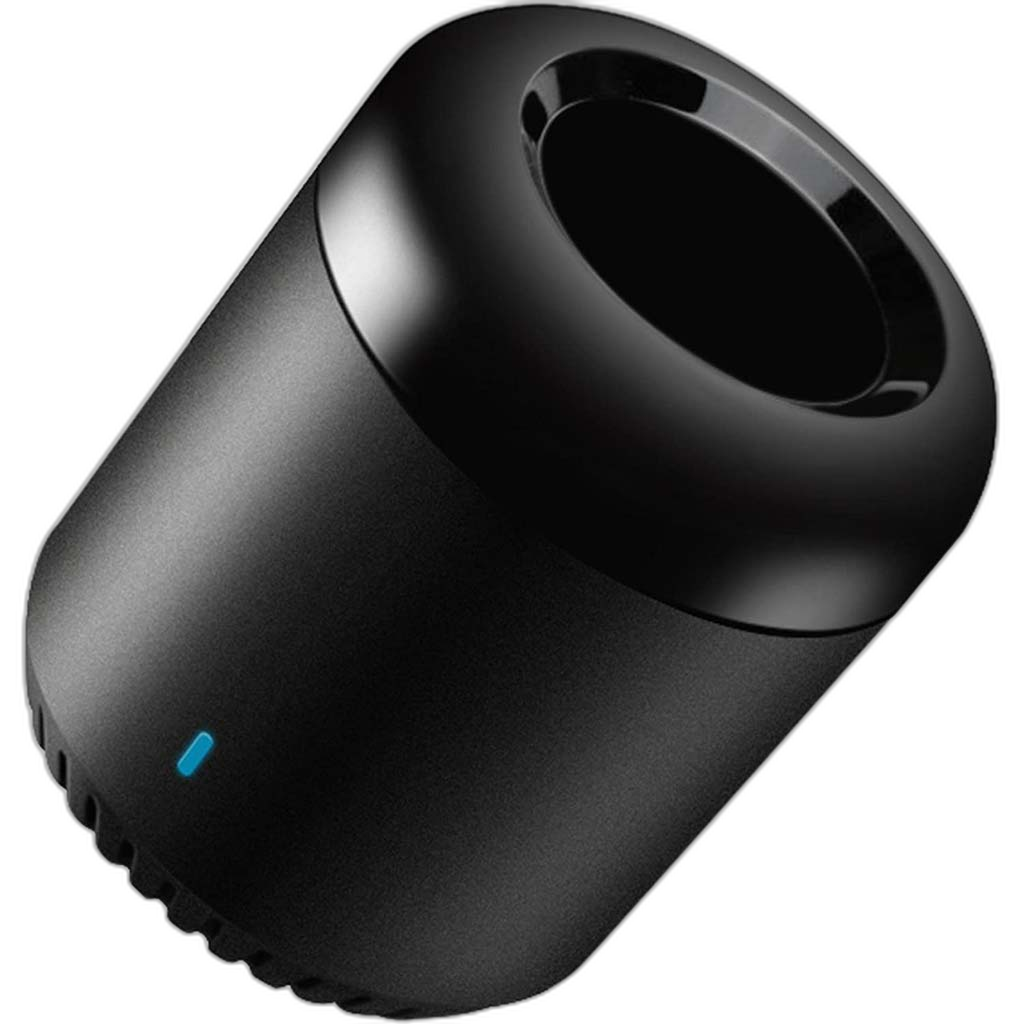

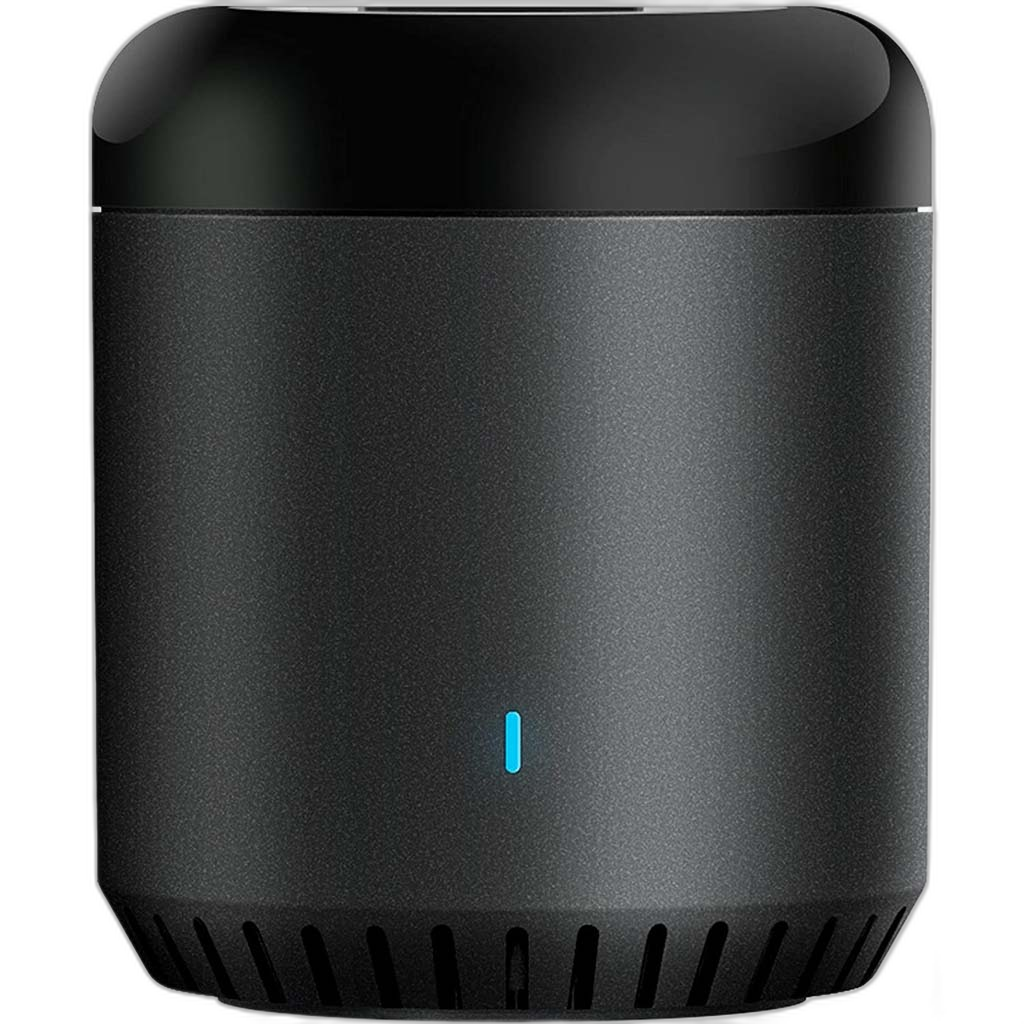

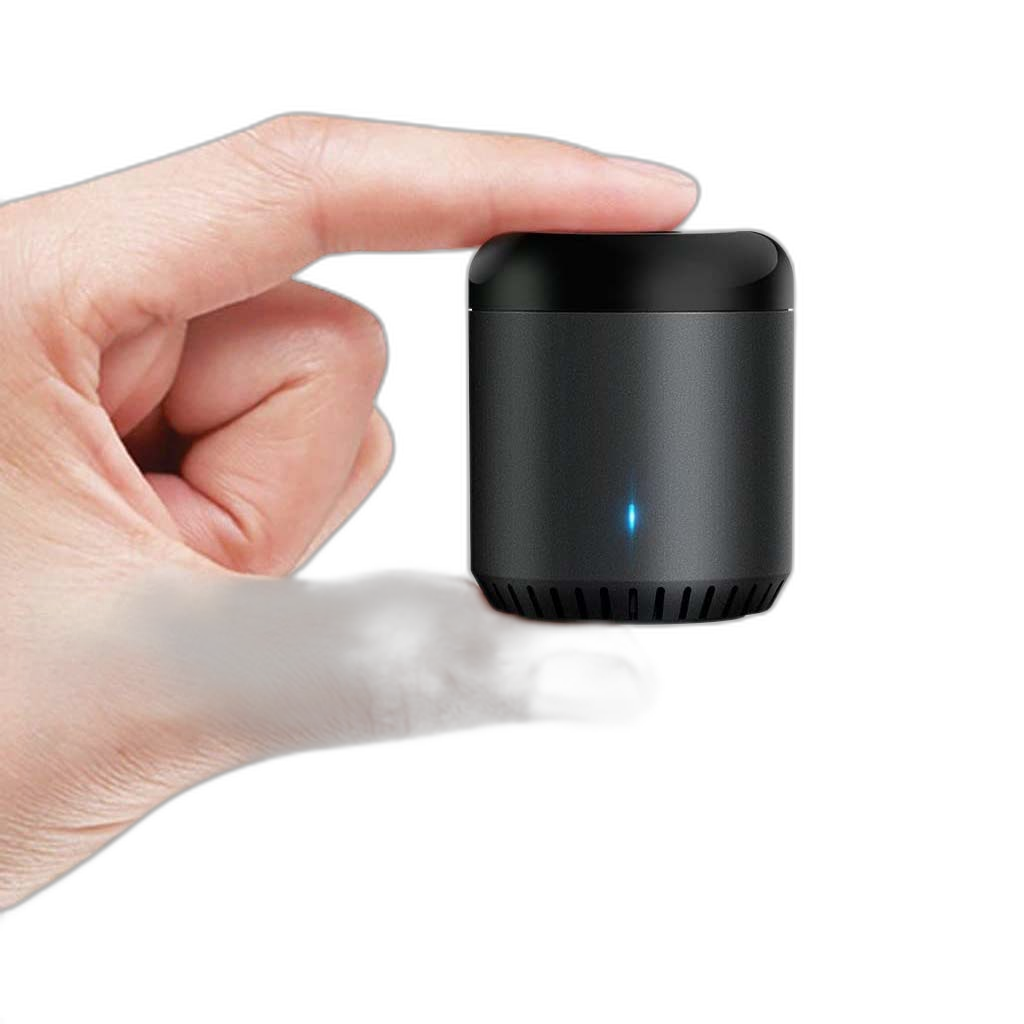

Compact Micro-USB-Powered Hardware

The RM mini3 measures 55 × 55 × 65 mm and uses a 5 V, 1 A Micro-USB power input. The IR specification is 38 kHz with multi-direction operation and a stated 8–10 m range under suitable conditions. Actual reach depends on placement, the device and surrounding obstacles.

Complete Your Workspace

Explore Hubs & Controllers to compare suitable options and complete your setup.

Frequently Asked Questions

Does RM mini3 control 433 MHz RF devices?

The original RM mini3 is the infrared model. The shared datasheet reserves 433 MHz RF control for RM pro+.

Which Wi-Fi band is supported?

It supports 2.4 GHz 802.11 b/g/n Wi-Fi.

Can it learn infrared commands?

Yes. The manufacturer lists automatic matching, manual IR learning and cloud IR code updates.

How is the hub powered?

It uses a Micro-USB connection with a specified 5 V DC, 1 A input.

Build Your Setup with AX Store Kuwait

Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.

THE DETAILS

Technical specifications

Control and Wireless

Model

RM mini3

Device control

Compatible infrared devices

Wi-Fi

802.11 b/g/n; 2.4 GHz

IR setup

Automatic matching; manual IR learning; cloud IR code update

Scheduled timers

Up to 15

IR specification

38 kHz; multi-direction; stated range 8–10 m, conditions dependent

RF control

Not an RM mini3 feature; 433 MHz RF applies to RM pro+ in shared datasheet
