Cooler Master MasterCase H500 ARGB Mid Tower
The MasterCase H500 ARGB combines two supplied 200 mm ARGB front fans with a choice of mesh and transparent front panels. A tempered-glass side window, rear exhaust fan and upper grip organise the airflow-focused ATX case around the installed hardware.
Regular price
35.500 KWD
or 4 payments of 8.875 KWD with
Pay with card & save
34.000 KWD
Save 1.500 KWD
Overview
COOLER MASTER MASTERCASE H500 ARGB
Cooler Master MasterCase H500 ARGB
Cooler Master MasterCase H500 ARGB: The MasterCase H500 ARGB combines two supplied 200 mm ARGB front fans with a choice of mesh and transparent front panels. A tempered-glass side window, rear exhaust fan and upper grip organise the airflow-focused ATX case around the installed hardware. Available from AX Store in Kuwait.
2 × 200 mm
Front ARGB fans
410 mm
GPU length clearance
167 mm
CPU-cooler clearance
2 front panels
Mesh or transparent

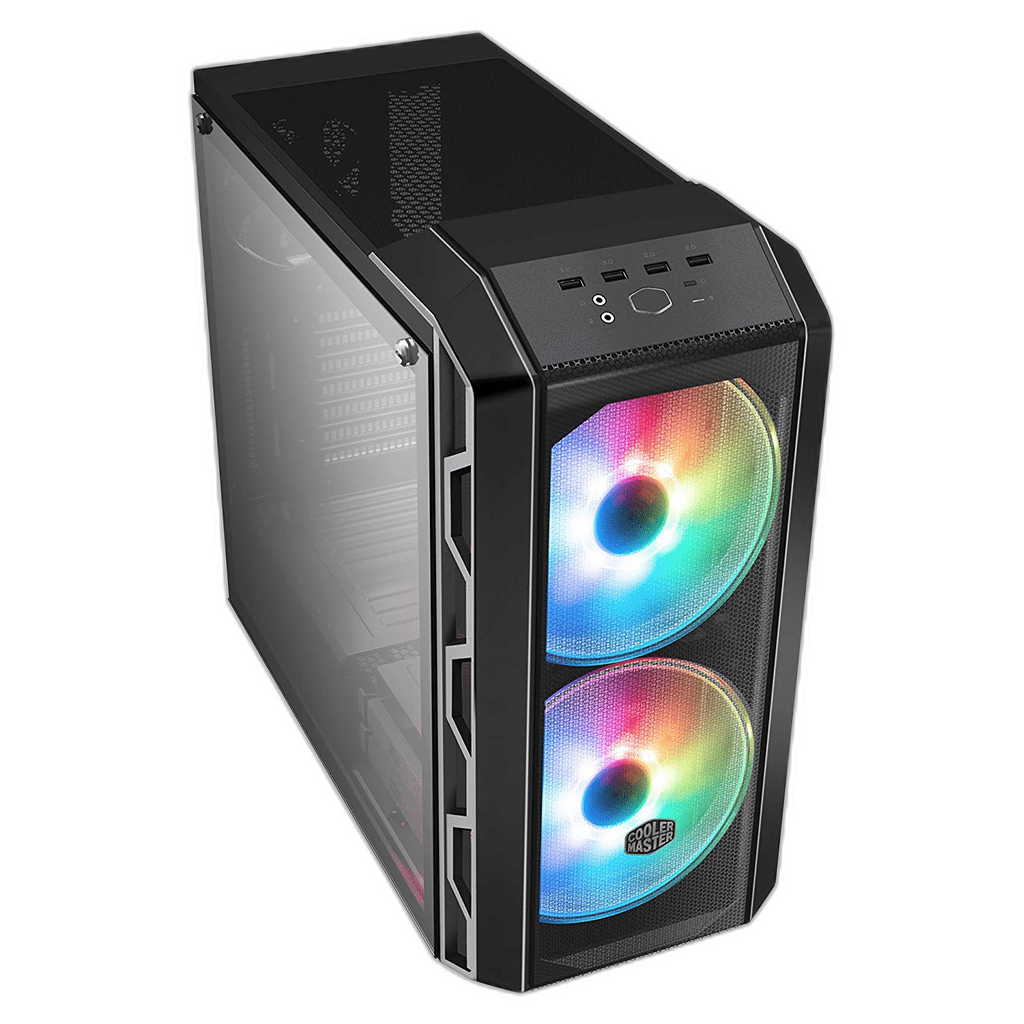

The Case Design
Two supplied front-panel designs let the H500 use either a mesh intake or a transparent front presentation. The tempered-glass side displays the motherboard and graphics card, while an upper grip helps handle the empty chassis during assembly. The body measures 525 L × 228 W × 502 H mm including its panels.
Supplied Cooling and Lighting
Two 200 mm ARGB fans are installed at the front and a separate 120 mm black fan is fitted at the rear. The large front fans provide the illuminated intake arrangement, with lighting and fan power connected through the wiring supplied for the actual production version.
Radiator and Fan Mounting
The front supports radiator sizes up to 360 mm, with 240 mm support at the top and 120 mm at the rear. Front fan alternatives include three 120 mm or two 140 mm units. Choose one mounting arrangement for each position and compare the full radiator-and-fan assembly with the adjacent hardware.
Component Clearance

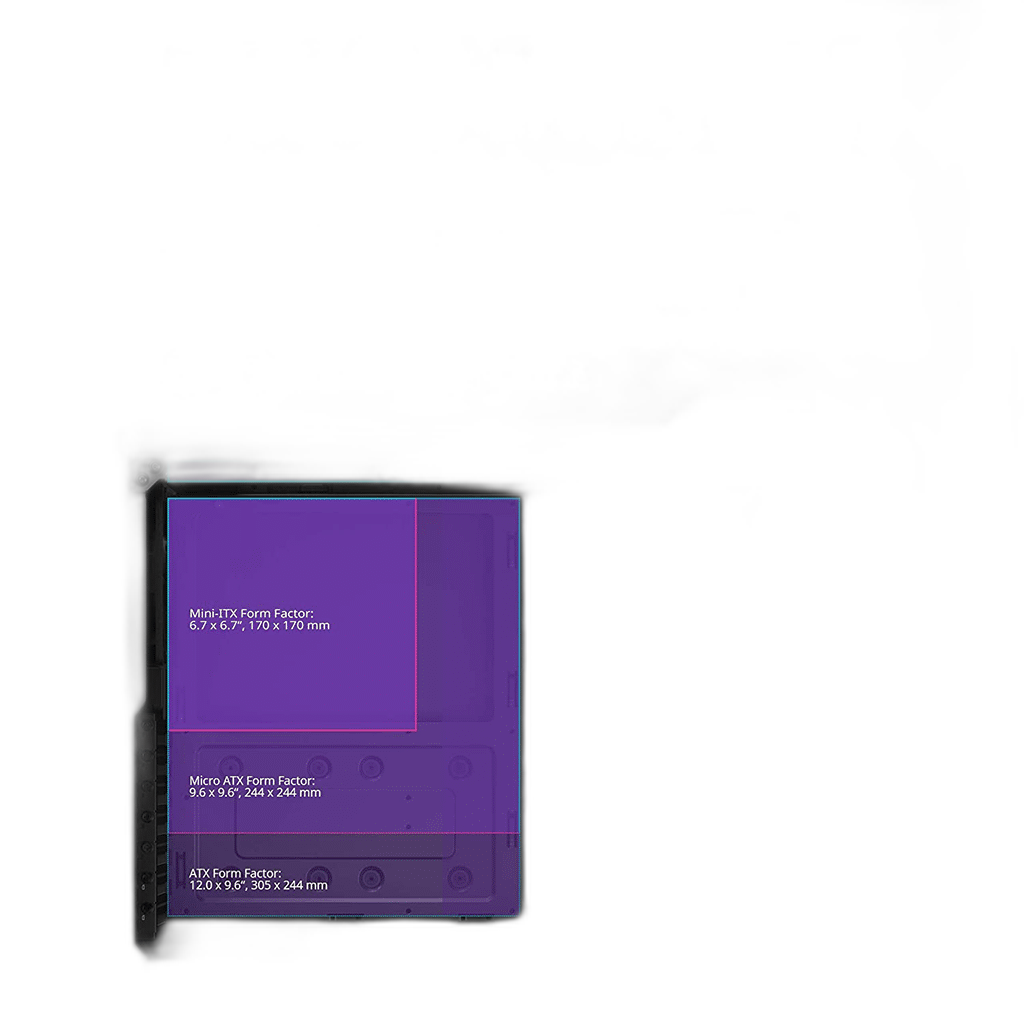

GPU length clearance is 410 mm, CPU-cooler height clearance is 167 mm and PSU length clearance is 180 mm. Supported boards include E-ATX up to 12 × 14.1 inches, although larger boards can affect cable-routing features. Allow room for the graphics power connection and the selected front cooling arrangement.
Access, Storage and Routing
Two combined 2.5/3.5-inch drive mounts and two further 2.5-inch positions provide storage choices around the lower and rear areas. Filtering at the front, top and bottom supports cleaning access. Route drive and power cables away from the front intake path before securing the remaining case panels.
Manufacturer model
MCM-H500-IGNN-S01
Dimensions
525 L × 228 W × 502 H mm, including panels
Included fans
Front: 2 × 200 mm ARGB; rear: 1 × 120 mm black
Connections and Control
Front I/O provides two USB-A 3.2 Gen 1 ports, two USB 2.0 ports and separate microphone and headphone connections. The supplied ARGB controller or hub arrangement varies by region and production version. Use the corresponding included leads and supported lighting-control setup for the actual unit.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as XIGMATEK Aquarius Plus Mid Tower Case or LIAN LI O11 Dynamic XL Full Tower Case, USB 3.0, keeping the exact model and configuration in the decision. For the wider setup, explore Corsair iCUE ML120 RGB ELITE 120mm Fan, Triple Pack and check the connection, size or mounting requirements before pairing accessories. Browse the Cooler Master range at AX for more choices.
Cooler Master MasterCase H500 ARGB Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply, Corsair iCUE SP120 RGB ELITE Performance 120mm Triple Fan Pack.
Frequently Asked Questions
Which motherboard formats fit?
E-ATX / ATX / Micro-ATX / Mini-ITX.
Which fans are supplied?
Front: 2 × 200 mm ARGB; rear: 1 × 120 mm black.
Which fan is supplied?
Front: 2 × 200 mm ARGB; rear: 1 × 120 mm black.
What graphics-card length is supported?
410 mm.
What CPU-cooler height is supported?
167 mm.
Which radiator positions are supported?
Front: up to 360 mm; top: up to 240 mm; rear: 120 mm.
Which front connections are available?
2 × USB-A 3.2 Gen 1; 2 × USB 2.0; microphone; headphone.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Case Hardware
Cooler Master MasterCase H500 ARGB
Mid Tower
E-ATX / ATX / Micro-ATX / Mini-ITX
MCM-H500-IGNN-S01
525 L × 228 W × 502 H mm, including panels
Front: 2 × 200 mm ARGB; rear: 1 × 120 mm black
410 mm
167 mm
180 mm
Up to 12 × 14.1 inches; may affect cable routing
Front: up to 360 mm; top: up to 240 mm; rear: 120 mm
2 × combined 2.5/3.5-inch; 2 × 2.5-inch
2 × USB-A 3.2 Gen 1; 2 × USB 2.0; microphone; headphone
Supplied arrangement depends on production version and region
