Elgato Wave Mic Arm Pro with Solid Build Quality
Elgato Wave Mic Arm Pro. Move your microphone into place with a low-profile arm built for frequent adjustments. Wave Mic Arm Pro combines a metal body, gas-piston suspension and integrated cable channels in your choice of black or white.
Color
Overview
ELGATO WAVE MIC ARM PRO
Elgato Wave Mic Arm Pro
Elgato Wave Mic Arm Pro: Move your microphone into place with a low-profile arm built for frequent adjustments. Wave Mic Arm Pro combines a metal body, gas-piston suspension and integrated cable channels in your choice of black or white. Explore this model at AX Store in Kuwait.
3 kg
Maximum combined load
Gas piston
Suspension mechanism
750 mm
Complete reach with ball head
All metal
Arm construction
Move without interrupting the moment
Gas-piston suspension supports smooth, quiet repositioning. The arm rotates through 360° horizontally, with 70° upward and 50° downward vertical movement. Check the actual input, working position and settings before the session, then confirm the result with the intended recording or computer workflow.
Support a heavier microphone setup

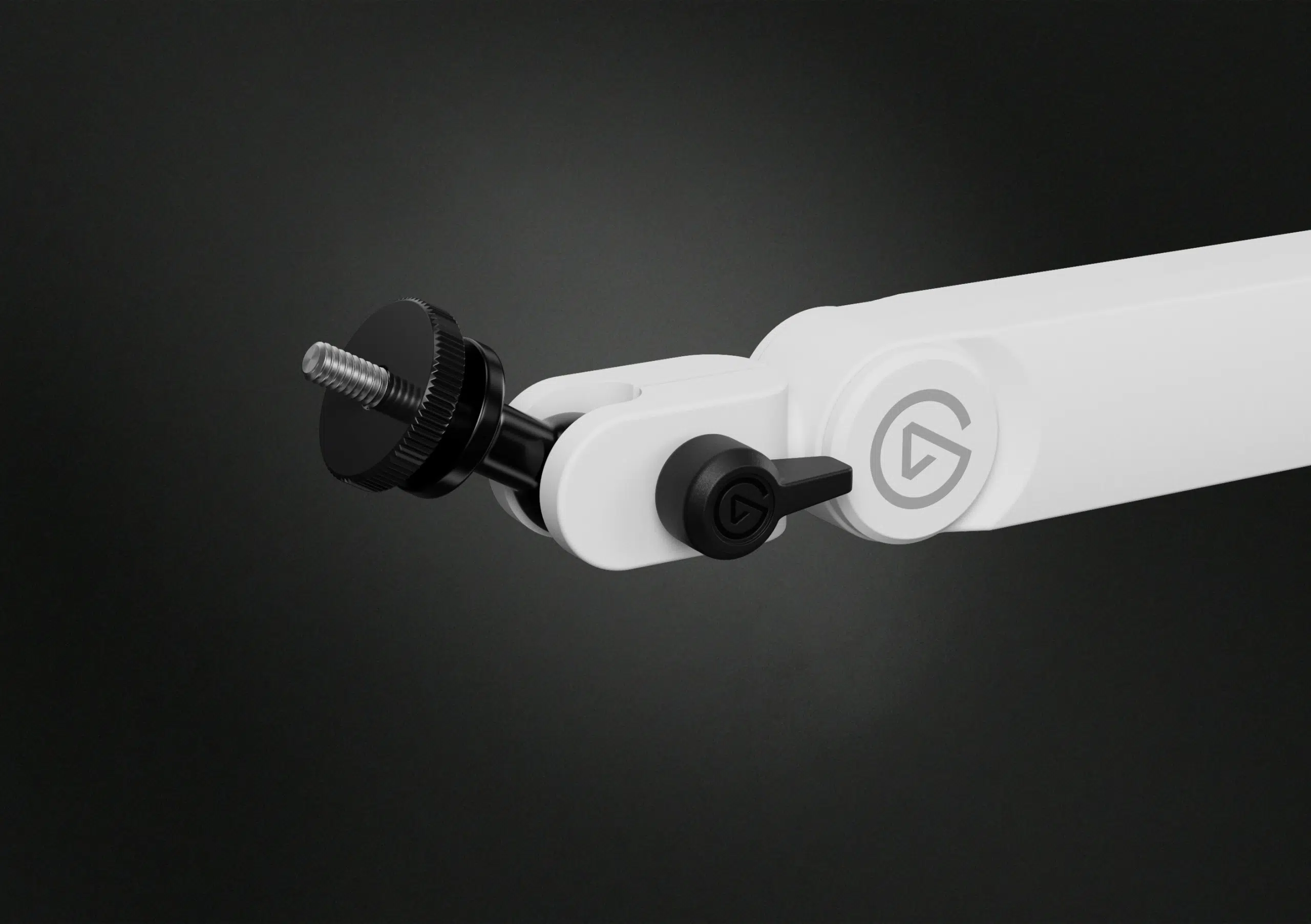

A 3 kg total load capacity leaves room for a compatible microphone and its mounting accessories. The included thread adapters accommodate common 3/8-inch and 5/8-inch mounts.
Clear space around your screen
The low-profile design offers 750 mm reach. Use the included riser when you need extra clearance: surface clearance increases from 60 mm to 100 mm.
Finish the desk neatly

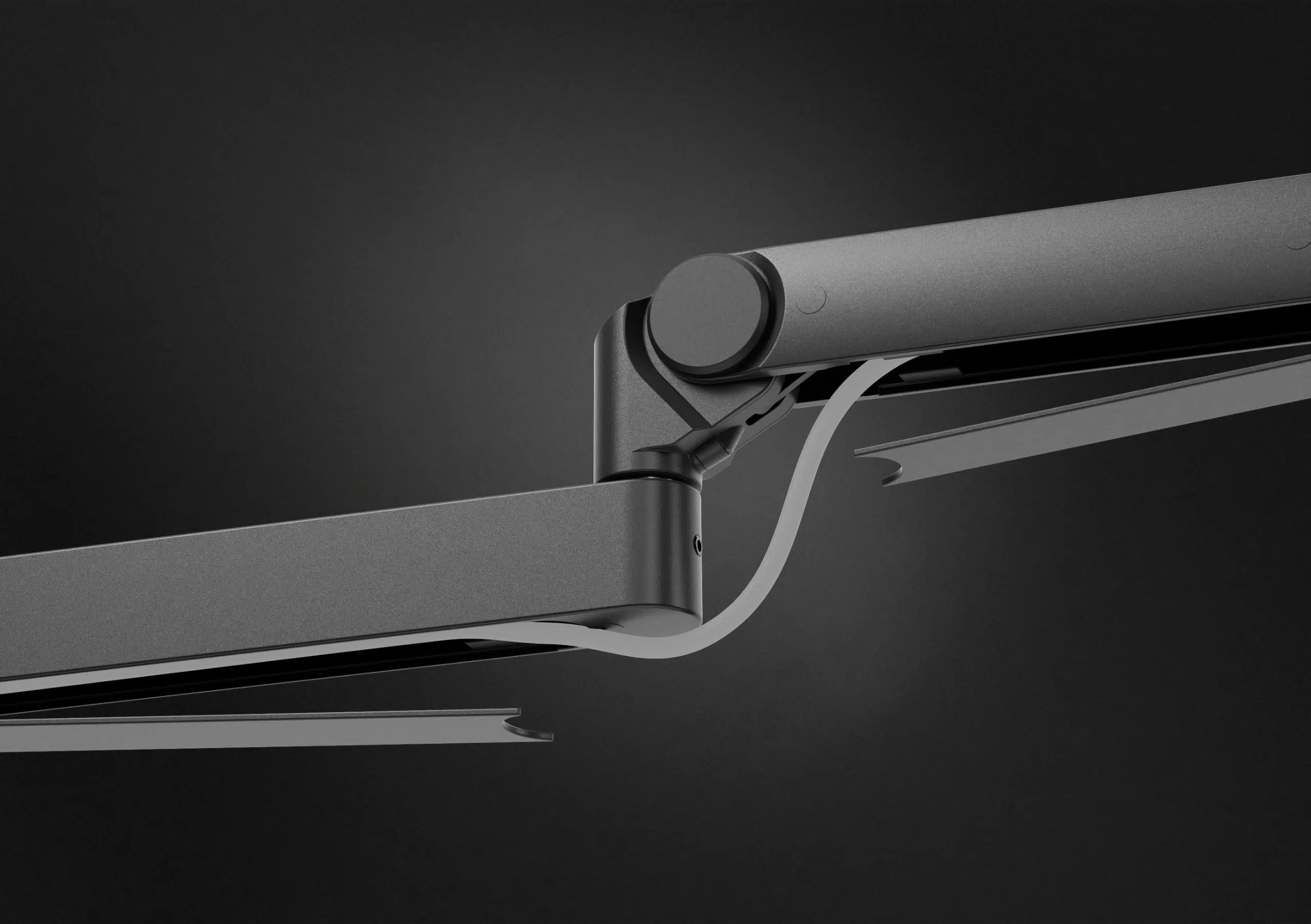

Magnetic covers keep cables within the lower channels. The all-metal build and interchangeable magnetic hinge caps give the arm a clean finish, while the clamp accommodates desks up to 60 mm thick.
Check the Complete Mounted Load
The listed load for this exact support is 3 kg maximum. Count the microphone, mount and attached accessories together. The weight of the support itself is a separate figure, and a rating from another Wave arm or stand should not be copied to this model.
Choose the Supporting Surface
Check the listed clamp opening against the desk thickness and actual mounting clearance. Position the arm around the monitor and normal seated speaking position, then route the cable with enough slack for movement. The desk and microphone arrangement matter alongside the arm’s maximum reach.
Check the Microphone and Desk Mount
Match the microphone weight and mounting thread to the stand or arm, including any adapter or accessory. Check clamp clearance and reach so the microphone can move into position without pulling its cable. Compare related options such as RØDE PSA1+ Professional Studio Microphone Boom Arm or RØDE DS2 Desktop Studio Arm for Broadcast Microphones, Adjustable Design, keeping the exact model and configuration in the decision. For the wider setup, explore RØDE PodMic Dynamic XLR Broadcast Microphone, White and check the connection, size or mounting requirements before pairing accessories. Browse the Elgato range at AX for more choices.
Elgato Wave Mic Arm Pro Setup Choices
Match the microphone weight and mounting thread to the stand or arm, including any adapter or accessory. Check clamp clearance and reach so the microphone can move into position without pulling its cable. Explore RØDE PodMic Dynamic Podcasting Microphone, XLR, RØDE PodMic USB Dynamic Microphone – USB-C & XLR – Black / White, Shure SM7B Dynamic Microphone, XLR.
Frequently Asked Questions
What is the stated load?
3 kg maximum is listed for this exact model. Include the mounted microphone and accessories.
Does it clamp to the desk?
This arm uses the specified desk-clamp arrangement, with an opening up to 60 mm.
Is a microphone included?
The microphone and other equipment shown in use photographs are separate purchases.
Which equipment thread is provided?
A 1/4-inch connection with the listed 3/8-inch and 5/8-inch adapters is specified.
Does another arm’s counterweight range apply?
Use this model’s own instructions and stated load. Do not transfer the original upright Wave Mic Arm’s counterweight procedure or weight limits to this model.
How should I choose the recommended equipment?
The microphones and accessories offer alternative setups. Match the actual recording input, microphone connection and complete supported load rather than buying every option together.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Arm and movement
Elgato
Wave Mic Arm Pro
Black and White
10AAT9901
10AAT9911
All metal
Gas-piston suspension
750 mm including ball head
300 mm
300 mm
360°
70° up / 50° down
2 kg
Lower channels with magnetic covers
Interchangeable; magnetic
Mounting and package
3 kg; microphone plus accessories
Up to 60 mm
60 mm
100 mm
35 mm
1/4 inch
1/4 to 3/8 inch; 1/4 to 5/8 inch
Wave Mic Arm Pro, riser, thread adapters, hex key and Quick Start Guide
Sold separately
