FIIO K7 Desktop DAC and Headphone Amplifier – Dual AK4493SEQ & THX AAA 788+ - AX Store Kuwait

out of stock

FiiO K7 – Desktop DAC and Headphone Amplifier

Brand

FiiO

CategoryAMPs, DACs & Preamps

FiiO K7 – Desktop DAC and Headphone Amplifier

Dual AK4493SEQ DACs and THX Amplification
4.4mm Balanced Headphone Output
6.35mm Single-Ended Output
USB, Optical and Coaxial Inputs
RCA Line Connections
Six-Stage Balanced Signal Architecture
112-Step Volume Control

Out of stock

79.900 د.ك

Overview

Specs

AX STORE KUWAIT / AUDIO

FiiO K7 – Desktop DAC and Headphone Amplifier

The FiiO K7 brings digital playback and dedicated headphone amplification to a listening desk. Connect a computer or a suitable digital source, then choose the output that matches the actual wiring of your headphones.

K7 combines dual AK4493SEQ DAC chips with two THX AAA 788+ amplifier modules, plus an analogue RCA input for a wider range of sources. This listing is the standard K7, not the Bluetooth-equipped K7 BT.

Explore the Features

FEATURE 01

Dual AK4493SEQ DACs and THX Amplification

The K7 uses one AK4493SEQ DAC per channel with two THX AAA 788+ amplifier modules. That architecture is designed around a balanced desktop listening path, while a separate single-ended output remains available.

FEATURE 02

4.4mm Balanced Headphone Output

The balanced output is rated at 2,000mW per channel into 32Ω, with THD+N below 1% under the manufacturer test conditions. Use headphones with a correctly wired balanced cable. A simple adapter from a single-ended cable is not appropriate.

FEATURE 03

6.35mm Single-Ended Output

K7 also supplies a 6.35mm output rated at 1,220mW per channel into 32Ω under the same distortion limit. This is the relevant connection for conventional fixed-cable stereo headphones, using the correct plug-size adapter if needed.

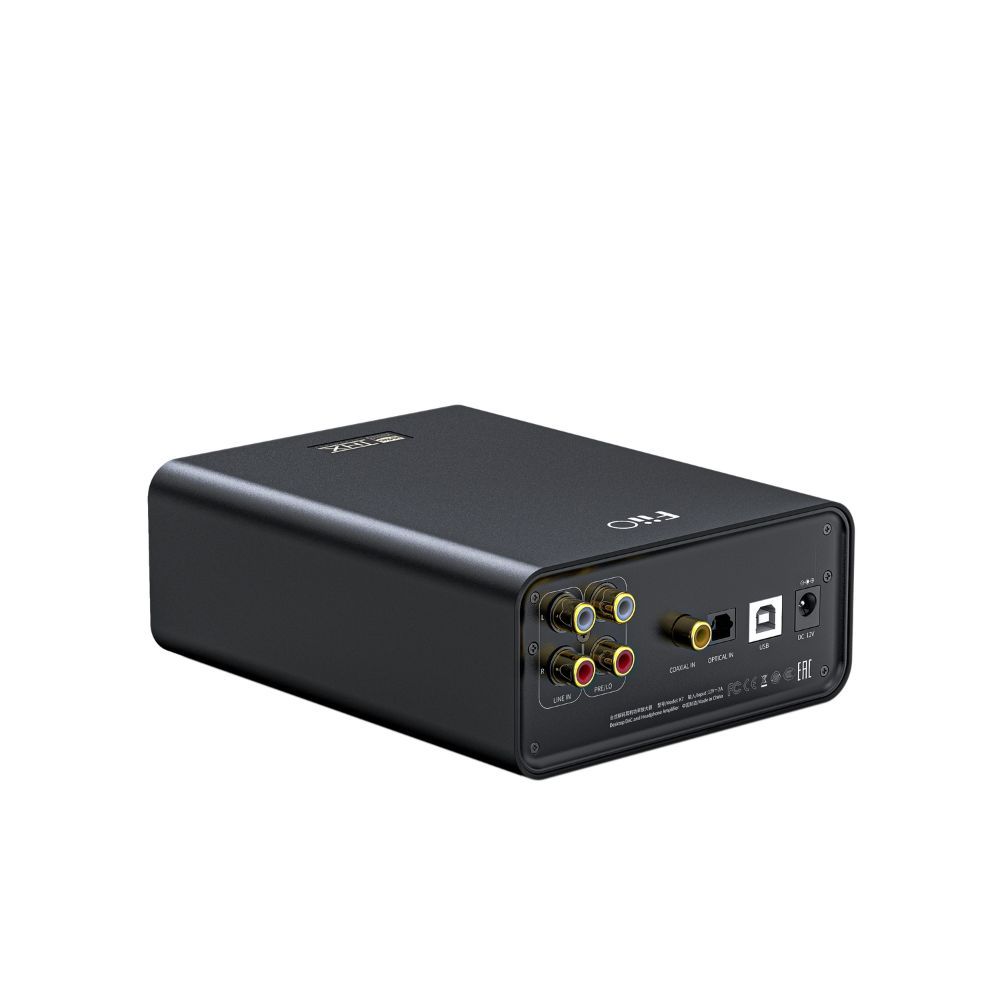

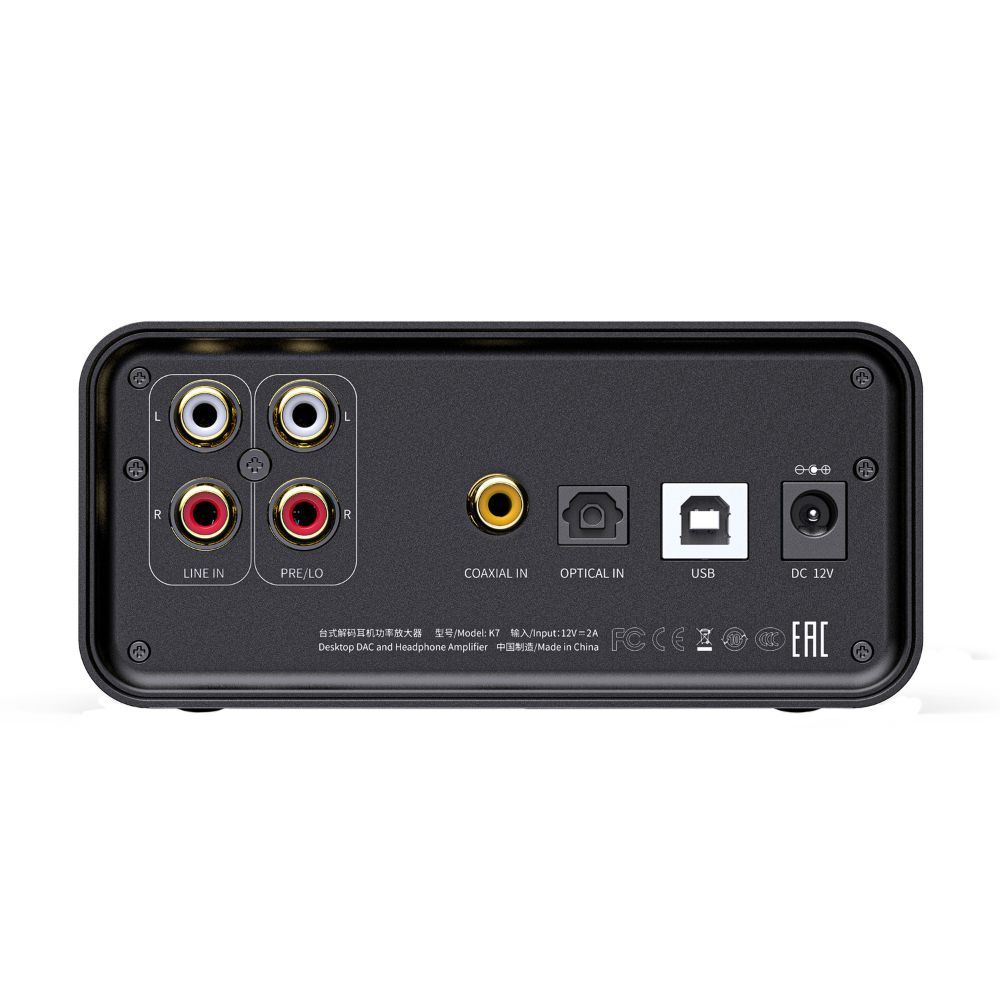

FiiO K7 rear input and output connections

FEATURE 04

USB, Optical and Coaxial Inputs

Use USB-B for computer audio, or connect a compatible optical or coaxial digital source. USB supports up to PCM 32-bit / 384kHz and native DSD256; optical and coaxial have lower limits, so match the source output format.

FEATURE 05

RCA Line Connections

An RCA line input lets K7 amplify an existing analogue source, while the RCA output supports a suitable downstream audio system. Choose the correct input and output mode before adjusting level.

FEATURE 06

Two Gain Levels

Low and high gain let you match volume control to the headphone. Start with the lower setting and increase only if needed; high gain does not inherently improve the recording or headphone.

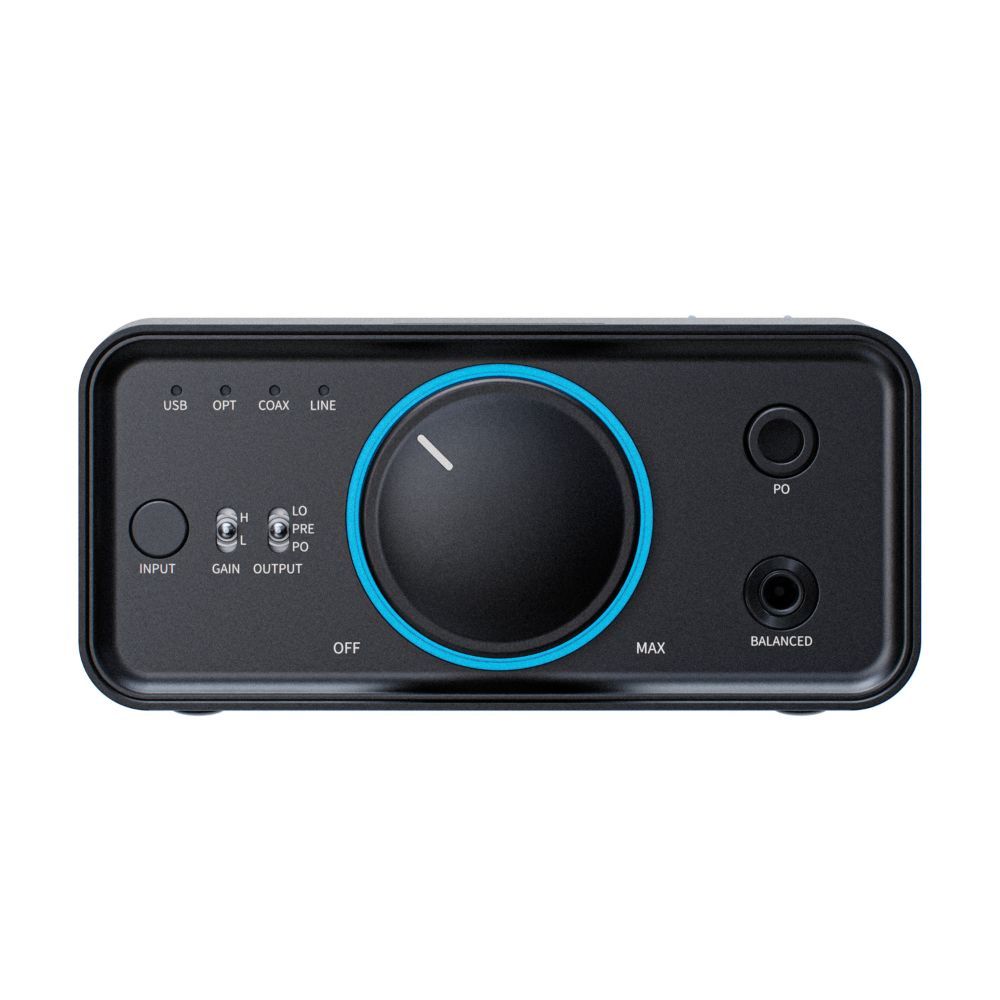

FiiO K7 desktop amplifier front controls

FEATURE 07

Front-Panel Input and Output Selection

Separate input, gain and output controls keep the listening route visible. The illuminated volume ring also indicates the incoming sample-rate family, making source changes easier to follow.

FEATURE 08

RGB Sample-Rate Indicator

The light around the volume control identifies sample-rate groups, including a separate indication for DSD. It is a status aid, not a quality score for the music you are playing.

FEATURE 09

Dedicated External Power

K7 uses an external DC 12V/2A supply. The USB port carries data; this is not a battery-powered portable amplifier. Plan space for the power lead as well as the audio cables.

FEATURE 10

Standard K7, Without Bluetooth

Choose this model for wired sources. Bluetooth reception belongs to K7 BT, which is a different product. An ordinary USB Bluetooth adapter does not turn a K7 into that model.

FEATURE 11

Six-Stage Balanced Signal Architecture

Separate analogue and digital stages form a balanced signal path inside K7. The layout is designed to limit crosstalk between channels, supporting distinct left/right information in a desktop listening system.

FEATURE 12

112-Step Volume Control

ADC-assisted volume control provides 112 adjustment steps while addressing channel imbalance at lower listening levels. It gives you a practical way to choose a comfortable level rather than jumping between a setting that is too quiet and one that is too loud.

FEATURE 13

Built-In Protection Systems

Overheating, overload and DC protection monitor the amplifier path. They support normal operation while you match headphones and gain settings to the listening task.

FEATURE 14

Regulated Power and Aluminium Construction

Multiple independently regulated power stages work with the external supply, while a CNC-finished aluminium enclosure keeps the desktop unit compact and rigid. Its 55mm height makes it easy to place beside a keyboard or source.

Match the Amplifier to the Headphone

The Sennheiser HD 660S2 includes both balanced and single-ended cables. The DT 990 PRO Black Edition uses a fixed single-ended cable. Select the connection for the headphone wiring rather than simply choosing the socket with the larger power figure.

If you also need microphone recording, compare the Focusrite Scarlett 2i2 instead of expecting a listening DAC to capture an XLR signal.

Frequently Asked Questions

Does this K7 have Bluetooth?

No. This is the standard wired K7. Bluetooth is a feature of the separate K7 BT model.

Can I record a microphone through it?

No. It is a playback DAC and headphone amplifier, not an audio interface with microphone recording inputs.

Which headphone socket should I use?

Use 6.35mm for conventional single-ended headphones and 4.4mm only for a correctly wired balanced headphone cable.

Is it powered by USB?

No. It requires external DC 12V/2A power. The USB connection is for audio data.

Does every input support 384kHz?

No. USB supports up to PCM 384kHz, coaxial up to 192kHz and optical up to 96kHz.

Can it drive passive speakers directly?

No. The RCA line output needs powered speakers or a separate speaker amplifier.

Should I always choose high gain?

Start with the lower gain setting. Increase gain only if the headphone and source level require more usable volume range.

Why Buy from AX Store Kuwait?

Choose the exact model and connection that suit your setup at AX Store Kuwait. The specifications, setup guidance and related accessories on this page help you build a practical system around the product.

Technical Specifications

Identity
Brand	FiiO
Model	K7
DAC	2 × AK4493SEQ
Amplifier	2 × THX AAA 788+
Listed Finish	Black
Connections
USB Input	USB-B data
Digital Inputs	USB, optical, coaxial
Headphone Outputs	6.35mm single-ended; 4.4mm balanced
RCA Line Input	Yes
RCA Line Output	Yes
Bluetooth	No
Decoding and Output
USB Decoding	Up to PCM 32-bit / 384kHz; native DSD256
Coaxial Decoding	Up to PCM 24-bit / 192kHz
Optical Decoding	Up to PCM 24-bit / 96kHz
Balanced Power at 32Ω	2000mW per channel; THD+N <1%
Single-Ended Power at 32Ω	1220mW per channel; THD+N <1%
Gain Settings	Low / High
Power
Power Supply	External DC 12V/2A
Battery	None
Weight	Approximately 610g
Circuit and Enclosure
Signal Architecture	Six-stage balanced audio circuit
USB Decoder	XMOS XUF208
Volume Control	112 steps with ADC curve reconstruction
Protection	Overheating, overload and DC
Construction	Aluminium alloy
Height	55mm
