Gigabyte AORUS Gen4 7300 1TB NVMe M.2 SSD, PCIe 4.0

Storage capacity

Maximum sequential read

Maximum sequential write

Drive format

Capacity for the Installed Library

The 1 TB capacity provides internal space for the system and its files. Plan room for the operating system, applications, game updates and working files when choosing the drive. Some of the labelled capacity is used for formatting and drive functions, so usable space depends on the operating environment. Keep a separate backup arrangement for files that need to be retained.

Sequential Transfer Performance

Sequential read: 7300 MB/s. Sequential write: 6000 MB/s. These are manufacturer maximum figures under the specified test conditions. Actual transfers depend on the host hardware, software, available cache, temperature and workload. Use the capacity-specific figures when comparing this drive with another option, particularly where a larger version of the same family has a different write rating.

Match the Storage Interface

The drive uses PCIe 4.0 x4, NVMe 1.4 in a M.2 2280 NVMe format. Check that the intended M.2 slot accepts a 2280-length PCIe NVMe drive and supports the required interface. The host connection determines the available link speed, so confirm the system specification before planning an upgrade.

The GIGABYTE AORUS Gen4 7300 Hardware

The AORUS Gen4 7300 combines 3D TLC NAND with 1 GB DDR4 cache on the 1 TB model. Its PCIe Gen 4 x4 interface uses NVMe 1.4, and the platform lists S.M.A.R.T., TRIM and AES-256 support. Capacity-specific construction and write performance distinguish the 1 TB and 2 TB versions. These characteristics describe the selected drive family and capacity. Use them alongside the interface and performance figures when choosing storage for a desktop or compatible notebook. Keep any service or firmware work within the manufacturer’s supported procedure and maintain a backup of important files before changing a storage installation.

Capacity-Specific Write Endurance

The rated write endurance is 700 TBW. TBW means terabytes written and describes a tested write-workload rating. It is not the same as usable capacity or a guaranteed number of years of operation. Consider the expected write workload when choosing a drive for application files, game installations, recordings or project data.

Family

GIGABYTE AORUS Gen4 7300

Capacity

1 TB

Form factor

M.2 2280

Which capacity is supplied?

1 TB.

What interface does this SSD need?

PCIe 4.0 x4, NVMe 1.4; use a suitable M.2 2280 PCIe NVMe slot.

What are its sequential-speed ratings?

Sequential read: 7300 MB/s. Sequential write: 6000 MB/s. Actual performance depends on the host and workload.

What cooling or fitting checks are needed?

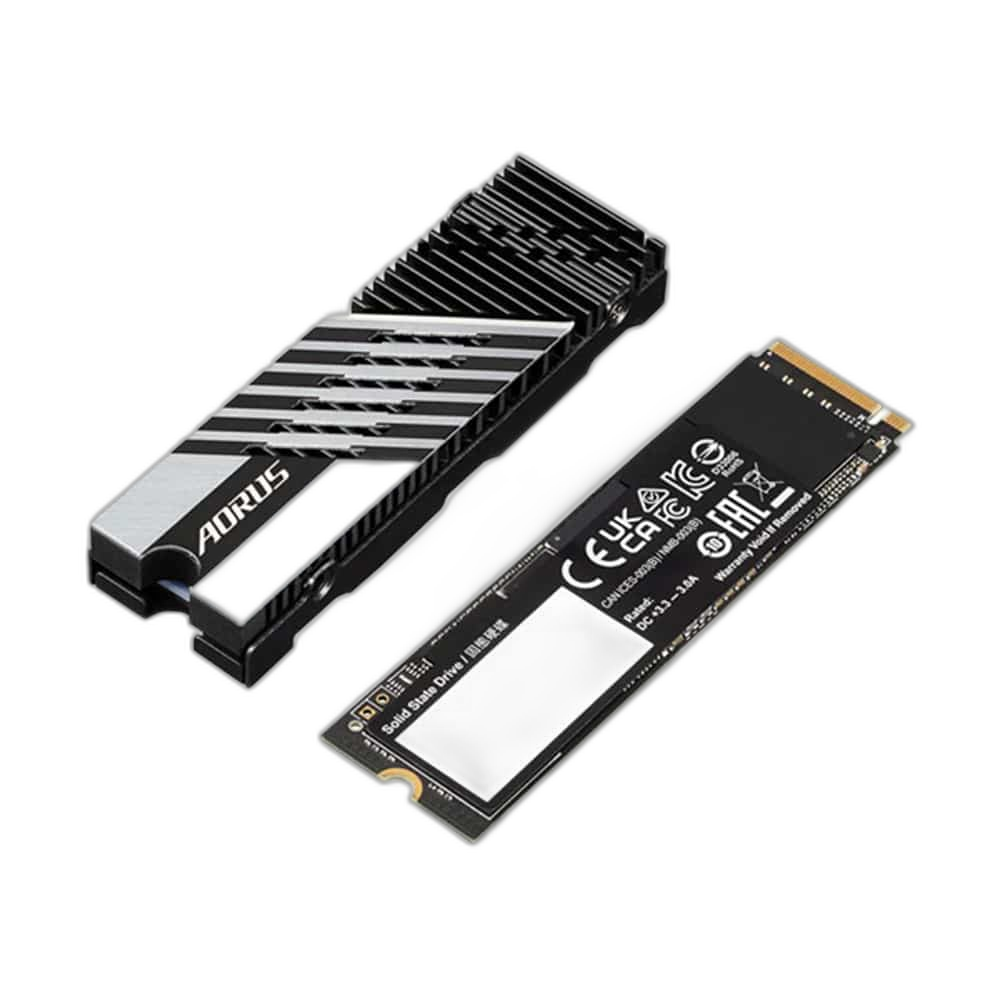

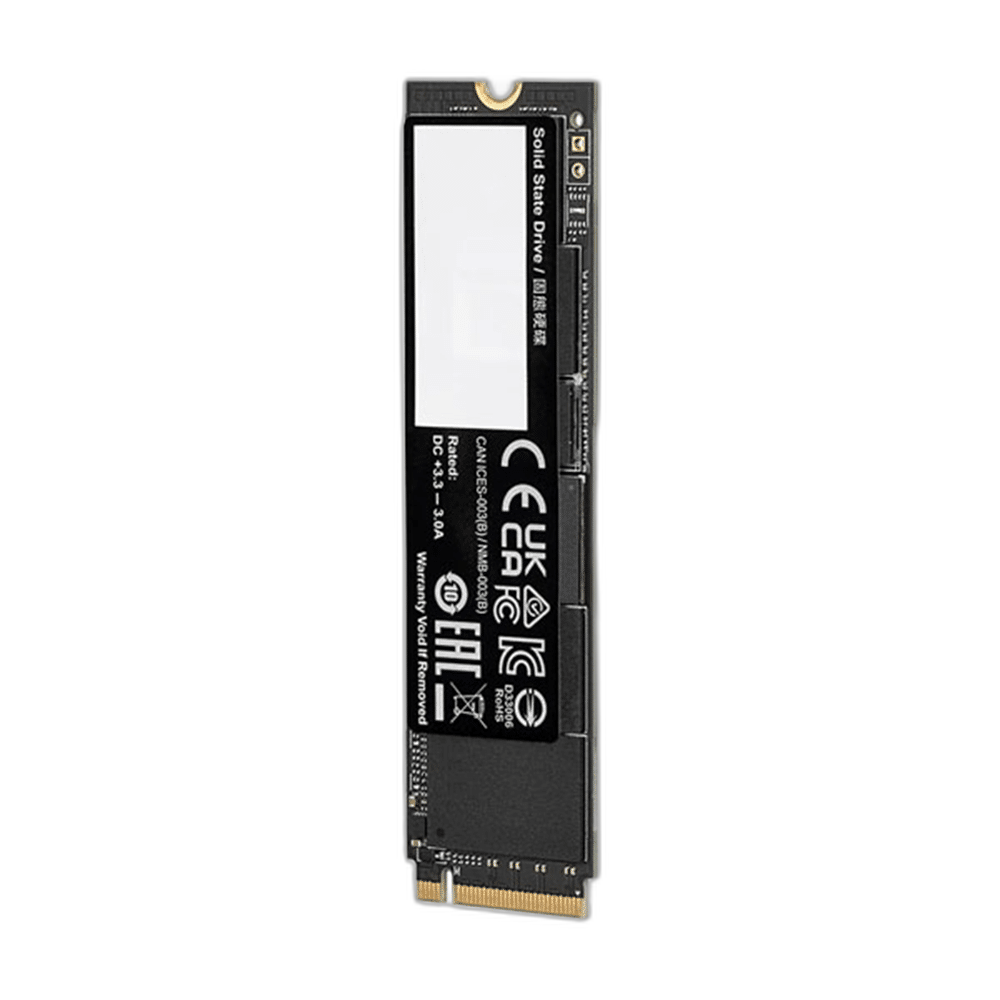

The single-sided module measures 80 ×22 ×2.3 mm without a heatsink. The family’s optional heatsink assembly measures 80.5 ×23.5 ×11.25 mm; check the supplied cooling arrangement and host clearance.
