MSI MAG Core Liquid 360R AIO CPU Cooler

Radiator class

Radiator fans

Pump speed, ±10%

Fan-speed control

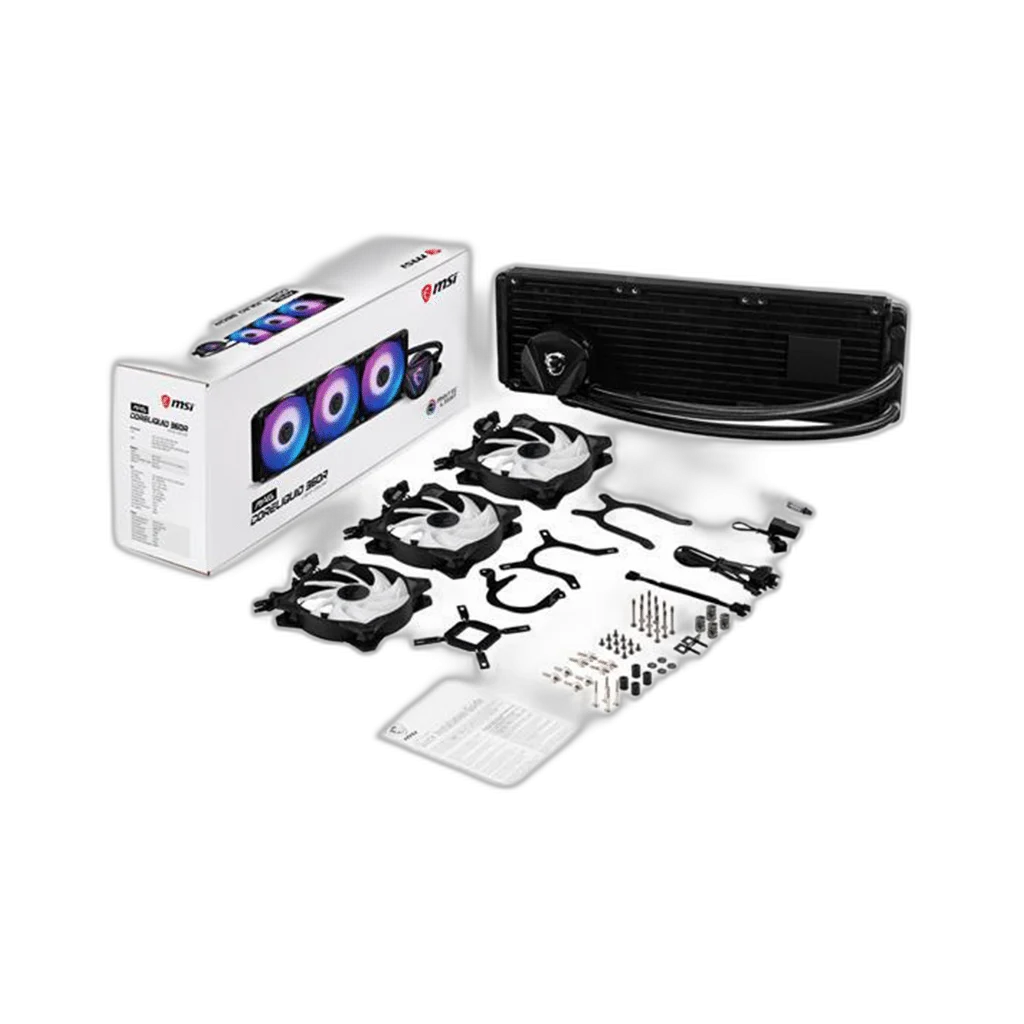

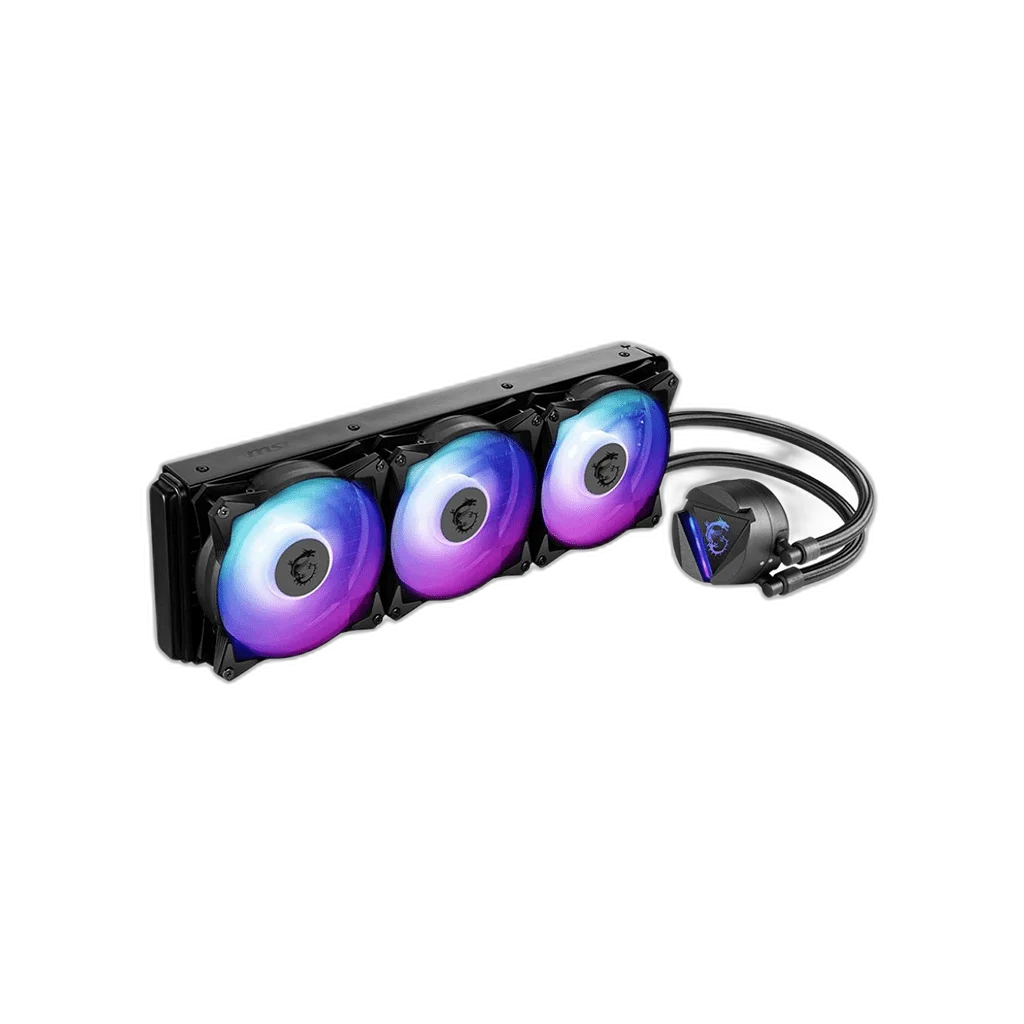

The Radiator and Complete Cooling Assembly

The 360 mm radiator forms the heat-exchange section of this all-in-one cooler. Its body measures 394 × 120 × 27 mm. Choose a matching case mounting position and allow for the fan thickness, radiator body, tubes and surrounding component clearance together.

Radiator Fans and Their Rated Performance

3 × 120 × 120 × 25 mm ARGB fans with two-ball bearings. The listed fan performance is 500–2000 RPM; 21.63–78.73 CFM; 0.23–2.39 mm H2O; 14.3–34.3 dBA. Those specifications describe the individual fan at the manufacturer’s test conditions, rather than a combined airflow value for the complete set. Configure the cooling profile around the installed system and its workload.

Pump and Water-Block Construction

4200 RPM ±10%; 12 V; 0.34 A; 4.08 W. The block measures 80.57 × 66.82 × 48.58 mm. Match the CPU mounting parts and contact surface before installation, then connect the pump and cooling leads according to the model-specific guide.

Lighting or Display Presentation

ARGB water-block and radiator-fan lighting. PWM fan control; separate ARGB lighting connections. Set up the supported control connections before configuring the display or lighting, and keep the software functions distinct from the electrical connection used to power the cooling hardware.

Tubing, Connections and Case Routing

The tubing arrangement is 400 mm. Plan the radiator and block positions together so the tubes can follow their intended route without unnecessary strain at the fittings. Route the fan, pump and any separate USB, lighting or power leads clear of the rotating blades and the case-panel closing path.

Model

MSI MAG CORELIQUID 360R

Manufacturer model / part

Original MAG CORELIQUID 360R

Cooling type

All-in-one liquid CPU cooler

What radiator size does it use?

360 mm. Check the complete radiator and fan assembly against the case mounting position.

How many radiator fans are supplied?

3 × 120 × 120 × 25 mm ARGB fans with two-ball bearings.

What is the pump or block arrangement?

4200 RPM ±10%; 12 V; 0.34 A; 4.08 W.

Which CPU sockets are listed?

Original 2022 datasheet: Intel LGA 1150 / 1151 / 1155 / 1156 / 1200 / 1366 / 2011 / 2011-3 / 2066; AMD AM4 / FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 / TR4 / sTRX4 / SP3. Match the exact mounting kit.

What display or lighting is provided?

ARGB water-block and radiator-fan lighting.

Is there a manufacturer service-check programme for the original 360R?

MSI provides a serial-number eligibility check for selected original MAG CORELIQUID 240R / 360R units. Consult MSI support with the actual serial number; eligibility is unit-specific.
