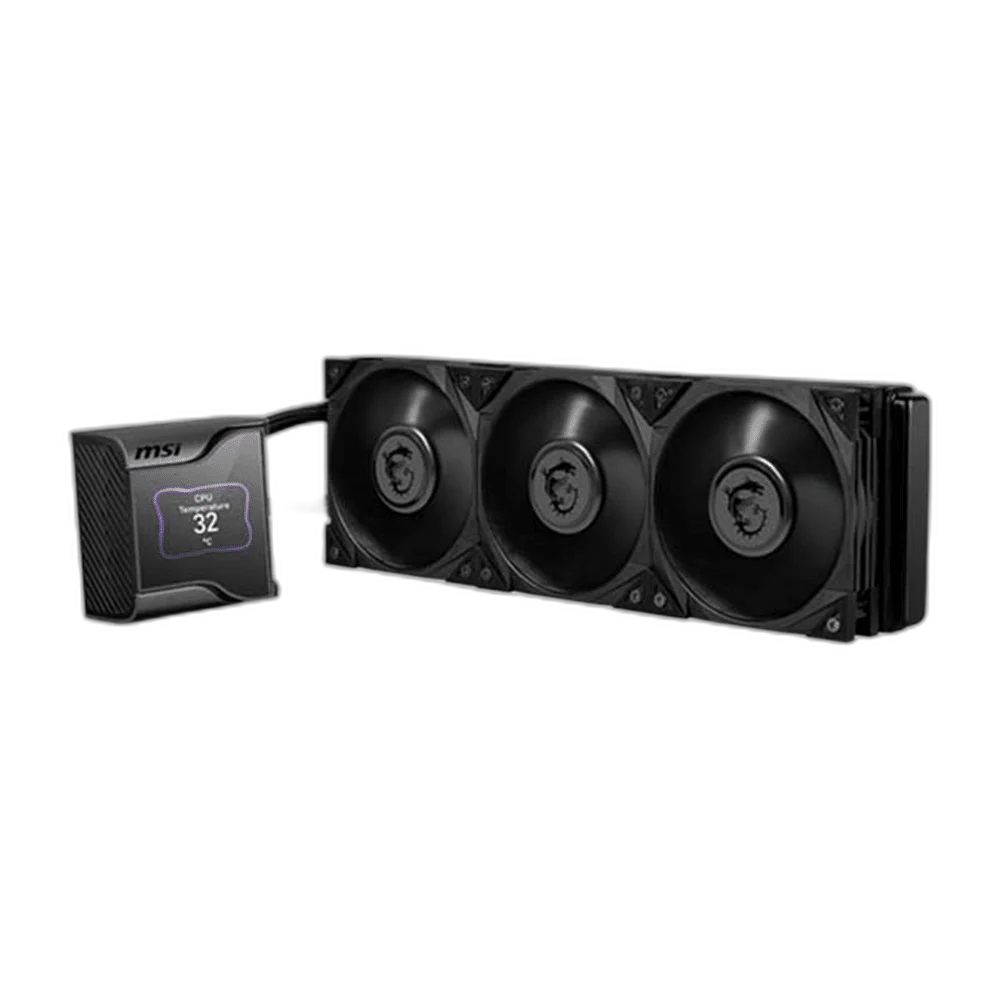

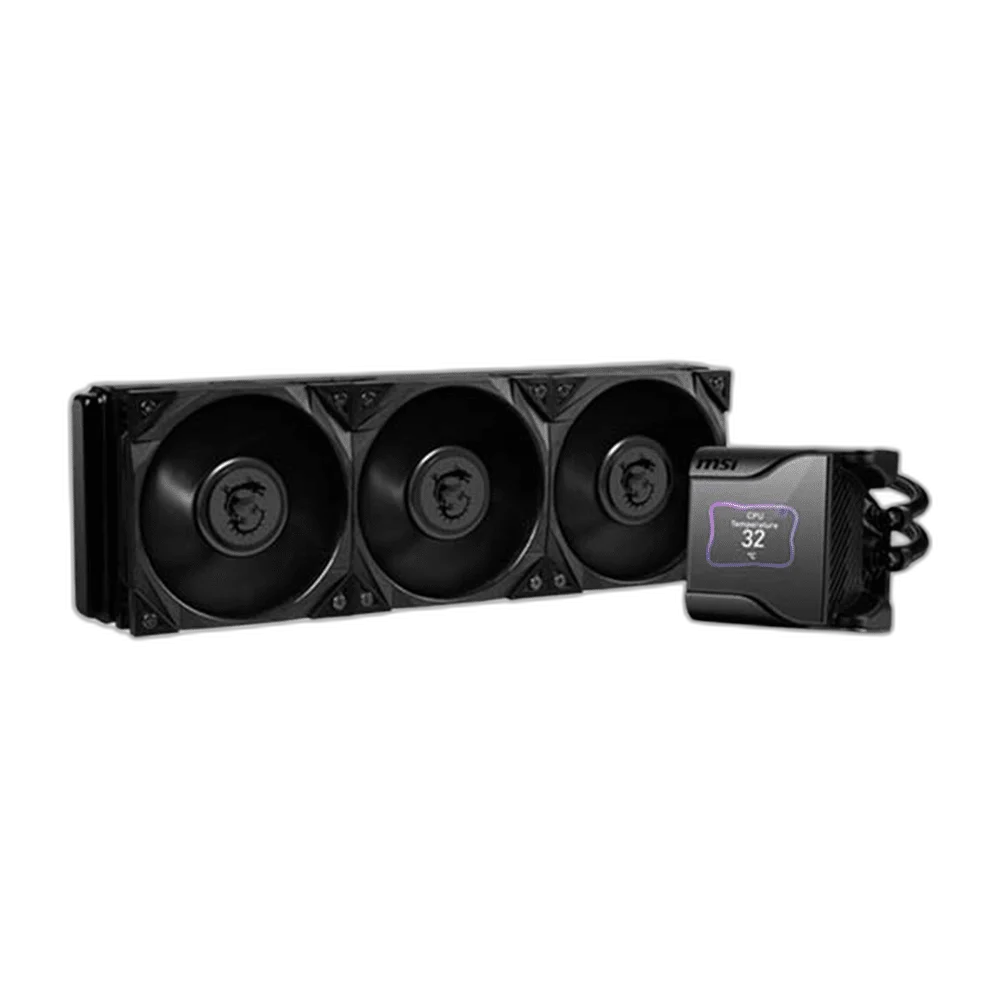

MSI MEG CORELIQUID S360 AIO CPU Liquid Cooler

MSI MEG CORELIQUID S360 AIO CPU Liquid Cooler

The MEG CORELIQUID S Series is here to provide the ultimate silence cooling. It is equipped with MSI's innovative MEG SILENT GALE P12 silent gaming fan and supports 0 rpm fan mode. The 2.4” IPS display can also help you see a conglomerate of hardware information or customizable graphics and videos. The MEG CORELIQUID S Series descends from the top, and you just can’t hear it coming.

AMD AM5 COMPATIBLE

The MEG CORELIQUID S Series liquid cooler provides out of the box support for AMD Ryzen 7000 Series processors.

LGA 1700 Compatible

The liquid cooler provides out of box support for LGA 1700.

SILENT COOLING

MSI’s MEG SILENT GALE P12 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.

Concentrated Cooling Performance

A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.

FAN 0 RPM

The MEG SILENT GALE P12 and the water block fan support 0% RPM to ensure zero noise under low temperatures.

2.4” CUSTOMIZABLE IPS DISPLAY

The MEG CORELIQUID S Series comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.

TOTAL CONTROL IN YOUR HANDS

Everything ranging from MEG CORELIQUID S Series’ fan speed to the IPS display can be adjusted through the MSI Center.

EVAPORATION PROOF TUBING

Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

Specifications

• Radiator Size : 360 mm
• Radiator Dimensions (WxDxH) : 394 x 120 x 27mm / 15.5 x 4.7 x 1.06 inches
• Radiator Material : Aluminum
• Water Cooling Tube Material : Black Rubber + Mesh
• Number of Fans : 3
• Fan Dimensions (WxDxH) : 120 x 120 x 27.5mm / 4.7 x 4.7 x 1.08 inches
• Fan Air Flow : 56.2 CFM
• Fan Bearing : Hydro-Dynamic Bearing
• Fan Life Expectancy : 50,000 Hours
• Fan Rated Current : 0.4 A (MAX)
• Fan Power Consumption : 4.8 W (MAX)
• PWM Mode : Yes
• Cable Length (PWM Cable) : 350 mm / 13.78 inches
• Fan Connector : 4 pin PWM
• Pump Life Expectancy : 50,000 Hours
• Pump Noise Level : 21.2 dBA
• Pump Rated Current : 0.3A
• Pump Power Consumption : 4W
• Pump Speed : 2800 +/-300 RPM (PWM controlled)
• Pump Connector : 4 pin PWM
• Cold Plate Material : Copper
• Block Dimensions (WxDxH) :  95 x 95 x 83.53 mm
• Intel Socket Support : LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156
• AMD Socket Support : AM5 / AM4 / Socket TR4 / sTRX4 / SP3
• Panel Size : 2.4"
• Panel Type : IPS
• Panel Resolution : 320 x 240
• Panel Brightness : 500 nits
• Interface Connector : USB 2.0 pin header
• Power Connector : SATA
