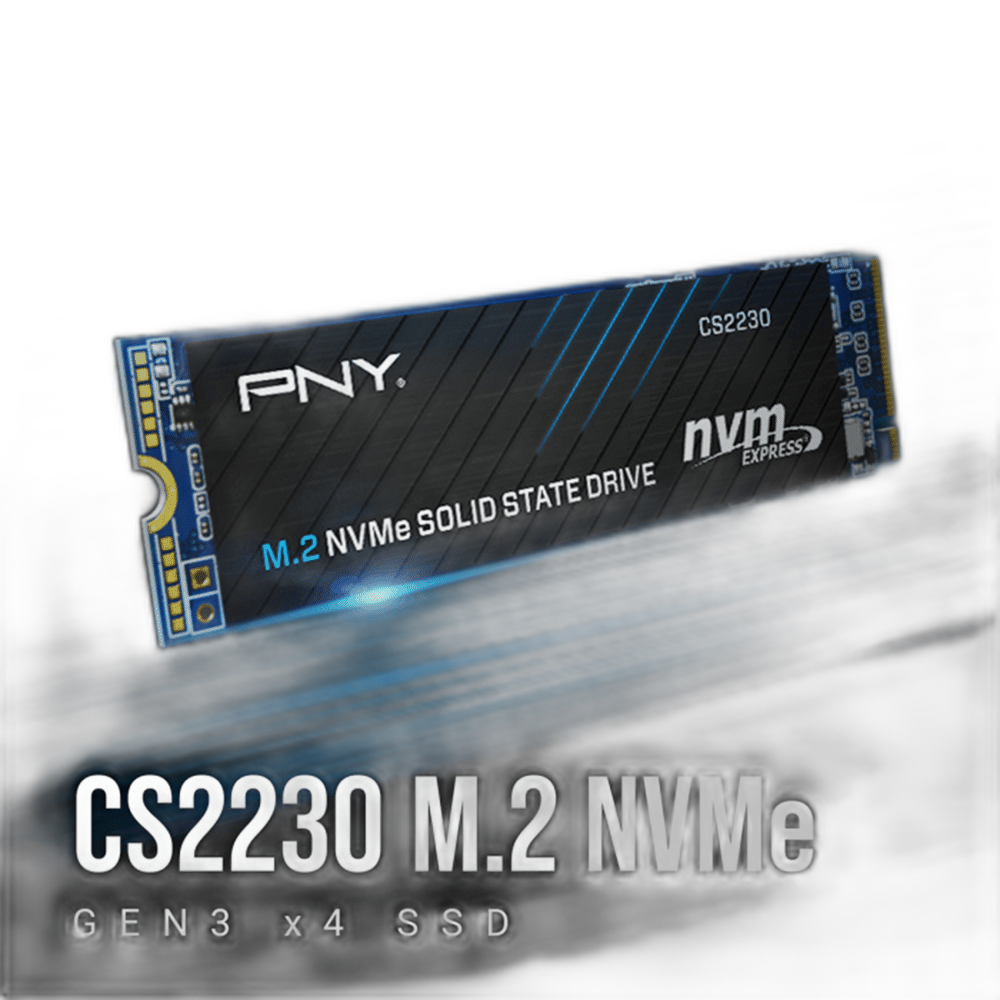

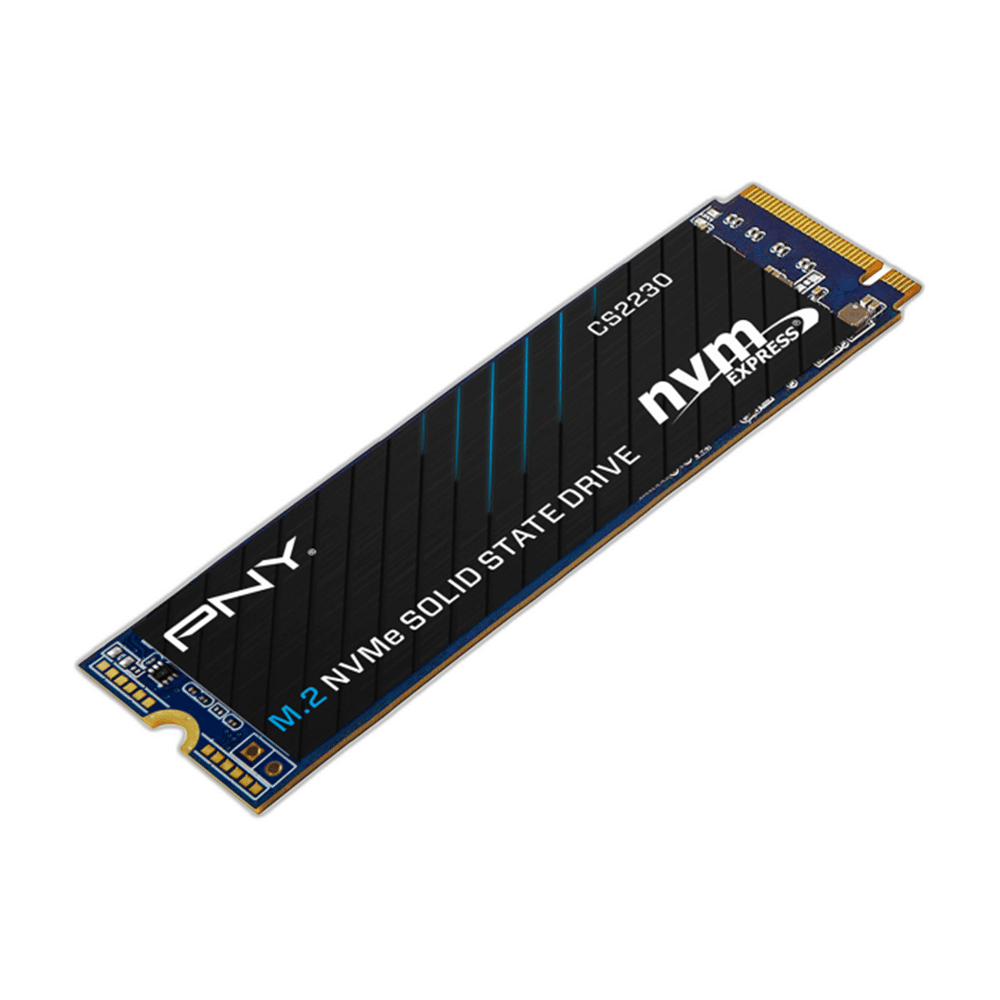

PNY CS2230 1TB M.2 NVMe SSD, PCIe Gen3 x4

Storage capacity

Maximum sequential read

Maximum sequential write

Drive format

Capacity for the Installed Library

The 1 TB capacity provides internal space for the system and its files. Plan room for the operating system, applications, game updates and working files when choosing the drive. Some of the labelled capacity is used for formatting and drive functions, so usable space depends on the operating environment. Keep a separate backup arrangement for files that need to be retained.

Sequential Transfer Performance

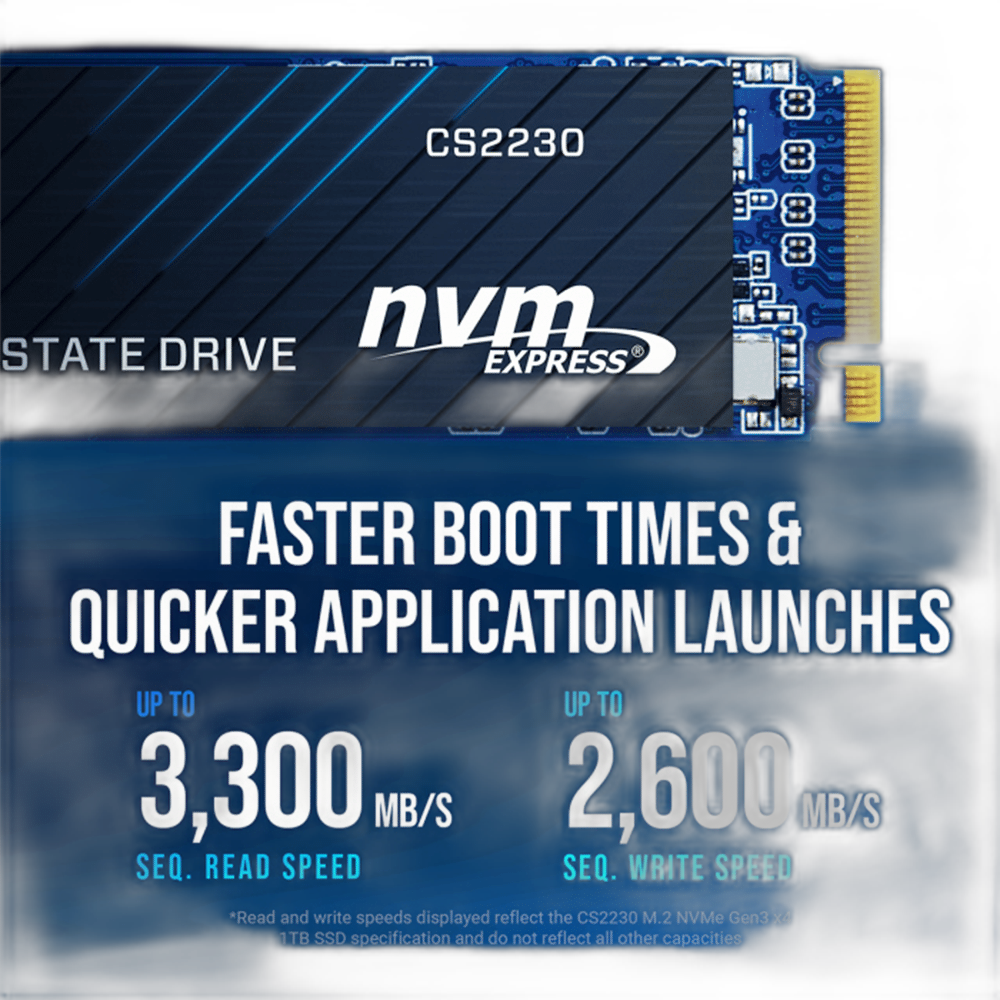

Sequential read: 3300 MB/s. Sequential write: 2600 MB/s. These are manufacturer maximum figures under the specified test conditions. Actual transfers depend on the host hardware, software, available cache, temperature and workload. Use the capacity-specific figures when comparing this drive with another option, particularly where a larger version of the same family has a different write rating.

Match the Storage Interface

The drive uses PCIe 3.0 x4, NVMe 1.4 in a M.2 2280 NVMe format. Check that the intended M.2 slot accepts a 2280-length PCIe NVMe drive and supports the required interface. The host connection determines the available link speed, so confirm the system specification before planning an upgrade.

The PNY CS2230 Hardware

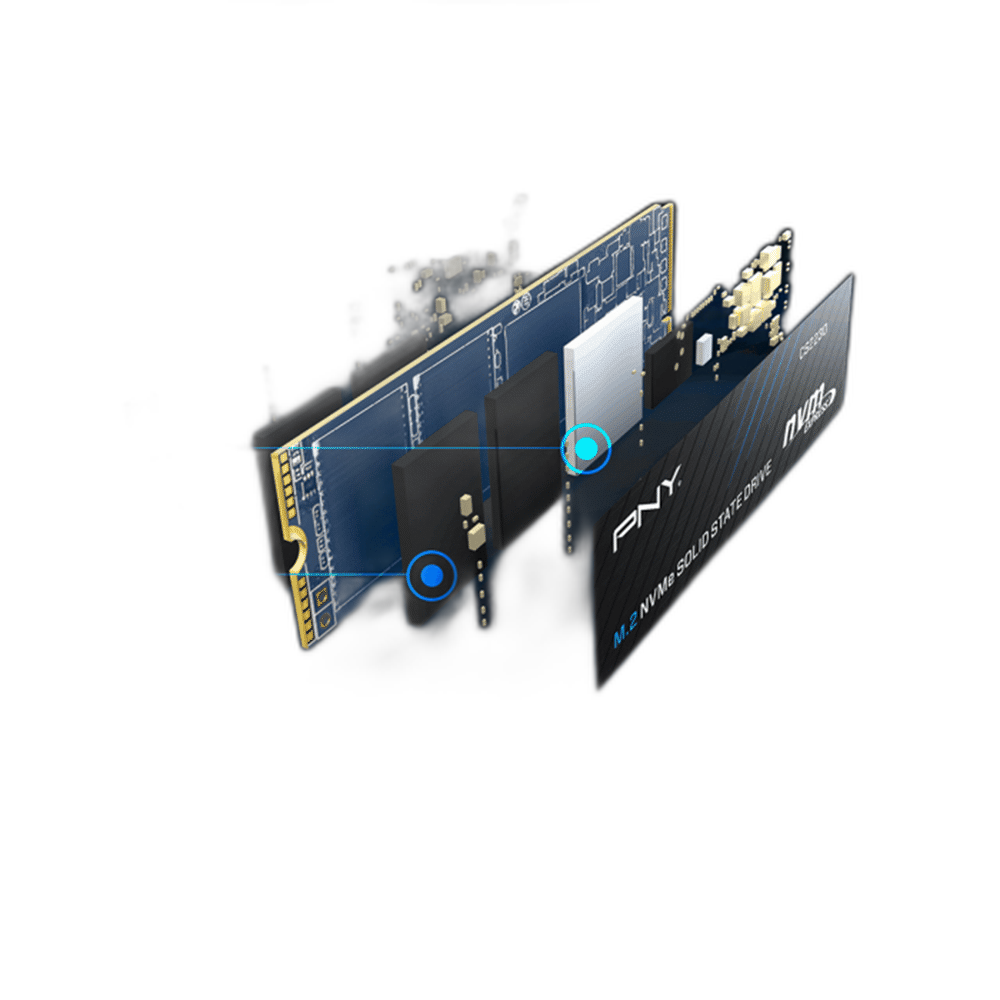

The CS2230 uses 3D flash memory with a PCIe Gen 3 x4 NVMe 1.4 interface. Its 1 TB row is specified at 3300 MB/s read and 2600 MB/s write. LDPC error correction, S.M.A.R.T. monitoring, TRIM and end-to-end data-path protection are listed features of the platform. These characteristics describe the selected drive family and capacity. Use them alongside the interface and performance figures when choosing storage for a desktop or compatible notebook. Keep any service or firmware work within the manufacturer’s supported procedure and maintain a backup of important files before changing a storage installation.

Drive Care and Management

Use the drive’s supported management features and follow the manufacturer’s installation guidance. Keep important files backed up before firmware work or hardware changes. Plan the file layout around the capacity available to the operating system, and keep a separate copy of material that needs to be retained during an upgrade.

Family

PNY CS2230

Capacity

1 TB

Form factor

M.2 2280

Which capacity is supplied?

1 TB.

What interface does this SSD need?

PCIe 3.0 x4, NVMe 1.4; use a suitable M.2 2280 PCIe NVMe slot.

What are its sequential-speed ratings?

Sequential read: 3300 MB/s. Sequential write: 2600 MB/s. Actual performance depends on the host and workload.

What cooling or fitting checks are needed?

Check the M.2 2280 position and clearance for a module measuring up to 22 ×80 ×4 mm. Follow the host’s mounting and cooling guidance when fitting the SSD.
