Xigmatek
Xigmatek Aquarius Pro ATX Mid Tower Gaming Case - Black
XIGMATEK Aquarius Pro Black EN49417 combines a Glass Dual-Chamber Layout with Seven X24A Fans. The Aquarius Pro combines front and left tempered-glass panels with a 0.8 mm SPCC steel chassis.
Regular price
49.500 KWD
or 4 payments of 12.375 KWD with
Pay with card & save
47.000 KWD
Save 2.500 KWD
Overview
XIGMATEK AQUARIUS PRO BLACK EN49417
A Glass Dual-Chamber Layout with Seven X24A Fans
XIGMATEK Aquarius Pro Black EN49417 combines a Glass Dual-Chamber Layout with Seven X24A Fans. The Aquarius Pro combines front and left tempered-glass panels with a 0.8 mm SPCC steel chassis.
7 X24A fans
Exact EN49417 package
430 mm
GPU length clearance
185 mm
CPU-cooler clearance
360 mm
Top and bottom radiator options

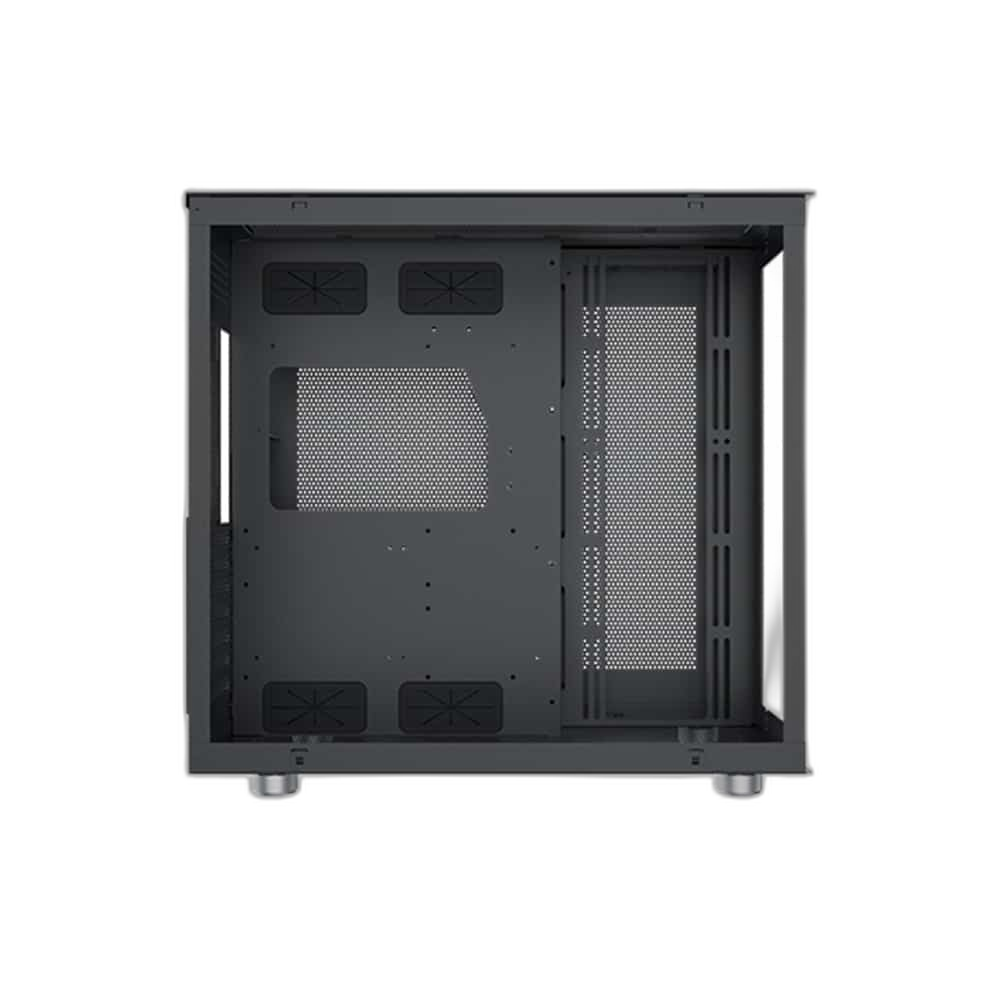

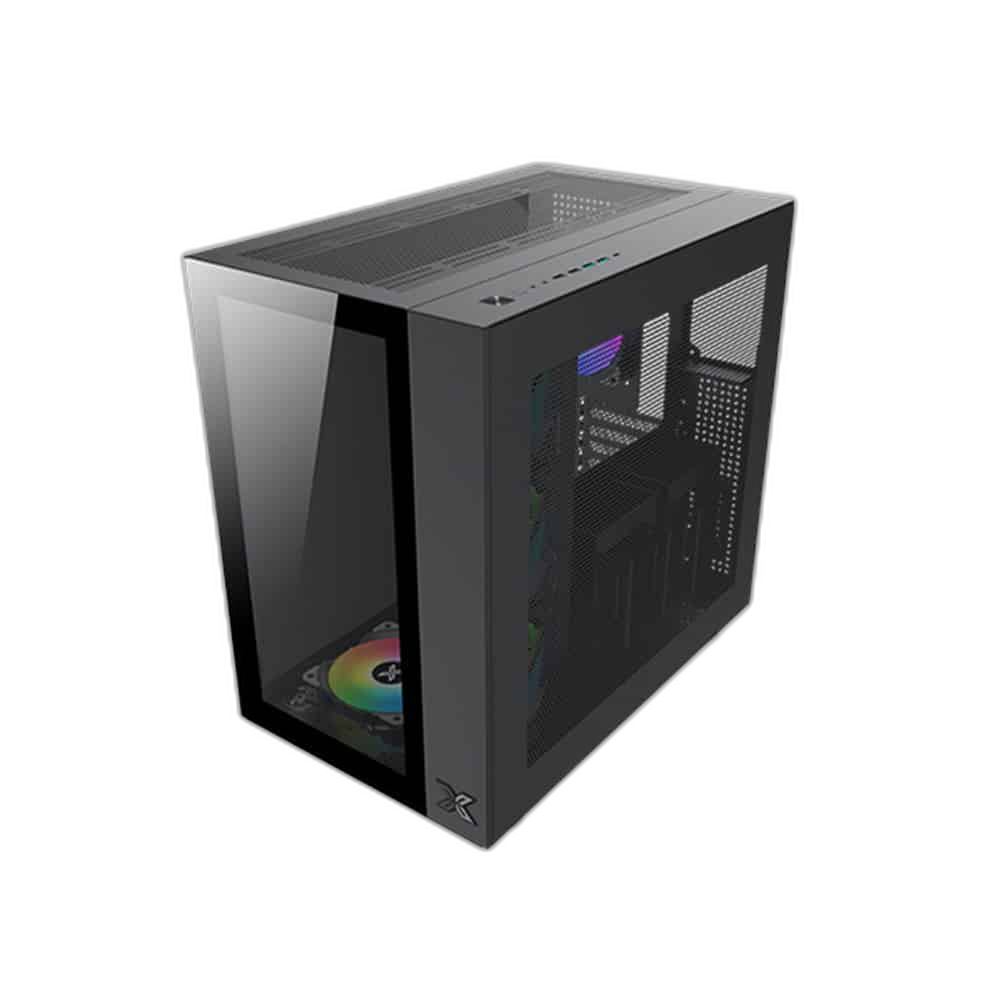

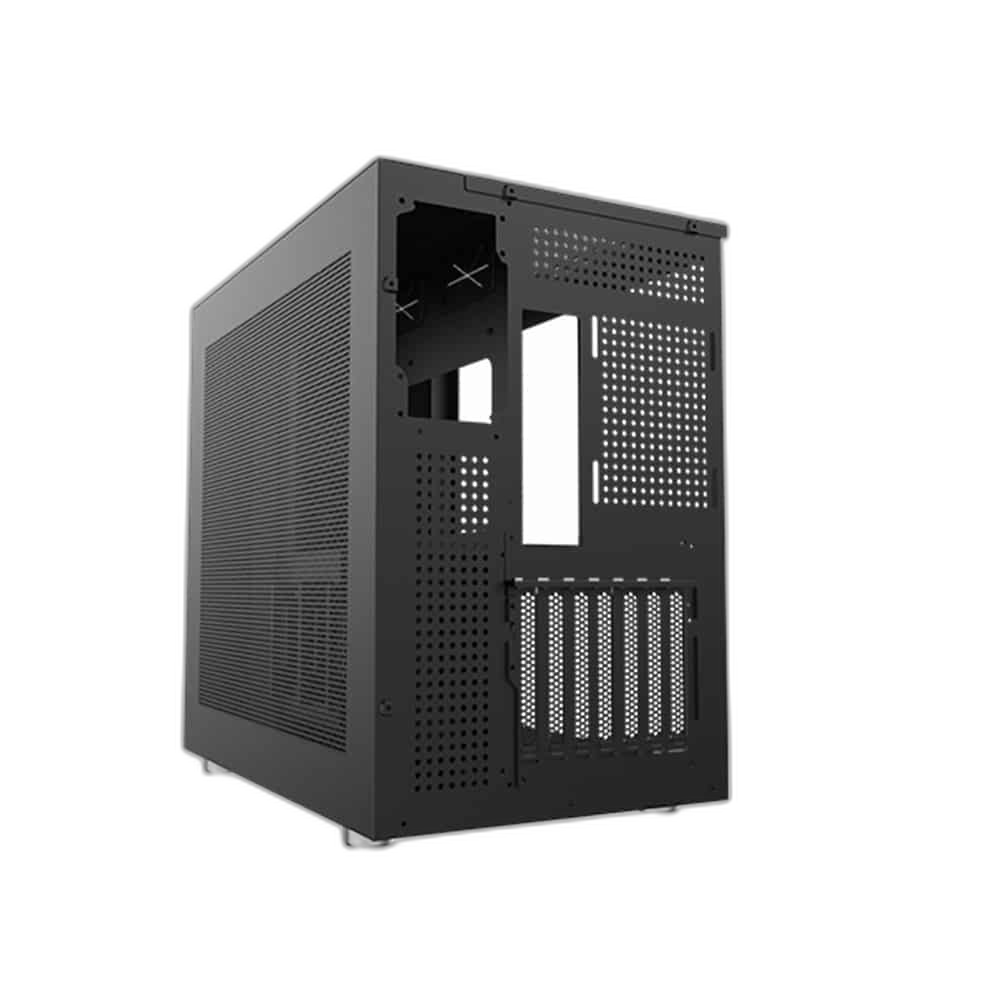

The Chassis Design
The Aquarius Pro combines front and left tempered-glass panels with a 0.8 mm SPCC steel chassis. The Black EN49417 configuration measures 460 L × 285 W × 445 H mm, with the PSU and storage arrangement behind the main display chamber. Consider its complete exterior dimensions alongside the available desk or floor space, leaving access for the rear cables and the panels used during assembly.
Included Cooling and Lighting
The exact EN49417 package lists seven X24A fans and the Galaxy II fan-control kit. Those supplied components belong to this Black SKU; older Arctic revisions and differently packaged Aquarius models should be checked independently. Connect fan power and any separate lighting leads to their specified interfaces. Choose additional cooling around the installed components and the positions that remain available.
Radiator and Fan Positions
Top and bottom positions accept 360 mm radiators. The top takes three 120 mm or three 140 mm fans, with three 120 mm positions at the bottom, three on the motherboard panel and one at the rear. Plan one compatible assembly for each mounting position, accounting for the full fan-and-radiator thickness around memory, motherboard connections and adjacent cooling hardware.
Motherboard and Component Fit
ATX, Micro-ATX and Mini-ITX motherboards are supported through the seven-slot main layout. GPU length clearance is 430 mm, CPU-cooler clearance is 185 mm and the standard ATX PSU length limit is 220 mm. Compare complete component dimensions, including protruding plugs and graphics power cables, before securing the final mounting positions. The listed clearances describe individual limits rather than every possible combined installation.
Storage, Access and Routing
Two removable drive cages provide a storage arrangement of four 3.5-inch HDDs and four 2.5-inch SSDs. The rear chamber keeps those drive and power components away from the main glass display, with tool-less access to the left glass panel. Position the selected drives together with the power and data leads, keeping the cooling paths clear. Leave enough slack at the connectors to remove the relevant panels for maintenance.
Model
XIGMATEK Aquarius Pro Black EN49417
Case size
Mid Tower
Motherboard support
ATX / Micro-ATX / Mini-ITX
Everyday Connections
The top I/O includes USB 3.0, two USB 2.0 connections, USB-C and HD audio, alongside power, reset and lighting controls. Use the supplied Galaxy II control kit with its matching fan connections rather than assuming another controller uses the same interface. Route the internal front-panel leads to the corresponding motherboard headers during assembly. USB performance and available lighting-control features depend on the connected host hardware and supported control arrangement.
Complete Your Workspace
Explore PC Cases to compare suitable options and complete your setup.
Frequently Asked Questions
Which motherboard formats fit XIGMATEK Aquarius Pro Black EN49417?
ATX / Micro-ATX / Mini-ITX.
Which fans are included?
7 × X24A.
What graphics-card length fits?
430 mm.
What CPU-cooler height fits?
185 mm.
Which radiator positions are available?
Top / bottom: 360 mm.
Which front connections are available?
USB 3.0; 2 × USB 2.0; USB-C; HD audio; LED switch.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
Compare Xigmatek Aquarius Pro Arctic Mid Tower Gaming Case - White. Match the exact model, connection and configuration to your setup.
THE DETAILS
Technical specifications
Case Hardware
XIGMATEK Aquarius Pro Black EN49417
Mid Tower
ATX / Micro-ATX / Mini-ITX
EN49417
460 L × 285 W × 445 H mm
0.8 mm SPCC steel
Front and left; tool-less left panel
7 × X24A
Galaxy II fan-control kit
430 mm
185 mm
220 mm
Top / bottom: 360 mm
Top: 3 × 120 or 140 mm; bottom / motherboard panel: 3 × 120 mm; rear: 120 mm
2 removable cages
4 × HDD; 4 × SSD
7
USB 3.0; 2 × USB 2.0; USB-C; HD audio; LED switch
