YOLOLIV

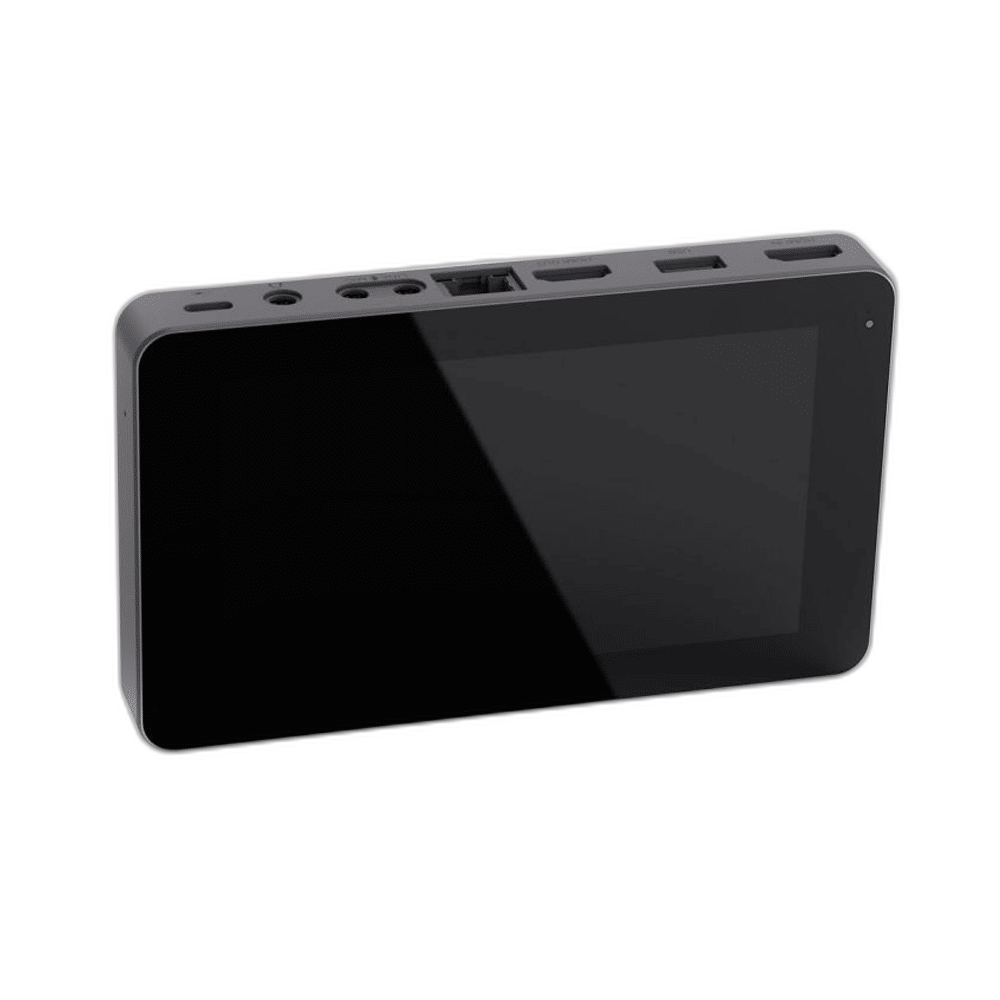

YOLOLIV YoloBox Mini Live Streaming Encoder & Monitor
Combine a portable encoder and monitoring display in one compact device. YoloBox Mini supports live output up to 1080p60, with Ethernet, Wi-Fi and supported 4G connectivity options.
Regular price
209.000 KWD
or 4 payments of 52.250 KWD with
Pay with card & save
199.000 KWD
Save 10.000 KWD
Overview
YOLOLIV YOLOBOX MINI LIVE STREAMING ENCODER & MONITOR
Take live encoding with you.
Combine a portable encoder and monitoring display in one compact device. YoloBox Mini supports live output up to 1080p60, with Ethernet, Wi-Fi and supported 4G connectivity options.
1080p60
Maximum Live Output
HDMI or USB
Video Input; Not Simultaneous
4700 mAh
Battery
SD
Storage Up to 1 TB

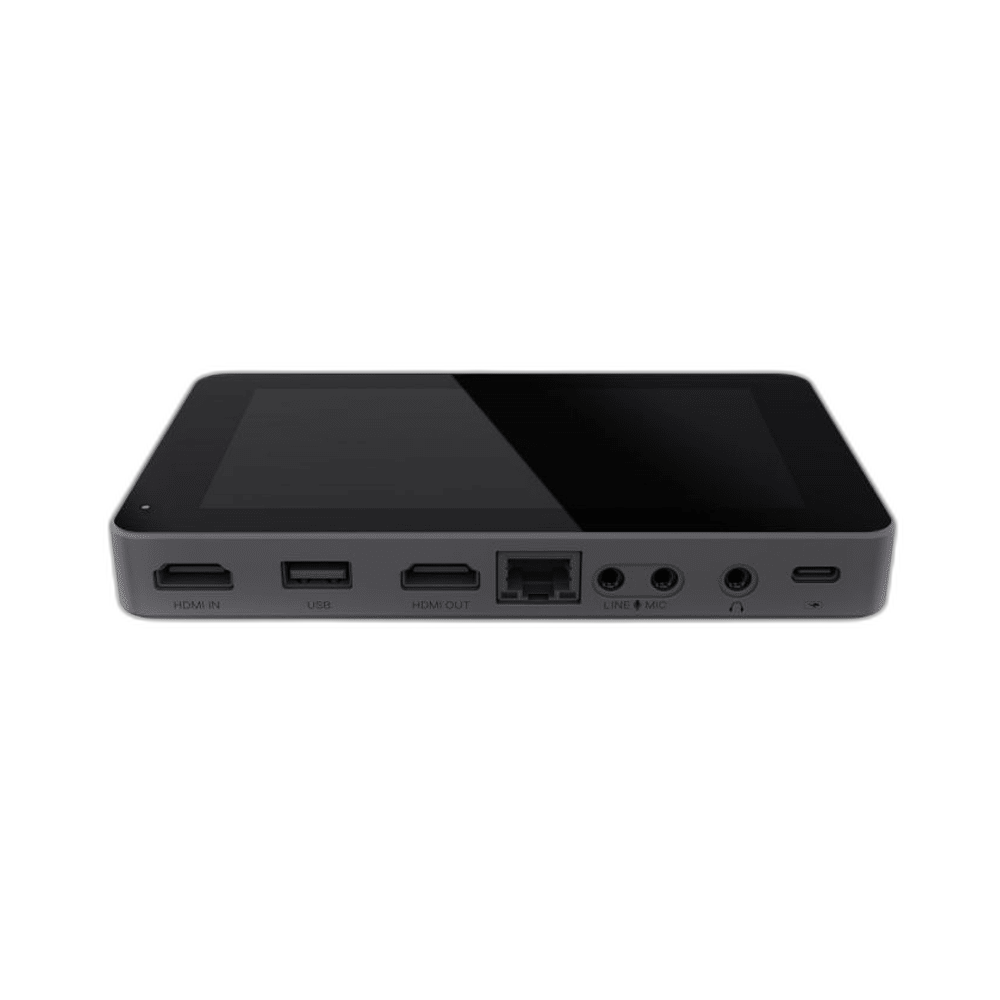

Connect your video source
Use HDMI or a compatible USB video source. HDMI and USB video inputs cannot be used simultaneously. Separate mic, line and headphone connections help organize your audio.
Record and stream on location
Record MP4 files to an SD card while using RTMP or RTMPS for live transmission. A 4700mAh battery and USB-C power input support portable setups; mobile-network compatibility depends on the regional version and carrier.
Choose One Video Input Route
The listed video input is HDMI or USB, without simultaneous operation. Plan which route your source needs before connecting equipment, particularly when choosing cameras and USB devices for the live session.
A Standalone Streaming and Recording Setup
YoloBox Mini lists live output up to 1080p60 and MP4 recording to suitable SD storage. Match the selected output, storage format and available network connection to the session you plan to produce.
Networking with Regional Requirements
Ethernet, 2.4/5 GHz Wi-Fi and regional 4G support are listed. Check the actual mobile-network compatibility and service requirements before relying on a SIM connection for the place you intend to stream from.
Plan Power and Monitoring
The device includes a 4700 mAh battery and listed USB-C power modes. Keep a suitable supply available for the session and choose listening equipment for the device’s 3.5 mm headphone output.
Complete Your Workspace
Explore audio equipment, microphones for your setup. Suggested equipment is sold separately. Check the input, output, host-port and software requirements for your chosen workflow. Use a compatible active 3.5 mm microphone receiver and the encoder’s microphone input, or suitable headphones at its headphone output. The suggested light operates separately; USB microphones and desktop control surfaces are not assumed compatible encoder inputs.
Frequently Asked Questions
Can HDMI and USB video be used simultaneously?
HDMI or USB; not simultaneous.
What live output is listed?
480p, 720p or 1080p; up to 60fps.
Which recording storage is supported?
SD up to 1TB; FAT32, exFAT or NTFS.
What power input is specified?
5V/2.5A, 9V/2A or 12V/1.5A.
Which networking options are listed?
Ethernet; 2.4/5GHz Wi-Fi; regional 4G support. Regional mobile-network compatibility must be checked.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Product specifications
YoloLiv
YoloBox Mini
480p, 720p or 1080p; up to 60fps
HDMI or USB; not simultaneous
HDMI
H.264
AAC
MP4
SD up to 1TB; FAT32, exFAT or NTFS
Ethernet; 2.4/5GHz Wi-Fi; regional 4G support
Nano-SIM
Mic input, stereo line input and 3.5mm headphone output
4700mAh
USB-C; Quick Charge 3.0
5V/2.5A, 9V/2A or 12V/1.5A
155 × 92.6 × 20mm
320g
0–40°C
