Aerocool Mirage 12 Pro 3-in-1 Pack ARGB Computer Fan with Hub & Remote

Supplied quantity

Fan size

Rated upper speed

Included hub capacity

The Supplied Fan Arrangement

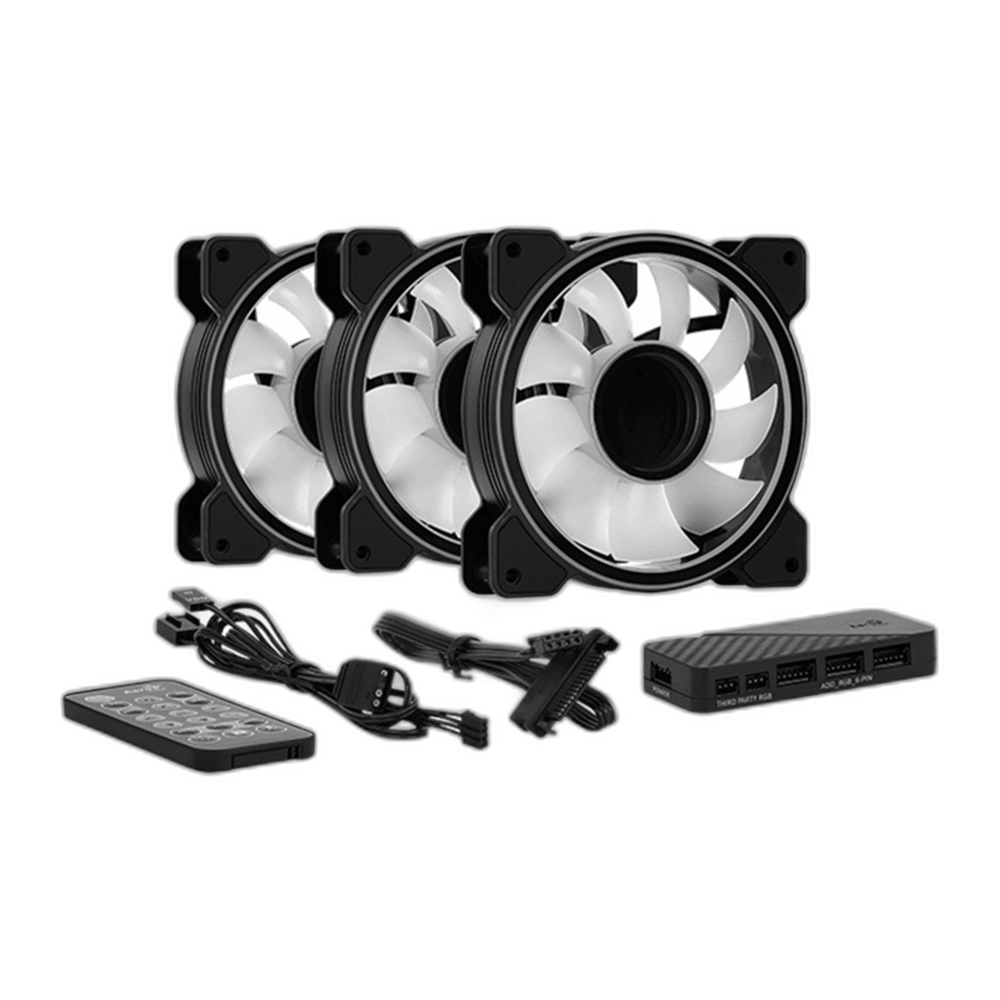

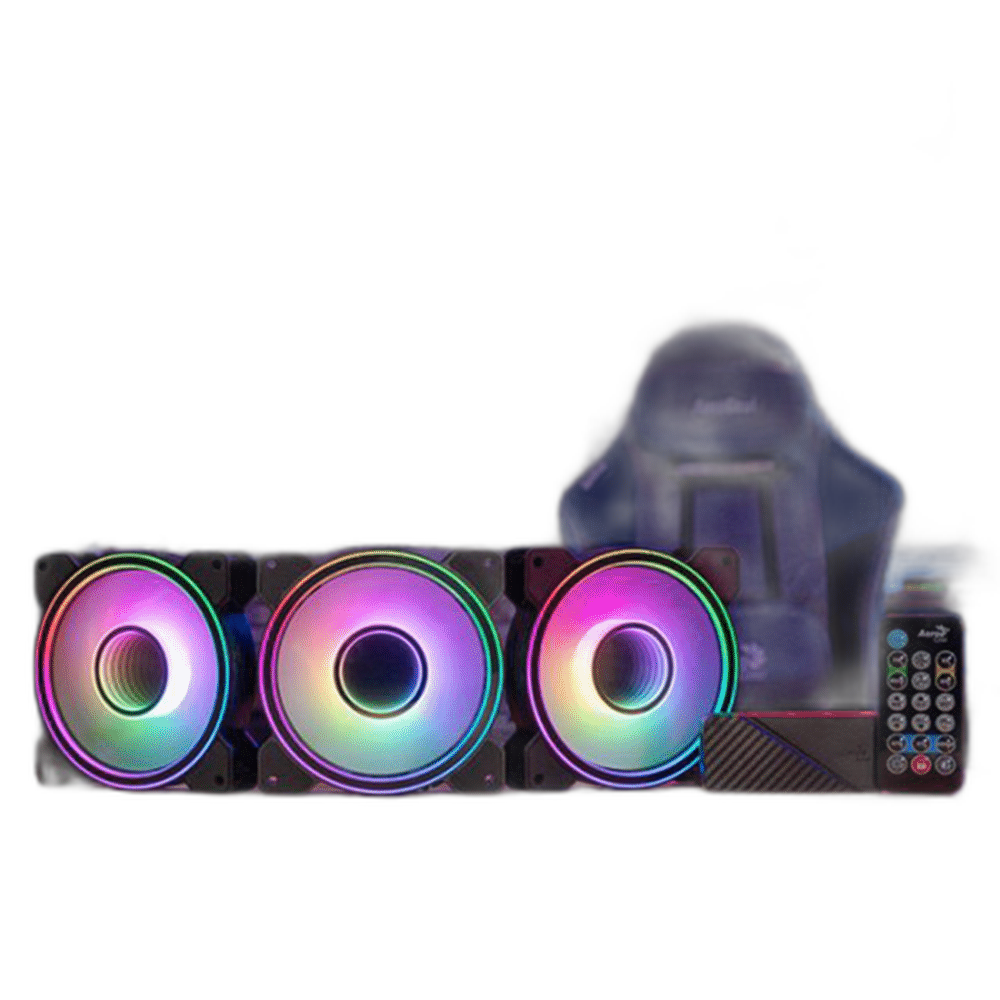

Three Mirage 12 ARGB fans, H66F hub, RF remote, Velcro strap, twelve screws and two black cable ties. The three-fan package provides a matching set for suitable 120 mm case positions. Plan the complete intake and exhaust arrangement around the chassis and installed components.

Dimensions and Mechanical Fit

The documented dimensions are 120 × 120 × 25 mm per fan. Match the frame, mounting-hole pattern and surrounding clearances with the intended case position. Include the fan thickness when checking the space beside radiators, memory or other closely placed components, and use appropriate screws for the actual mounting surface.

Bearing, Speed and Individual Ratings

Hydraulic bearing construction supports the rotating fan assembly. The listed speed is 1300 RPM, with airflow of 45.7 CFM and a noise specification of 17.8 dBA. The pressure rating is 1.52 mm H2O. These are individual fan ratings rather than a combined airflow total for an entire multi-fan installation.

Fan Power and Speed Control

Proprietary six-pin fan lead to the supplied H66F hub. The H66F hub offers supported PWM control when its PWM input is connected to a PWM-capable motherboard header. A voltage-controlled header is not the same control arrangement, and the six-pin fan plugs should not be connected directly to a standard ARGB header.

Lighting and Controller Connections

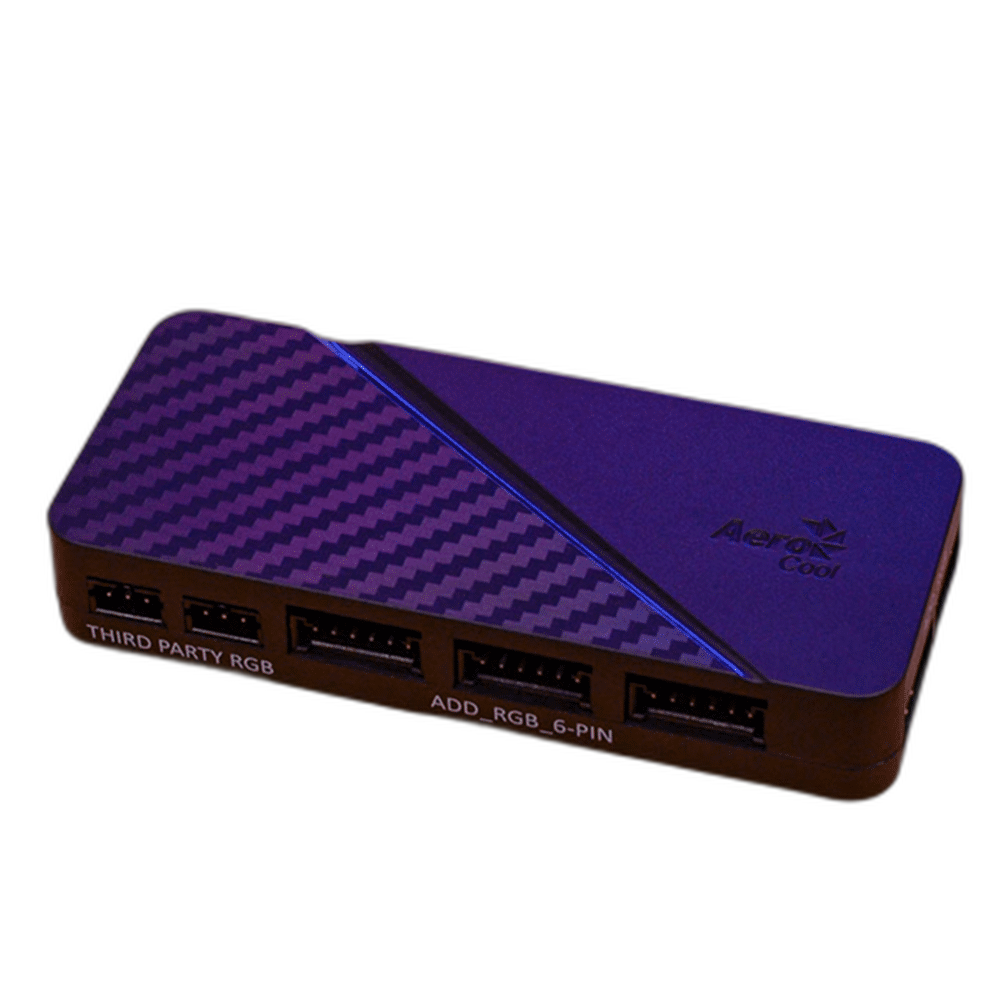

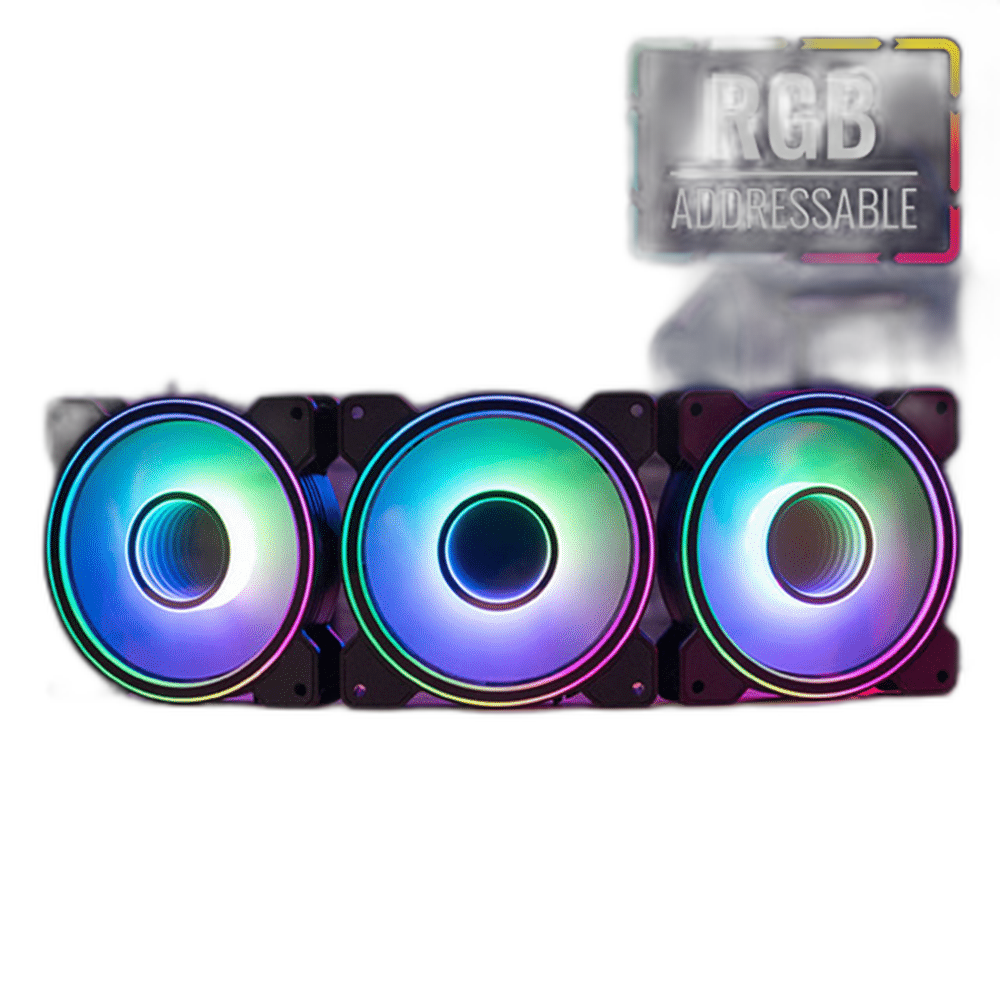

H66F supports six compatible six-pin fans and two additional standard five-volt ARGB accessories; SATA power and a compatible motherboard PWM input. The centre infinity-mirror design and translucent blades form the Mirage lighting presentation. Use the supplied remote or the documented compatible motherboard-sync arrangement to select the lighting. Additional connected devices must match the controller interface and electrical limits.

Model

AeroCool Mirage 12 ARGB Pro Triple Pack

Package

Three Mirage 12 ARGB fans, H66F hub, RF remote, Velcro strap, twelve screws and two black cable ties

Fan dimensions

120 × 120 × 25 mm per fan

How many fans are supplied?

Three Mirage 12 ARGB fans, H66F hub, RF remote, Velcro strap, twelve screws and two black cable ties.

What are the actual frame dimensions?

120 × 120 × 25 mm per fan.

How do the fan leads connect?

Proprietary six-pin fan lead to the supplied H66F hub.

What is the listed speed?

1300 RPM.

What bearing is used?

Hydraulic bearing.
