Aigo DarkFlash Knight K1 Shiny Armour Gaming Case

Maximum GPU length

CPU-cooler height

Front radiator format

Expansion slots

The Chassis and Display Design

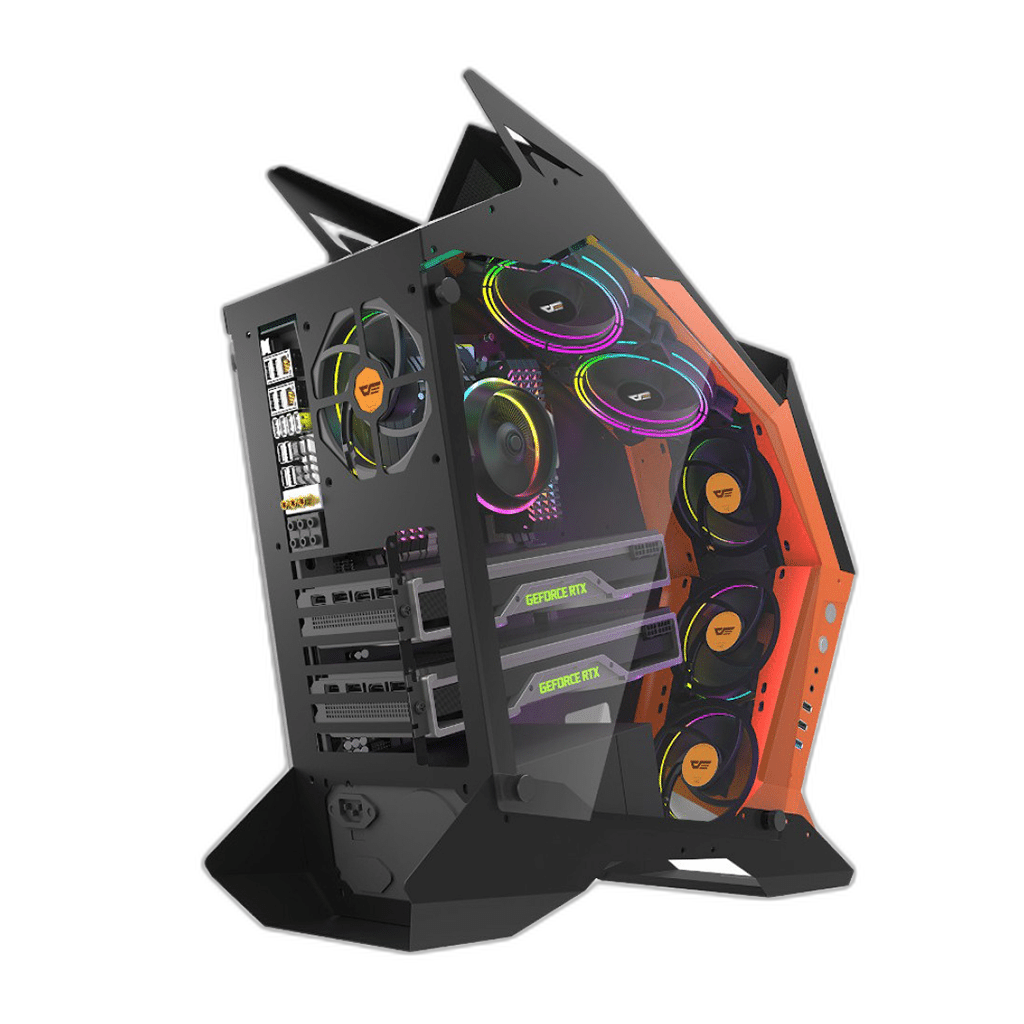

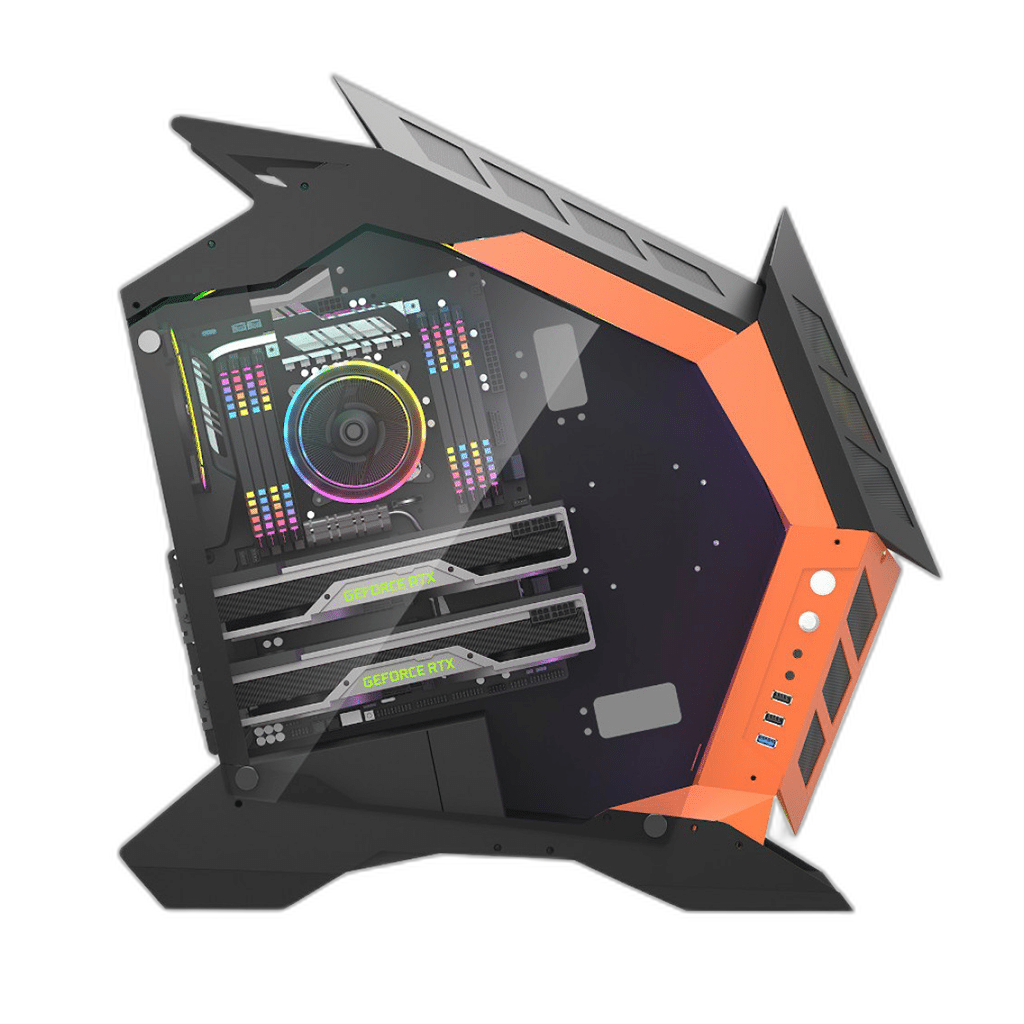

An open-frame design and tempered-glass side panel provide a direct view of the build. Plan the enclosure around the space available on the desk or floor, leaving access to the panels and the connected equipment. The panel layout is part of the case’s visual presentation and its practical assembly arrangement.

Motherboard and Component Planning

The documented motherboard support used for this listing is ATX, Micro-ATX, Mini-ITX. The listed maximum graphics-card length is 330 mm and CPU-cooler height is 155 mm. Match the actual motherboard, graphics card and cooling assembly before starting the build. A case’s individual component dimensions do not guarantee that all maximum-size parts can be installed together.

Fan and Radiator Positions

A front 240 mm radiator position is documented, with 120 mm fan positions at the top, front, rear and bottom. Select the fan and radiator arrangement around the intended airflow path. Check the full radiator body, attached fan thickness, board components and nearby connectors together before committing to a cooling position.

Front Connections at the Desk

The front connection arrangement is 1 × USB 3.0; 2 × USB 2.0; HD audio. Plan access to these ports when choosing the case position, and connect the appropriate internal leads to the motherboard. Front USB ports and audio sockets use their corresponding board connections rather than a single shared signal cable.

Build Access and Cable Routing

Plan the power, storage, fan and front-panel leads alongside the motherboard and cooling hardware. Keep the routes clear of rotating fan blades and leave enough access at connectors for assembly. A considered cable arrangement also makes it easier to reach individual parts when the system later needs cleaning or a component change.

Model

darkFlash Knight K1

Motherboard support

ATX, Micro-ATX, Mini-ITX

Design

An open-frame design and tempered-glass side panel provide a direct view of the build.

Which motherboard formats are documented?

ATX, Micro-ATX, Mini-ITX.

What radiator arrangement is listed?

A front 240 mm radiator position is documented, with 120 mm fan positions at the top, front, rear and bottom.

What component-clearance information is used?

The listed maximum graphics-card length is 330 mm and CPU-cooler height is 155 mm.

Which front USB connections are provided?

1 × USB 3.0; 2 × USB 2.0; HD audio.

Does a nominal radiator size establish complete fit?

No. Check the radiator, fans, motherboard and cable clearances together.
