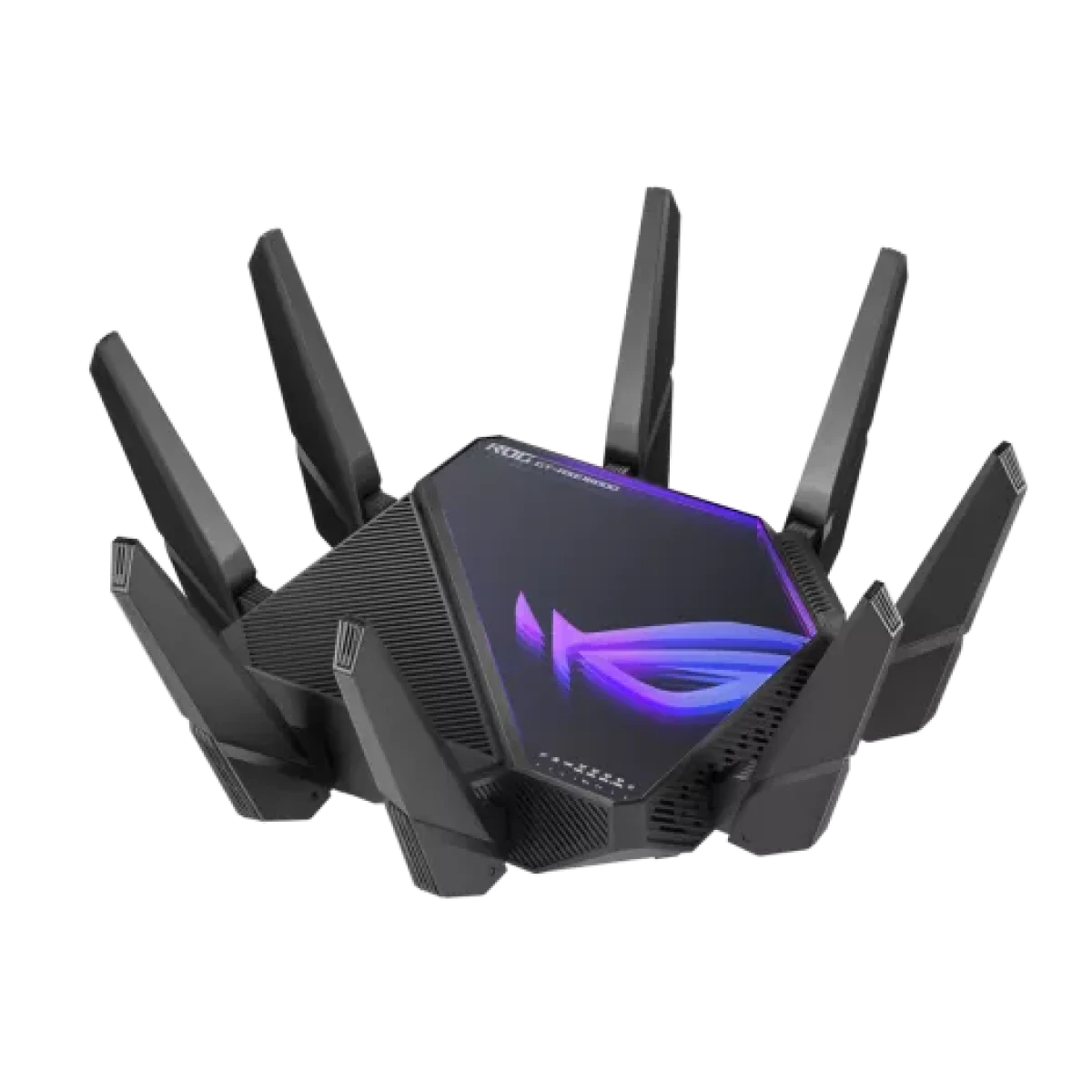

ASUS ROG Rapture GT-AXE16000 Gaming Router
ASUS ROG Rapture GT-AXE16000 AXE16000 Wi-Fi 6E gaming router with AiMesh support, wired Ethernet connections, Adaptive QoS and AiProtection Pro. See the specifications for the exact band layout, maximum link rates and port configuration.
Regular price
215.500 KWD
or 4 payments of 53.875 KWD with
Pay with card & save
205.000 KWD
Save 10.500 KWD
Overview
ASUS ROG RAPTURE GT-AXE16000
ASUS ROG Rapture GT-AXE16000
ASUS ROG Rapture GT-AXE16000 combines Wi-Fi 6E wireless networking with AXE16000-class radio specifications and gaming-focused management tools. Its wired interfaces, processor and AiMesh support give you several ways to arrange a home network around compatible devices. Choose the model by its band layout and port speeds, then configure the connection around your own internet service and local equipment. Explore this model at AX Store in Kuwait.
Wi-Fi 6E
Wireless Generation
AXE16000
Wireless Speed Class
2.0 GHz Quad Core
Processor
10 GbE
Fastest Ethernet Port
Wireless Bands for Compatible Devices
GT-AXE16000 combines a 2.4 GHz radio, two separate 5 GHz radios and a 6 GHz radio. Each uses a 4×4 transmit/receive arrangement. Listed maximum link rates are 1148 Mbps on 2.4 GHz and 4804 Mbps on each of the other three bands, giving compatible clients several band options within a quad-band Wi-Fi 6E network.
Wired Connections Around Your Setup
Two 10G WAN/LAN ports provide high-speed wired connection options, alongside a 2.5G WAN port and four Gigabit LAN ports. Plan the uplink and local devices around the port speeds they can use. A USB 3.2 Gen 1 port and a USB 2.0 port extend the available connections for supported USB applications and compatible devices.
Hardware and Physical Design
The router uses a 2.0 GHz quad-core processor, 2 GB of DDR4 memory and 256 MB of flash. ASUS specifies eight non-detachable external antennas and four internal antennas. With dimensions of 354 × 354 × 193 mm and a 2425 g weight, it benefits from a planned position with sufficient room for the full antenna arrangement.
Gaming and Traffic Management
Game Boost, Game Radar and OpenNAT are among the included gaming tools. Adaptive QoS and bandwidth monitoring provide additional control over how network traffic is handled. Use them to configure priorities around the devices in your own setup, then review the available traffic information as the mix of gaming, downloads and other household activity changes.
Expand with Compatible AiMesh Equipment
AiMesh support allows the router to work as a primary AiMesh router or a node in a compatible ASUS mesh network. It also supports access point operation. Choose the mode that matches your existing equipment and intended layout, then place the router where the wireless connection and wired uplink can serve the devices you want to connect.
Network Controls in One Place
AiProtection Pro, parental controls and guest-network settings are listed in the router’s features. VPN client and server options add ways to configure supported remote connections. Wireless figures are maximum link rates; actual throughput depends on clients and network conditions. Available bands and channel widths also depend on regional settings, so select the supported options during setup.
Match the Network Device to Your Connection
Check the required wired or wireless connection, power arrangement and coverage needs. Confirm the intended role and compatibility with the existing network before choosing another device. Compare related options such as UGREEN USB Bluetooth 5.0 Adapter, Compact Design or UGREEN CAT8 Braided Ethernet Cable, keeping the exact model and configuration in the decision. For the wider setup, explore BENFEI USB Type C to HDMI 4K UHD Cable, 1.8M and check the connection, size or mounting requirements before pairing accessories. Browse the ASUS range at AX for more choices.
ASUS ROG Rapture GT-AXE16000 Setup Choices
Check the required wired or wireless connection, power arrangement and coverage needs. Confirm the intended role and compatibility with the existing network before choosing another device.
Frequently Asked Questions
Which wireless standards and bands are supported?
Network Standard: WiFi 6 (802.11ax); WiFi 6E (802.11ax); Backwards compatible with 802.11a/b/g/n/ac Wi-Fi. Operating Frequency: Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz. Band availability depends on local regulations and compatible client devices.
What do the wireless speed-class figures mean?
This model is listed in the AXE16000 wireless class. 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps; 5GHz-1 AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps; 5GHz-2 AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps; 6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps. These are wireless link-rate figures, rather than a guaranteed internet download rate.
Which Ethernet and USB ports are available?
1 x 2.5 Gigabit WAN Port 2 x 10 Gigabit WAN/LAN Ports 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port.
Which operating modes and mesh functions are listed?
Operating Mode: Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge. AiMesh: AiMesh; • Primary AiMesh Router; • AiMesh Node.
What processor and memory are specified?
Processor: 2.0GHz quad-core processor. Memory: 256MB NAND flash and 2GB DDR4 RAM.
What channel-width restriction should I check?
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions..
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Wireless and Hardware
GT-AXE16000
WiFi 6 (802.11ax), WiFi 6E (802.11ax), Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
AXE16000 ultimate AX/AXE performance
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps, 5GHz-1 AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps, 5GHz-2 AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps, 6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
External antenna x 8 (non-detachable) Internal antenna x 4
2.4GHz 4x4, 5GHz-1 4x4, 5GHz-2 4x4, 6GHz 4x4
2.0GHz quad-core processor
256MB NAND flash and 2GB DDR4 RAM
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
Connections and Physical Specifications
1 x 2.5 Gigabit WAN Port 2 x 10 Gigabit WAN/LAN Ports 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port
WPS Button, LED Button, Reset Button, Power Switch
Power x 1 2.4G x 1 5GHz-1 x 1 5GHz-2 x 1 6G x 1 10GE Port x 1 LAN x 1 WAN x 1
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current ； 19.5 V with max. 3.33 A current
GT-AXE16000 WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card
2425 g
354 * 354 * 193 mm
Network Features
AiMesh, • Primary AiMesh Router, • AiMesh Node
Game Boost / Acceleration, Game Radar, WTFast, ROG_First, OpenNAT (Game Profile)
"Allow you to block access to unwanted websites and apps.", Parental Control Customized Internet Schedule, 64, 64
"The Guest Network provides Internet connection for guests but restricts access to your local network.", 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3, Guest Network Connection time limit, Open system, WPA/WPA2-Personal/WPA3-Personal
WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, 64, 32, 64
AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking
VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, Daily, Weekly, Monthly, • Website History
Internet Connection Type :, • PPPoE, • PPTP, • L2TP, • Automatic IP, • Static IP, Dual WAN, WAN Aggregation, 3G / 4G LTE Dongle, 4G / 5G Auto Mobile Tethering, Port Forwarding, 64, Port Triggering, 32, DMZ, DDNS, NAT Passthrough :, • PPTP Pass-Through, • L2TP Pass-Through, • IPSec Pass-Through, • RTSP Pass-Through, • H.323 Pass-Through, • SIP Pass-Through, • PPPoE Relay
DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, 128, Wake on LAN (WOL)
MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming
4G / 5G Auto Mobile Tethering, File System :, • HFS+, • NTFS, • vFAT, • ext2, • ext3, • ext4, Safely Remove Disk, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges
ASUSWRT
Configuration Backup and Restore, Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
