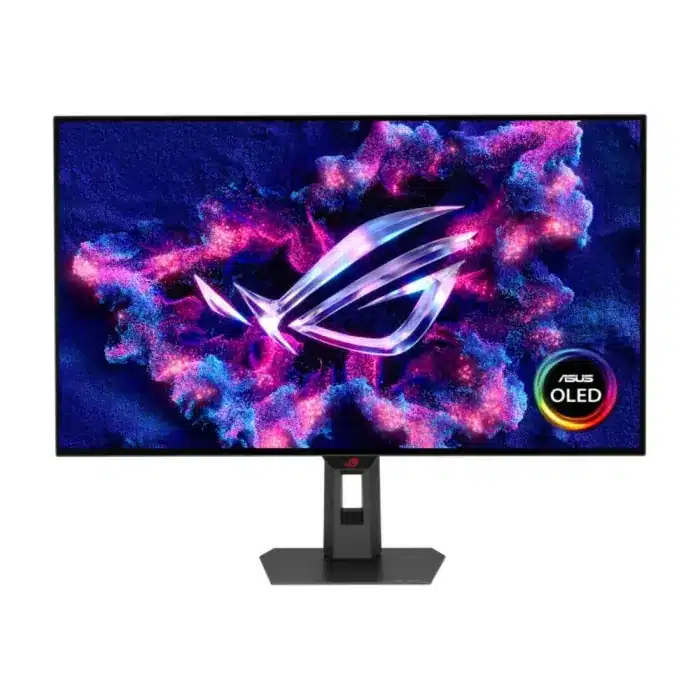

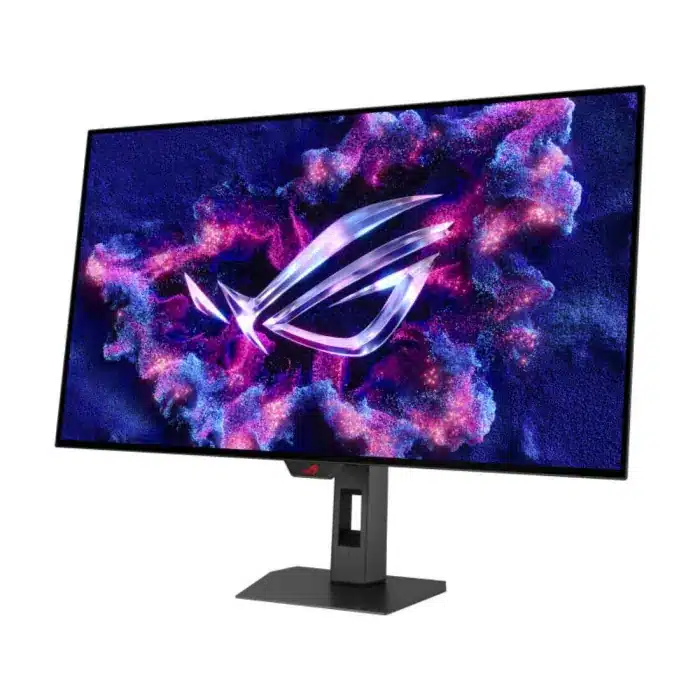

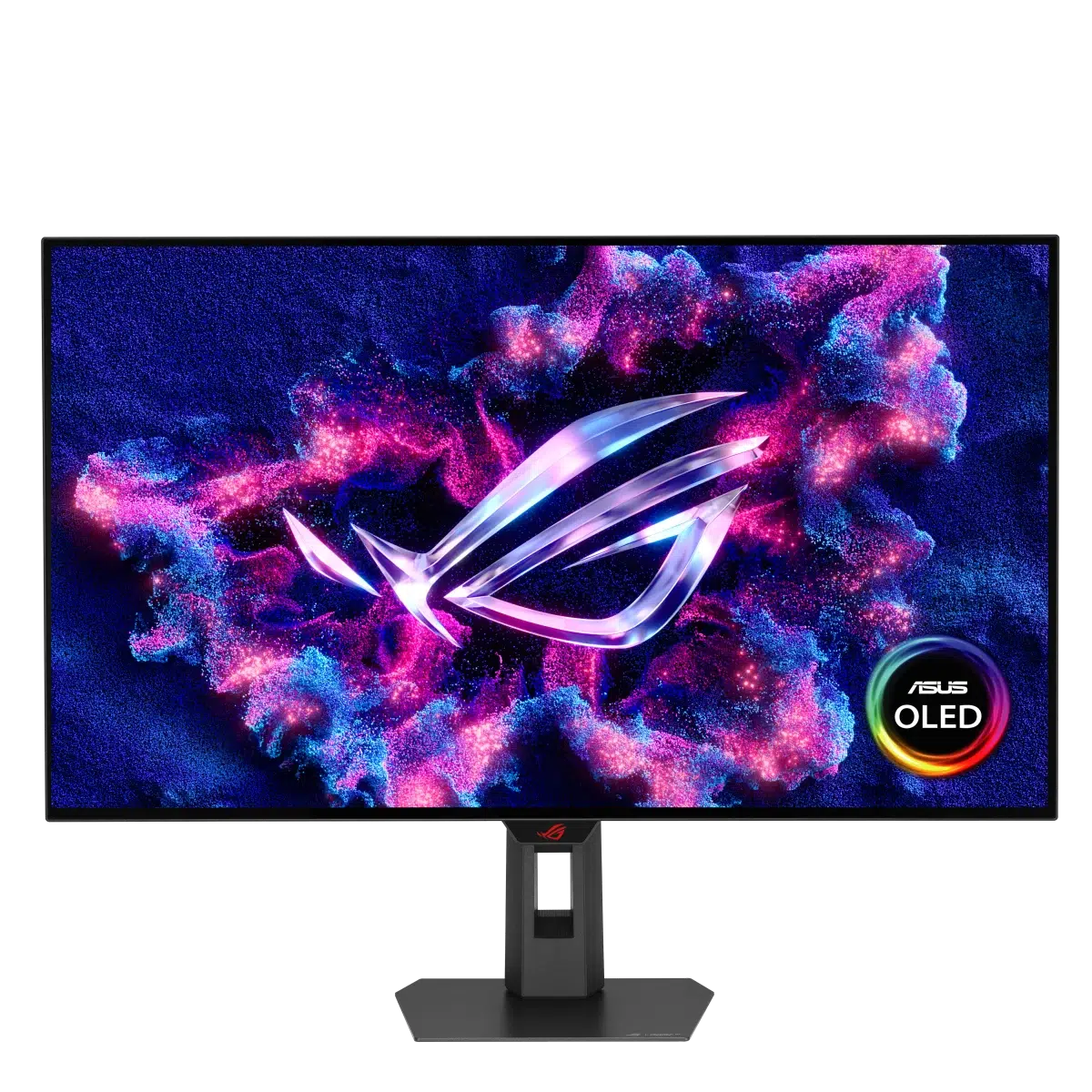

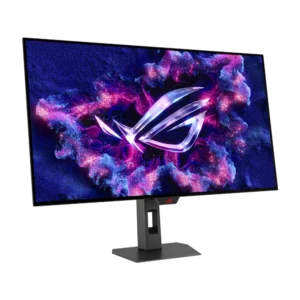

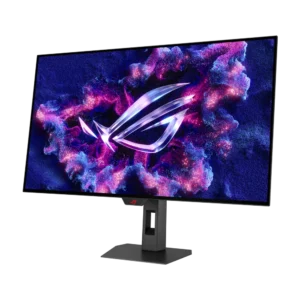

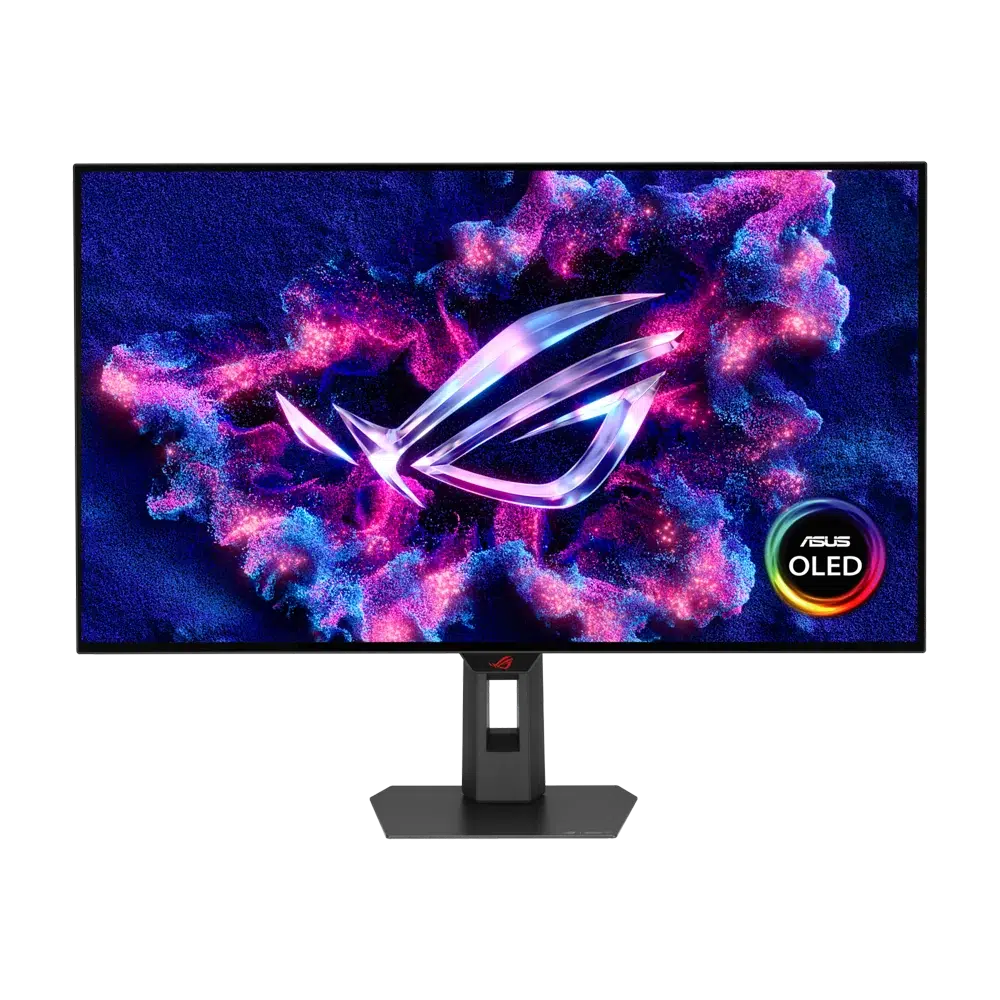

ASUS ROG Strix OLED XG32UCWG 32" 4K Gaming Monitor - 165Hz / FHD 330Hz

Display Diagonal

Resolution

Listed Maximum Refresh

Panel Technology

Panel, Resolution and Surface

The 31.5-inch viewable WOLED panel provides a 3840 × 2160 native resolution with a TrueBlack Glossy surface. ASUS lists 99% DCI-P3 color space, 10-bit display colors and VESA DisplayHDR 400 True Black certification. Its larger 16:9 screen gives you a different desktop scale from a 27-inch-class display while retaining a 4K pixel count.

Refresh Modes and Response Time

Dual Mode lets the monitor run at up to 165 Hz in 4K or up to 330 Hz in Full HD. The faster setting changes the resolution as well as the refresh rate. A specified 0.03 ms gray-to-gray response is part of the OLED panel design; select the mode that suits the game and the output your system supports.

Motion Settings for Compatible Systems

Variable-refresh support works with compatible graphics hardware to adapt the display timing to the signal. Extreme Low Motion Blur is also listed among the gaming features. Treat the available motion settings as options to configure for your chosen mode, then compare their effect in the games you normally use before settling on your preferred display setup.

Connections for Your Desk

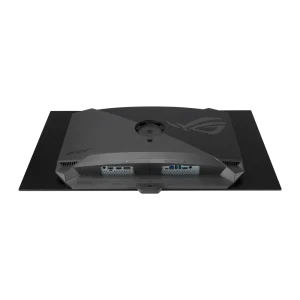

DisplayPort 1.4 DSC, two HDMI 2.1 inputs and USB-C with DisplayPort Alt Mode provide video connections. A three-port USB 3.2 Gen 1 Type-A hub, an earphone output and 15 W USB-C Power Delivery are also listed. The monitor includes KVM functionality for compatible multi-device arrangements, making the complete connection list useful when planning a shared desk.

Position the Screen Around You

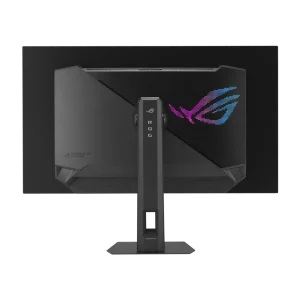

The stand offers up to 110 mm of height adjustment, tilt and swivel up to 25° in each direction. A 100 × 100 mm VESA mounting pattern provides an alternative when using a suitable mount. Check the published dimensions and weight when planning the screen position and available desk space.

What size, panel and resolution does it use?

The display measures 31.5 inches diagonally and uses WOLED panel technology. Resolution: 3840x2160.

What refresh modes and input limits should I check?

Listed maximum refresh: 165Hz. Dual Mode resolution / refresh combinations: 3840 × 2160 at 165 Hz; 1920 × 1080 at 330 Hz. Digital Signal Frequency: UHD Mode: HDMI: 27~255kHz (H) / 48~165Hz (V) DP/Type-C: 386~386kHz (H) / 48~165Hz (V) FHD Mode: HDMI: 27~255kHz (H) / 48~330Hz (V) DP/Type-C:425~425kHz (H) / 48~330Hz (V). Note: *Peak brightness may vary due to color pre-calibration.

How is the response time specified?

Response Time: 0.03ms(GTG).

Which display inputs and USB connections are listed?

DisplayPort 1.4 DSC: x 1. HDMI (v2.1): x 2 (FRL). USB-C: x 1 (DP Alt Mode). USB Hub: 3x USB 3.2 Gen 1 Type-A. USB-C Power Delivery: 15W.

What stand adjustment and mounting details are specified?

Tilt: Yes (+20° ~ -5°). Swivel: Yes (+25° ~ -25°). Height Adjustment: 0~110mm. VESA Wall Mounting: 100x100mm.

What brightness and HDR support are specified?

Brightness (HDR, Peak) *: 1,300 cd/㎡. HDR (High Dynamic Range) Support: HDR10.
