ASUS

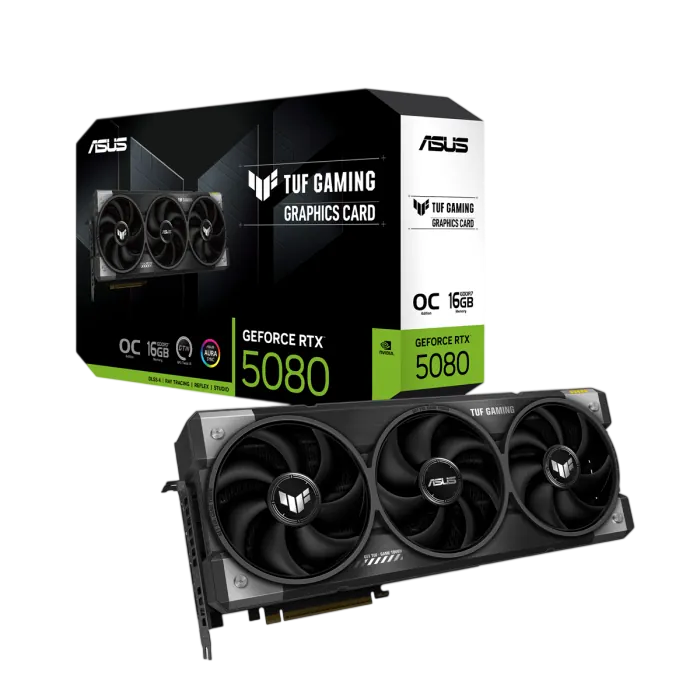

ASUS TUF Gaming GeForce RTX 5080 OC 16GB GDDR7 – Black
The ASUS TUF Gaming GeForce RTX 5080 OC combines 16GB GDDR7 memory and NVIDIA Blackwell graphics with a 2700MHz default boost clock. Its triple-fan cooling, Dual BIOS and reinforced metal construction support demanding gaming sessions, while Aura Sync lighting lets you coordinate the card with your setup.
Overview
ASUS TUF GAMING · GEFORCE RTX 50 SERIES
ASUS TUF Gaming GeForce RTX 5080 OC
Power for demanding games. Cooling to match.
Build your next gaming setup around NVIDIA Blackwell graphics and 16GB of GDDR7 memory. The TUF Gaming OC combines a substantial cooling system, reinforced construction and customizable lighting for gaming, streaming and creative work.
16GB GDDR7
Dedicated graphics memory
2700MHz
Default boost clock
3 Fans
Axial-tech cooling
Dual BIOS
Performance and Quiet modes
NVIDIA BLACKWELL
Bring more detail to your games.
Ray tracing adds more realistic lighting, shadows and reflections to supported titles. NVIDIA DLSS uses AI to improve performance and image quality, with Multi Frame Generation available in compatible games for smoother motion.
NVIDIA Reflex helps reduce system latency in supported competitive games. Adjust your graphics settings to find the balance of detail and responsiveness that suits your monitor and the games you play.
COOLING THAT ADAPTS
Ready for longer gaming sessions.
Three Axial-tech fans work with a large vapor chamber and heatsink to move heat away from the GPU. A phase-change thermal pad helps maintain effective contact between the chip and its cooler.
During lighter tasks, the fans can stop for quieter operation. They restart automatically as the GPU warms up.
TUF CONSTRUCTION
Reinforced where it matters.
A metal shroud and aluminum backplate help support the card, while large openings allow heat to escape. Protective circuit-board coating adds resistance to moisture, dust and debris. An included TUF graphics card holder provides additional support inside your case.
YOUR SETUP, YOUR SETTINGS
Make it part of your setup.
Choose lighting colors and effects with Aura Sync, then coordinate them with compatible components.
The Dual BIOS switch offers Performance and Quiet modes. ASUS GPU Tweak III adds temperature monitoring, fan controls and tuning options.
CREATE & STREAM
Put the same power into your projects.
NVIDIA Studio supports GPU acceleration in compatible editing, rendering and design applications. Hardware video encoding helps with recording and streaming, including AV1 workflows.
NVIDIA Broadcast provides tools for cleaner voice calls and streams, including background noise removal and camera effects. Studio Drivers are available for supported creative applications.
CONNECT YOUR DISPLAYS
Space for gaming and everything around it.
Three DisplayPort 2.1b connections and two HDMI 2.1b connections give you flexible display options. The card supports up to four screens at once for gaming, chat, editing and everyday work.
Its 348mm length and 3.6-slot cooler suit cases with generous GPU clearance. Plan space for the card, its power cable and surrounding airflow.
BEFORE YOU CHOOSE
A few useful answers.
What is the difference between its default and OC modes?
ASUS lists a 2700MHz default boost clock and a 2730MHz clock in OC mode.
What power supply does it need?
ASUS recommends an 850W power supply. The card uses one 16-pin power connector; your complete system determines the final power requirement.
Will it fit in my case?
Check clearance for its 348 × 146 × 72mm dimensions and 3.6-slot thickness, plus room for the power cable.
Can all five display ports be used at once?
No. There are five physical display connections, but the maximum supported number of simultaneous displays is four.
Do the fans run all the time?
The fans stop below a GPU temperature of 50°C and restart above 55°C, helping keep lighter tasks quieter.
EXPLORE THE SETUP
THE DETAILS
Technical specifications
General
ASUS
TUF-RTX5080-O16G-GAMING
90YV0M30-M0NA00
Graphics Processor
NVIDIA GeForce RTX 5080
PCI Express 5.0
4.6
10752
1801 TOPS
2700 MHz
2730 MHz
Memory
16 GB GDDR7
30 Gbps
256-bit
Display Outputs
7680 x 4320
2 x native HDMI 2.1b
3 x native DisplayPort 2.1b
2.3
4
No
Power
850 W
1 x 16-pin
Fully overclocked GPU and CPU system; choose capacity for the complete system
Dimensions and Lighting
348 x 146 x 72 mm
13.7 x 5.7 x 2.8
3.6 slots
ARGB
Cooling and Construction
3 x Axial-tech fans; dual-ball bearings; large vapor chamber
Fans stop below 50°C and restart above 55°C
Phase-change GPU thermal pad; MaxContact heat spreader
Dual BIOS: Quiet / Performance
Diecast shroud; vented aluminum backplate
Military-grade TUF chokes and MOSFETs; TUF 5K black metallic capacitors
Protective coating; ASUS GPU Guard and GPU bracket
Auto-Extreme Technology
Software
ASUS GPU Tweak III; MuseTree; GeForce Game Ready Driver; Studio Driver (download from ASUS support)
Accessories
1 x Speedsetup Manual; 1 x TUF Graphics Card Holder; 1 x TUF Velcro Hook & Loop; 1 x TUF Magnet; 1 x TUF Gaming Certificate; 1 x Thank You Card; 1 x Adapter Cable (1 to 3)
