CORDIAL EM FM XLR Microphone Cable - 3M
CORDIAL Elements EM 3 FM XLR Cable provides a 3 m balanced analogue microphone interconnect with 3-pin XLR female to 3-pin XLR male connectors. The connector arrangement and cable length define the physical link for the intended compatible audio equipment.
Regular price
10.500 KWD
or 4 payments of 2.625 KWD with
Pay with card & save
9.900 KWD
Save 0.600 KWD
Overview
CORDIAL ELEMENTS EM 3 FM XLR CABLE
CORDIAL Elements EM 3 FM XLR Cable
CORDIAL Elements EM 3 FM XLR Cable provides a 3 m balanced analogue microphone interconnect with 3-pin XLR female to 3-pin XLR male connectors. The connector arrangement and cable length define the physical link for the intended compatible audio equipment. Explore this model at AX Store in Kuwait.
3 m
Cable length
XLR female / male
Connector arrangement
2 × 0.22 mm²
Construction
95% shield
Signal arrangement
The Connector Arrangement

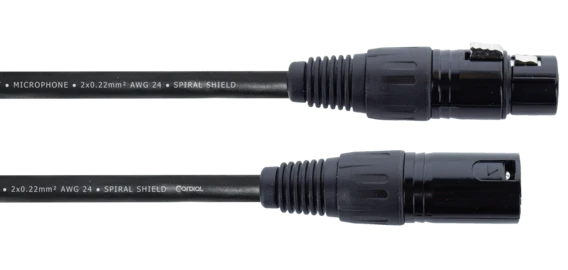

The cable has a female three-pin XLR connector at one end and a male three-pin XLR connector at the other. This is the common connector arrangement for linking a compatible microphone output to an audio interface, mixer or other suitable balanced input. Check the actual sockets on the chosen equipment before connecting.
A 3 m Cable Route
The documented length is 3 m. This is the three-metre EM 3 FM length variant. Plan the route between the actual equipment positions and allow a little free movement at the connectors rather than leaving the cable pulled tight.
Balanced Audio Connection
The XLR cable is intended for a compatible balanced analogue audio connection. Balanced signalling is provided by the connected equipment and the cable wiring together; the lead does not turn an unbalanced source into a balanced one. Use the correct microphone or line input on the receiving device for the source.
The Cable Construction
2 × 0.22 mm² bare-copper conductors forms the documented conductor specification. Spiral copper shield; 95% coverage is listed for the cable. CORDIAL lists a flexible PVC jacket and a 28 × 0.10 mm strand construction, useful when arranging and coiling the microphone cable.
Connectors and Handling
Nickel-plated contacts are specified for the cable. Fit the plugs fully into the matching sockets and keep the connection accessible. Handle the connector housing when unplugging and keep the cable route clear of sharp bends at the plug entry.
Model
CORDIAL Elements EM 3 FM XLR Cable
Manufacturer model
EM 3 FM
Length
3 m
Choose the Rest of the Audio Path
Match the cable to the source output, receiving input and intended audio level. A microphone still needs the appropriate interface or mixer input and any power required by that microphone. The XLR lead does not supply USB conversion or an audio interface.The equipment’s own input selection and operating controls complete the setup.
Match Both Ends of the Signal Route
Choose the connectors, signal type and cable length for the equipment at both ends. A passive lead does not add an audio interface, power supply or a different signal protocol; confirm the input function before ordering. Compare related options such as BESIGN Ground Loop Noise Isolator with 3.5mm Audio Cable or Klotz Greyhound XLR Microphone Cable, 3 Meter, keeping the exact model and configuration in the decision. For the wider setup, explore Shure SM7dB Dynamic Vocal Microphone with Built-in Preamp and check the connection, size or mounting requirements before pairing accessories.
CORDIAL Elements EM 3 FM XLR Cable Setup Choices
Choose the connectors, signal type and cable length for the equipment at both ends. A passive lead does not add an audio interface, power supply or a different signal protocol; confirm the input function before ordering. Explore RØDE PodMic Dynamic Podcasting Microphone, XLR, RODE RODECaster Duo Integrated Audio Production Studio.
Frequently Asked Questions
What connectors are fitted?
3-pin XLR female to 3-pin XLR male.
What is the documented length?
3 m.
Does the cable include a USB audio interface?
No. It is a passive analogue cable.
What should be checked before connecting?
The source output and receiving input, signal type and any device-specific pin assignments.
Is it a speaker-power cable?
No. It is intended for the stated analogue audio interconnect arrangement.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Product Specifications
CORDIAL Elements EM 3 FM XLR Cable
EM 3 FM
3 m
3-pin XLR female to 3-pin XLR male
Balanced analogue microphone interconnect
Passive analogue interconnect
2 × 0.22 mm² bare-copper conductors
Spiral copper shield; 95% coverage
Nickel-plated
Elements MIC 1
PVC
Two twisted cores
28 × 0.10 mm
14747
