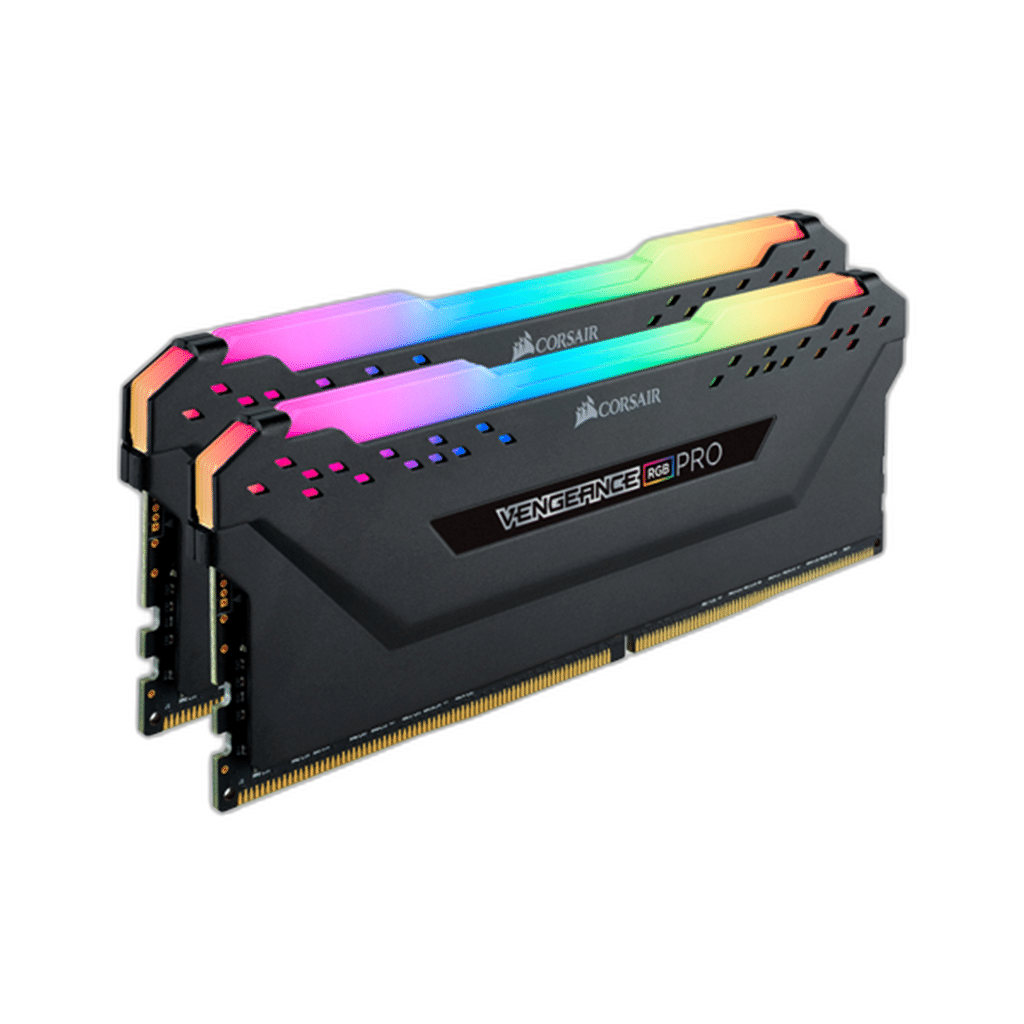

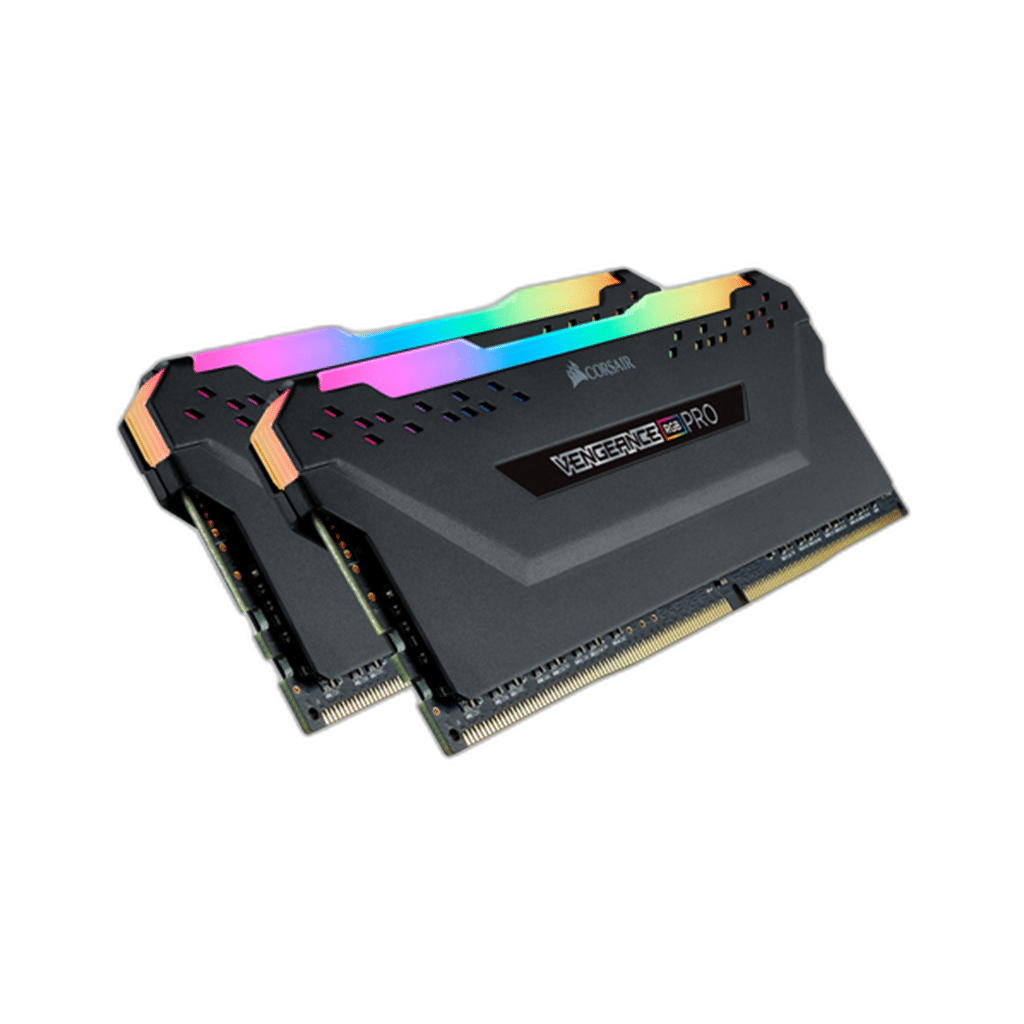

Corsair Vengeance RGB PRO 3600MHz 16GB DDR4 Memory Kit

Total supplied capacity

Rated profile data rate

Rated CAS latency

Supplied modules

Capacity and Module Arrangement

The 16 GB total is supplied as 2 matched 8 GB modules. Install the supplied modules together in the slots recommended by the motherboard manual, allowing the platform to use its supported channel arrangement. Consider the working-memory requirements of the applications you run alongside the space already installed in the computer. A matched kit provides its stated total across the supplied modules; it is not that capacity per stick.

A Rated 3600 MT/s Profile

The rated memory profile is up to 3600 MT/s, with CL18 CAS latency at 1.35 V. These values describe the tested profile rather than an automatic setting on every computer. Choose a processor and motherboard that support the intended memory configuration, then use the board’s documented profile controls to configure the system.

Profile Support and Startup Settings

XMP 2.0 is the supported profile format for this model. The default SPD/JEDEC configuration is DDR4-2666 CL18 at 1.2 V. The computer may start at its default memory settings before a profile is selected. The available operating speed depends on the processor’s memory controller, installed BIOS, module population and the exact kit support offered by the board.

A DDR4 Desktop DIMM Match

This is DDR4 desktop memory in the Desktop UDIMM format. Match both the memory generation and physical module type with the motherboard before installation. DDR4 and DDR5 use different electrical arrangements and cannot be interchanged. Check the board’s memory support list and maximum supported module capacity when selecting the kit for the complete platform.

RGB Lighting without Extra Lighting Cables

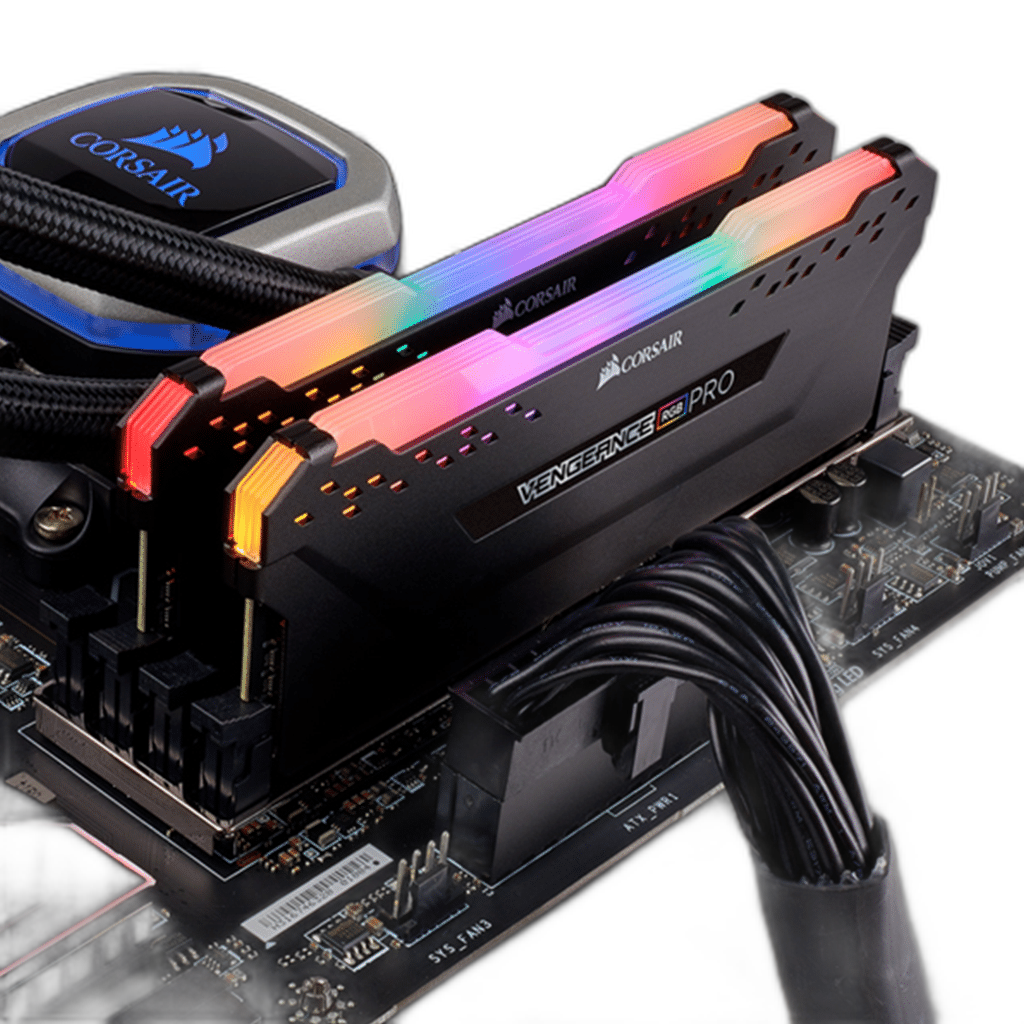

VENGEANCE RGB PRO uses dynamic multi-zone RGB lighting with an anodised aluminium heat spreader. Compatible CORSAIR iCUE software configures lighting effects and synchronises them with supported equipment in the setup. The memory requires no extra lighting wires or cables. Check the full module clearance around the CPU cooler when fitting the kit into the recommended desktop DIMM slots.

Manufacturer part

CMW16GX4M2Z3600C18

Product family

CORSAIR VENGEANCE RGB PRO

Memory generation

DDR4

How many modules are supplied?

2 × 8 GB. The total kit capacity is 16 GB.

Will it automatically run at the rated data rate?

The default configuration is DDR4-2666 CL18 at 1.2 V. Using the up-to 3600 MT/s profile requires compatible hardware and appropriate BIOS configuration.

Which profile format is supported?

XMP 2.0.

What are the rated latency and voltage?

CL18 CAS latency at 1.35 V.

Can it fit a DDR5 motherboard?

No. This model requires DDR4 desktop DIMM support. Check the exact kit and module capacity against the motherboard’s compatibility guidance.
