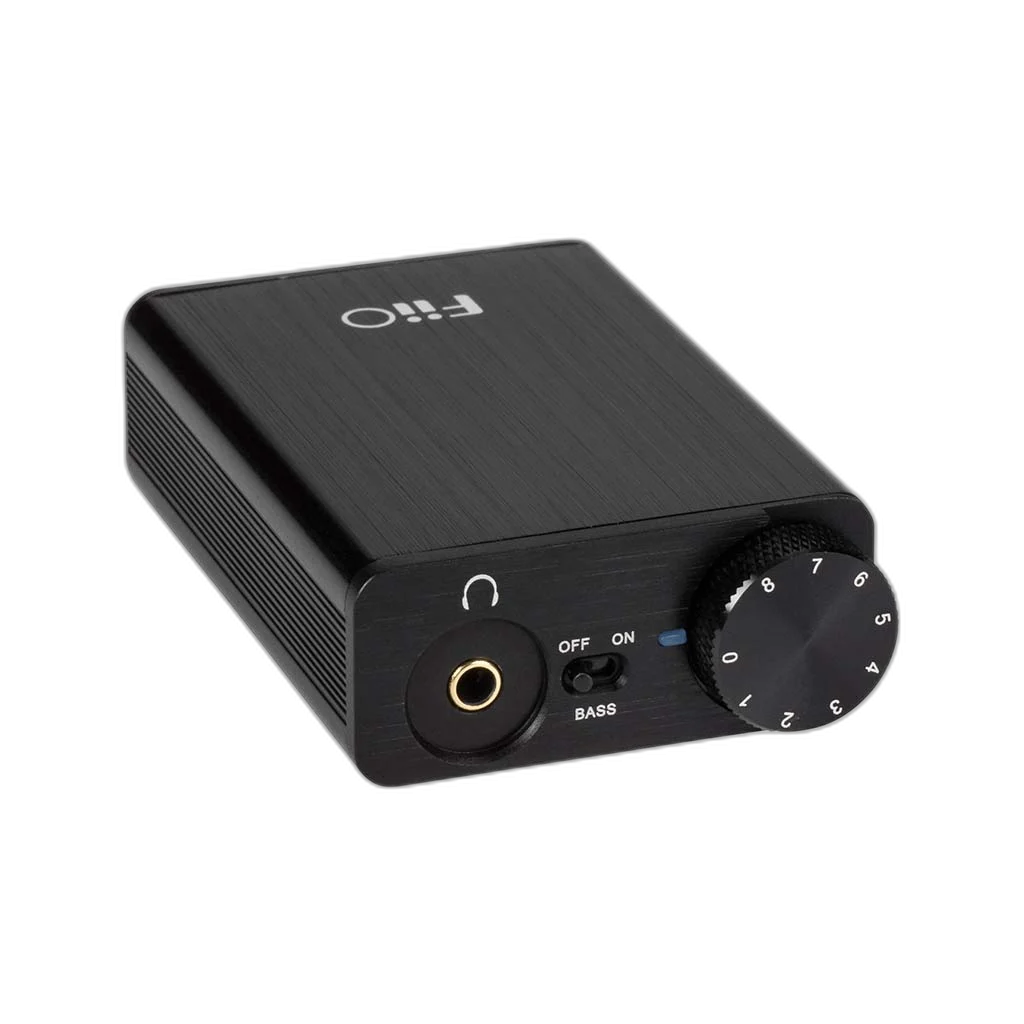

FiiO E10K USB DAC and Headphone Amplifier
FiiO E10K USB DAC and Headphone Amplifier. The original FiiO E10K brings dedicated USB audio and headphone amplification to your computer. Its small aluminium chassis keeps desk space clear while putting volume, bass boost and gain controls within reach.
Regular price
31.500 KWD
or 4 payments of 7.875 KWD with
Pay with card & save
29.900 KWD
Save 1.600 KWD
Overview
FIIO E10K USB DAC AND HEADPHONE AMPLIFIER
A compact upgrade for wired listening
The original FiiO E10K brings dedicated USB audio and headphone amplification to your computer. Its small aluminium chassis keeps desk space clear while putting volume, bass boost and gain controls within reach.
PCM5102
Original E10K DAC
24-bit / 96 kHz
Maximum USB PCM
200 mW
32Ω / THD+N <1%
78 g
Listed unit weight
Dedicated conversion and amplification
A PCM5102 DAC works with an LMH6643 amplifier and OPA1662 low-pass filter. USB playback supports up to 24-bit/96kHz PCM, making the E10K a straightforward choice for everyday music listening.
Match the output to your headphones
The 3.5 mm headphone output delivers 200 mW at 32 ohms under the specified test conditions. Choose low or high gain, then use the bass switch when you want a stronger low-frequency balance.
Connect headphones or another audio system

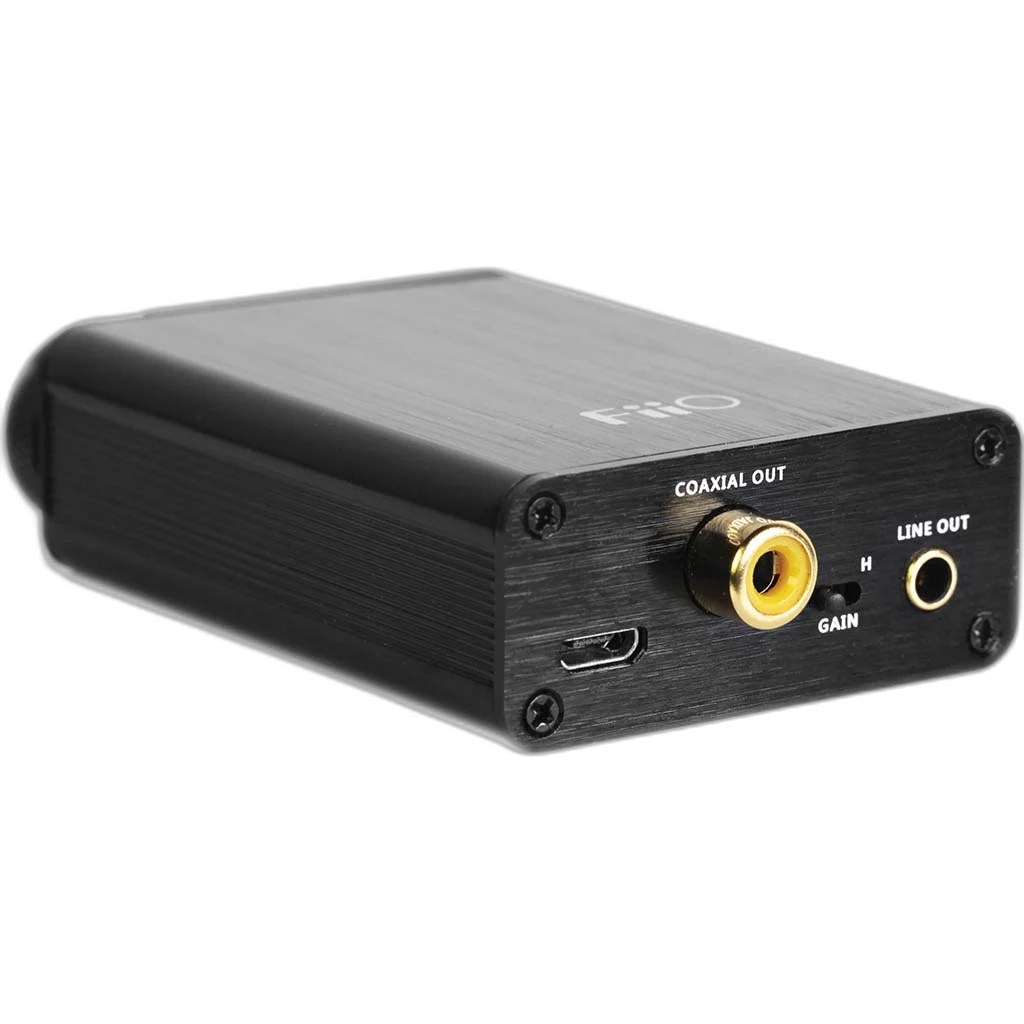

Alongside the headphone jack, the E10K provides a separate 3.5 mm line output and coaxial digital output. This original model uses micro-USB for audio and power; it is distinct from the later E10K Type-C.
Original E10K, with Its Original Connection
This is the original E10K / OLYMPUS2 with a micro-USB input and UAC 1.0 operation. It is a different version from E10K-TC. Connect it to an appropriate computer USB source and use the original model’s decoding specification when comparing versions.
Gain and Bass, Chosen by You
Low gain is listed at 1.6 dB and high gain at 8.8 dB, with a separate bass-boost switch and ALPS volume control. Start at a low listening level, choose gain around the headphone’s sensitivity, then use the bass option only when it suits your recording and preference.
Small, USB-Powered and Ready for the Desk
The aluminium-alloy unit weighs 78 g and uses a recommended USB 5 V / 500 mA supply, with no battery to recharge. FiiO recommends a 16–150-ohm headphone load. Impedance is only one part of matching a headphone; its sensitivity and your listening level also matter.
Complete Your Workspace
Choose wired headphones with the correct load and connector, or compare DACs and amplifiers. Related products are separate purchases.
Frequently Asked Questions
Is this the USB-C E10K-TC?
No. This is the original E10K / OLYMPUS2 with micro-USB input. Its version-specific PCM5102 and 24-bit/96 kHz specifications are retained here.
Does it support DSD?
No DSD support is listed for this original model. USB playback supports PCM up to 24-bit/96 kHz.
Which headphones should I use?
FiiO recommends a 16–150-ohm load. Use the 3.5 mm single-ended headphone output, start with low gain and check sensitivity as well as impedance.
Are the coaxial and line sockets inputs?
No. The coaxial socket is a digital output and the separate 3.5 mm line socket is an analogue output. The audio input is micro-USB.
Does it need a battery or separate mains adapter?
It has no battery. The recommended supply is USB 5 V / 500 mA from a suitable connected source.
Can it connect to passive speakers?
The line output needs a receiving amplifier or powered speakers. It does not provide speaker-level power for passive speakers.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Audio
Original E10K / OLYMPUS2; micro-USB
PCM5102
LMH6643
OPA1662
TE5022
24-bit / 96 kHz
Not supported
200 mW at 32 ohms; THD+N below 1%
16–150 ohms
20 Hz–20 kHz
Below 1.04 ohms
Connections and controls
Micro-USB; UAC 1.0
3.5 mm stereo
3.5 mm
RCA coaxial; up to 24-bit / 96 kHz PCM
Low: 1.6 dB; High: 8.8 dB
On / off switch
ALPS potentiometer; power switch integrated
Power and design
USB 5 V / 500 mA
None
78 g
Aluminium alloy
