FiiO K5 Pro ESS Desktop USB DAC Headphone Amplifier

ESS DAC version

Maximum USB PCM sample rate

Maximum supported DSD format

0 / 6 / 10 dB

A Model-Specific Conversion Architecture

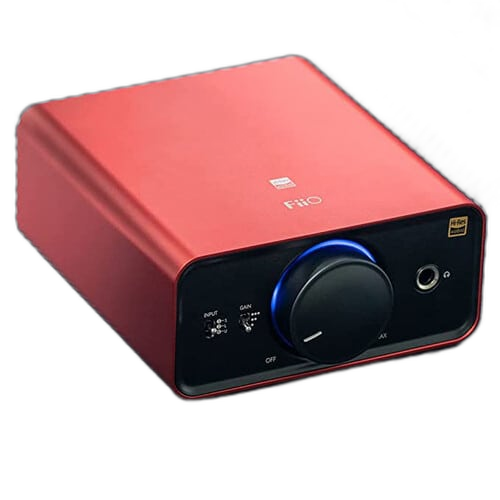

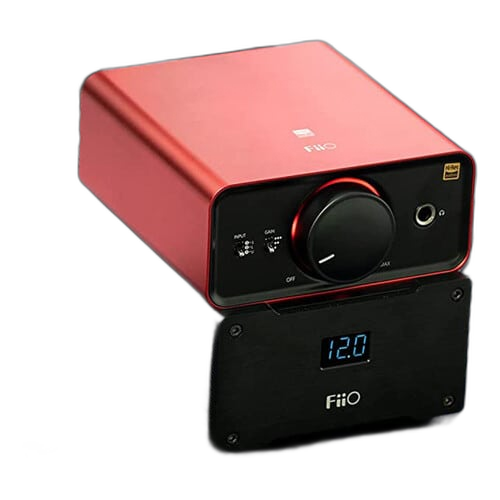

K5 Pro ESS uses an ES9038Q2M DAC and is a separate version from the original AK4493 K5 Pro. Compare the ESS-specific specifications on this page when checking decoding and output power. The red unit shown in the product images is the listed finish; images of other versions should not replace its stock identity.

Choose the Correct Headphone Connection

The front 6.35 mm headphone socket provides a single-ended connection for an appropriate headphone cable or single-ended adapter. RCA output handles a separate line-level connection for another audio component. Choose each connection for its intended role rather than treating every socket as an interchangeable headphone output.

Keep Source and Output Roles Clear

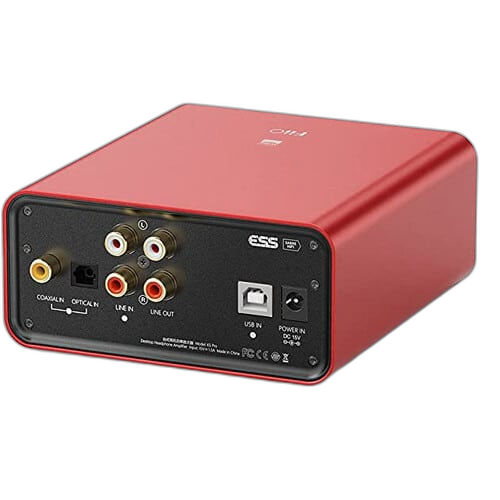

USB-B, optical and coaxial connections accept digital source audio. An RCA line input also accepts an analogue line-level source. RCA output can feed an appropriate powered speaker or external amplifier. A line output needs a receiving amplifier; it is not a speaker-power output for passive speakers. Choose the source and output path around the equipment you actually use.

Formats Matched to Each Input

USB decoding supports PCM up to 32-bit/768 kHz and DSD512. Coaxial input supports up to 24-bit/192 kHz and optical up to 24-bit/96 kHz. These limits belong to their respective inputs, with the actual playback path also depending on the source, application and USB configuration.

Set Gain Around Your Headphones

The listed gain settings are Low / Medium / High: 0 / 6 / 10 dB. The control arrangement is Potentiometer with ADC sampling. Start with a low level before connecting or changing headphones, then increase it to suit the recording and headphone sensitivity.

Which version is this?

This is K5 Pro ESS with ES9038Q2M conversion. Its USB/S/PDIF and analogue-input power ratings differ, so the larger analogue-input number is not presented as the output power for every source.

Which headphones should I match it with?

FiiO lists a recommended headphone impedance of 16–300 ohms. Use the single-ended 6.35 mm output with a suitable headphone connection and begin at low gain and low volume.

How do the headphone outputs differ?

The front 6.35 mm headphone socket provides a single-ended connection for an appropriate headphone cable or single-ended adapter. RCA output handles a separate line-level connection for another audio component. Choose each connection for its intended role rather than treating every socket as an interchangeable headphone output.

Which way do the source and line connections work?

USB-B, optical and coaxial connections accept digital source audio. An RCA line input also accepts an analogue line-level source. RCA output can feed an appropriate powered speaker or external amplifier. A line output needs a receiving amplifier; it is not a speaker-power output for passive speakers. Choose the source and output path around the equipment you actually use.

What formats does it support?

USB decoding supports PCM up to 32-bit/768 kHz and DSD512. Coaxial input supports up to 24-bit/192 kHz and optical up to 24-bit/96 kHz. These limits belong to their respective inputs, with the actual playback path also depending on the source, application and USB configuration.

Does it need a separate power supply?

This is an externally powered desktop unit with no battery. DC 15 V / 1.5 A is the listed supply requirement.

Can I use it with passive speakers?

The line output can feed an appropriate external amplifier or powered speakers. Passive speakers need a speaker amplifier; the line output is not a speaker-power connection.
