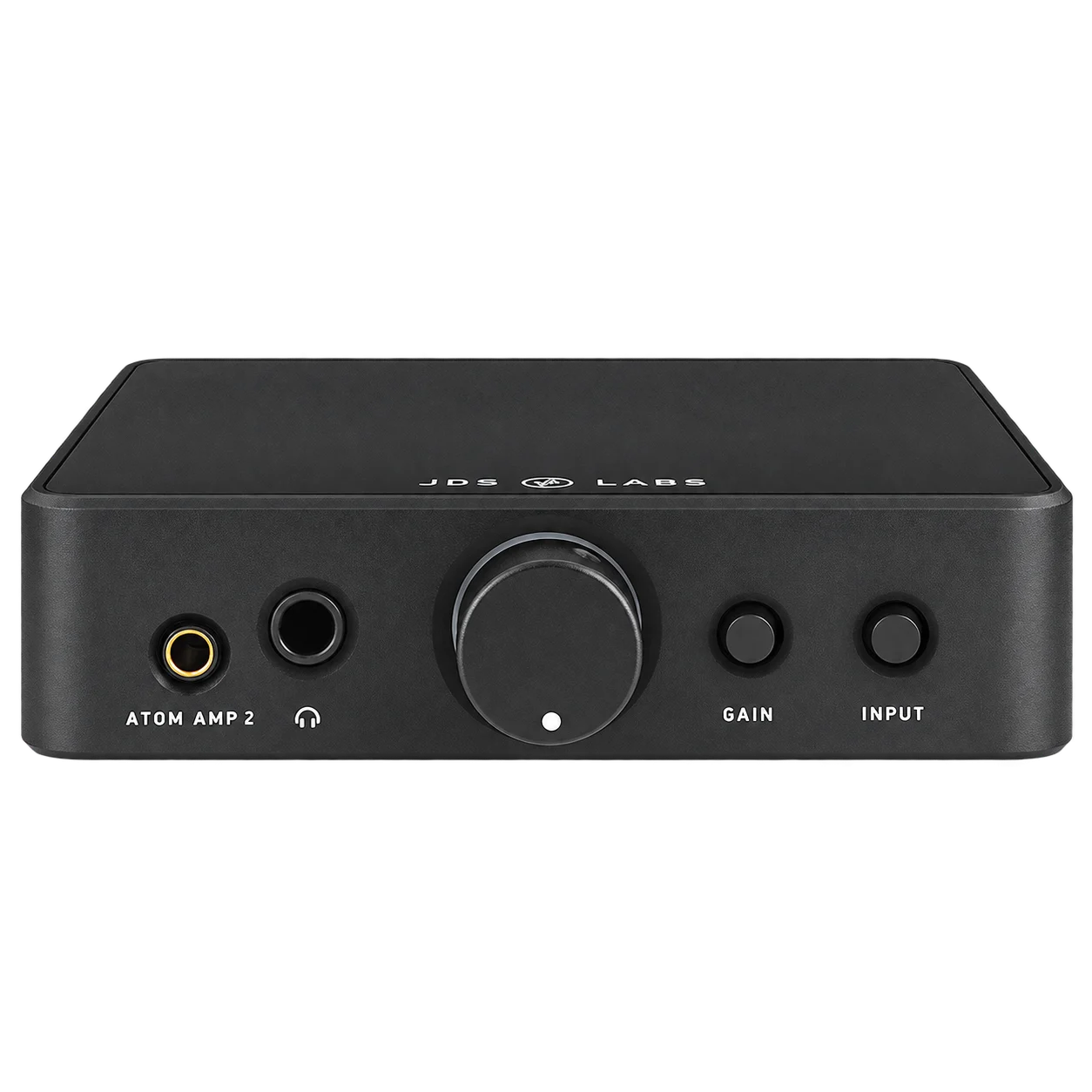

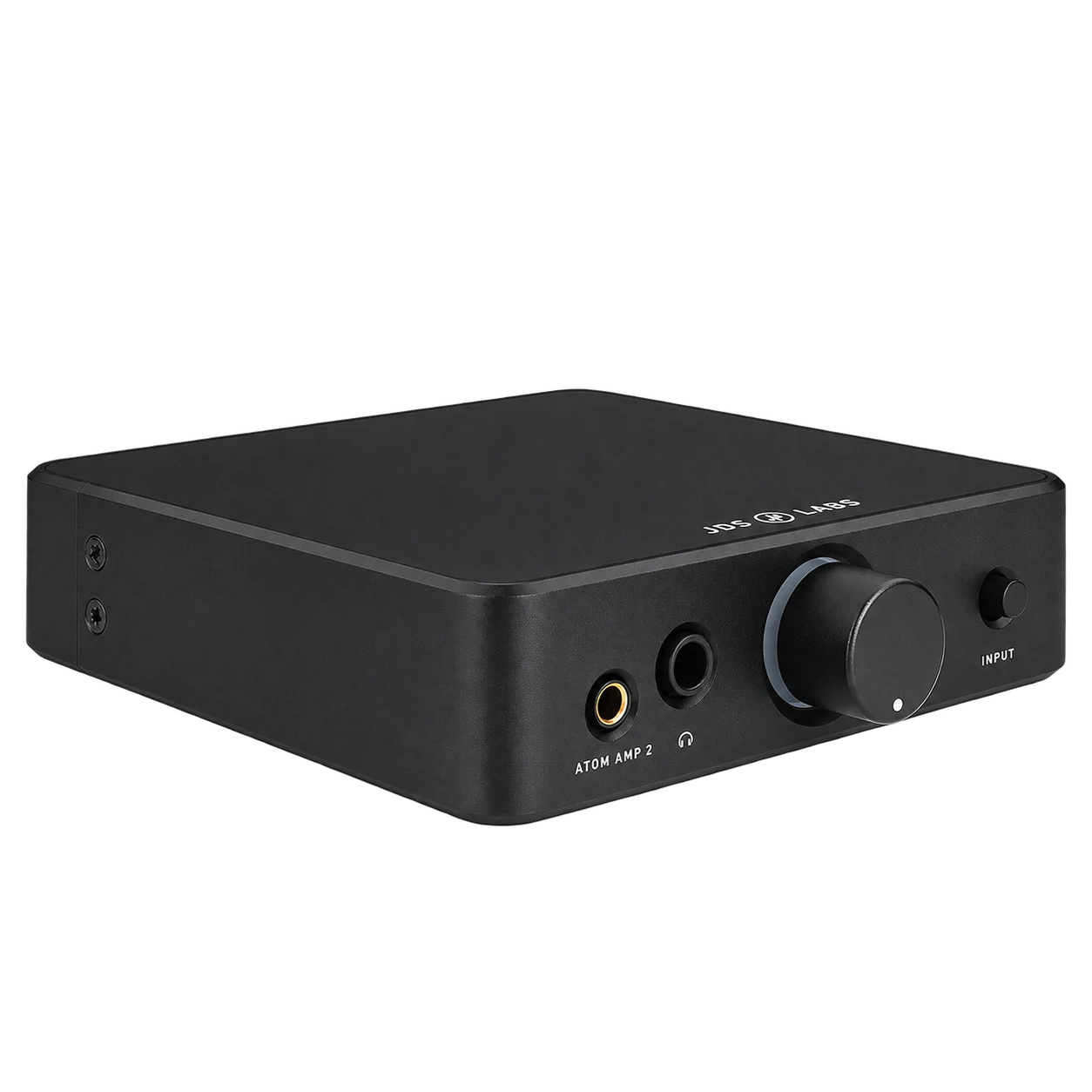

JDS LABS ATOM AMP 2 Headphone Amplifier
Add headphone amplification to your DAC or analogue source with Atom Amp 2. Dual gain settings and two headphone sockets make it easy to match your listening setup.
Regular price
63.000 KWD
or 4 payments of 15.750 KWD with
Pay with card & save
59.900 KWD
Save 3.100 KWD
Overview
JDS LABS ATOM AMP 2 HEADPHONE AMPLIFIER
Dedicated power for your headphones.
Add headphone amplification to your DAC or analogue source with Atom Amp 2. Dual gain settings and two headphone sockets make it easy to match your listening setup.
RCA / 3.5 mm
Analogue Inputs
6.35 / 4.4 mm
Both Outputs Single-Ended
2.65 W / Channel
At 32 Ω
1.0× / 4.7×
Gain Settings

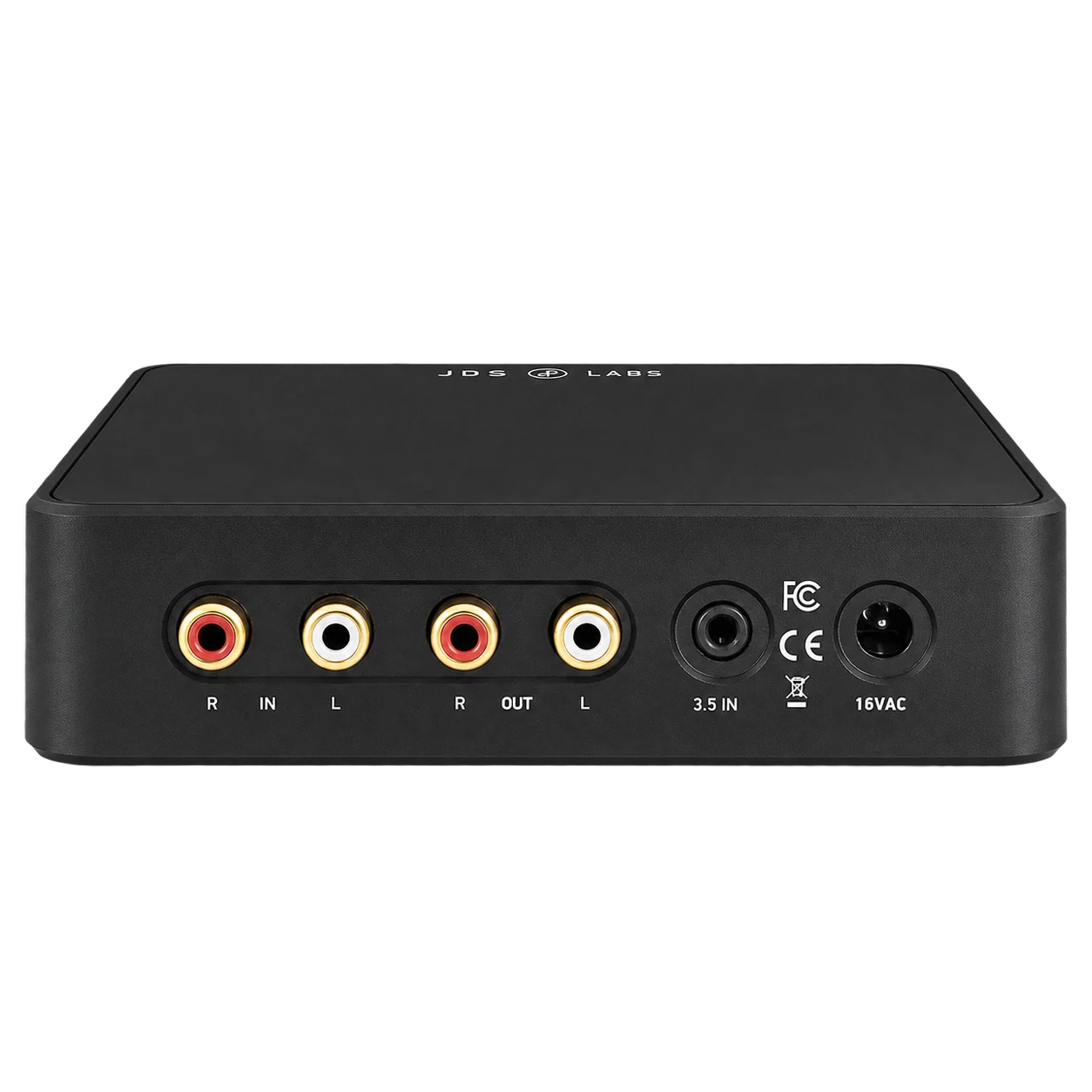

Choose your source
Switch between RCA and 3.5mm analogue inputs. The RCA preamp output can also feed powered speakers. Match the actual signal connection and the intended recording or listening setup, then check the relevant device controls before starting the session.
Two sockets, one amplifier design
Both the 6.35mm and 4.4mm headphone outputs use single-ended amplification. The metal chassis houses DC protection and delivers up to 2.65W per channel at 32 ohms.
Keep the Exact Model and Signal Path Clear
Atom Amp 2 accepts analogue RCA or 3.5 mm input. Both headphone sockets, including 4.4 mm, are single-ended. The socket size does not make this a balanced amplifier or a USB DAC.
Choose the Connected Equipment for Its Actual Role
Match the product’s stated input and output connections to the source and destination. Keep microphone preamps, digital converters and headphone amplifiers in their appropriate roles, checking cable wiring and power requirements before completing the recording or listening chain.
Plan Power and Gain for the Complete Setup
Use the model’s stated power arrangement and supported control settings for the connected devices. Choose sufficient recording headroom or a comfortable listening level, checking the source and destination rather than treating a connector shape as proof of every function.
Check the Session Before Recording or Listening
Confirm the selected device, input route and output level before a longer session. Make a short test after changing the source, cable or recording mode, and use the exact model’s supported software and power arrangement where required.
Complete Your Workspace
Explore Amps, DACs & Preamps at AX Store and choose the configuration or accessories that fit your setup. Suggested products are sold separately. Match the actual input, output, cable wiring and power requirements across the recording or listening chain. Use the appropriate single-ended headphone cable and adapter for a 3.5 or 6.35 mm listening route. A balanced 4.4 mm output requires a genuinely compatible balanced cable; Atom Amp 2’s 4.4 mm socket is single-ended. Check headphone load and listening level separately from socket size. Compare each alternative’s format, ports, gain, included accessories and physical arrangement before choosing.
Frequently Asked Questions
Which signal path and version should I plan for?
Atom Amp 2 accepts analogue RCA or 3.5 mm input. Both headphone sockets, including 4.4 mm, are single-ended. The socket size does not make this a balanced amplifier or a USB DAC.
Can it drive passive loudspeakers directly?
Use a suitable headphone output for headphones, or a line/preamp output into compatible powered speakers or a separate amplifier. RCA line connections do not provide a passive-speaker power amplifier.
What should I check for headphone cables?
Match the actual headphone output socket, wiring and cable. A plug adapter does not convert a single-ended headphone into a balanced connection; Atom Amp 2’s 4.4 mm socket remains single-ended.
Does the highest format apply to every input?
Use the format supported by the selected input, source, driver and application. USB, optical and coaxial paths may have different limits; an advertised maximum is not the format of every recording or music file.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Audio and connections
Analogue headphone amplifier and preamp
RCA and 3.5mm
6.35mm and 4.4mm; both single-ended
RCA
1.0× / 4.7×
2.65W per channel
0.7 ohms
145 × 131 × 34mm including knob
454g
Measured performance
20 Hz–20 kHz, ±0.01 dB
120 dB
93 dB
124 dB
–97 dB
1.33 µV
–101 dB
10 kOhm
< 0.6 dB
Continuous output power
143 mW (9.28 Vrms)
286 mW (9.27 Vrms)
570 mW (9.25 Vrms)
Power and package
6 W
15A taper, hand-matched gangs
Atom Amp 2; 16 VAC or 17 VAC power adapter
