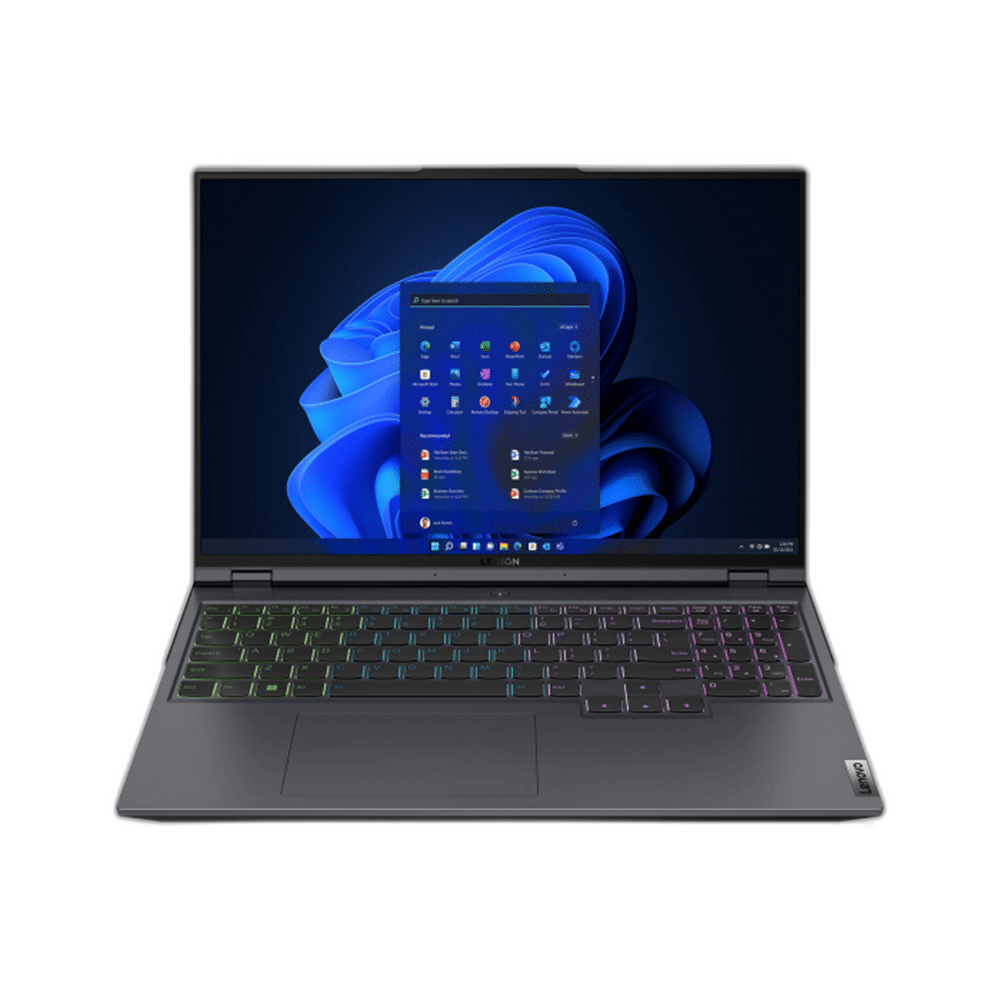

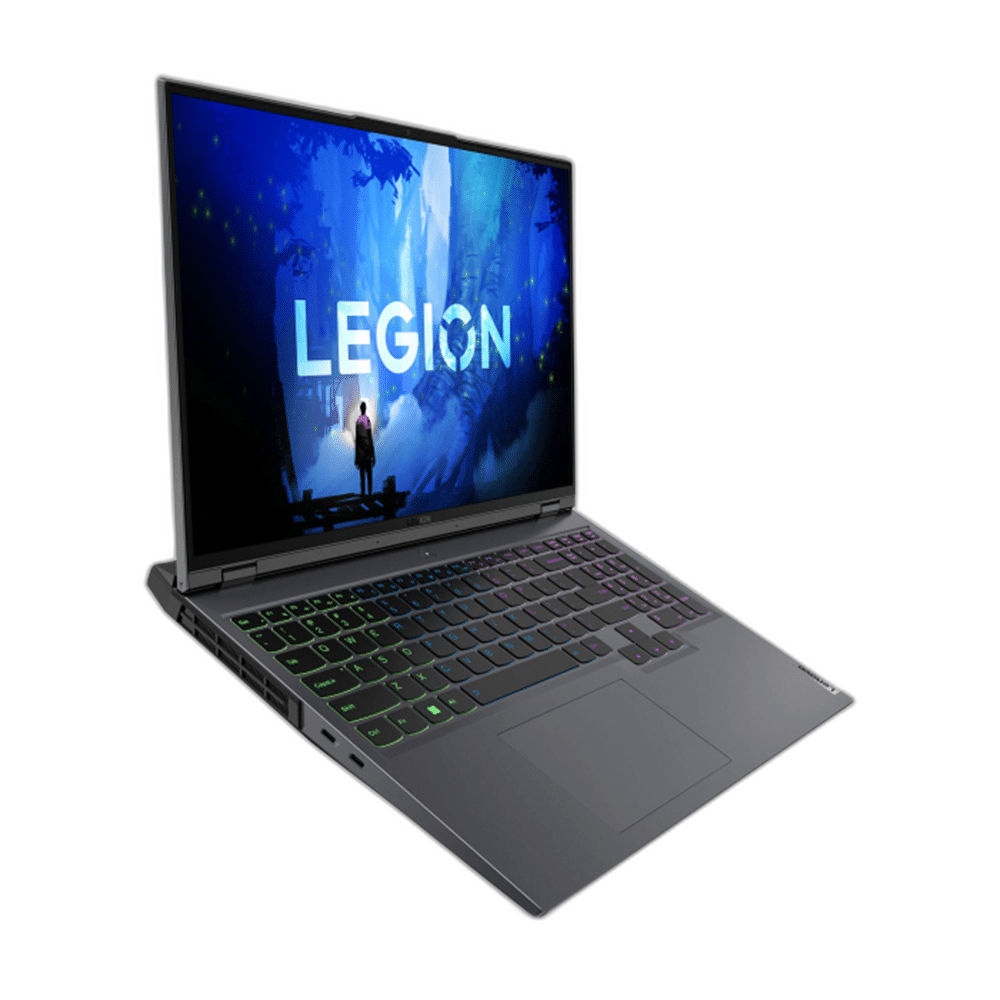

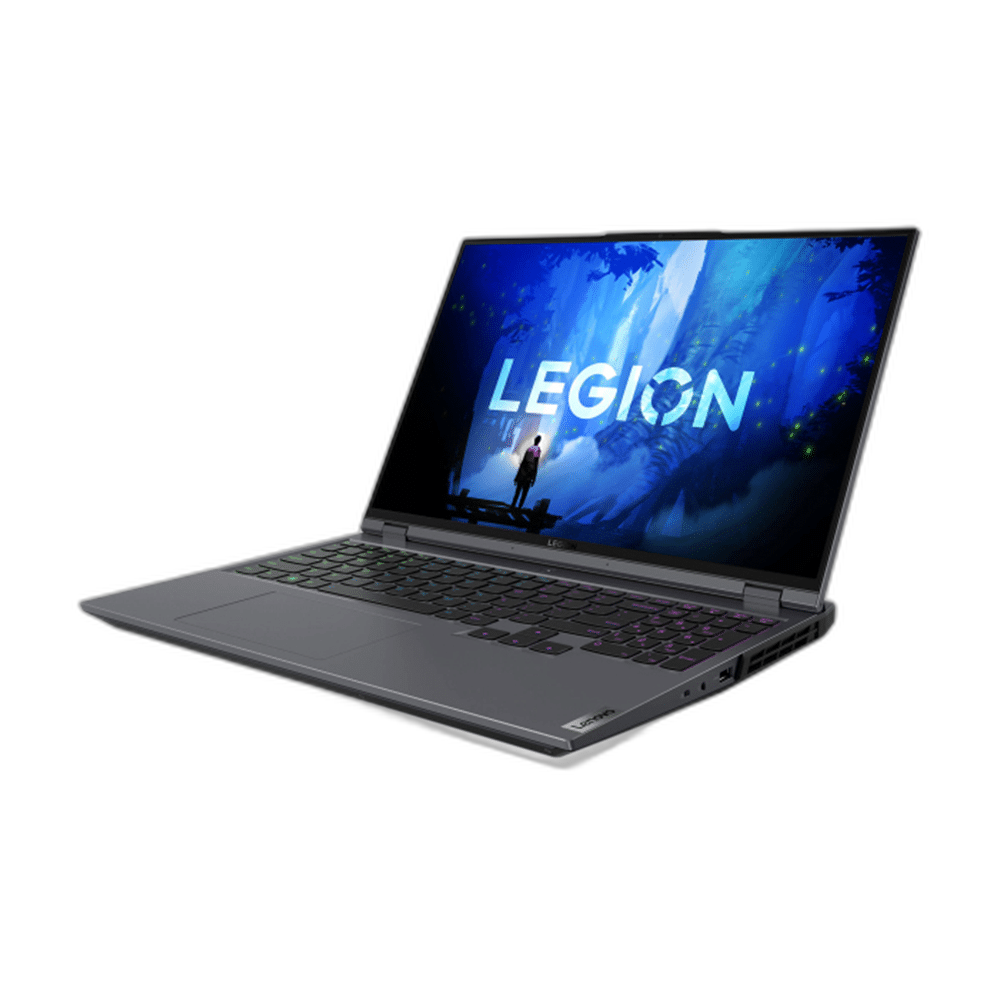

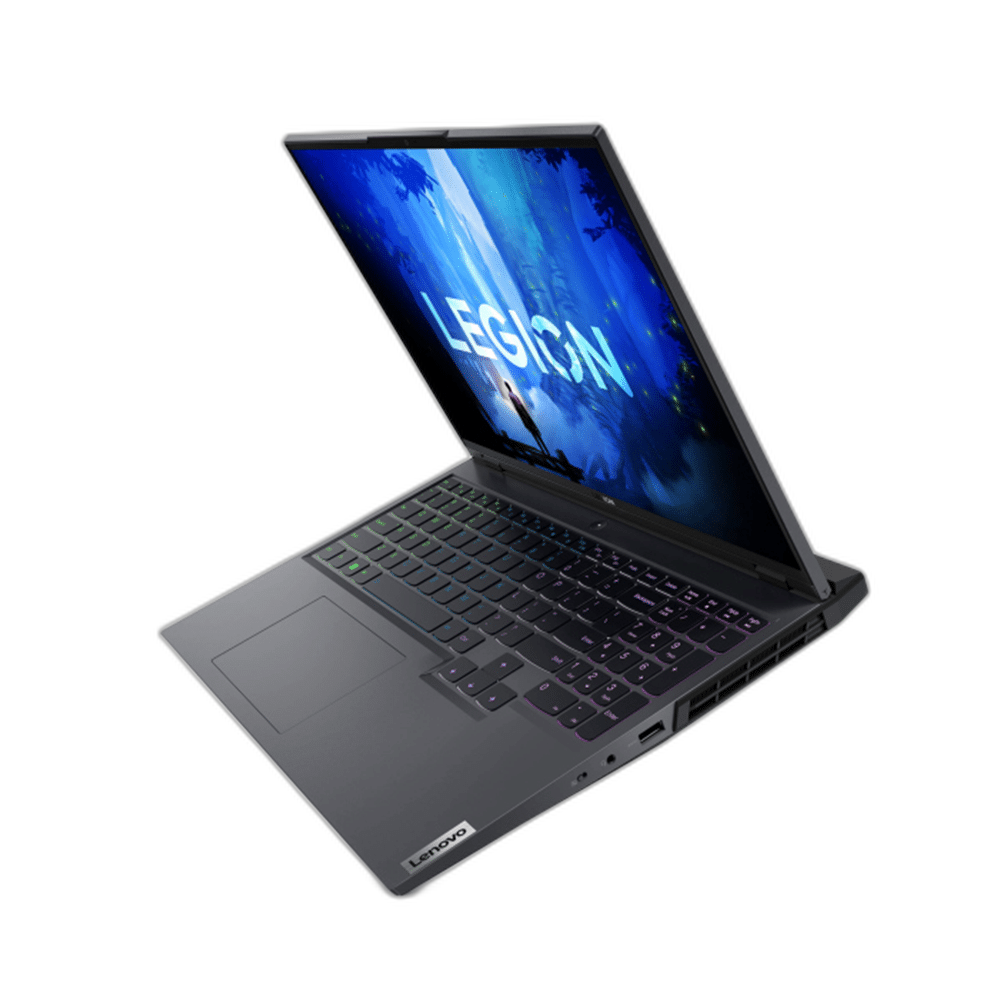

Lenovo Legion 5 Pro 16IAH7H Gaming Laptop with RTX 3060

CPU Series

Laptop GPU

Installed RAM

Display Size

Core i7 Processing and RTX Graphics

An Intel Core i7-12700H provides fourteen cores, combining six performance cores with eight efficiency cores, and supports twenty threads. Performance-core turbo speeds reach 4.7GHz, supported by 24MB of cache. The GeForce RTX 3060 has 6GB GDDR6 video memory, with Lenovo listing a 1702MHz boost clock and 140W total graphics power for this model configuration.

A Detailed 16-Inch 165Hz Display

The IPS screen combines a 2560 x 1600 WQXGA resolution with a 165Hz refresh rate. Its 16:10 layout offers additional vertical workspace, while 500-nit brightness, 100% sRGB coverage and factory colour calibration provide defined display characteristics. DisplayHDR 400, Dolby Vision and G-SYNC support add useful options for compatible content and gaming, with an anti-glare surface for everyday positioning.

32GB DDR5 and Gen4 NVMe Storage

Two 16GB DDR5-4800 SO-DIMM modules provide 32GB of installed dual-channel memory. A 1TB M.2 2280 PCIe 4.0 x4 NVMe SSD handles applications and local files. The chassis has two M.2 2280 PCIe 4.0 x4 slots, giving the storage arrangement flexibility when you plan a compatible expansion or replacement with an appropriate service provider.

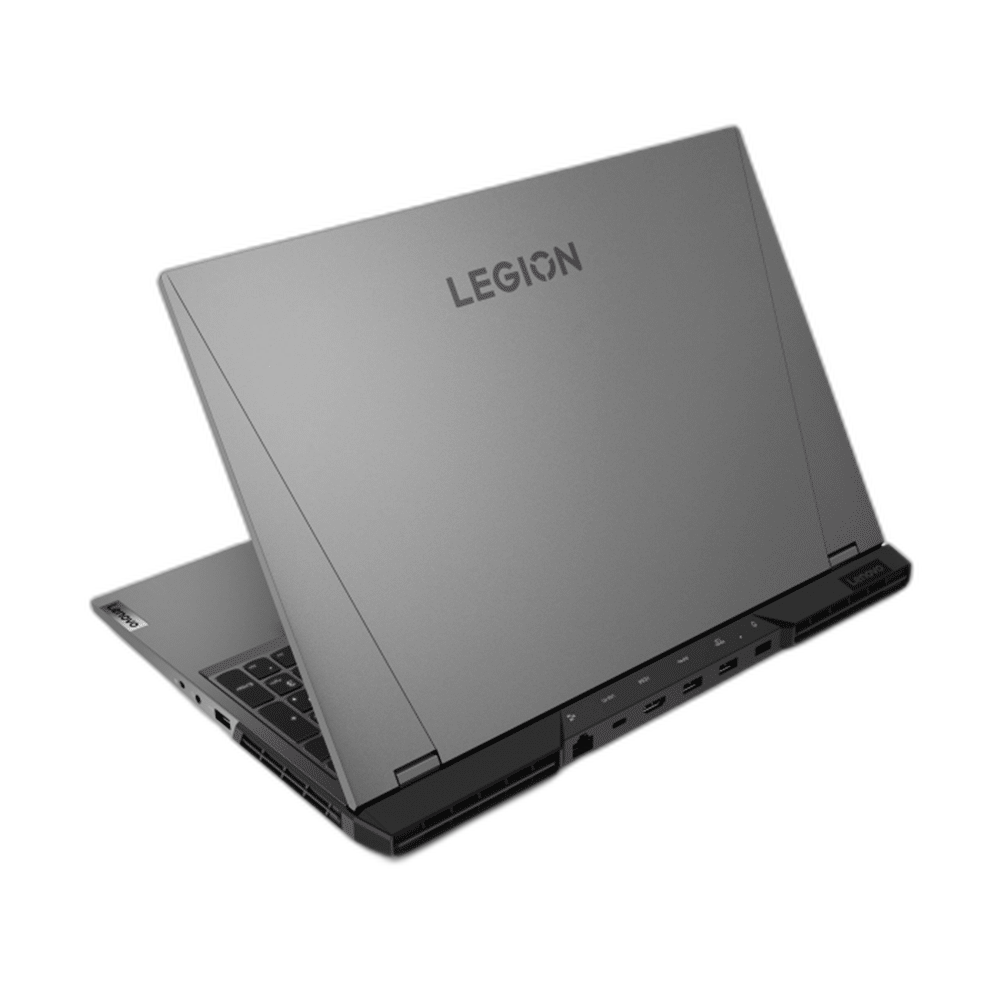

Connections for Multiple Peripherals

Three USB-A USB 3.2 Gen1 ports support peripherals, including one Always On port. Two USB-C USB 3.2 Gen2 connections provide data and DisplayPort 1.4, with Lenovo Power Delivery up to 135W supported on one of them. A separate Thunderbolt 4/USB4 40Gbps port, HDMI 2.1, Gigabit Ethernet and combined audio jack complete the wired connection choices.

Arabic RGB Keyboard and Daily Communication

The four-zone RGB backlit Arabic keyboard brings local typing support to the gaming layout. Wi-Fi 6E and Bluetooth 5.1 handle wireless networking and compatible accessories. A 720p HD camera with E-shutter, dual-array microphones and stereo 2W speakers with Nahimic Audio provide the built-in tools for video calls, voice communication and everyday sound when a headset is not connected.

Which processor and graphics configuration does this exact model use?

Processor: Intel Core i7-12700H, 14C (6P + 8E) / 20T, P-core 2.3 / 4.7GHz, E-core 1.7 / 3.5GHz, 24MB. Graphics: NVIDIA GeForce RTX 3060 6GB GDDR6, Boost Clock 1702MHz, TGP 140W.

What memory and storage are installed?

Memory: 2x 16GB SO-DIMM DDR5-4800. Storage: 1TB SSD M.2 2280 PCIe 4.0x4 NVMe.

What display configuration is specified?

Display: 16-inch WQXGA (2560x1600) IPS 500nits Anti-glare, 100% sRGB, 165Hz, DisplayHDR 400, Dolby Vision, G-SYNC, Low Blue Light, High Gaming Performance. Touchscreen: None listed in manufacturer configuration.

Which ports and wireless connections are specified?

Ethernet: 100/1000M (RJ-45). Standard Ports: 1x USB 3.2 Gen 1 (Always On); 2x USB 3.2 Gen 1; 1x USB-C 3.2 Gen 2 (support data transfer, Lenovo Power Delivery 135W and DisplayPort 1.4); 1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort 1.4); 1x Thunderbolt 4 / USB4 40Gbps (support data transfer and DisplayPort 1.4); 1x HDMI 2.1, up to 8K/60Hz; 1x Headphone / microphone combo jack (3.5mm); 1x Ethernet (RJ-45); 1x Power connector.
