LIAN LI UNI FAN TL LCD FLEX Reverse Blade Wireless 120mm ARGB Fan - 1 Pack

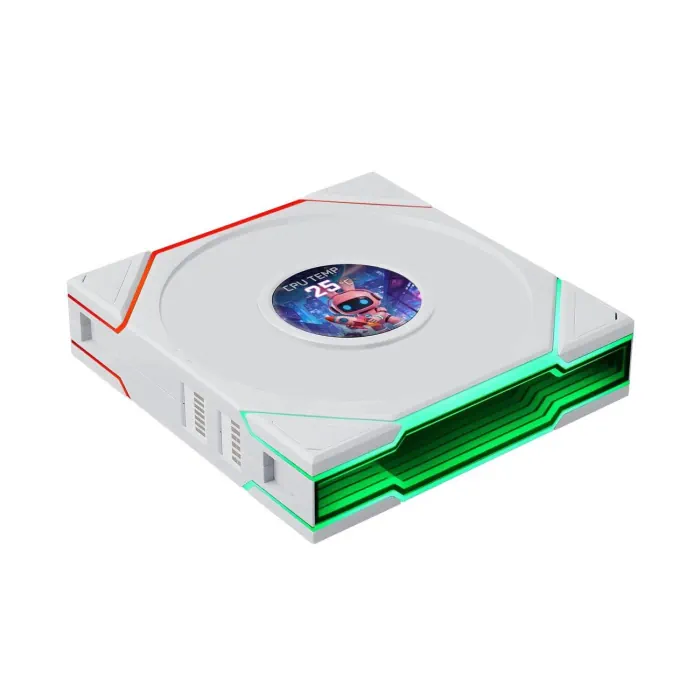

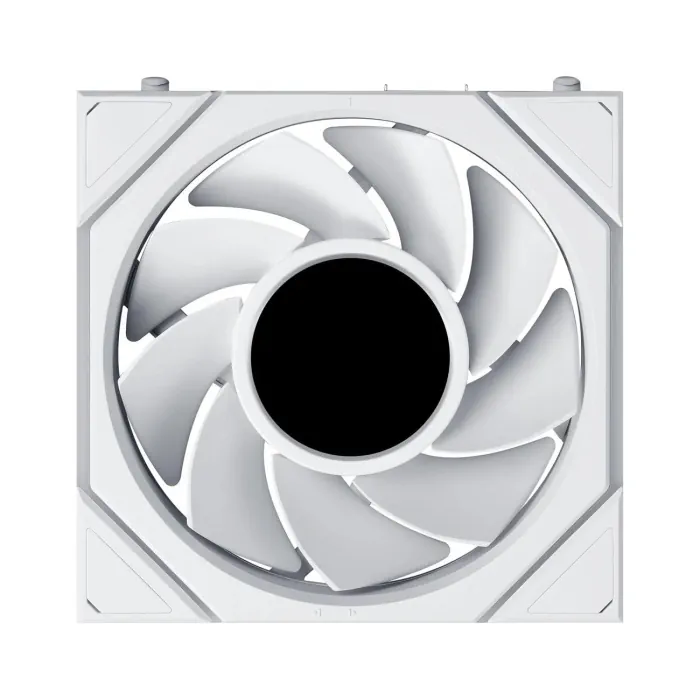

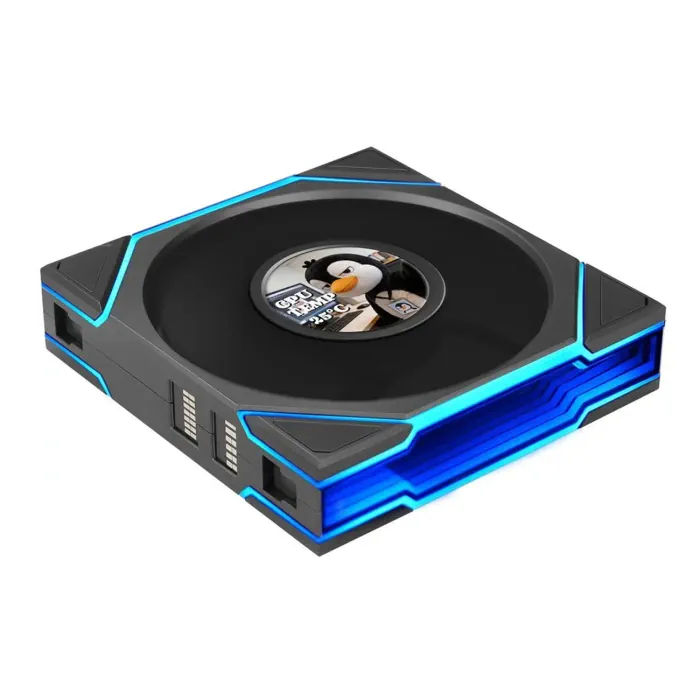

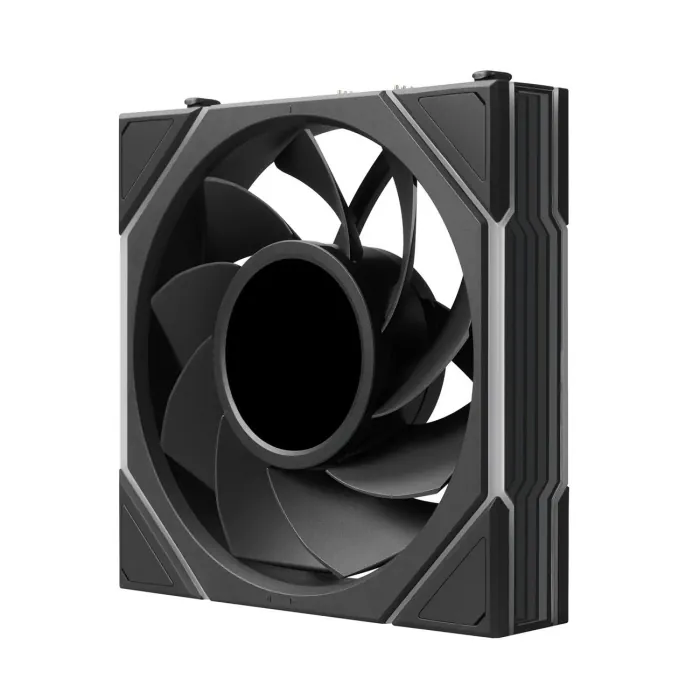

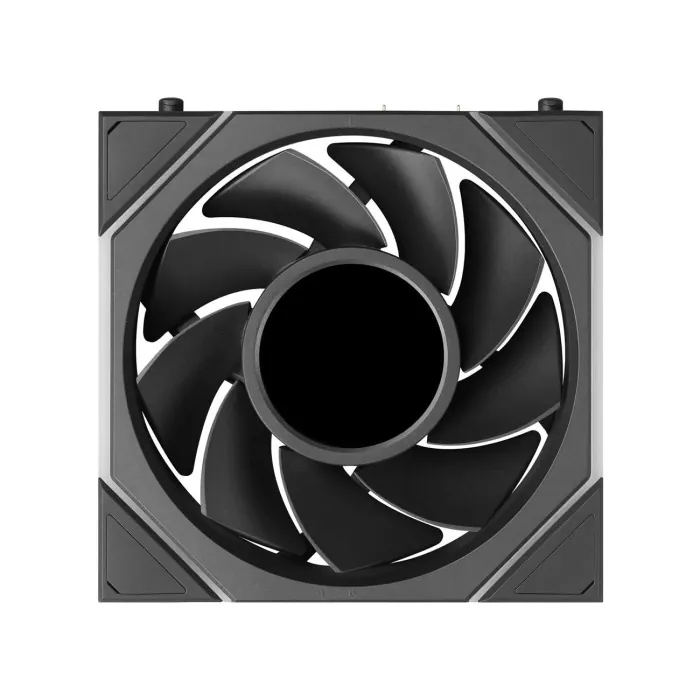

LIAN LI UNI FAN TL LCD FLEX 120 Reverse Blade Single Fan provides one reverse-blade 120 mm fan with a 1.8-inch LCD on each fan. The supplied LCD FLEX receiver supports the documented USB, motherboard and optional L-Wireless control arrangements.
Color
Regular price
18.000 KWD
or 4 payments of 4.500 KWD with
Pay with card & save
17.000 KWD
Save 1.000 KWD
Overview
LIAN LI UNI FAN TL LCD FLEX 120 REVERSE BLADE SINGLE FAN
LIAN LI UNI FAN TL LCD FLEX 120 Reverse Blade Single Fan
LIAN LI UNI FAN TL LCD FLEX 120 Reverse Blade Single Fan provides one reverse-blade 120 mm fan with a 1.8-inch LCD on each fan. The supplied LCD FLEX receiver supports the documented USB, motherboard and optional L-Wireless control arrangements. Available from AX Store in Kuwait.
1.8-inch
LCD on each fan
400 × 400
Display resolution
60 Hz
LCD refresh rate
1 fan
Pack quantity
A Larger LCD at the Fan Hub
Each fan carries a 1.8-inch LCD with 400 × 400 resolution and a 60 Hz refresh rate. Supported MP4, GIF, JPG and PNG content lets the display show personal media or compatible monitoring layouts. Use the chosen software connection to configure the screen before setting the final operating mode.
Reverse-Blade Airflow
This is the reverse-blade LCD FLEX version. The reversed airflow design allows the display side to remain visible in a suitable intake arrangement. Check the airflow direction against the intended intake or exhaust path before securing the cluster inside the case.
Cooling up to 1,900 RPM
The fans support operation up to 1,900 RPM, with maximum airflow of 63 CFM and static pressure of 2.83 mm H₂O. Fluid dynamic bearings support rotation, with an acoustic rating of 29 dB(A). Each frame measures 120 × 124 × 28 mm, so check the complete fan dimensions and nearby mounting clearance.
LCD FLEX Receiver and Supplied Leads
The pack includes an LCD FLEX receiver, a 9-pin USB cable and a 5 V 3-pin ARGB cable. Use the receiver marked for LCD FLEX fans and the correct power arrangement; wireless communication does not replace the fan’s power connection.
USB or Motherboard Control
USB connection to L-Connect 3 enables LCD customisation, while the documented motherboard mode controls speed and lighting through PWM and ARGB. Set the saved offline LCD theme through USB before using the independent motherboard arrangement. The receiver has one signal port, so use either the USB cable or the ARGB cable as directed.
Blade type
Reverse
Display per fan
1.8-inch LCD
L-Wireless Controller
Not included; required for Wireless Mode
Optional L-Wireless Operation
An L-Wireless Controller is required for Wireless Mode and is supplied separately for this LCD pack. This remains true for the LCD triple pack. Choose wireless themes and supported configuration through the matching controller, or use the documented USB and motherboard arrangements without adding a wireless controller.
Check Fan Size and the Control Connection
Match the fan size, mounting position and power or lighting connector to the system. Check the controller or hub requirements before mixing fans from different ranges. Compare related options such as Corsair iCUE ML120 RGB ELITE 120mm Fan, Triple Pack or MSI MAG MAX F20A-1 200mm ARGB Case Fan, keeping the exact model and configuration in the decision. For the wider setup, explore NZXT KRAKEN ELITE 360 V2 AIO Liquid Cooler, 2.72 Inch IPS LCD and check the connection, size or mounting requirements before pairing accessories. Browse the Lian LI range at AX for more choices.
LIAN LI UNI FAN TL LCD FLEX 120 Reverse Blade Single Fan Setup Choices
Match the fan size, mounting position and power or lighting connector to the system. Check the controller or hub requirements before mixing fans from different ranges. Explore Lian LI O11 Dynamic Mid Tower Case, Tempered Glass, Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply.
Frequently Asked Questions
Is an L-Wireless Controller included?
No. The LCD single and triple packs include the LCD FLEX receiver, while the L-Wireless Controller for Wireless Mode is separate.
Which blade direction is this?
Reverse-blade.
Can I customise the LCD without wireless control?
Yes. Use the supported USB connection with L-Connect 3.
Can the motherboard control speed and lighting?
Yes, through the documented PWM and 5 V ARGB arrangement, with the offline LCD theme configured first.
Does wireless mean the fan needs no power cable?
No. The fan still needs the specified power connection.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
LCD FLEX Hardware
1
Reverse
120 mm
120 × 124 × 28 mm
1.8-inch LCD
400 × 400 pixels
60 Hz
1,900 RPM
63 CFM
2.83 mm H₂O
29 dB(A)
Fluid dynamic bearing
26 per fan
12 V DC
LCD FLEX receiver
Not included; required for Wireless Mode
9-pin USB cable; 5 V 3-pin ARGB cable
Not listed for the single pack
