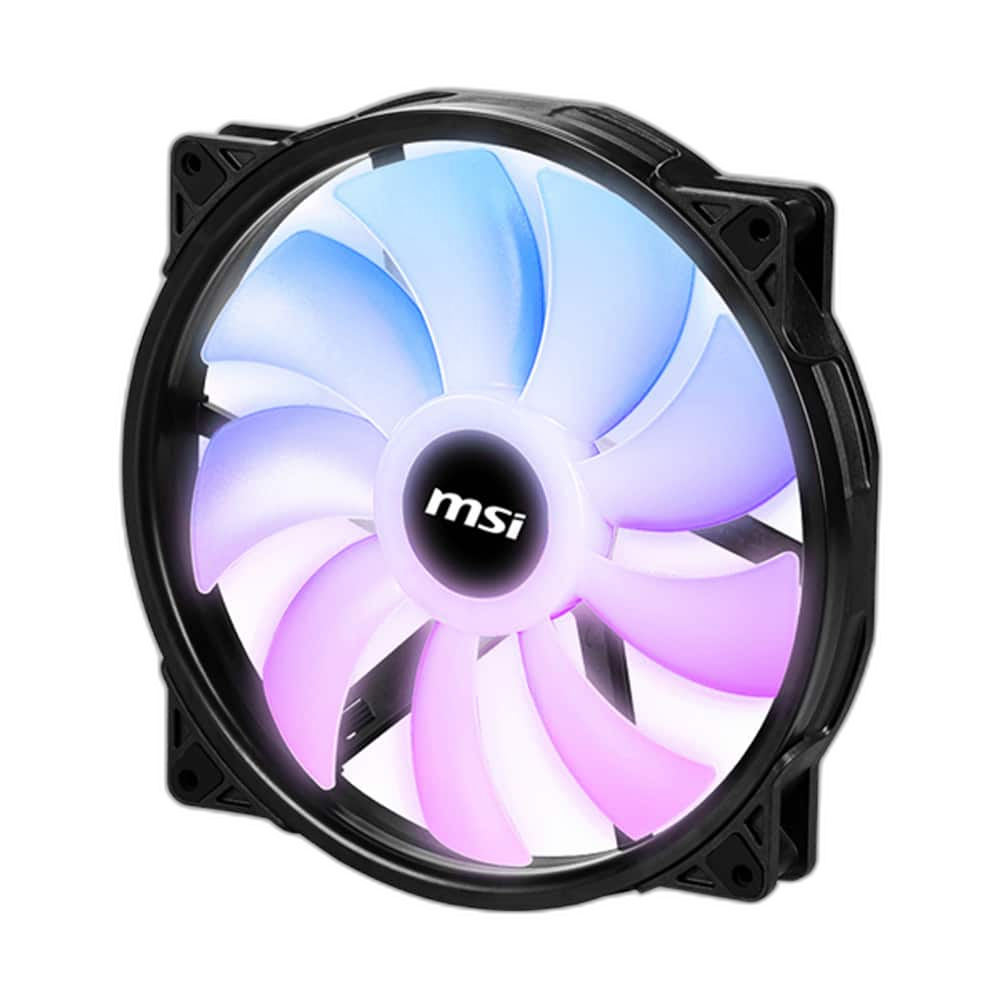

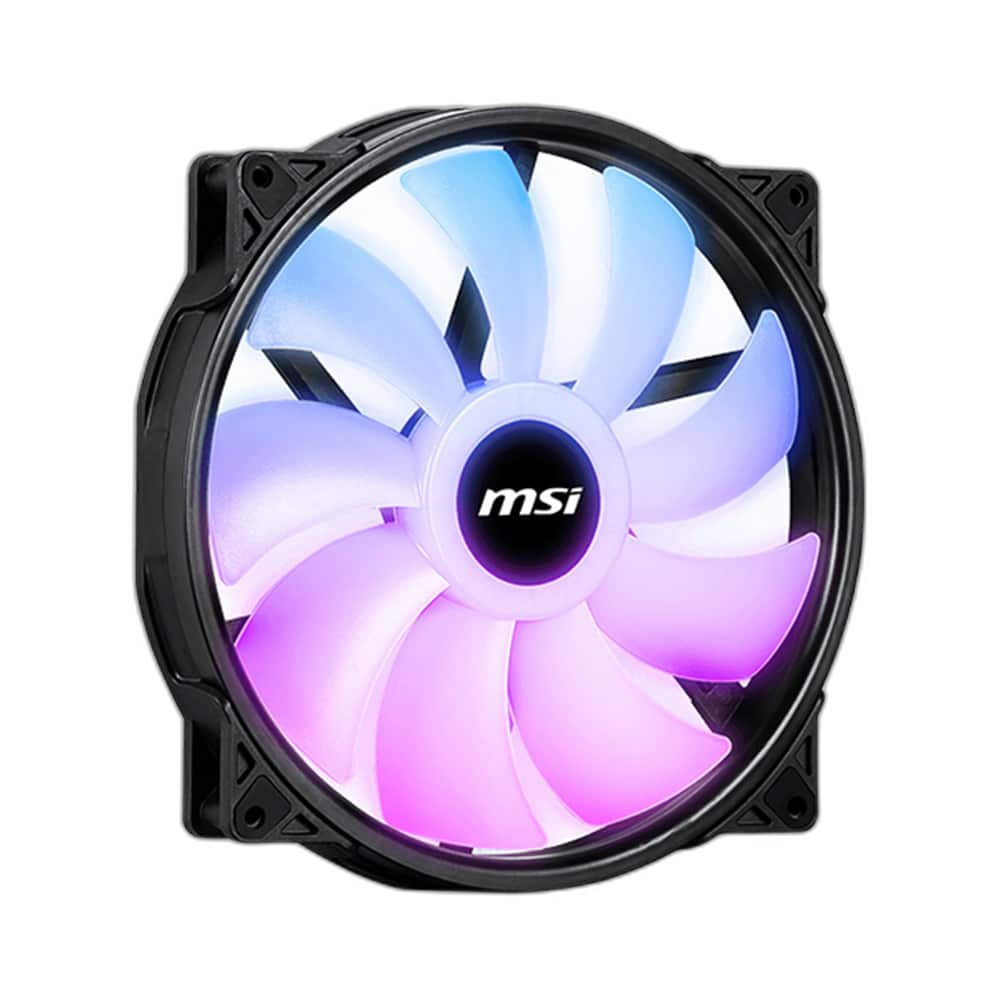

MSI MAG MAX F20A-1 200mm ARGB Case Fan
MSI MAG MAX F20A-1 supplies one addressable rgb fan. Sleeve bearing construction and four-pin pwm fan power/control and separate three-pin argb define the documented cooling and control arrangement.
Regular price
13.000 KWD
or 4 payments of 3.250 KWD with
Pay with card & save
12.500 KWD
Save 0.500 KWD
Overview
MSI MAG MAX F20A-1
MSI MAG MAX F20A-1
MSI MAG MAX F20A-1 supplies one addressable rgb fan. Sleeve bearing construction and four-pin pwm fan power/control and separate three-pin argb define the documented cooling and control arrangement. Available from AX Store in Kuwait.
1 fan
Supplied quantity
195 × 195 mm
Actual frame
1000 RPM
Rated upper speed
89 CFM
Individual airflow
The Supplied Fan Arrangement
One addressable RGB fan. The single fan belongs to the nominal 200 mm class, with an actual 195 mm square frame. That distinction matters when checking the case mounting holes and available clearance.
Dimensions and Mechanical Fit
The documented dimensions are 200 mm nominal; actual 195 × 195 × 25 mm. Match the frame, mounting-hole pattern and surrounding clearances with the intended case position. Large case fans do not share one universal mounting pattern merely because they are sold in the same nominal size class.
Bearing, Speed and Individual Ratings
Sleeve bearing construction supports the rotating fan assembly. The listed speed is 600 ±200 to 1000 ±10% RPM, with airflow of 89 CFM and a noise specification of 25 dBA. These are individual fan ratings rather than a combined airflow total for an entire multi-fan installation.
Fan Power and Speed Control
Four-pin PWM fan power/control and separate three-pin ARGB. The four-pin fan connection supplies motor power and supported PWM control, while the lighting uses its own separate connection. Configure the motherboard fan header appropriately and keep the two electrical functions distinct.
Lighting and Controller Connections
Compatible addressable motherboard lighting; separate fan PWM connection. Select a compatible motherboard-lighting connection or an appropriate separately chosen controller, keeping the lighting wiring distinct from the fan motor lead.
Model
MSI MAG MAX F20A-1
Package
One addressable RGB fan
Fan dimensions
200 mm nominal; actual 195 × 195 × 25 mm
Routing and the Finished Installation
Route the motor and lighting leads around the selected case positions, keeping them clear of the blades. Mount the hardware securely and leave access to the controller or motherboard connections needed for future maintenance.
Check Fan Size and the Control Connection
Match the fan size, mounting position and power or lighting connector to the system. Check the controller or hub requirements before mixing fans from different ranges. Compare related options such as LIAN LI UNI FAN TL LCD FLEX Wireless 120mm ARGB Fans - 3 Pack or MSI MPG Coreliquid K240 ARGB CPU Liquid Cooler, keeping the exact model and configuration in the decision. For the wider setup, explore Gameon Kraken N360 360mm Liquid CPU Cooler, RGB and check the connection, size or mounting requirements before pairing accessories. Browse the MSI range at AX for more choices.
MSI MAG MAX F20A-1 Setup Choices
Match the fan size, mounting position and power or lighting connector to the system. Check the controller or hub requirements before mixing fans from different ranges.
Frequently Asked Questions
How many fans are supplied?
One addressable RGB fan.
What are the actual frame dimensions?
200 mm nominal; actual 195 × 195 × 25 mm.
How do the fan leads connect?
Four-pin PWM fan power/control and separate three-pin ARGB.
What is the listed speed?
600 ±200 to 1000 ±10% RPM.
What bearing is used?
Sleeve bearing.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Product Specifications
MSI MAG MAX F20A-1
One addressable RGB fan
200 mm nominal; actual 195 × 195 × 25 mm
600 ±200 to 1000 ±10% RPM
89 CFM
25 dBA
Sleeve bearing
12 V DC; 0.30–0.35 A
Four-pin PWM fan power/control and separate three-pin ARGB
Compatible addressable motherboard lighting; separate fan PWM connection
262 g
