LIAN LI UNI FAN TL LCD RGB 120MM 3-Pack
The LIAN LI UNI FAN TL LCD 120 triple pack combines three 120 mm fans with individual 1.6-inch IPS displays. The supplied TL controller and L-Connect 3 support custom screen content, lighting and fan-speed configuration through the matching wired connection arrangement.
Color
Regular price
31.500 KWD
or 4 payments of 7.875 KWD with
Pay with card & save
30.000 KWD
Save 1.500 KWD
Overview
LIAN LI UNI FAN TL LCD 120 TRIPLE PACK
LIAN LI UNI FAN TL LCD 120 Triple Pack
The LIAN LI UNI FAN TL LCD 120 triple pack combines three 120 mm fans with individual 1.6-inch IPS displays. The supplied TL controller and L-Connect 3 support custom screen content, lighting and fan-speed configuration through the matching wired connection arrangement. Available from AX Store in Kuwait.
3 fans
Pack quantity
1.6-inch IPS
Display on each fan
400 × 400
LCD resolution
1,900 RPM
Maximum fan speed
A Display at Each Fan Hub

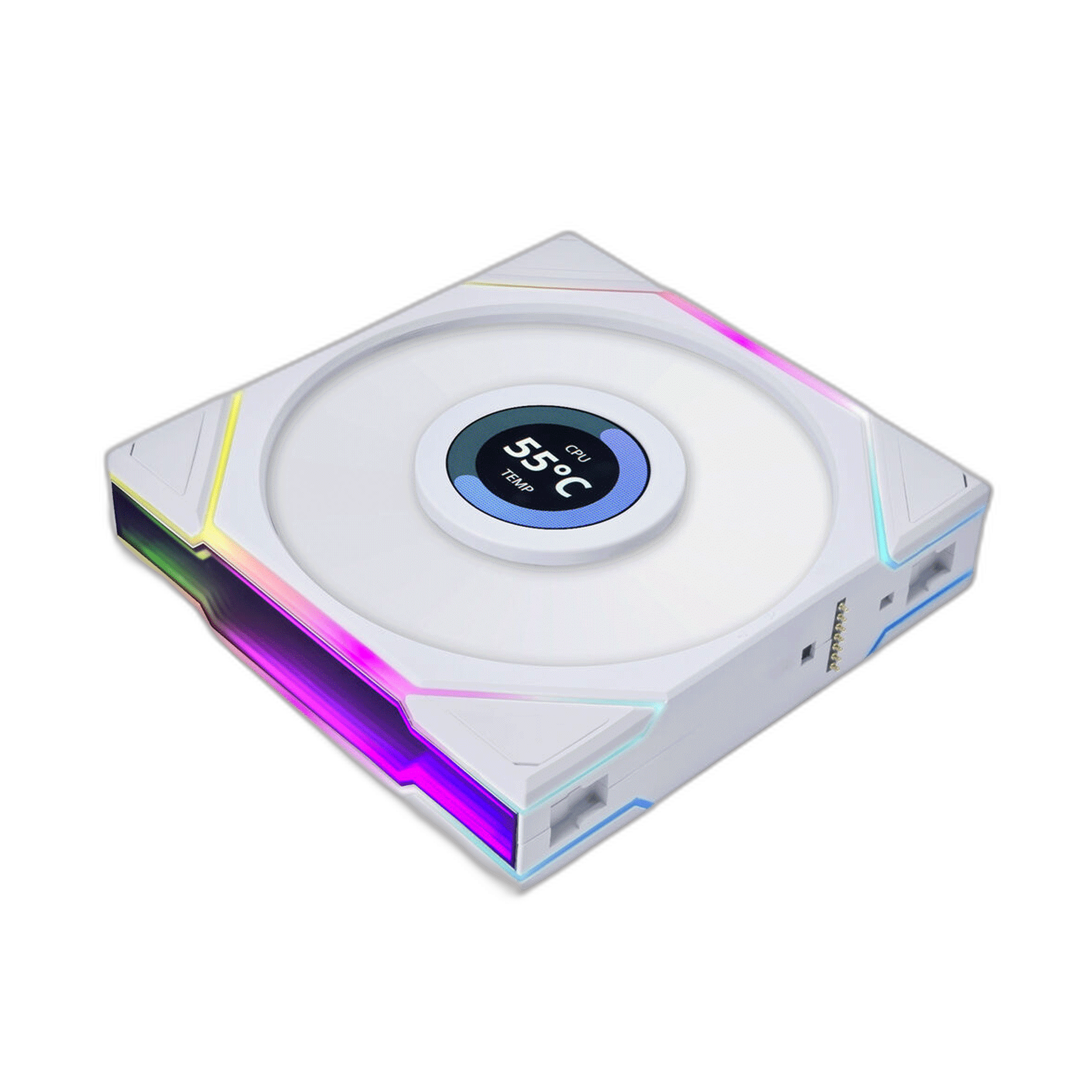

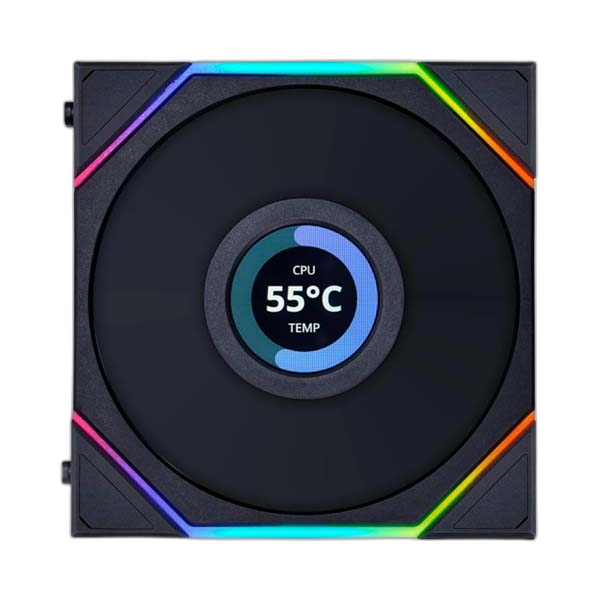

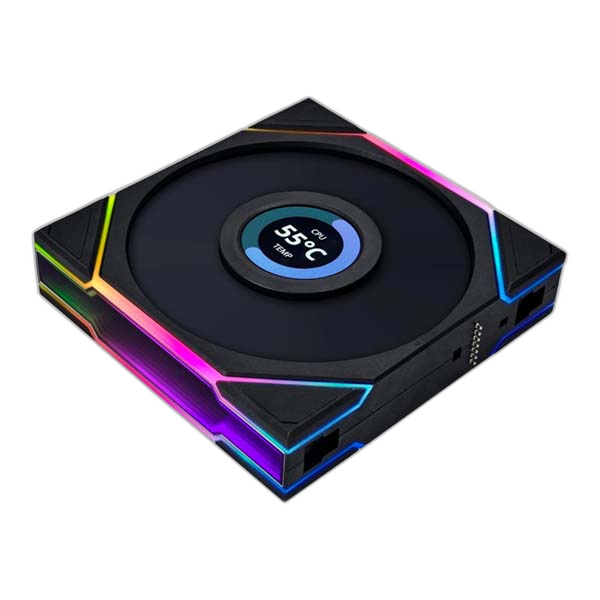

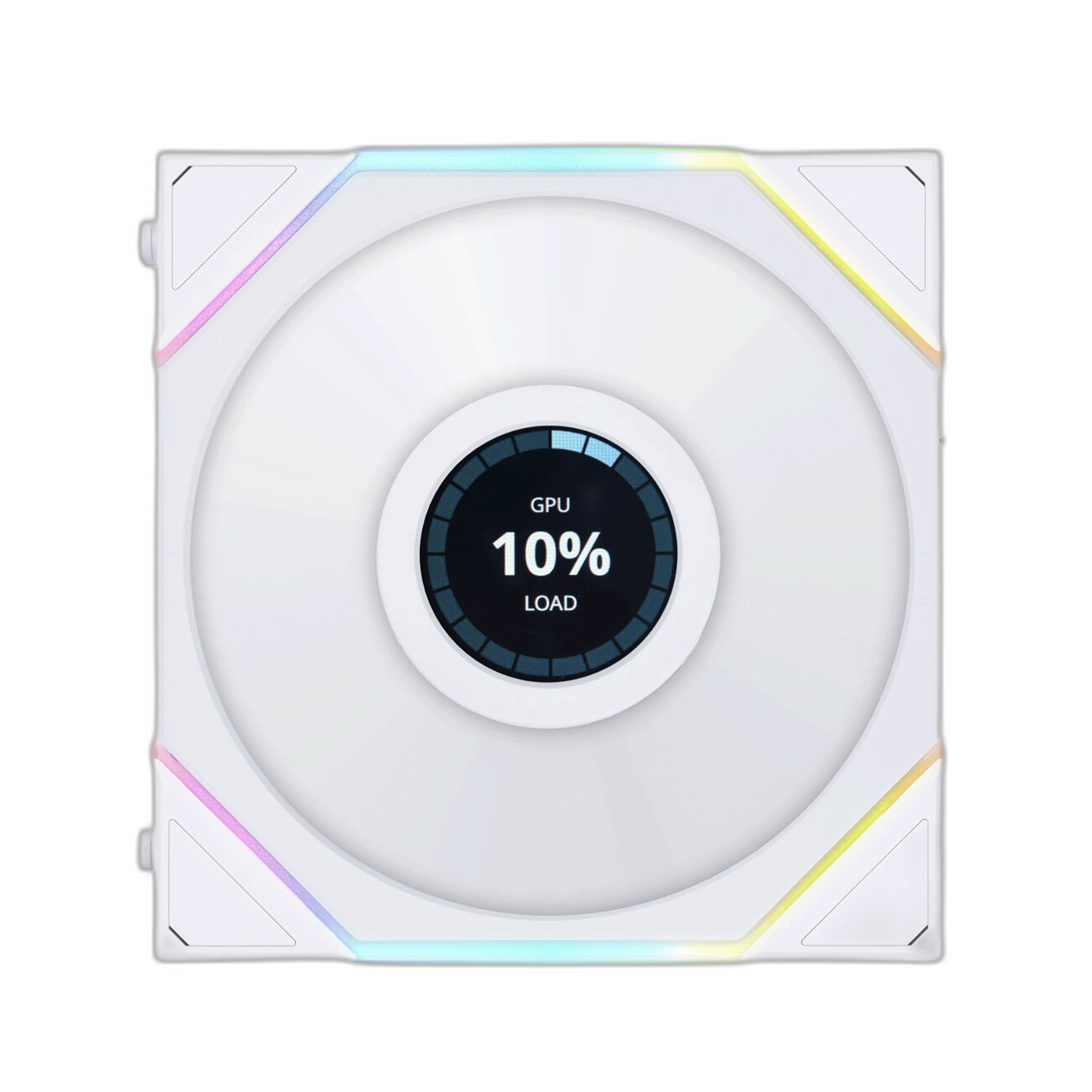

Each fan has a 1.6-inch IPS screen with 400 × 400 resolution and a typical brightness of 500 nits. Use supported images, video or hardware-monitoring layouts to build a coordinated display across the fan group. Keep the LCD side facing the visible, permitted mounting direction specified by the manufacturer.
Three Fans with the TL Controller
This pack supplies three fans and the matching UNI FAN TL controller. Connect the group with the specified TL LCD controller cable; TL and TL LCD share a controller but use different cables. The controller is required for these original TL LCD fans to operate and must receive the specified power and USB connections.
Interlocking Cluster Construction

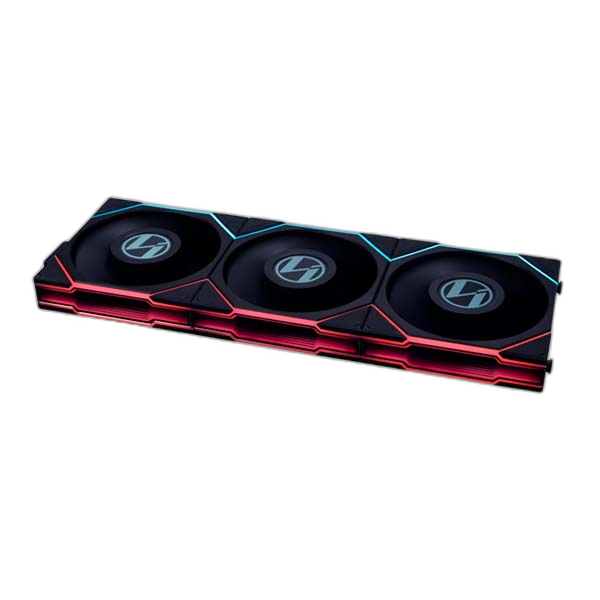

The fans slide together to form a connected group, with a single controller cable serving up to three TL LCD fans on one port. Removable end keys help reduce interference around nearby parts. Each fan measures 124 × 120 × 28 mm, so allow for its full frame dimensions around a nominal 120 mm mounting position.
PWM Cooling with Fluid Dynamic Bearings

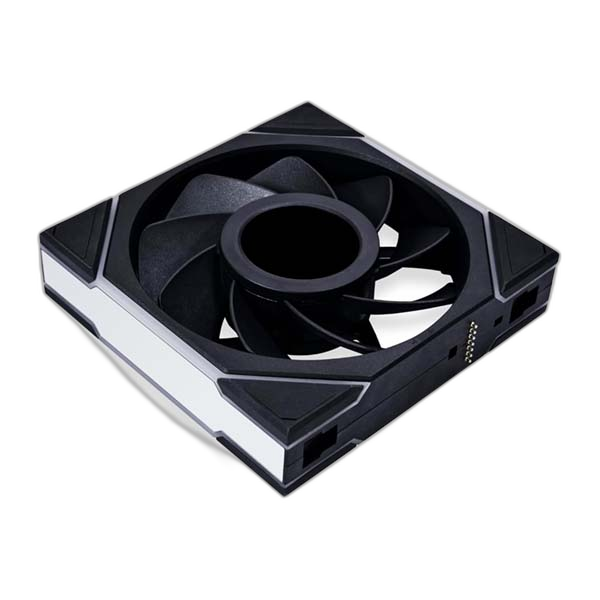

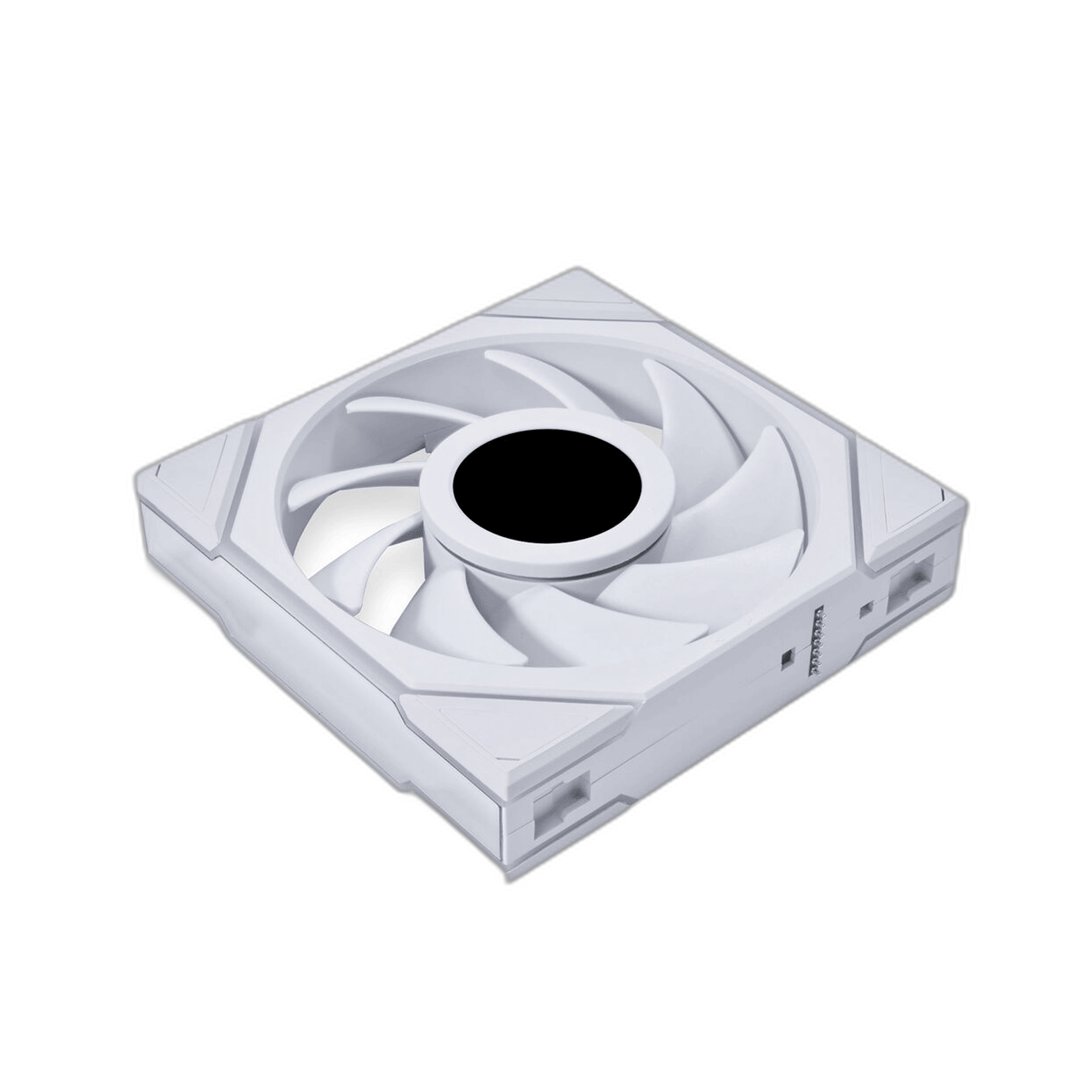

The standard-blade 120 mm fan supports operation up to 1,900 RPM, with maximum airflow of 62 CFM and static pressure of 2.9 mm H₂O. Fluid dynamic bearings support rotation, with a maximum acoustic rating of 27 dB(A). Configure the fan response around the cooling needs and noise preference of the system.
Lighting and Screen Control in L-Connect 3
Use L-Connect 3 to configure lighting, fan speed and the LCD screens. Supported personal content includes MP4, GIF, JPG and PNG files. Monitoring layouts can show supported CPU and GPU information, while the number of active sensors should be chosen with the software and system workload in mind.
Display per fan
1.6-inch IPS LCD; 400 × 400; typical 500 nits
Controller
UNI FAN TL controller included
Dimensions per fan
124 × 120 × 28 mm
Plan the USB and Power Connections
Connect the controller directly to a compatible motherboard USB 2.0 header as directed, and follow its power-connection instructions. Additional LCD groups depend on controller-port limits and the motherboard’s USB-device capacity. Use the TL LCD cables for this family and check the supported device arrangement before expanding the installation.
Check Fan Size and the Control Connection
Match the fan size, mounting position and power or lighting connector to the system. Check the controller or hub requirements before mixing fans from different ranges. Compare related options such as MSI MAG MAX F20A-1 200mm ARGB Case Fan or MSI MPG Coreliquid K240 ARGB CPU Liquid Cooler, keeping the exact model and configuration in the decision. For the wider setup, explore LIAN LI HydroShift II OLED Curved 360TL Liquid CPU Cooler - 6.67" 2K OLED and check the connection, size or mounting requirements before pairing accessories. Browse the Lian LI range at AX for more choices.
LIAN LI UNI FAN TL LCD 120 Triple Pack Setup Choices
Match the fan size, mounting position and power or lighting connector to the system. Check the controller or hub requirements before mixing fans from different ranges. Explore Lian LI O11 Dynamic Mid Tower Case, Tempered Glass, Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply.
Frequently Asked Questions
Is this the wireless version?
This is the original wired TL LCD family, supplied with its matching TL controller.
Which blade version is supplied?
The standard-blade 120 mm triple-pack model family 12TLLCD3B / 12TLLCD3W.
What can the displays show?
Supported MP4, GIF, JPG and PNG content, along with L-Connect 3 monitoring layouts.
Is the controller included?
Yes, in this triple pack.
Can I use other UNI FAN cables?
Use the TL LCD cables specified for this fan family.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Fan and Display
12TLLCD3B / 12TLLCD3W
3
Standard
124 × 120 × 28 mm
1.6-inch IPS LCD; 400 × 400; typical 500 nits
1,900 RPM
62 CFM
2.9 mm H₂O
27 dB(A)
Fluid dynamic bearing
12 V DC fan; 5 V DC lighting
UNI FAN TL controller included
Up to 3 TL LCD fans per controller port
MP4 / GIF / JPG / PNG
L-Connect 3
