NZXT F140 RGB DUO 140mm Twin Pack Case Fans, Black
NZXT

NZXT F140 RGB DUO 140mm Twin Pack Case Fans, Black

NZXT F140 RGB Duo Twin Pack provides 2 140 mm PWM fans with 20 individually addressable LEDs per fan. Dual-sided lighting is visible from either face of the fans. Separate speed and lighting connections let the build use the appropriate fan-control and RGB interfaces.

Color

SKU: RF-D14DF-B1

Regular price 23.000 KWD

or 4 payments of 5.750 KWD with

Pay with card & save

KNET Mastercard Gateway
22.000 KWD Save 1.000 KWD
Sold out

Overview

NZXT F140 RGB DUO TWIN PACK

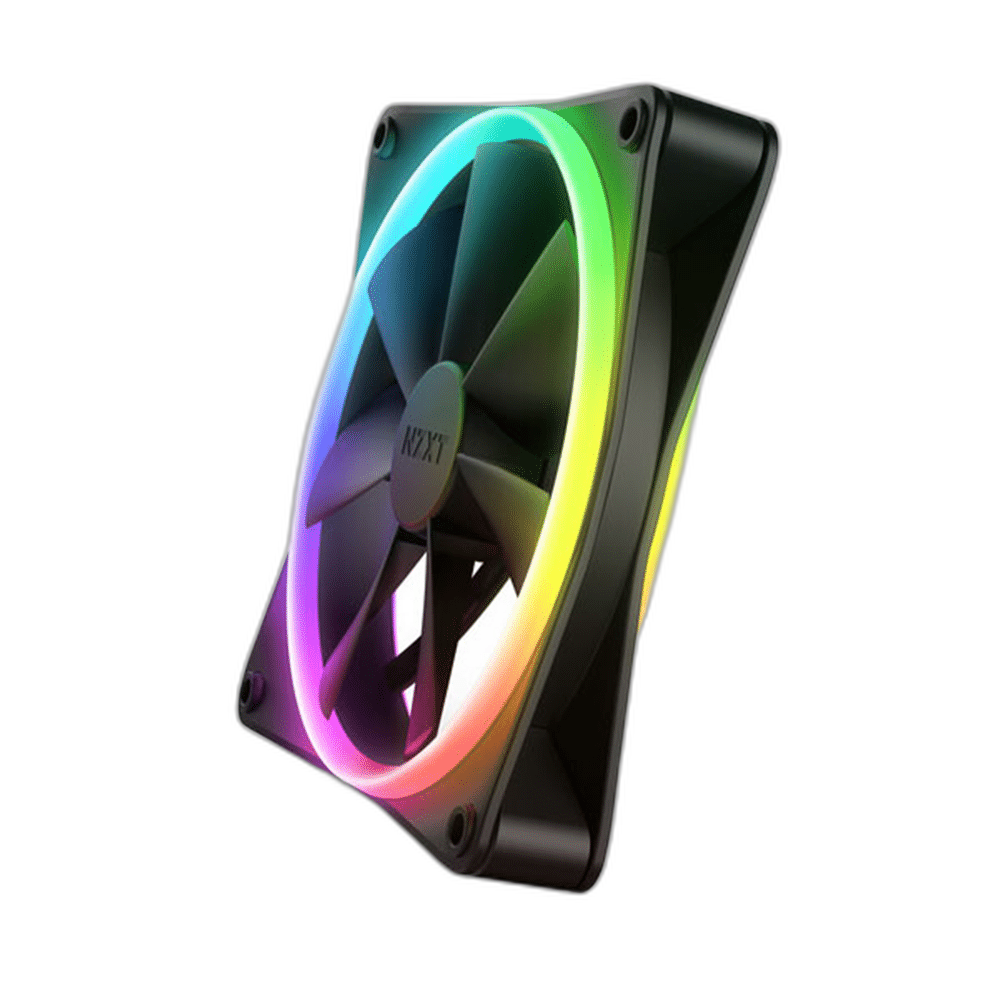

NZXT F140 RGB Duo Twin Pack — product view

PWM Cooling with Customisable RGB

NZXT F140 RGB Duo Twin Pack provides 2 140 mm PWM fans with 20 individually addressable LEDs per fan. Dual-sided lighting is visible from either face of the fans. Separate speed and lighting connections let the build use the appropriate fan-control and RGB interfaces.

140 mm

Fan size

2

Fans in pack

20

LEDs per fan

PWM

Speed control

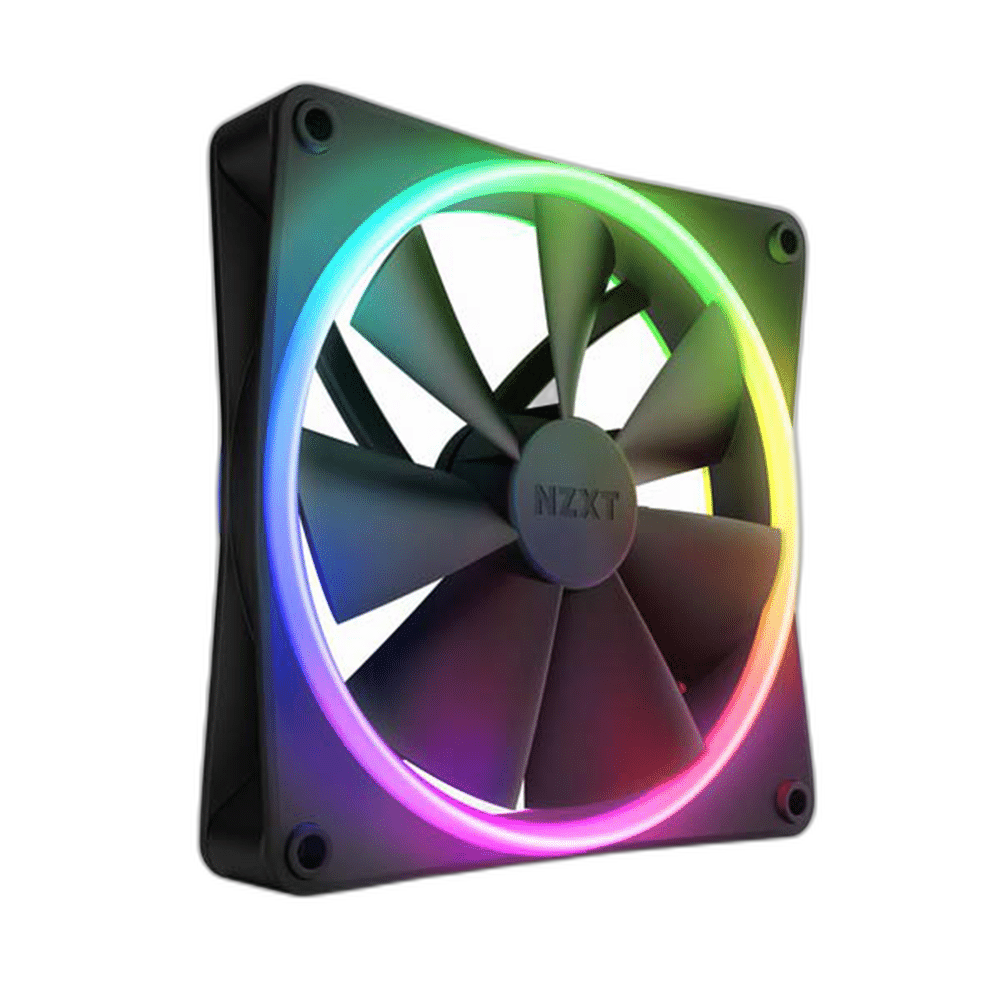

NZXT F140 RGB Duo Twin Pack — product view

140 mm Cooling for the Case

The 140 mm format fits compatible case and cooling mounts, with each fan measuring 140 × 140 × 25 mm. Check the available mounting holes and clearance before fitting the fan. A balanced intake and exhaust arrangement helps the rest of the cooling system use the available airflow effectively.

20 LEDs per Fan

20 individually addressable LEDs provide the lighting for each fan. The dual-sided ring arrangement keeps the lighting visible from both sides of the fan, helping illuminated builds retain their appearance in intake and exhaust positions. Choose colours and effects through the appropriate lighting software and controller.

PWM Speed Adjustment

Four-pin PWM fan power allows speed adjustment through a compatible motherboard header or suitable fan controller. 500–1,800 ± 300 RPM is the specified operating range. Build the fan curve around the cooling needs of the system and its noise preference, with each fan lead connected to an appropriate speed-control channel.

Fluid-Bearing Cooling

A fluid dynamic bearing supports smooth rotation over the intended operating range. Mount the fans securely with the appropriate screws, leave the airflow path clear, and keep loose cables away from the blades. The frame and mounting arrangement should suit the position selected for each fan.

Lighting Control Included

This multi-pack includes an NZXT RGB Controller. It connects to an internal USB 2.0 header and SATA power, with three RGB channels for compatible NZXT lighting. Fan speed remains separate on four-pin PWM leads; the included RGB Controller handles the lighting connections.

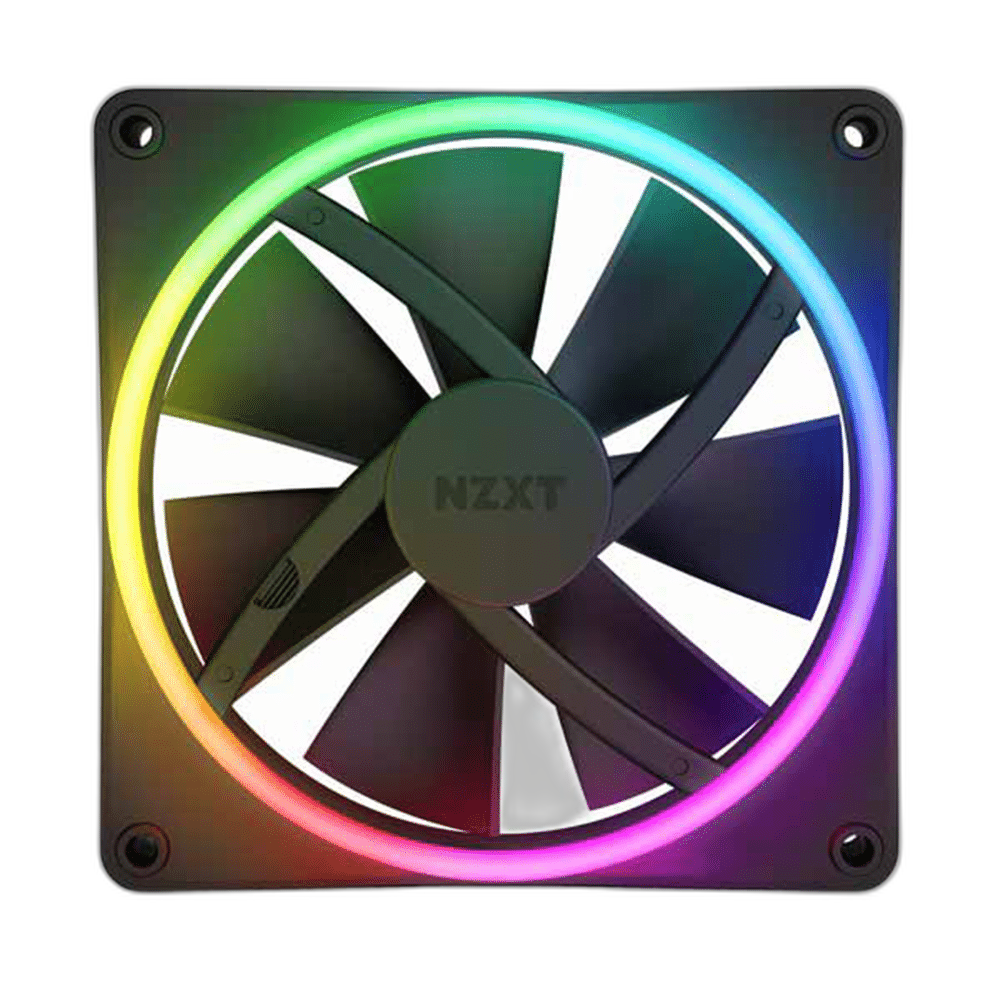

NZXT F140 RGB Duo Twin Pack — product view

Fans in pack

2

Fan dimensions

140 × 140 × 25 mm

Lighting connector

4-pin NZXT RGB

Plan the Full Fan Arrangement

This pack contains 2 fans. Use the pair together or distribute them across compatible positions. Check fan size, mounting clearance, available PWM headers and lighting-controller capacity together before installation.

Complete Your Workspace

Explore Case Fans to compare suitable options and complete your setup.

Frequently Asked Questions

How many fans are in the pack?

2 140 mm fans.

How is speed controlled?

Through the separate four-pin PWM fan connection, using an appropriate motherboard header or fan controller.

Is an RGB controller included?

An NZXT RGB Controller is included.

Are speed and lighting on the same connection?

No. Fan speed and RGB lighting use separate connections. Connect each to the appropriate header or controller.

Which size and clearance should I check?

140 × 140 × 25 mm per fan, plus clearance for cables and the intended case mounting position.

Build Your Setup with AX Store Kuwait

Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.

THE DETAILS

Technical specifications

Fan Hardware

Model

NZXT F140 RGB Duo Twin Pack

Fan size

140 mm

Fans in pack

2

Fan dimensions

140 × 140 × 25 mm

Speed

500–1,800 ± 300 RPM

LED count per fan

20

Fan power connector

4-pin PWM

Lighting connector

4-pin NZXT RGB

Bearing

Fluid dynamic bearing

Fan power

12 V DC; 0.26 A; 3.12 W

Included lighting controller

NZXT RGB Controller

Controller connections

Internal USB 2.0; SATA power

RGB controller channels

3

Lighting capacity

Up to 40 LEDs per channel; up to 120 LEDs total
