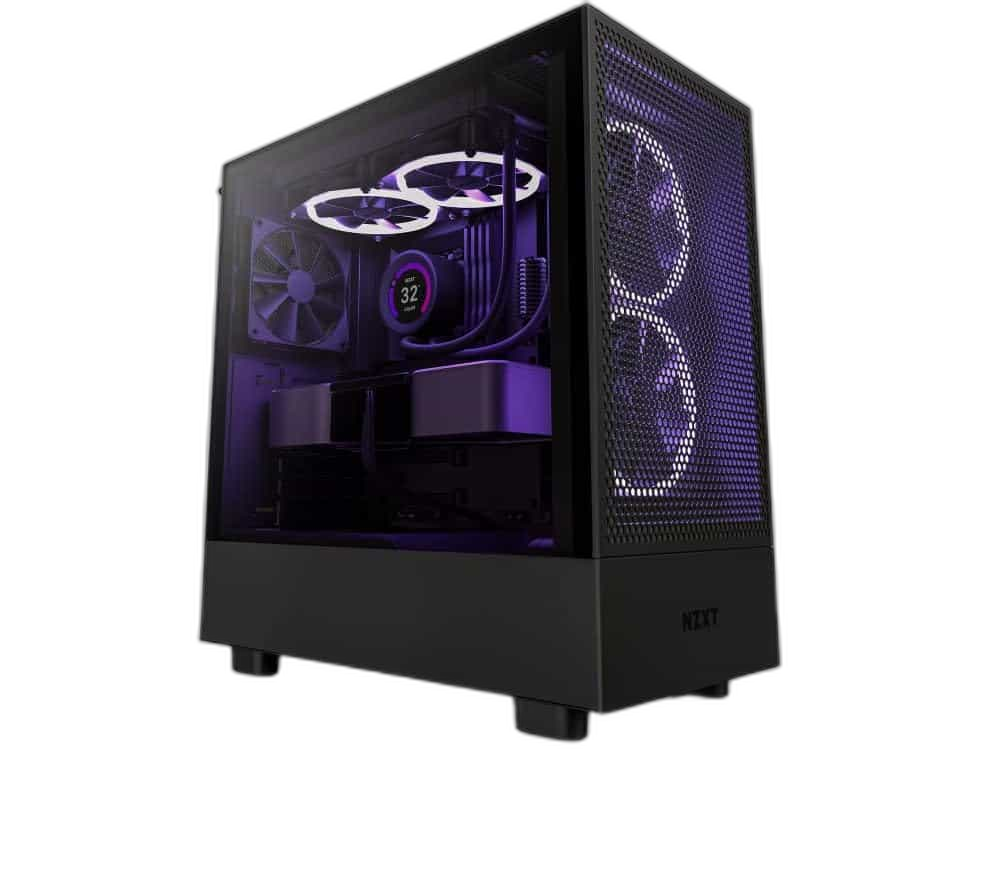

NZXT H5 Flow Edition ATX Mid Tower Case
NZXT H5 Flow (2022) combines a perforated front panel with an angled lower fan that directs air toward the graphics-card area. The compact ATX frame supports top and front radiator options, with 2 × 120 mm f120q fans, at rear and angled bottom intake.
Color
Regular price
23.000 KWD
or 4 payments of 5.750 KWD with
Pay with card & save
22.000 KWD
Save 1.000 KWD
Overview
NZXT H5 FLOW (2022)
NZXT H5 Flow (2022)
NZXT H5 Flow (2022) combines a perforated front panel with an angled lower fan that directs air toward the graphics-card area. The compact ATX frame supports top and front radiator options, with 2 × 120 mm f120q fans, at rear and angled bottom intake. Explore this model at AX Store in Kuwait.
Angled 120 mm
Lower GPU intake
280 mm
Front radiator option
240 mm
Top radiator option
165 mm
CPU-cooler clearance

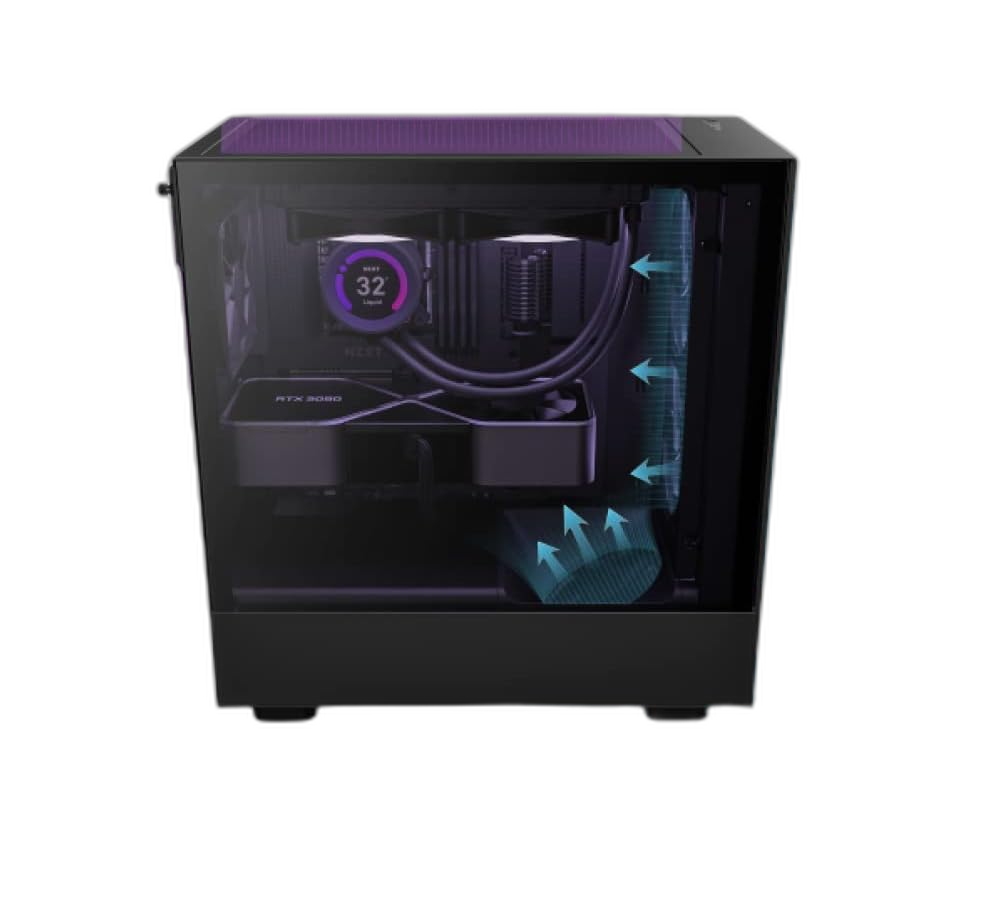

An Angled Lower Intake
A supplied 120 mm F120Q case fan sits in the dedicated lower angled intake, directing airflow toward the graphics-card area. This distinctive H5 arrangement brings a separate intake path beneath the main hardware. Keep the lower entry and fan outlet unobstructed when arranging cables around the PSU shroud.
The Front Design for This Version
This version uses a perforated front panel. The perforated front provides a ventilated mounting position for separately selected front fans or a radiator. Match the selected intake and exhaust arrangement with the cooling needs of the installed components.
Supplied Fans and Lighting Connections
2 × 120 mm F120Q fans, at rear and angled bottom intake. The supplied fans use the appropriate motherboard or separately selected fan-control connection; this model does not include an NZXT RGB controller. Fan speed and lighting are separate functions, so match each power lead and lighting plug with the specified connection before securing the cable routes behind the motherboard.

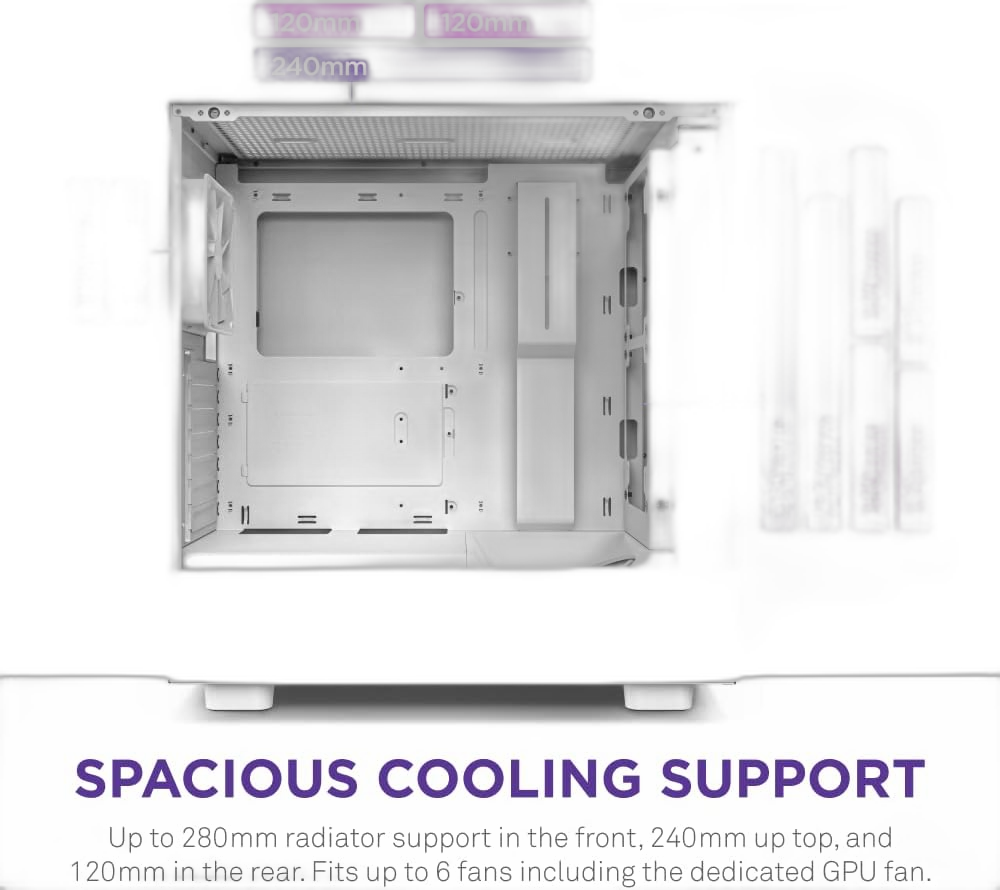

Front and Top Radiator Options
The front supports a 240 mm or 280 mm radiator, with a 240 mm radiator option at the top and 120 mm at the rear. Top mounting supports two 120 mm fans. Check the complete cooling thickness around the memory, motherboard heatsinks and graphics card before combining the front and top assemblies.
Compact ATX Hardware Clearance
The case supports ATX, Micro-ATX and Mini-ITX motherboards. CPU-cooler height clearance is 165 mm, with GPU length up to 365 mm before accounting for the selected front cooling hardware. The body measures 464 H × 227 W × 446 D mm, retaining a compact mid-tower footprint around the angled intake layout.
Dimensions
464 H × 227 W × 446 D mm
Included fans
2 × 120 mm F120Q fans, at rear and angled bottom intake
Maximum CPU-cooler height
165 mm

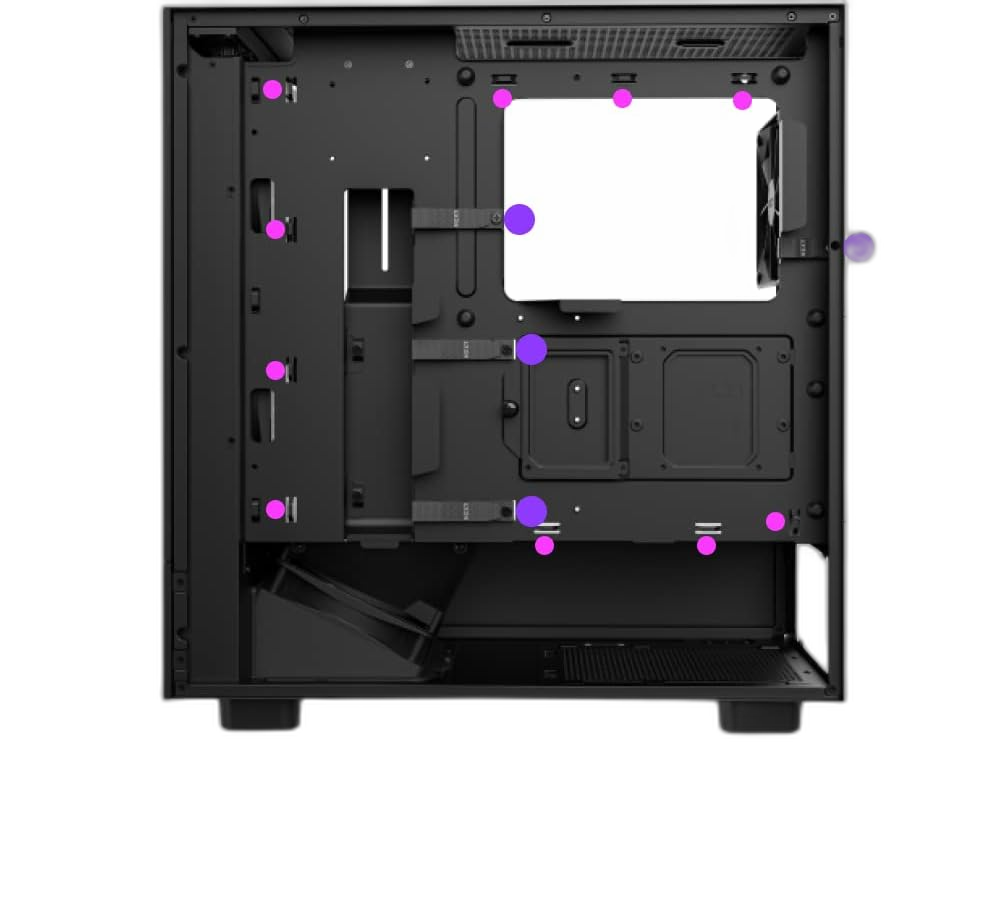

Routing Channels and Accessible Ports
Channels and straps behind the motherboard guide the cable runs toward the power supply, drives and front-panel connections. One USB-A port, USB-C and a combined headset jack provide upper-front access for peripherals. Choose drive and cable positions together so the rear panel closes without compressing the plugs.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as LIAN LI O11 Dynamic XL Full Tower Case, USB 3.0 or Lian LI O11 Dynamic Mid Tower Case, Tempered Glass, keeping the exact model and configuration in the decision. For the wider setup, explore MSI MAG MAX F20A-1 200mm ARGB Case Fan and check the connection, size or mounting requirements before pairing accessories. Browse the NZXT range at AX for more choices.
NZXT H5 Flow (2022) Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply, Samsung 980 PRO PCIe 4.0 NVMe M.2 SSD.
Frequently Asked Questions
Which motherboard formats fit?
ATX / Micro-ATX / Mini-ITX.
What graphics-card length is supported?
Up to 365 mm; account for front cooling hardware.
What CPU-cooler height is supported?
165 mm.
Which fans are supplied?
2 × 120 mm F120Q fans, at rear and angled bottom intake.
Which front radiator sizes fit?
240 / 280 mm.
Which top radiator sizes fit?
240 mm.
How is lighting control connected?
The supplied fans use the appropriate motherboard or separately selected fan-control connection; this model does not include an NZXT RGB controller..
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
Compare NZXT H7 Flow RGB Edition ATX Mid Tower Case (2023). Match the exact model, connection and configuration to your setup.
THE DETAILS
Technical specifications
Case Hardware
NZXT H5 Flow (2022)
Mid Tower
ATX / Micro-ATX / Mini-ITX
464 H × 227 W × 446 D mm
2 × 120 mm F120Q fans, at rear and angled bottom intake
165 mm
Up to 365 mm; account for front cooling hardware
240 / 280 mm
240 mm
120 mm
2 × 120 mm or 2 × 140 mm
The supplied fans use the appropriate motherboard or separately selected fan-control connection; this model does not include an NZXT RGB controller.
1 × USB-A; 1 × USB-C; combined headset jack
