NZXT H9 Elite ATX Mid Tower Case with RGB Fans
NZXT H9 Elite (2023) separates the main hardware from power, storage and cable routing with a dual-chamber design. Front and side glass form the main display, while a glass top and RGB Duo fans complete the Elite presentation.
Color
Regular price
70.500 KWD
or 4 payments of 17.625 KWD with
Pay with card & save
67.000 KWD
Save 3.500 KWD
Overview
NZXT H9 ELITE (2023)
NZXT H9 Elite (2023)
NZXT H9 Elite (2023) separates the main hardware from power, storage and cable routing with a dual-chamber design. Front and side glass form the main display, while a glass top and RGB Duo fans complete the Elite presentation. Explore this model at AX Store in Kuwait.
Dual chamber
Interior layout
435 mm
GPU length clearance
4 fans
Included
360 mm
Radiator mounting option
A Clear Dual-Chamber Display

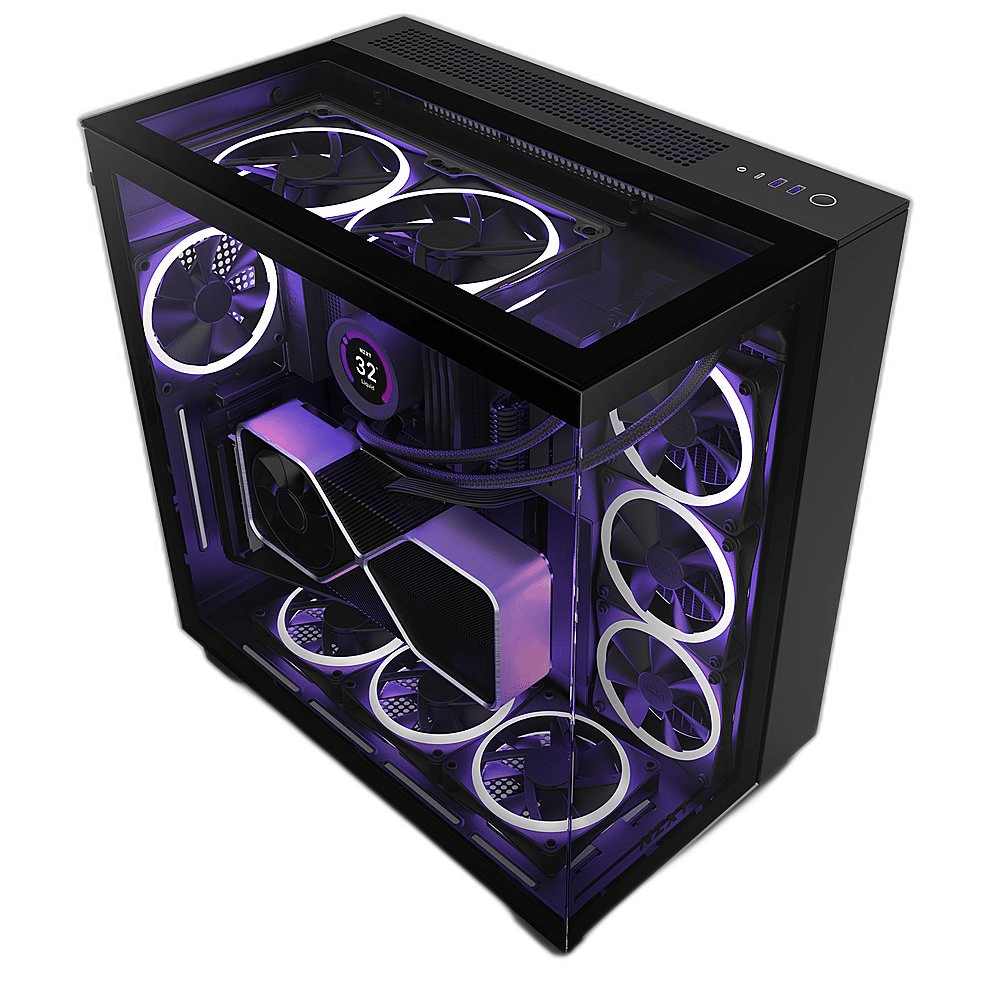

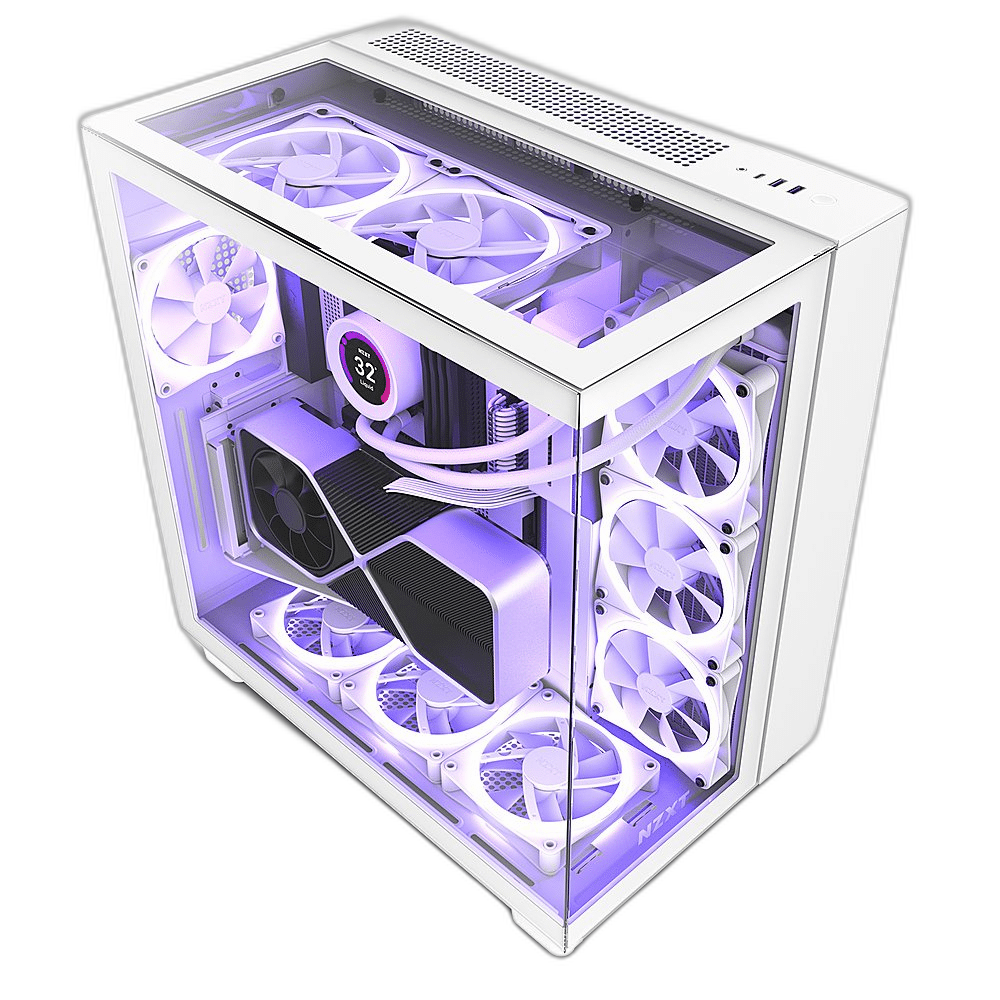

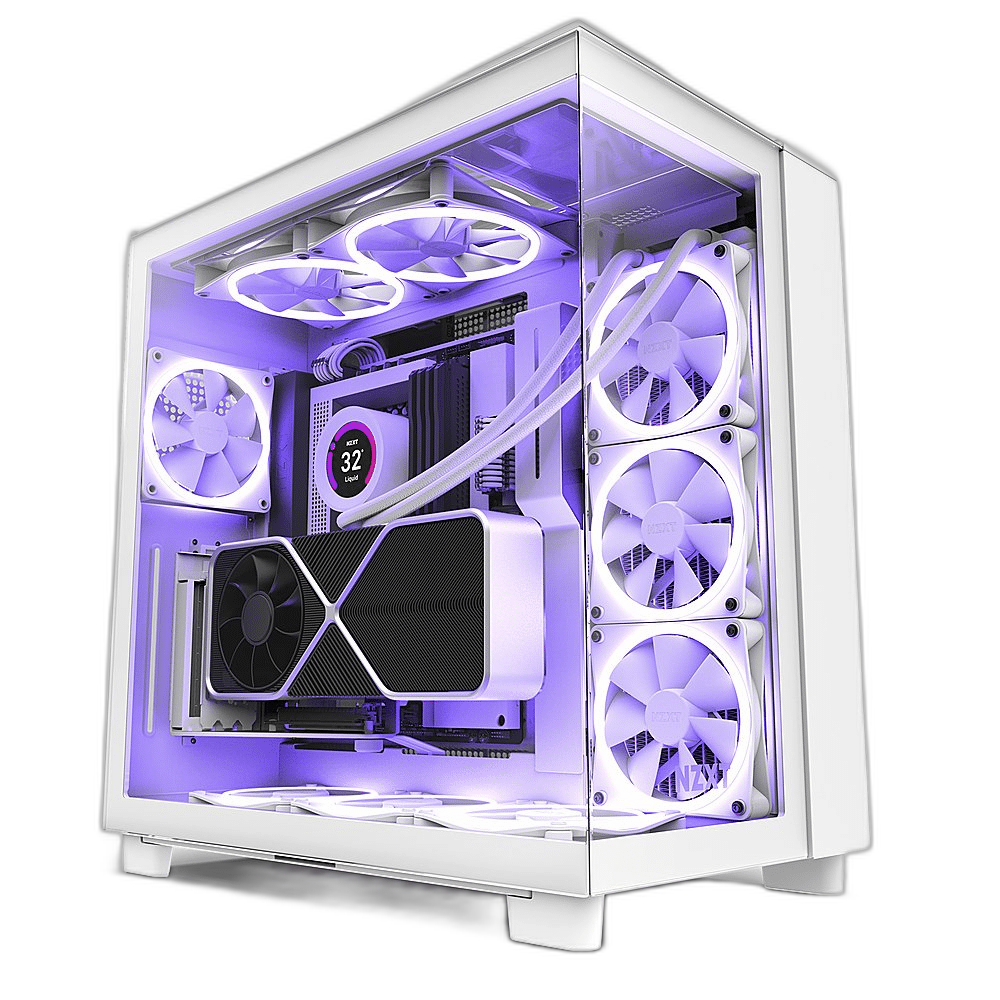

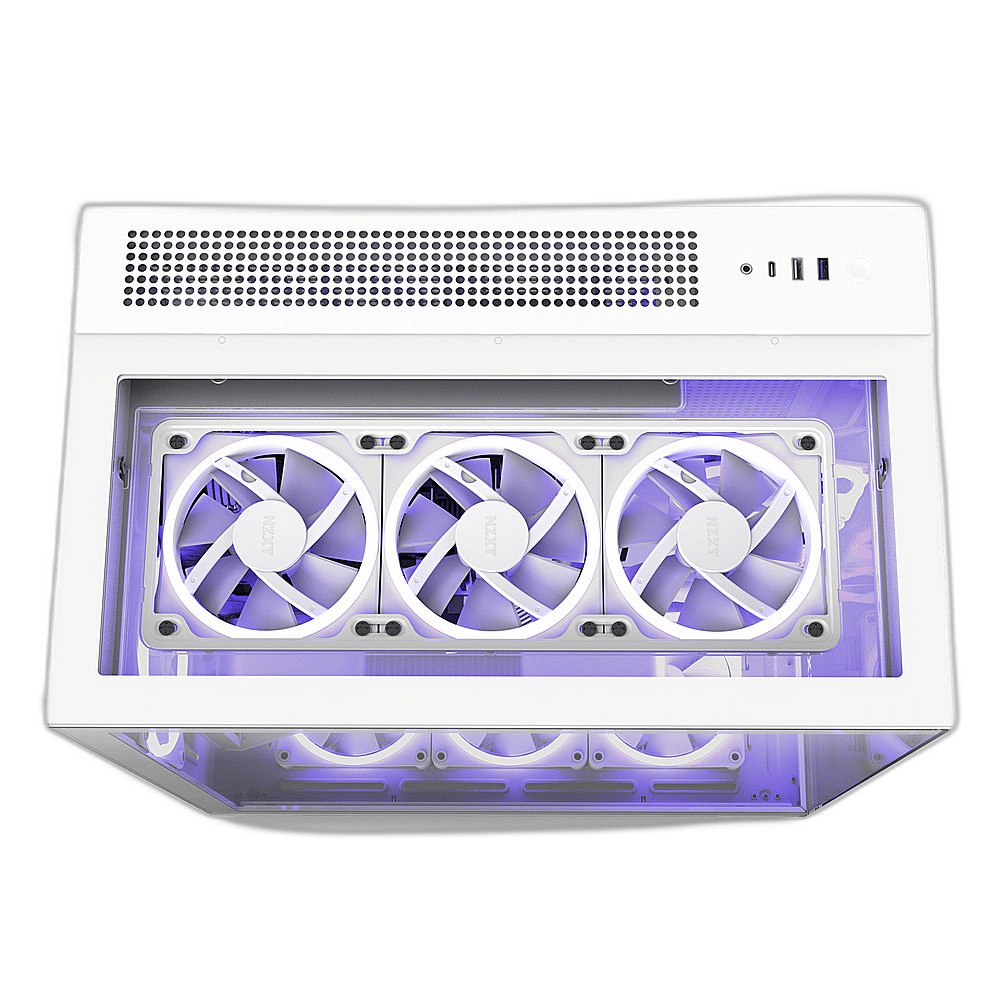

Front and side tempered-glass panels meet at an open display corner, keeping the motherboard and graphics hardware visible. The power supply and drives sit in a separate rear chamber. This Elite version also uses a glass top with its surrounding ventilation arrangement. The body measures 495 H × 290 W × 466 D mm.
Four Fans in the Supplied Layout

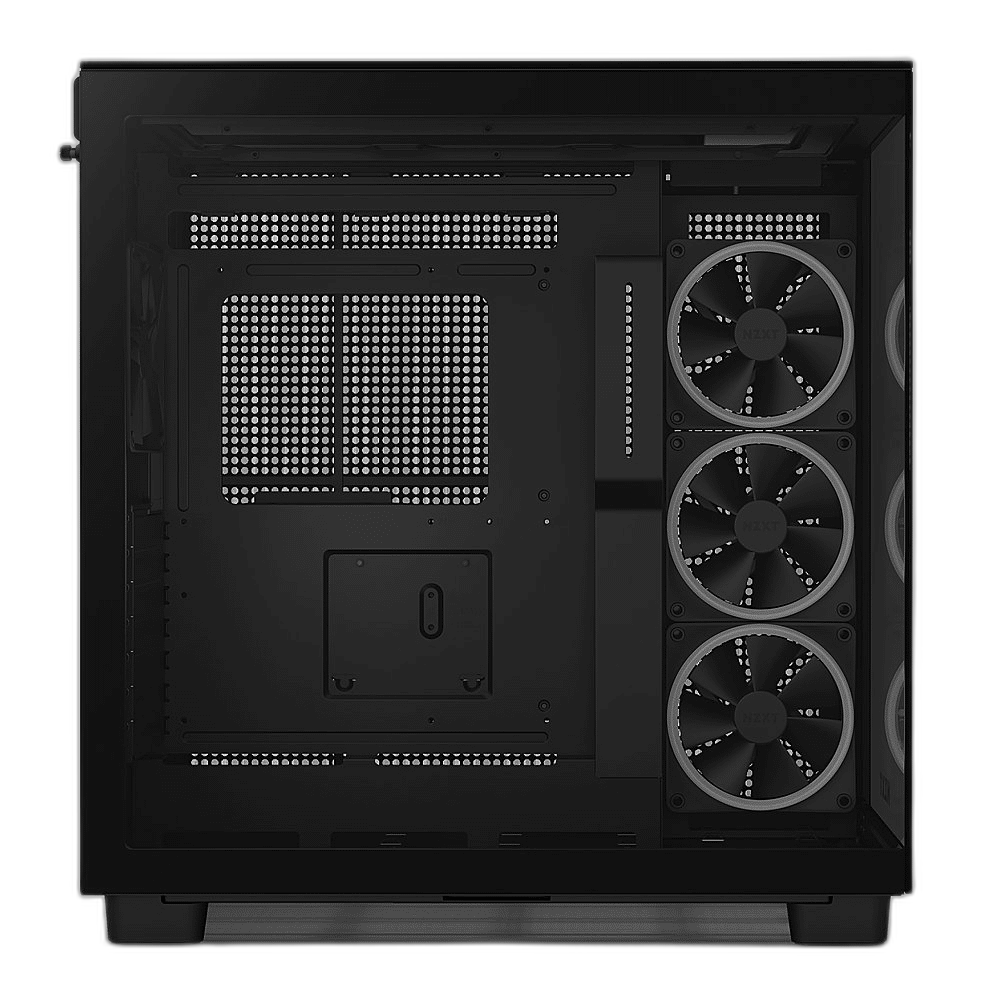

The case includes three F120 RGB Duo side fans and one F120Q rear case fan. The Duo fans illuminate both sides of their frames, with the matching NZXT RGB & Fan Controller supplied for supported CAM configuration. Use each fan’s specified power and, where present, lighting connection.
Cooling Mounts around the Main Chamber

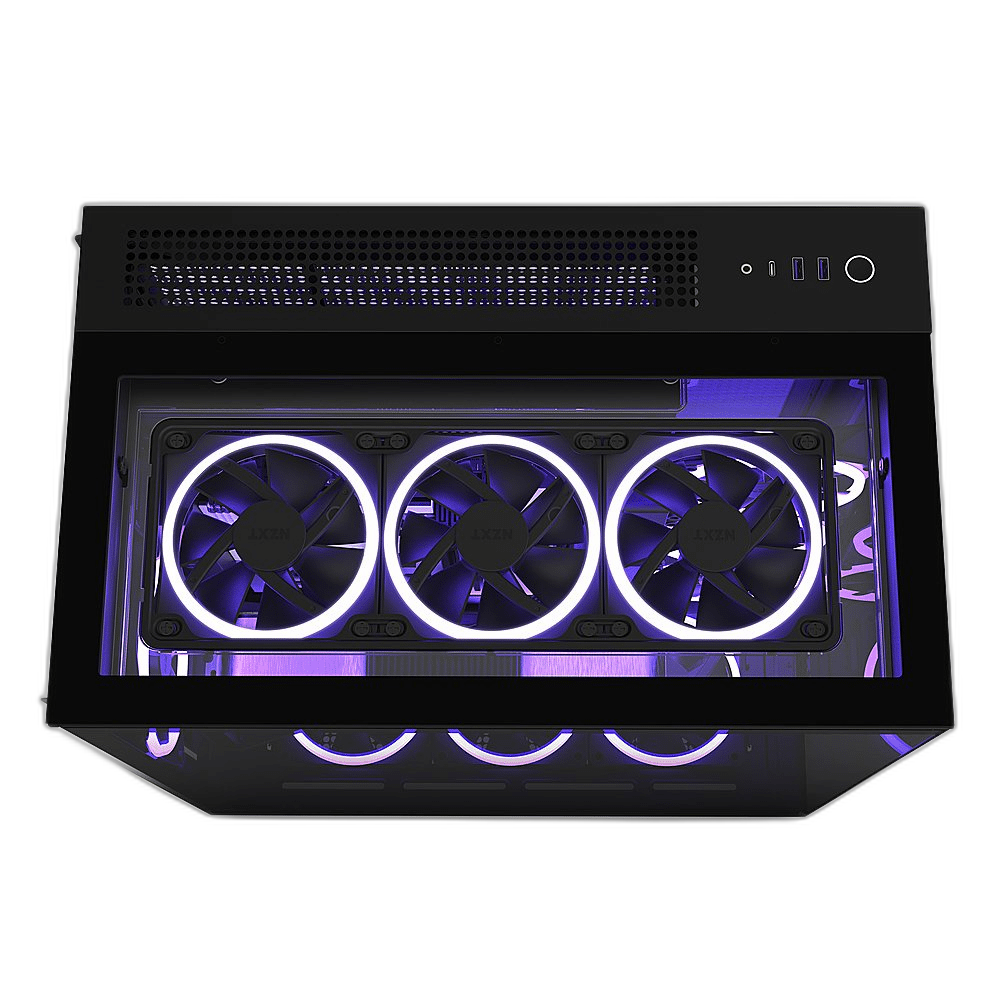

The side supports three 120 mm fans, while top and bottom positions each support three 120 mm or two 140 mm fans. Radiator options include 360 mm at the side, top or bottom, with suitable 280 mm choices at top and bottom. Account for all assembly thicknesses when combining cooling positions.
ATX Hardware and Long GPU Clearance

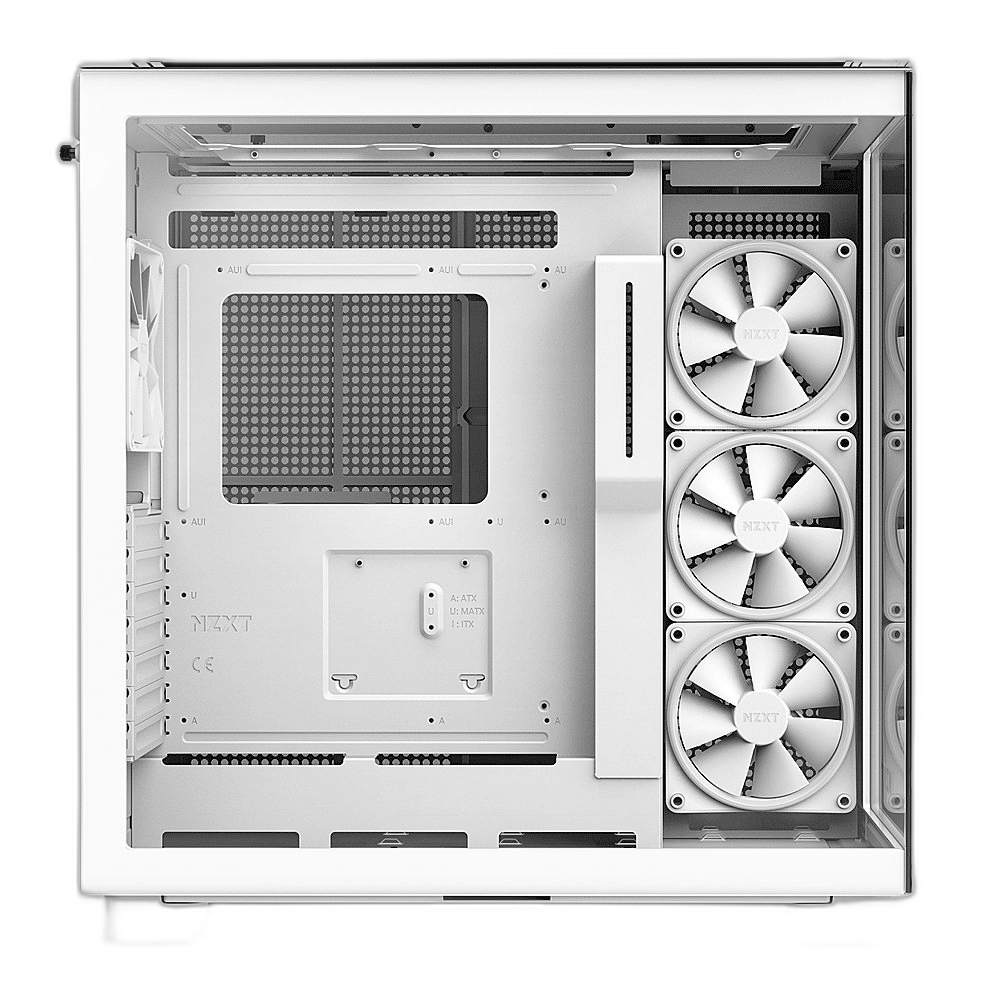

The 2023 H9 supports ATX, Micro-ATX and Mini-ITX motherboards. Maximum GPU length is 435 mm and CPU-cooler height clearance is 165 mm, with an ATX power supply up to 200 mm long in the rear chamber. Check graphics-power cable clearance and nearby cooling hardware as part of the complete fit assessment.
A Rear Chamber for Cables and Drives

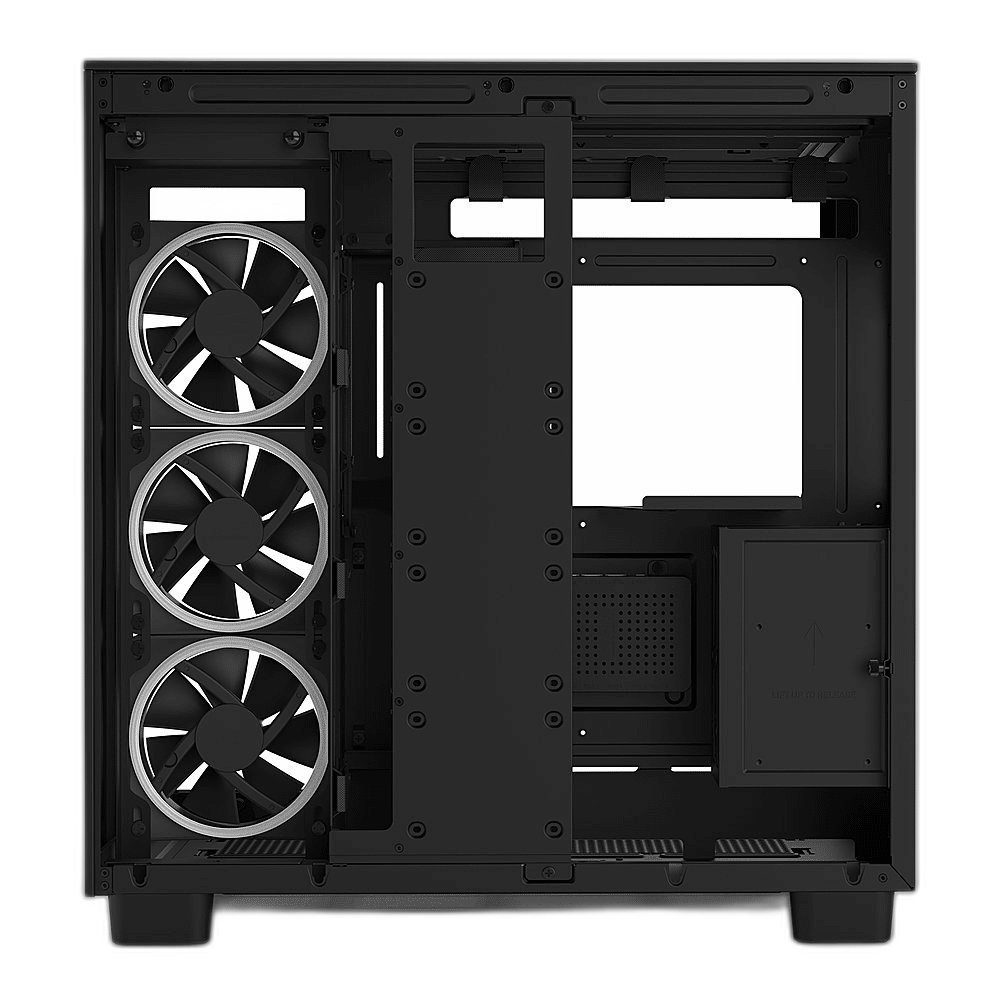

The second chamber provides routing space behind the motherboard, with dedicated drive locations and cable-management parts. The storage arrangement supports up to six 2.5-inch drives, including shared drive-cage positions, or a mixed layout with 3.5-inch drives. Select the required mounts together with the power supply and cable routes.
Dimensions
495 H × 290 W × 466 D mm
Included fans
three F120 RGB Duo side fans and one F120Q rear case fan
Maximum GPU length
435 mm
Accessible Connections and Cleaning

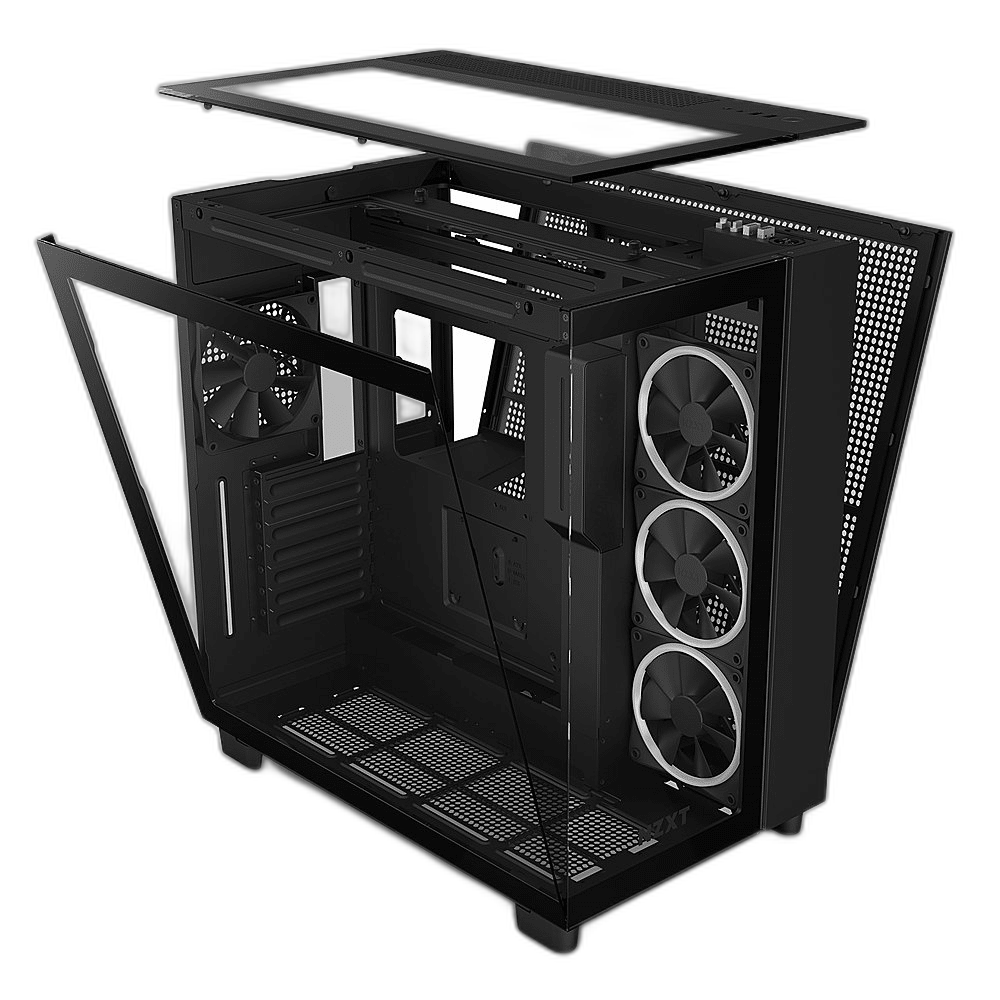

Two USB-A ports, one USB-C port and a combined headset jack provide front I/O access. Filters at the intake paths support cleaning around the case’s airflow arrangement. Remove the appropriate panels and filtering according to the case guide, leaving access around the completed system for maintenance and external cable connections.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as ASUS Hyperion GR701 Full Tower E-ATX Gaming Case or Xigmatek Aquarius II Mini Tower Case - Black, keeping the exact model and configuration in the decision. For the wider setup, explore MSI MAG MAX F20A-1 200mm ARGB Case Fan and check the connection, size or mounting requirements before pairing accessories. Browse the NZXT range at AX for more choices.
NZXT H9 Elite (2023) Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply, Corsair iCUE SP120 RGB ELITE Performance 120mm Triple Fan Pack.
Frequently Asked Questions
Which motherboard formats fit?
ATX / Micro-ATX / Mini-ITX.
What graphics-card length is supported?
435 mm.
What CPU-cooler height is supported?
165 mm.
Which fans are supplied?
three F120 RGB Duo side fans and one F120Q rear case fan.
Which front connections are available?
2 × USB-A; 1 × USB-C; combined headset jack.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
Compare NZXT H7 Elite ATX Mid Tower Case (2023). Match the exact model, connection and configuration to your setup.
THE DETAILS
Technical specifications
Case Hardware
NZXT H9 Elite (2023)
Mid Tower
ATX / Micro-ATX / Mini-ITX
495 H × 290 W × 466 D mm
three F120 RGB Duo side fans and one F120Q rear case fan
435 mm
165 mm
200 mm
360 mm
360 / 280 mm, subject to complete assembly clearance
Tempered glass with ventilation
NZXT RGB & Fan Controller included
2 × USB-A; 1 × USB-C; combined headset jack
