WD_BLACK SN850 1TB NVMe M.2 PCIe 4.0 SSD
WD

WD_BLACK SN850 1TB NVMe M.2 PCIe 4.0 SSD

WD_BLACK SN850 500 GB / 1 TB NVMe SSD combines PCIe 4.0 x4 NVMe connectivity with M.2 2280 NVMe construction. Choose the required capacity variation, with performance and endurance specified separately for each option.

Capacity

SKU: WD-BLACK-SN850-1TB

Regular price 25.000 KWD

or 4 payments of 6.250 KWD with

Sold out

Overview

WD_BLACK SN850 500 GB / 1 TB NVME SSD

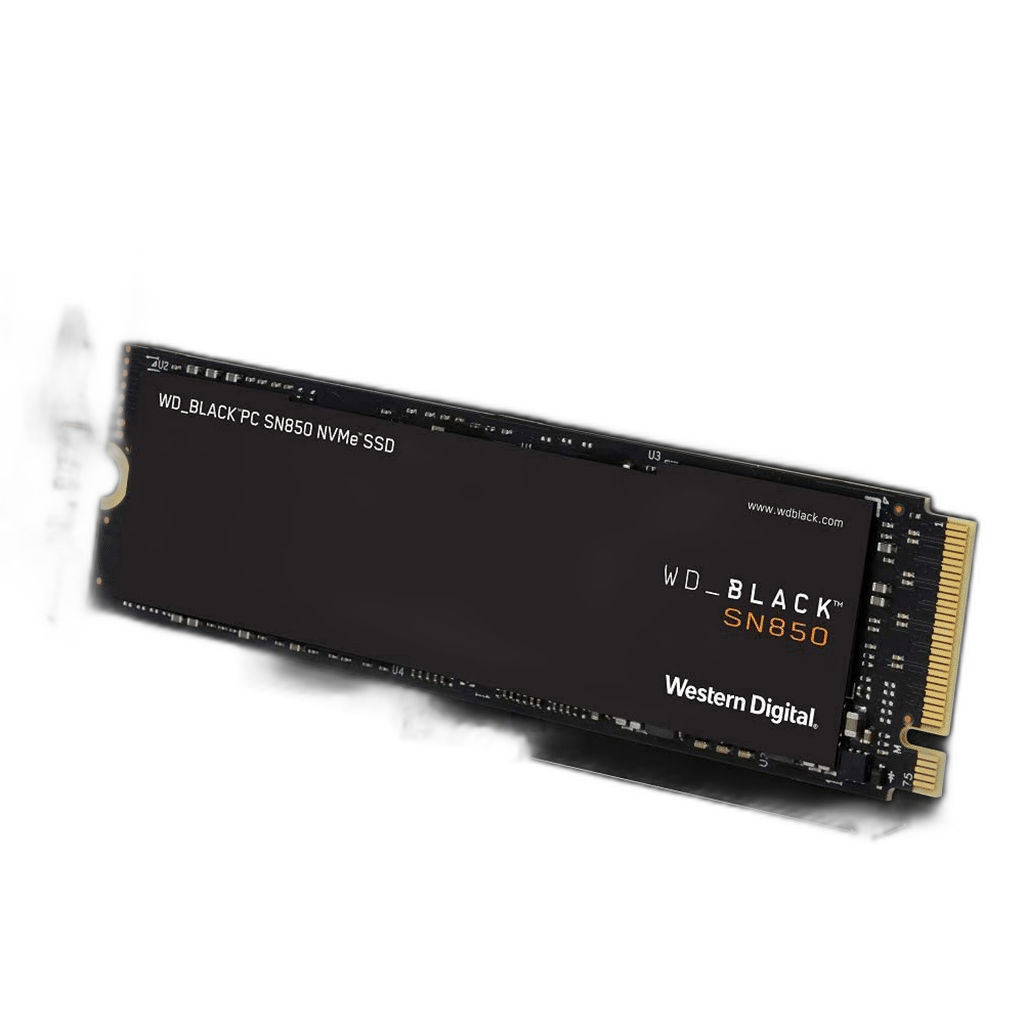

WD_BLACK SN850 500 GB / 1 TB NVMe SSD product view

WD_BLACK SN850 500 GB / 1 TB NVMe SSD

WD_BLACK SN850 500 GB / 1 TB NVMe SSD combines PCIe 4.0 x4 NVMe connectivity with M.2 2280 NVMe construction. Choose the required capacity variation, with performance and endurance specified separately for each option. Explore this model at AX Store in Kuwait.

500 GB / 1 TB

Capacity options

7000 MB/s

Maximum sequential read

4100 /5300 MB/s

Maximum sequential write

M.2 2280

Drive format

WD_BLACK SN850 500 GB / 1 TB NVMe SSD product view

Capacity for the Installed Library

The available 500 GB / 1 TB capacity options let you choose the drive around the space needed for the system. Plan room for the operating system, applications, game updates and working files when choosing the drive. Some of the labelled capacity is used for formatting and drive functions, so usable space depends on the operating environment. Keep a separate backup arrangement for files that need to be retained.

Sequential Transfer Performance

Sequential read: 7000 MB/s. Sequential write: 500 GB: 4100 MB/s; 1 TB: 5300 MB/s. These are manufacturer maximum figures under the specified test conditions. Actual transfers depend on the host hardware, software, available cache, temperature and workload. Use the capacity-specific figures when comparing this drive with another option, particularly where a larger version of the same family has a different write rating.

Match the Storage Interface

The drive uses PCIe 4.0 x4 NVMe in a M.2 2280 NVMe format. Check that the intended M.2 slot accepts a 2280-length PCIe NVMe drive and supports the required interface. The host connection determines the available link speed, so confirm the system specification before planning an upgrade.

The WD_BLACK SN850 Hardware

The original SN850 is a PCIe Gen 4 NVMe drive family with capacity-specific performance ratings. Supported manufacturer Dashboard software on Windows provides drive-health monitoring and gaming-mode controls. Select the capacity around the installed library and use the matching performance values rather than the later SN850X specifications. These characteristics describe the selected drive family and capacity. Use them alongside the interface and performance figures when choosing storage for a desktop or compatible notebook. Keep any service or firmware work within the manufacturer’s supported procedure and maintain a backup of important files before changing a storage installation.

Capacity-Specific Write Endurance

The rated write endurance is 500 GB: 300 TBW; 1 TB: 600 TBW. TBW means terabytes written and describes a tested write-workload rating. It is not the same as usable capacity or a guaranteed number of years of operation. Consider the expected write workload when choosing a drive for application files, game installations, recordings or project data.

WD_BLACK SN850 500 GB / 1 TB NVMe SSD product view

Family

WD_BLACK SN850

Capacity options

500 GB / 1 TB

Form factor

M.2 2280

Fit and Cooling for the System

Check the supplied drive’s cooling version and the host’s clearance. The SN850 family includes both standard modules and factory-heatsink versions; RGB and heatsink-specific features depend on that version. Follow the computer or motherboard installation guide, secure the drive correctly and check the available clearance before closing the system. Allow the cooling arrangement and surrounding airflow to work as intended during demanding transfers.

Check the Drive Interface and Physical Fit

Match the drive interface, form factor and supported slot or bay to the system. Plan capacity, cooling and a backup routine alongside the headline speed specification. Compare related options such as Corsair MP700 PRO NVMe M.2 SSD with Air Cooler or Corsair MP700 PRO 4TB SSD with Air Cooler, keeping the exact model and configuration in the decision. For the wider setup, explore SanDisk Extreme 128 GB microSDXC Memory Card + SD Adapter and check the connection, size or mounting requirements before pairing accessories.

WD_BLACK SN850 500 GB / 1 TB NVMe SSD Setup Choices

Match the drive interface, form factor and supported slot or bay to the system. Plan capacity, cooling and a backup routine alongside the headline speed specification.

Frequently Asked Questions

Which capacity is supplied?

Select the required available variation: 500 GB / 1 TB.

What interface does this SSD need?

PCIe 4.0 x4 NVMe; use a suitable M.2 2280 PCIe NVMe slot.

What are its sequential-speed ratings?

Sequential read: 7000 MB/s. Sequential write: 500 GB: 4100 MB/s; 1 TB: 5300 MB/s. Actual performance depends on the host and workload.

What cooling or fitting checks are needed?

Check the supplied drive’s cooling version and the host’s clearance. The SN850 family includes both standard modules and factory-heatsink versions; RGB and heatsink-specific features depend on that version.

Build Your Setup with AX Store

Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.

THE DETAILS

Technical specifications

Drive Specification

Family

WD_BLACK SN850

Capacity options

500 GB / 1 TB

Form factor

M.2 2280

Interface

PCIe 4.0 x4 NVMe

Sequential read, up to

7000 MB/s

Sequential write, up to

500 GB: 4100 MB/s; 1 TB: 5300 MB/s

Rated endurance

500 GB: 300 TBW; 1 TB: 600 TBW

Random read

500 GB: up to 810,000 IOPS; 1 TB: up to 1,000,000 IOPS

Random write

500 GB: up to 680,000 IOPS; 1 TB: up to 720,000 IOPS

Operating temperature

0–70°C

Drive management

Supported manufacturer Dashboard software; Windows

Cooling versions

Family includes standard and factory-heatsink versions; verify supplied unit
