Sound BlasterX G6 Hi-Res Gaming DAC & Amp, 7.1 Surround
Creative Sound BlasterX G6 Original. The original micro-USB Sound BlasterX G6 combines a high-resolution DAC with Creative’s Xamp discrete headphone amplifier. It gives wired headphones their own audio output, with game-focused processing and optical connectivity.
Overview

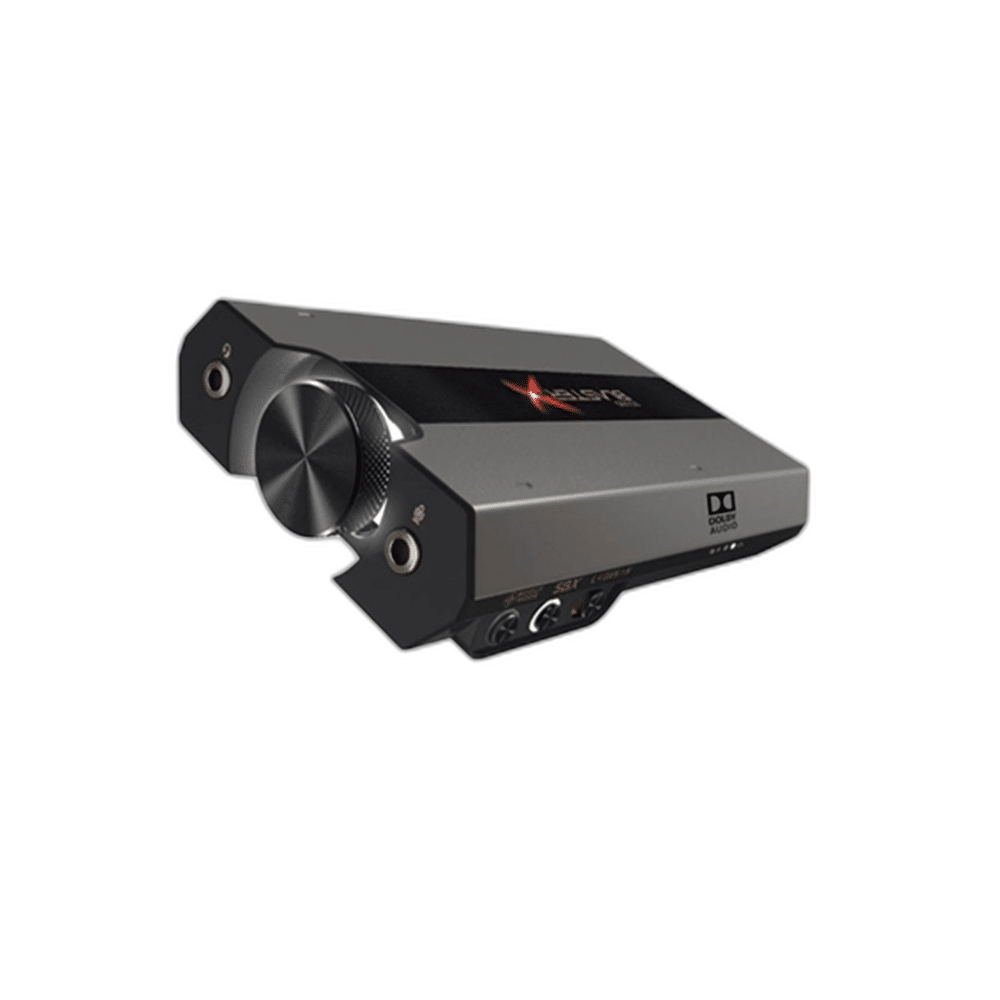

CREATIVE SOUND BLASTERX G6 ORIGINAL
Sound BlasterX G6
The original micro-USB Sound BlasterX G6 combines a high-resolution DAC with Creative’s Xamp discrete headphone amplifier. It gives wired headphones their own audio output, with game-focused processing and optical connectivity. Explore this model at AX Store in Kuwait.
32-bit / 384 kHz
Maximum PCM in Direct Mode
130 dB
DAC dynamic range
16–600 Ω
Listed headphone range
Micro-USB
Original version connection
A separate amplifier for each channel
Xamp uses a discrete bi-amplified headphone design. A 1-ohm output impedance and support for 16–600 ohm headphones make the G6 suitable for a broad range of wired headphones.
High-resolution audio in Direct Mode
The DAC delivers a 130 dB dynamic range and supports PCM playback up to 32-bit/384kHz in Direct Mode. DSD64 and DSD128 over PCM are also supported in Direct Mode.
Surround processing for games
Virtual 7.1, Scout Mode and Sound Blaster processing provide options for gaming audio. Direct Mode bypasses audio processing, so choose the mode that matches your listening session.
Connect the original micro-USB model correctly
This model uses micro-USB for computer audio and power. Optical input supports Dolby Digital decoding. Xbox One requires optical audio and external USB power; voice communication is not supported on that connection.
Separate Listening Outputs from Microphone Inputs
Connect listening headphones to the appropriate front output and a compatible computer-style microphone to the recording input where required. A passive plug adapter cannot make an XLR broadcast microphone work as a powered headset microphone. Choose each cable around the actual analogue or digital connection.
Choose the Mode for the Listening Session
Use direct stereo playback for an unprocessed listening path where the model supports it, or choose the available game processing for a different presentation. Virtual headphone surround, discrete speaker channels and optical encoding are separate functions, with their own software and platform requirements.
Match the Source and Headphone Output
Check the actual digital or analogue input, headphone connector and supported operating mode. Choose the source, cable and headphone together; a headphone amplifier and a microphone recording interface have different jobs. Compare related options such as iFi Audio ZEN DAC 3 DAC and Headphone Amplifier, Hi-Res Playback or JDS LABS ATOM AMP 2 Headphone Amplifier, keeping the exact model and configuration in the decision. For the wider setup, explore Audio-Technica ATH-R30x Open-Back Reference Headphones and check the connection, size or mounting requirements before pairing accessories. Browse the Creative range at AX for more choices.
Sound BlasterX G6 Setup Choices
Check the actual digital or analogue input, headphone connector and supported operating mode. Choose the source, cable and headphone together; a headphone amplifier and a microphone recording interface have different jobs. Explore beyerdynamic DT 990 PRO 80 Ohm Open-Back Studio Headphones, beyerdynamic DT 900 PRO X Studio Headphones 48 Ohm, beyerdynamic DT 770 PRO X Closed-Back Studio Headphones 48 Ohm.
Frequently Asked Questions
Does virtual 7.1 mean seven headphone drivers?
Virtual surround processes the signal for headphone listening. It is distinct from the separate analogue speaker outputs available on X4.
Can it connect an XLR microphone with phantom power?
These are gaming DAC/sound-card products with the listed headset or 3.5 mm microphone connections. They do not replace an appropriate XLR microphone preamp or phantom-power interface.
Does every software feature work on every platform?
No. Check the exact device, connection and software support. Console audio, microphone chat and computer processing can have different requirements.
Is this the new USB-C G6?
This listing is the original micro-USB SB1770 G6. Keep the original connection and package details with this model.
Does Direct Mode keep all processing active?
Direct Mode bypasses audio processing. Its maximum PCM format should not be combined with an assumption that every virtual surround or effect remains active.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
Compare Creative Sound BlasterX G5 USB DAC & AMP. Match the exact model, connection and configuration to your setup.
THE DETAILS
Technical specifications
Audio
SB1770; original micro-USB version
SB-Axx1
Xamp discrete headphone bi-amplifier
130 dB
1 ohm
16–600 ohms
32-bit / 384 kHz in Direct Mode
DSD64 and DSD128 in Direct Mode
32-bit / 192 kHz
Via optical input
Virtual 7.1
Bypasses audio processing

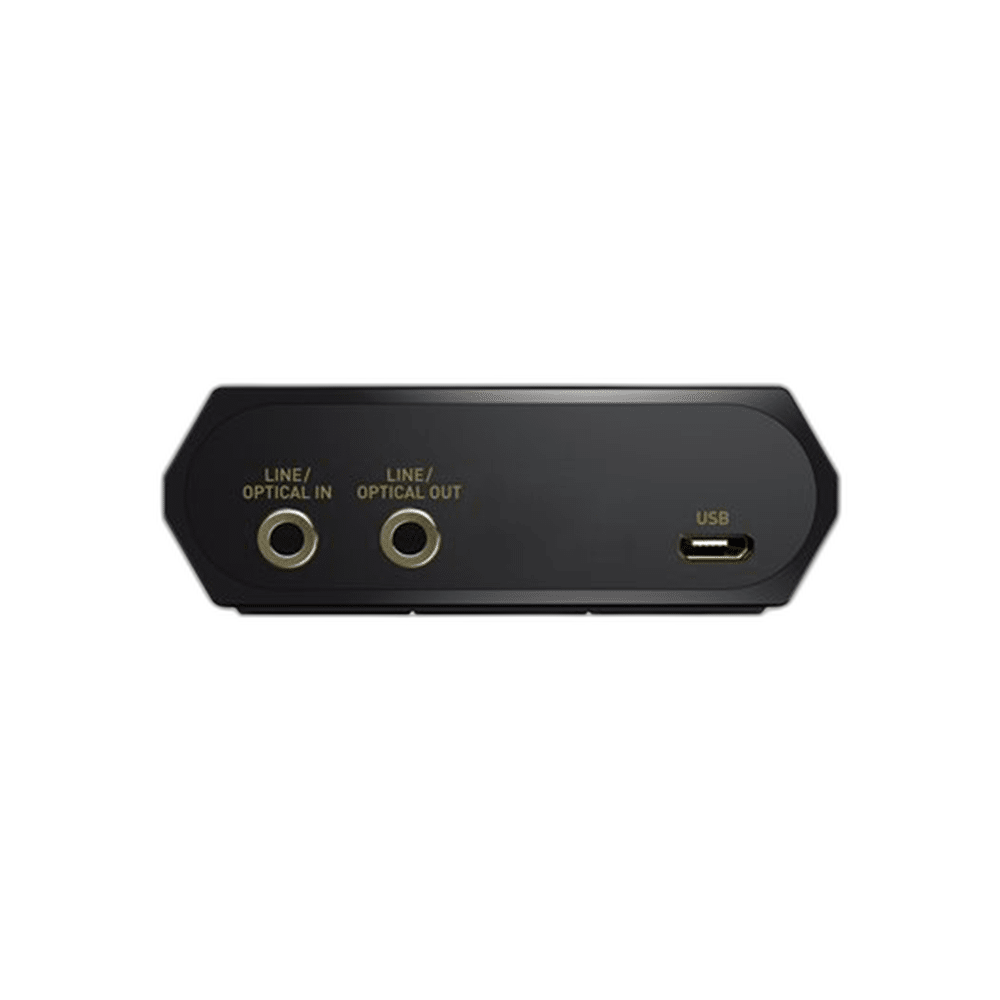

Connections
Micro-USB; USB 2.0 High Speed / 3.0
3.5 mm headphone / headset jack
Dedicated 3.5 mm microphone input
Combined 3.5 mm line-in / mini-TOSLINK input
Combined 3.5 mm line-out / mini-TOSLINK output
USB bus power; 5 V DC / 1 A adapter input
Compatibility and package
Windows 8 / 8.1 / 10 / 11
Mac OS X 10.9 or later
USB audio; optical output needed for Dolby Digital decoding
Optical audio and external USB power; voice communication not supported
USB in docked mode or 3.5 mm audio with external USB power; voice communication not supported
111 x 70 x 24 mm
144 g
Micro-USB cable; mini-TOSLINK cable
Product identification
Creative
70SB177000003
054651196742
