XIGMATEK Gaming X Arctic RGB ATX Mid Tower Case

Included X20A Arctic set

Maximum fan positions

Front / top radiator format

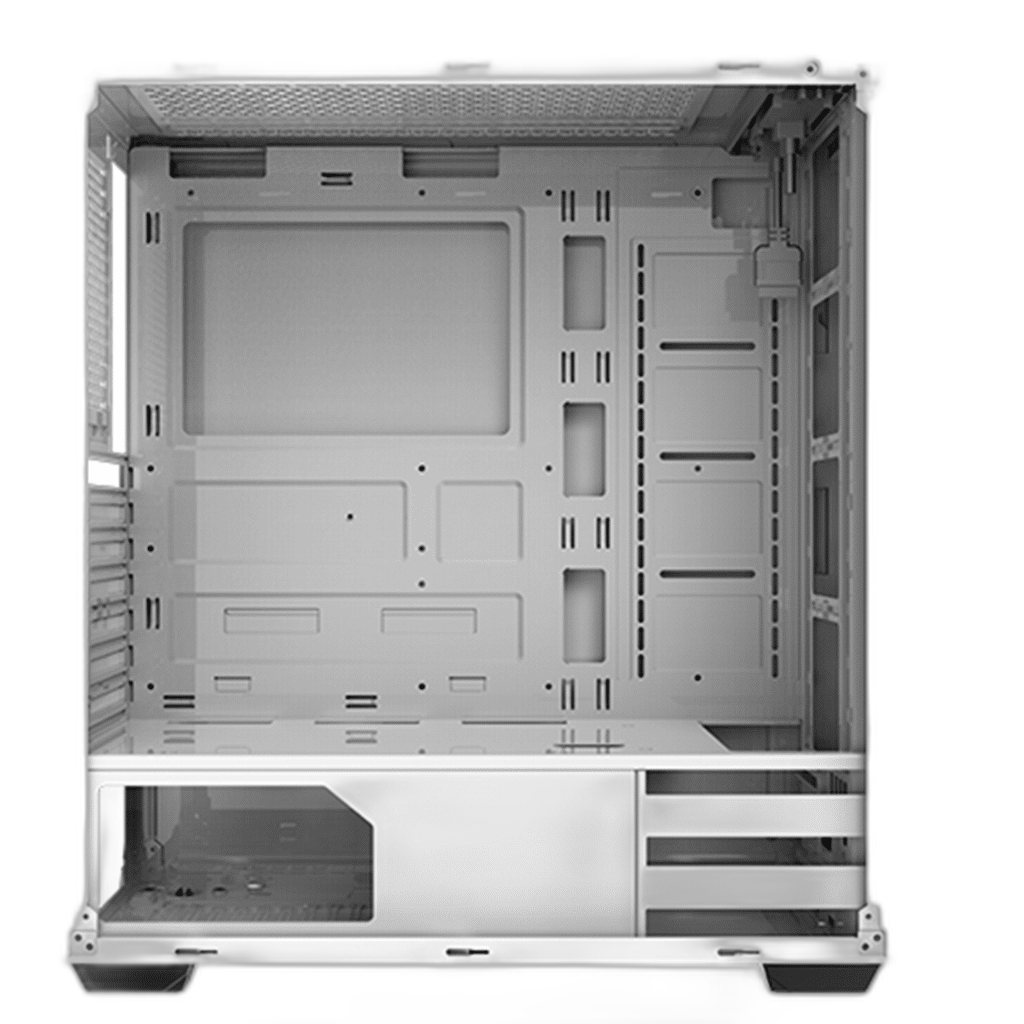

Chassis structure

The Chassis and Display Design

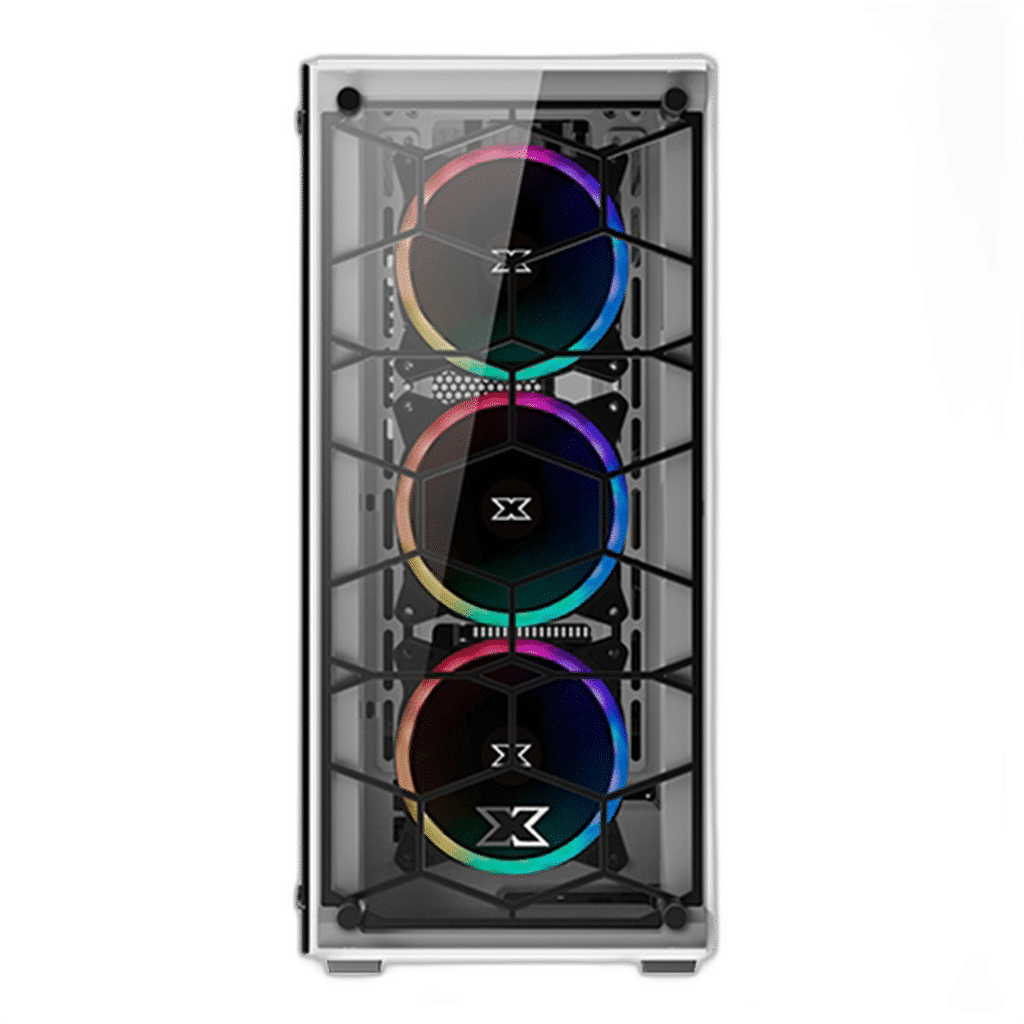

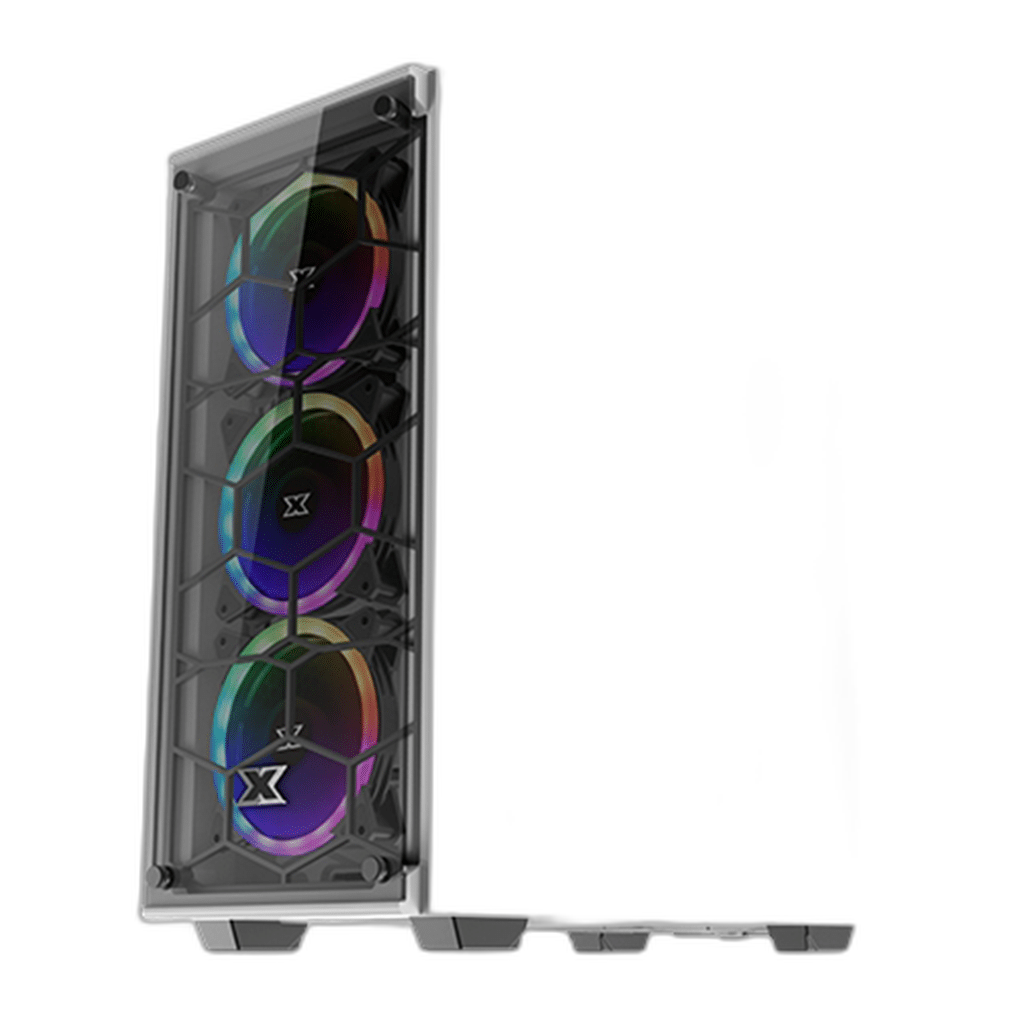

A white 0.5 mm chassis structure combines a metallic front panel with a left tempered-glass panel and a PSU shroud. Plan the enclosure around the space available on the desk or floor, leaving access to the panels and the connected equipment. The panel layout is part of the case’s visual presentation and its practical assembly arrangement.

Motherboard and Component Planning

The documented motherboard support used for this listing is ATX. Front and top positions support 240 mm radiator formats, with a 120 mm radiator position at the rear. Match the actual motherboard, graphics card and cooling assembly before starting the build. A case’s individual component dimensions do not guarantee that all maximum-size parts can be installed together.

Fan and Radiator Positions

This EN46737 configuration includes four X20A Arctic fans and an ARGB fan PCB with an LED switch. The chassis supports up to six 120 mm fans. Select the fan and radiator arrangement around the intended airflow path. Check the full radiator body, attached fan thickness, board components and nearby connectors together before committing to a cooling position.

Front Connections at the Desk

The front connection arrangement is 1 × USB 3.0; 2 × USB 2.0. Plan access to these ports when choosing the case position, and connect the appropriate internal leads to the motherboard. Front USB ports and audio sockets use their corresponding board connections rather than a single shared signal cable.

Build Access and Cable Routing

Plan the power, storage, fan and front-panel leads alongside the motherboard and cooling hardware. Keep the routes clear of rotating fan blades and leave enough access at connectors for assembly. A considered cable arrangement also makes it easier to reach individual parts when the system later needs cleaning or a component change.

Model

XIGMATEK Gaming X Arctic

Motherboard support

ATX

Design

A white 0.5 mm chassis structure combines a metallic front panel with a left tempered-glass panel and a PSU shroud.

Which motherboard formats are documented?

ATX.

What radiator arrangement is listed?

This EN46737 configuration includes four X20A Arctic fans and an ARGB fan PCB with an LED switch. The chassis supports up to six 120 mm fans.

What component-clearance information is used?

Front and top positions support 240 mm radiator formats, with a 120 mm radiator position at the rear.

Which front USB connections are provided?

1 × USB 3.0; 2 × USB 2.0.

Does a nominal radiator size establish complete fit?

No. Check the radiator, fans, motherboard and cable clearances together.
