ZOTAC

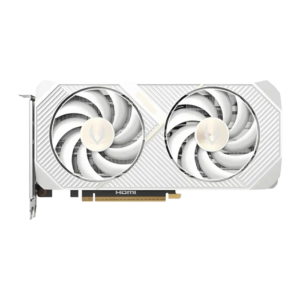

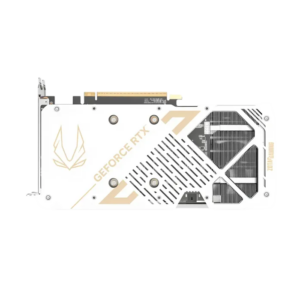

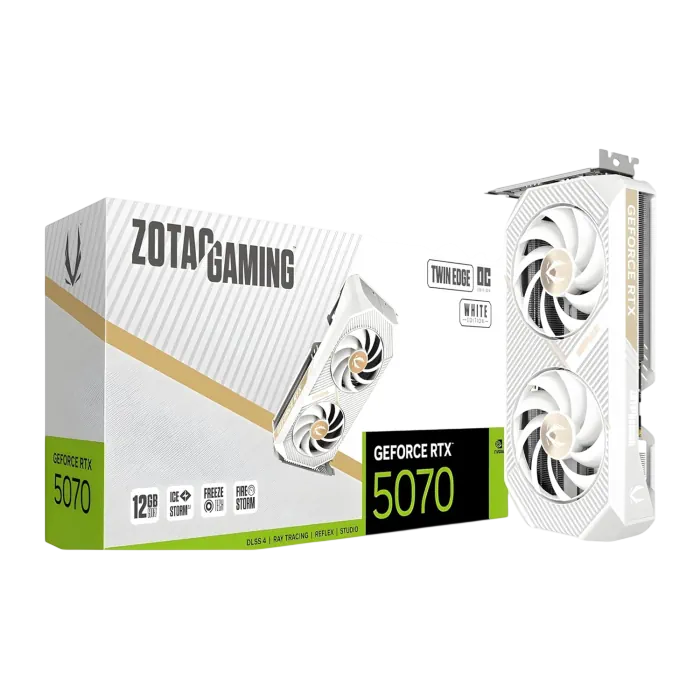

ZOTAC GAMING GeForce RTX 5070 Twin Edge OC 12GB GDDR7 – White
The ZOTAC GAMING GeForce RTX 5070 Twin Edge OC White Edition combines 12GB GDDR7 memory, a 2542MHz boost clock and NVIDIA Blackwell architecture in a compact white design. Featuring IceStorm 2.0 dual-fan cooling, DLSS support and a two-slot profile, it brings modern gaming and creative features to your next PC build.
Overview
ZOTAC GAMING · WHITE EDITION
ZOTAC GAMING GeForce RTX 5070 Twin Edge OC White Edition
A compact RTX card for your white build.

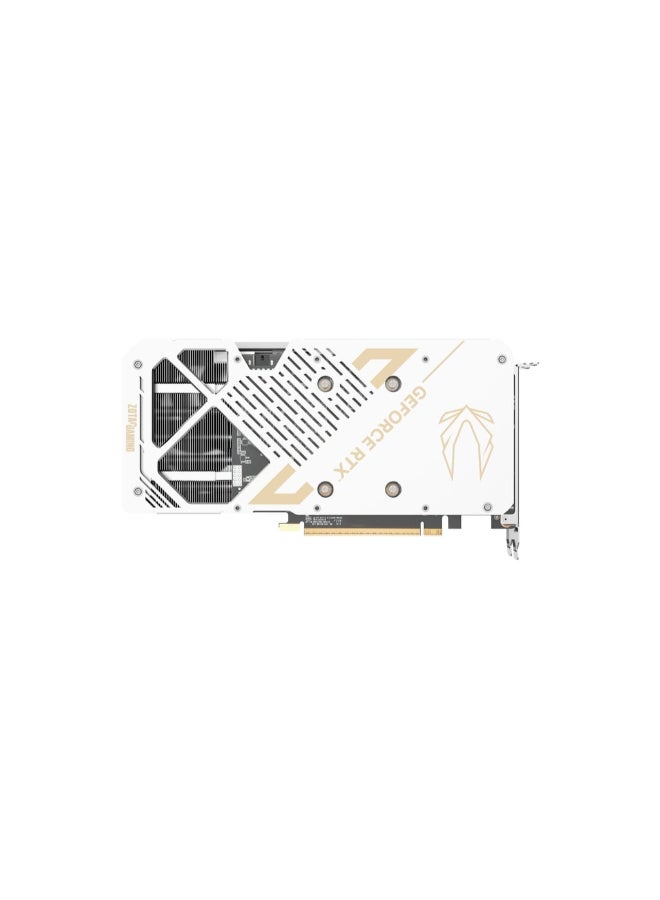

Bring your setup together with a white finish and subtle gold accents. NVIDIA Blackwell graphics and 12GB of GDDR7 memory support modern gaming, creative applications and compatible AI tools.
12GB GDDR7
Dedicated graphics memory
2542MHz
Factory boost clock
241.5mm
Compact card length
2 Slots
Slim expansion profile
NVIDIA BLACKWELL
More detail. Smoother gameplay.
Ray tracing brings more realistic lighting, shadows and reflections to supported games. NVIDIA DLSS uses AI to improve performance and image quality, while Multi Frame Generation adds generated frames for smoother motion in compatible titles.
For competitive play, NVIDIA Reflex helps reduce system latency in supported games, making your controls feel more responsive. Choose the resolution and graphics settings that suit your game and monitor.
ICESTORM 2.0
Cooling for play and everyday use.

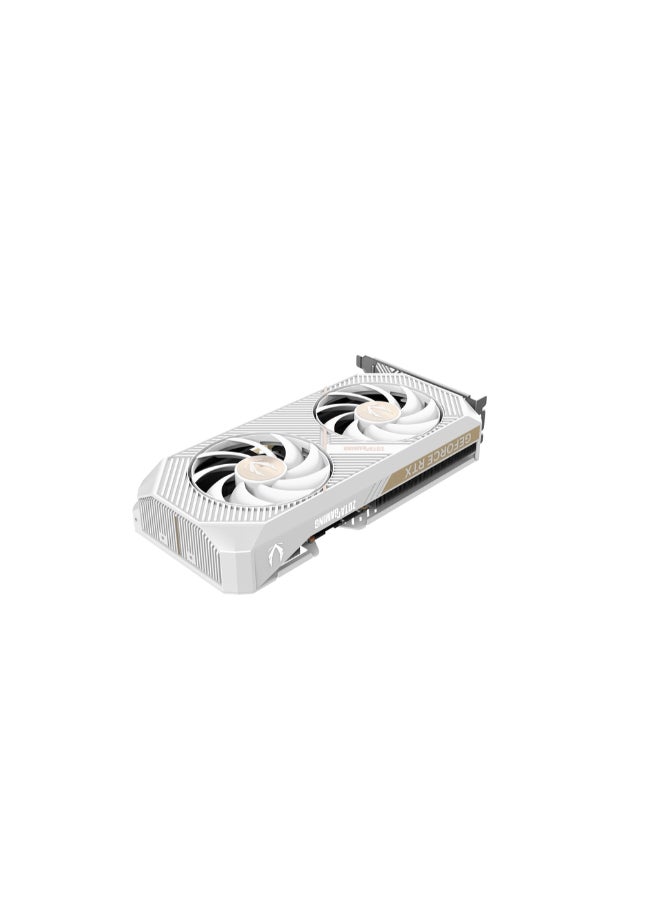

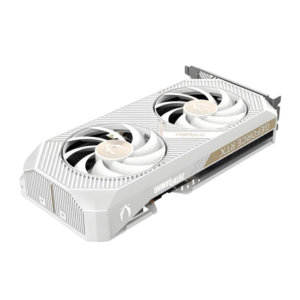

IceStorm 2.0 combines two 90mm BladeLink fans with the card's heatsink to manage heat during demanding workloads.
FREEZE fan stop allows the fans to pause when cooling conditions permit, helping reduce fan noise during lighter use.
CREATE & STREAM
Keep creating after the game ends.
NVIDIA Studio supports GPU acceleration in compatible video editing, 3D rendering and design applications. The ninth-generation NVIDIA encoder also supports AV1 encoding for recording and streaming workflows.
NVIDIA Broadcast adds useful voice and camera tools, including background noise removal and virtual backgrounds. Studio Drivers provide an option tailored to supported creative applications.
COMPACT BY DESIGN
Plan your build around a smaller card.
At 241.5mm long and two slots thick, the Twin Edge OC gives you more flexibility when choosing a case. It also carries NVIDIA's SFF-Ready Enthusiast GeForce designation.
Check your case's GPU clearance and leave room for the power cable when planning the installation.
CONNECT YOUR SETUP
Ready for your displays and desktop.

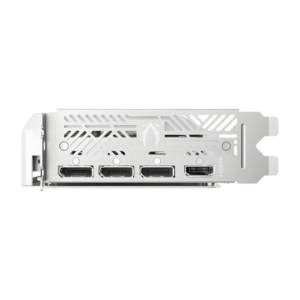

Three DisplayPort 2.1b outputs and one HDMI 2.1b output support up to four simultaneous displays. Connect your gaming monitor alongside screens for chat, editing or everyday work.
The card uses PCIe 5.0 x16 and a single 12V-2x6 power input. ZOTAC recommends a 650W power supply and lists maximum card power consumption at 250W. Overall power requirements depend on your complete system.
BEFORE YOU CHOOSE
A few useful answers.
Is this the factory-overclocked version?
Yes. This Twin Edge OC White Edition has a factory boost clock of 2542MHz.
Will it fit in my case?
Compare its 241.5 × 120.1 × 40.6mm dimensions with your case's clearance, including space for the power connector.
Does it include a power adapter?
Yes. ZOTAC lists a two-8-pin-to-16-pin power adapter among the included accessories.
Does it support DLSS and ray tracing?
Yes. It supports ray tracing and NVIDIA DLSS, including Multi Frame Generation in compatible games.
Can I use it for video editing and streaming?
Yes. Compatible applications can use NVIDIA Studio acceleration, hardware video encoding and AV1 support.
EXPLORE THE SETUP
THE DETAILS
Technical specifications
General
ZOTAC GAMING
GeForce RTX 5070 Twin Edge OC White Edition
ZT-B50700Q-10P
8886307702388
810012086264
Graphics Processor
NVIDIA GeForce RTX 5070
NVIDIA Blackwell
6144
2542 MHz
PCI Express 5.0 x16
Memory
12 GB
GDDR7
192-bit
28 Gbps
Display Outputs
3 x DisplayPort 2.1b UHBR20; up to 4K 480Hz or 8K 165Hz with DSC
1 x HDMI 2.1b; up to 4K 480Hz HDR or 8K 120Hz HDR with DSC; Gaming VRR
2.3
4
Power
650 W
250 W
1 x 12V-2x6
12V-2x6 Safety Light
Cooling and Construction
IceStorm 2.0
2 x 90 mm BladeLink fans
FREEZE Fan Stop
Metal
SFF-Ready Enthusiast GeForce Card
Side retention mount for transport
Dimensions
241.5 x 120.1 x 40.6 mm
2 slots
424 x 207 x 99 mm
Features and Software
5th Generation
4th Generation
DLSS 4, Game Ready Drivers, Studio Drivers, NVIDIA Broadcast, NVIDIA G-SYNC
12 Ultimate
Vulkan RT API; Vulkan 1.4
4.6
ZOTAC GAMING FireStorm
Supported
Windows 11
In the Box
Graphics card; user manual; 2 x 8-pin to 16-pin power cable
