ASUS
ASUS TUF Gaming GT502 Mid Tower Case with 4 ARGB Fans, White
ASUS TUF Gaming GT502 Horizon ARGB White combines pillar-Free Panoramic Glass with Four ARGB Fans. Front and left tinted tempered-glass panels provide an unobstructed panoramic view of the Horizon ARGB main chamber.
Overview
ASUS TUF GAMING GT502 HORIZON ARGB WHITE
ASUS TUF Gaming GT502 Horizon ARGB White
ASUS TUF Gaming GT502 Horizon ARGB White combines pillar-Free Panoramic Glass with Four ARGB Fans. Front and left tinted tempered-glass panels provide an unobstructed panoramic view of the Horizon ARGB main chamber. Available from AX Store in Kuwait.
4 ARGB fans
Included side and rear
400 mm
GPU length clearance
163 mm
CPU-cooler clearance
20 Gbps
Front USB-C interface

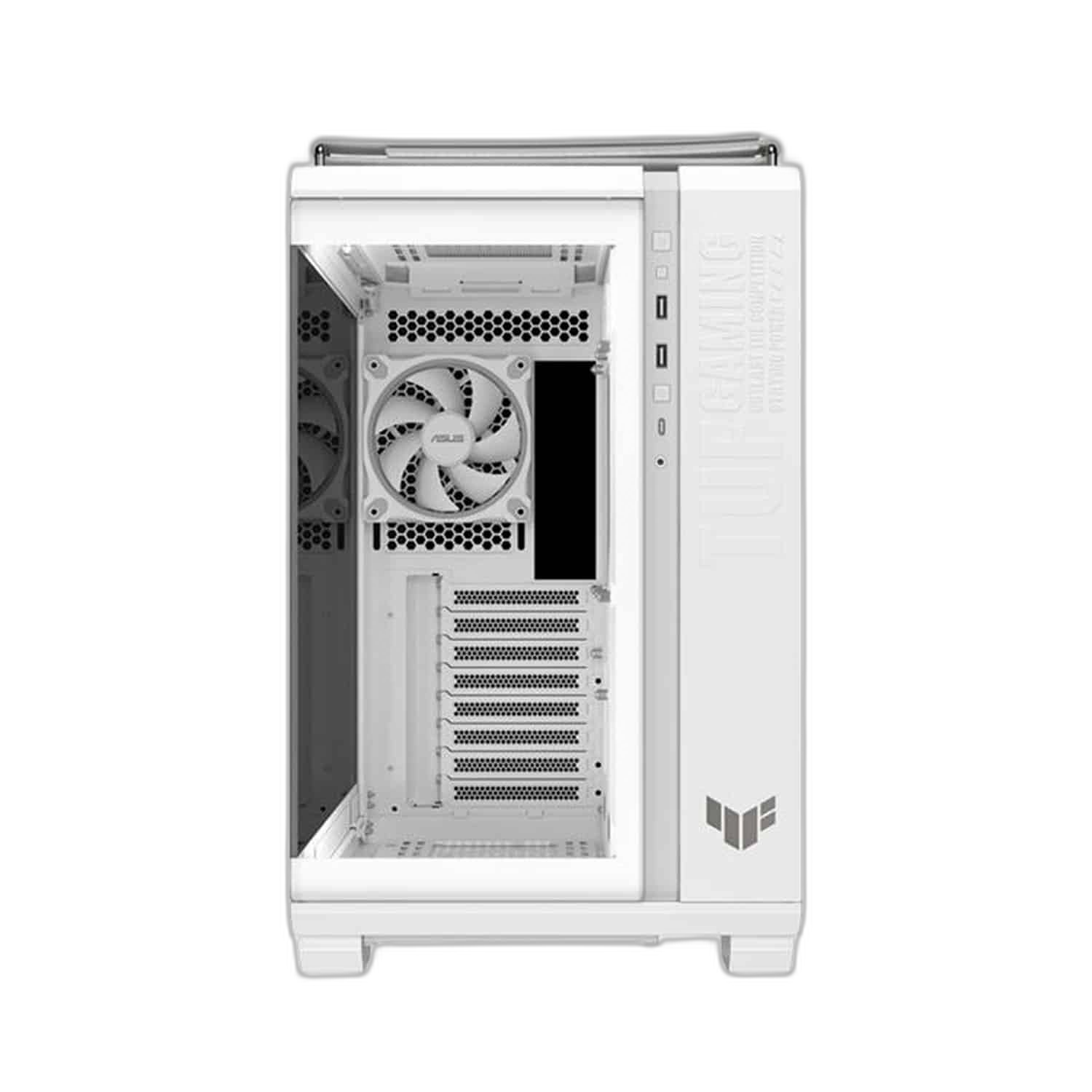

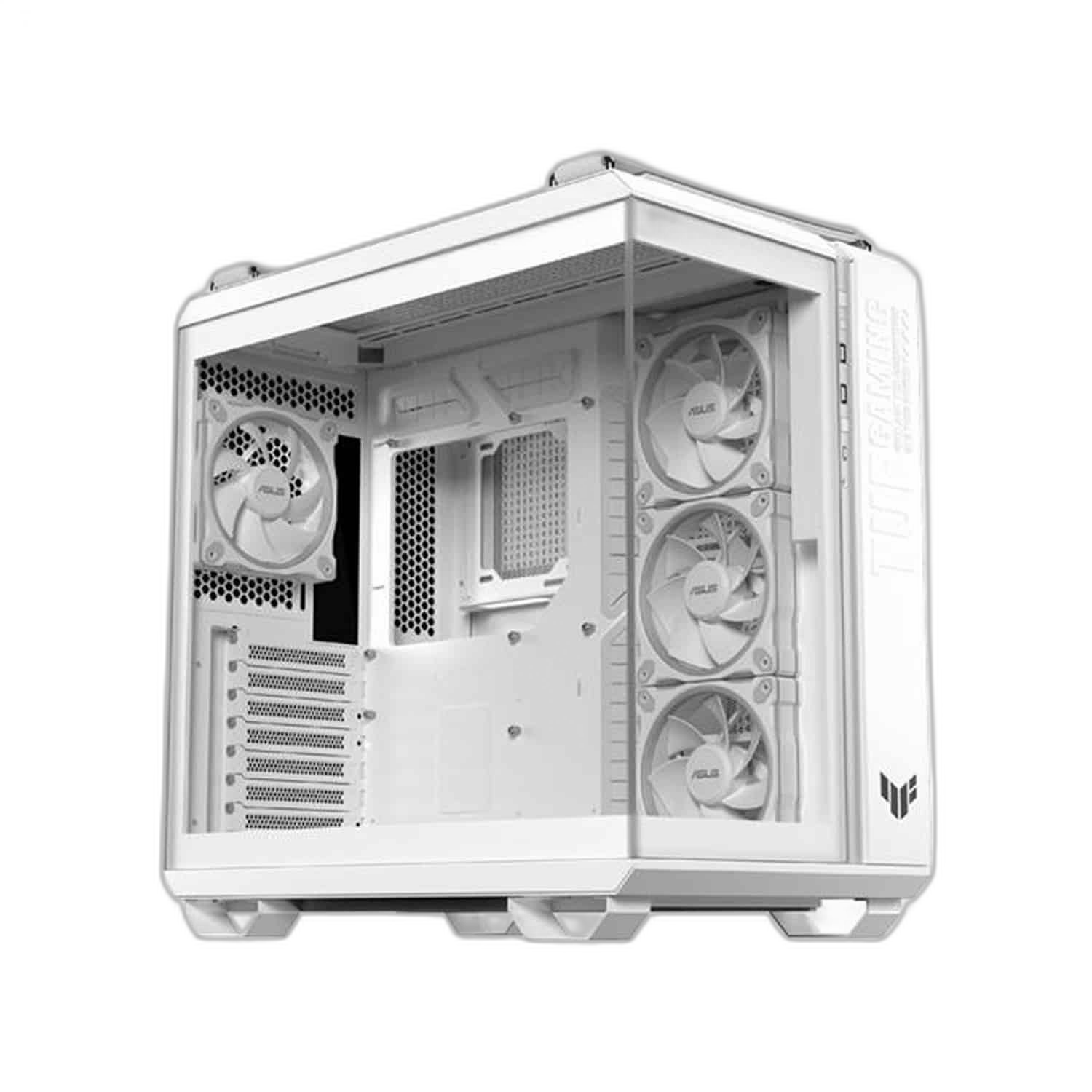

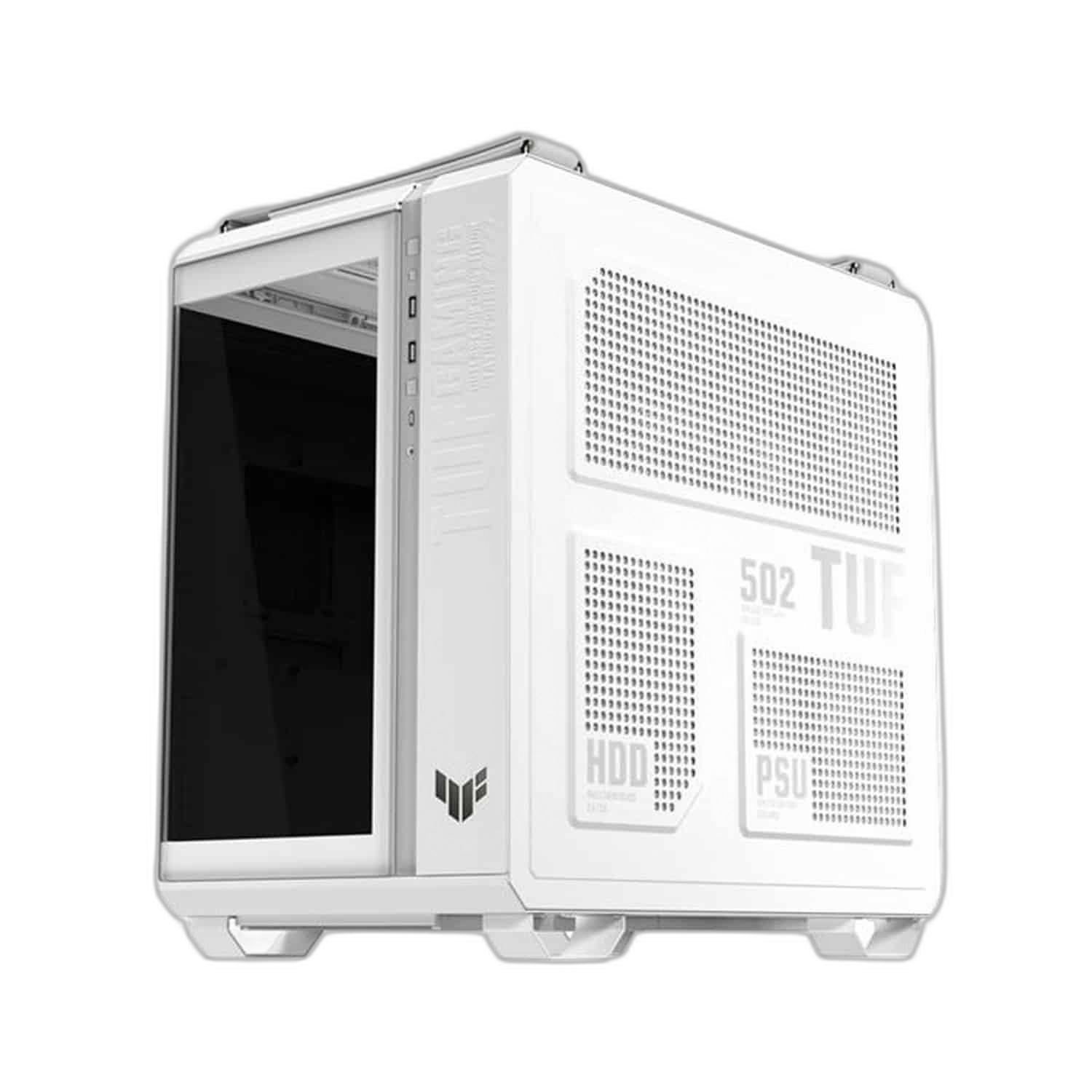

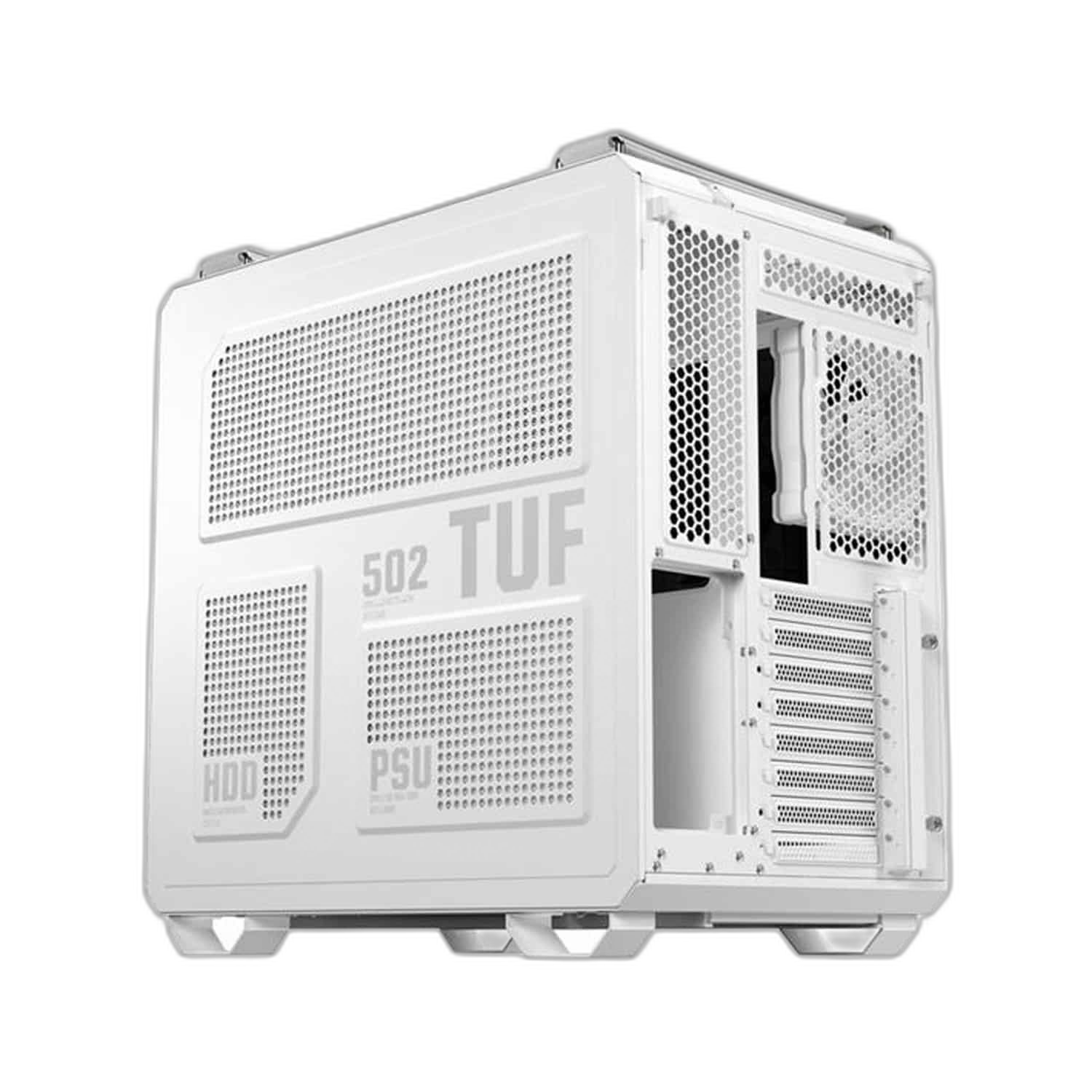

The Chassis Design
Front and left tinted tempered-glass panels provide an unobstructed panoramic view of the Horizon ARGB main chamber. The dual-chamber White chassis measures 285 × 450 × 446 mm and weighs 11.9 kg, separating the hardware display from its rear power and routing area. Consider its complete exterior dimensions alongside the available desk or floor space, leaving access for the rear cables and the panels used during assembly.

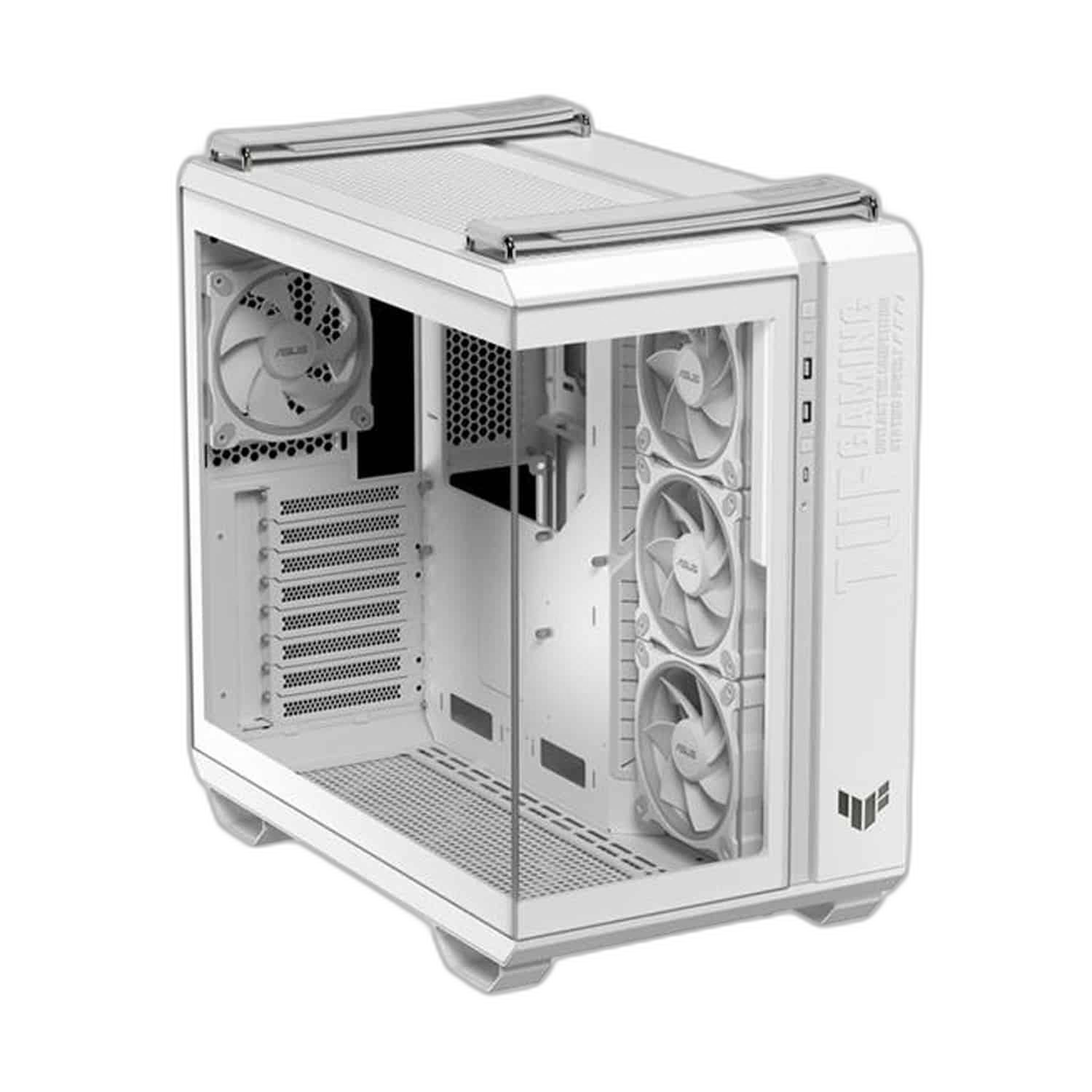

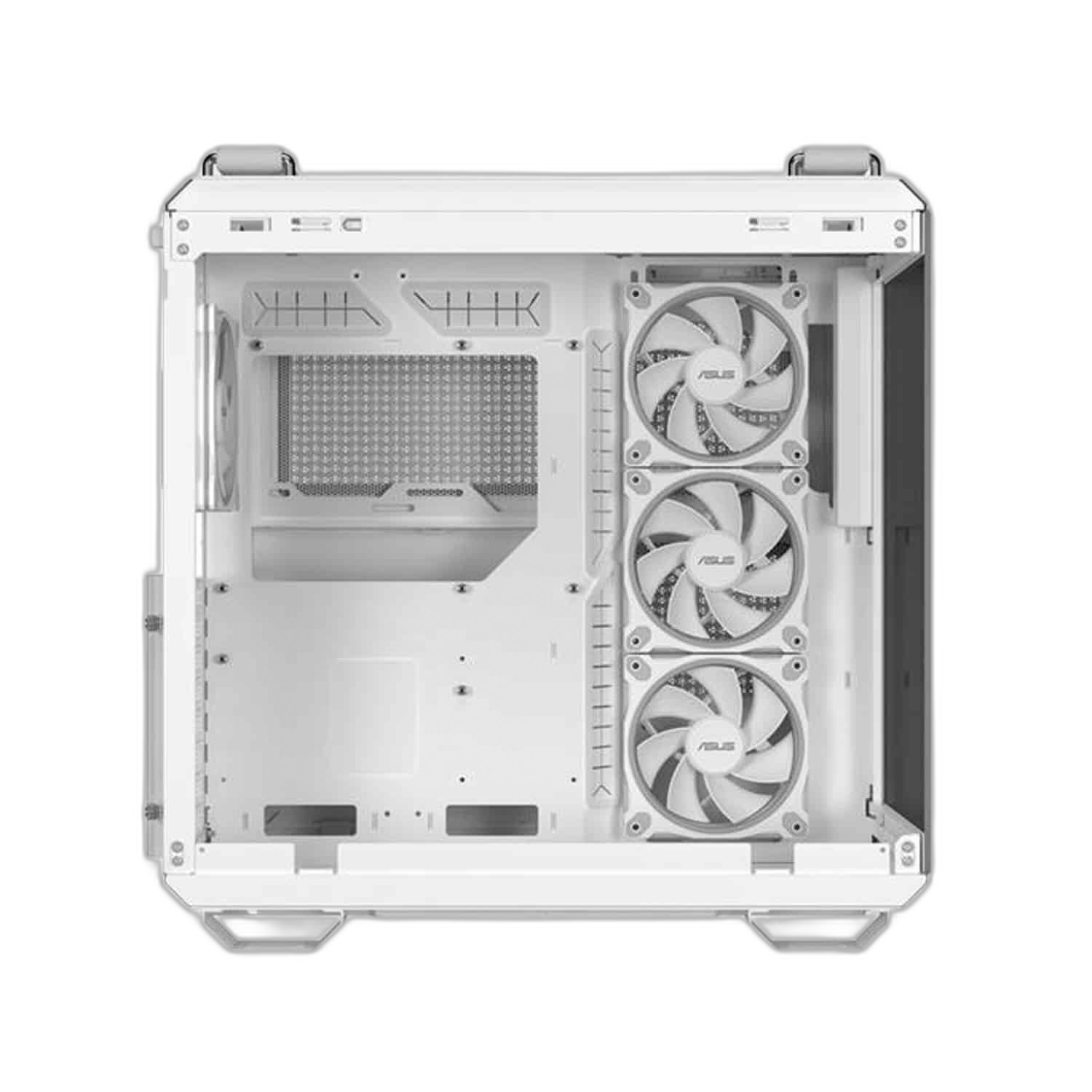

Included Cooling and Lighting
Three 120 mm ARGB fans are installed at the side and one 120 mm ARGB fan at the rear. These four preinstalled fans belong to the exact Horizon ARGB White package, with compatible lighting controlled through the supported case and motherboard arrangement. Connect fan power and any separate lighting leads to their specified interfaces. Choose additional cooling around the installed components and the positions that remain available.

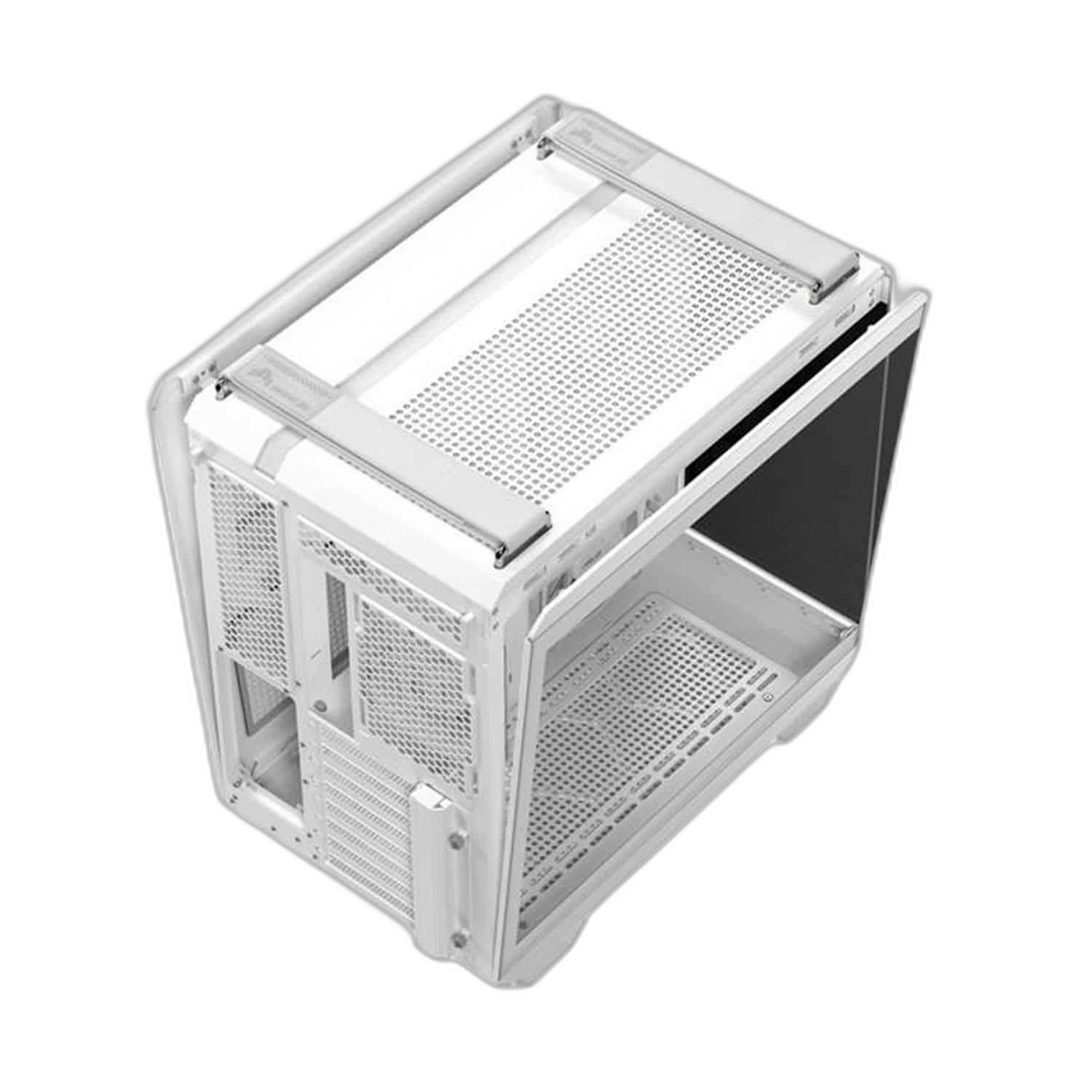

Radiator and Fan Positions
The upper radiator position supports 120, 140, 240, 280 or 360 mm sizes, with a 120 mm rear option. The top accepts three 120 mm or two 140 mm fans; the modular chassis provides additional mounting arrangements described in its installation guide. Plan one compatible assembly for each mounting position, accounting for the full fan-and-radiator thickness around memory, motherboard connections and adjacent cooling hardware.
Motherboard and Component Fit
ATX, Micro-ATX and Mini-ITX motherboards are supported. Maximum GPU length is 400 mm, CPU-cooler height is 163 mm and PSU length is 200 mm. Eight standard slots and three additional vertical positions provide different graphics-mounting choices. Compare complete component dimensions, including protruding plugs and graphics power cables, before securing the final mounting positions. The listed clearances describe individual limits rather than every possible combined installation.
Storage, Access and Routing
Four combined 2.5/3.5-inch drive positions provide the storage arrangement, with removable mounting parts for the selected hardware layout. Upper, lower and right-side dust filters support cleaning around the ventilation paths without turning the main glass display into an intake panel. Position the selected drives together with the power and data leads, keeping the cooling paths clear. Leave enough slack at the connectors to remove the relevant panels for maintenance.
Model
ASUS TUF Gaming GT502 Horizon ARGB White
Case size
Mid Tower
Motherboard support
ATX / Micro-ATX / Mini-ITX
Everyday Connections
Two USB-A 3.2 Gen 1 ports, a 20 Gbps USB-C 3.2 Gen 2x2 connection and a combined headset jack provide front I/O. The LED-control button serves the supported lighting arrangement, with the internal connections matched to compatible motherboard headers. Route the internal front-panel leads to the corresponding motherboard headers during assembly. USB performance and available lighting-control features depend on the connected host hardware and supported control arrangement.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as ASUS Hyperion GR701 Full Tower E-ATX Gaming Case or XIGMATEK Aquarius Plus Mid Tower Case, keeping the exact model and configuration in the decision. For the wider setup, explore MSI MAG MAX F20A-1 200mm ARGB Case Fan and check the connection, size or mounting requirements before pairing accessories. Browse the ASUS range at AX for more choices.
ASUS TUF Gaming GT502 Horizon ARGB White Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply, LIAN LI UNI FAN TL LCD RGB 120MM 3-Pack.
Frequently Asked Questions
Which motherboard formats fit ASUS TUF Gaming GT502 Horizon ARGB White?
ATX / Micro-ATX / Mini-ITX.
Which fans are included?
3 × 120 mm side ARGB; 1 × 120 mm rear ARGB.
What graphics-card length fits?
400 mm.
What CPU-cooler height fits?
163 mm.
Which radiator positions are available?
Top: 120 / 140 / 240 / 280 / 360 mm; rear: 120 mm.
Which front connections are available?
2 × USB-A 3.2 Gen 1; USB-C 3.2 Gen 2x2 20 Gbps; combined audio; LED button.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Case Hardware
ASUS TUF Gaming GT502 Horizon ARGB White
Mid Tower
ATX / Micro-ATX / Mini-ITX
90DC0093-B19010; Horizon ARGB White
285 × 450 × 446 mm; manufacturer-listed dimensions
11.9 kg
Front and left; panoramic unobstructed display
3 × 120 mm side ARGB; 1 × 120 mm rear ARGB
400 mm
163 mm
200 mm
Top: 120 / 140 / 240 / 280 / 360 mm; rear: 120 mm
3 × 120 mm or 2 × 140 mm
4 × combined 2.5/3.5-inch
8 standard plus 3 additional vertical
Top; bottom; right side
2 × USB-A 3.2 Gen 1; USB-C 3.2 Gen 2x2 20 Gbps; combined audio; LED button
