Cooler Master
Cooler Master MasterBox TD500 Mesh V2 ARGB ATX Mid Tower Case - Black
Cooler Master MasterBox TD500 Mesh V2 Black combines a geometric mesh front with crystalline-style tempered glass and three supplied CF120 ARGB fans. Removable top access, USB-C and radiator positions at front and top support an accessible ATX hardware layout.
Regular price
33.500 KWD
or 4 payments of 8.375 KWD with
Pay with card & save
32.000 KWD
Save 1.500 KWD
Overview
COOLER MASTER MASTERBOX TD500 MESH V2 BLACK
Polygonal Mesh Styling with Three CF120 ARGB Fans
Cooler Master MasterBox TD500 Mesh V2 Black combines a geometric mesh front with crystalline-style tempered glass and three supplied CF120 ARGB fans. Removable top access, USB-C and radiator positions at front and top support an accessible ATX hardware layout.
3 CF120 ARGB
Supplied intake fans
410 mm
GPU length clearance
360 mm
Front / top radiator option
USB-C
Front connection
The Case Design

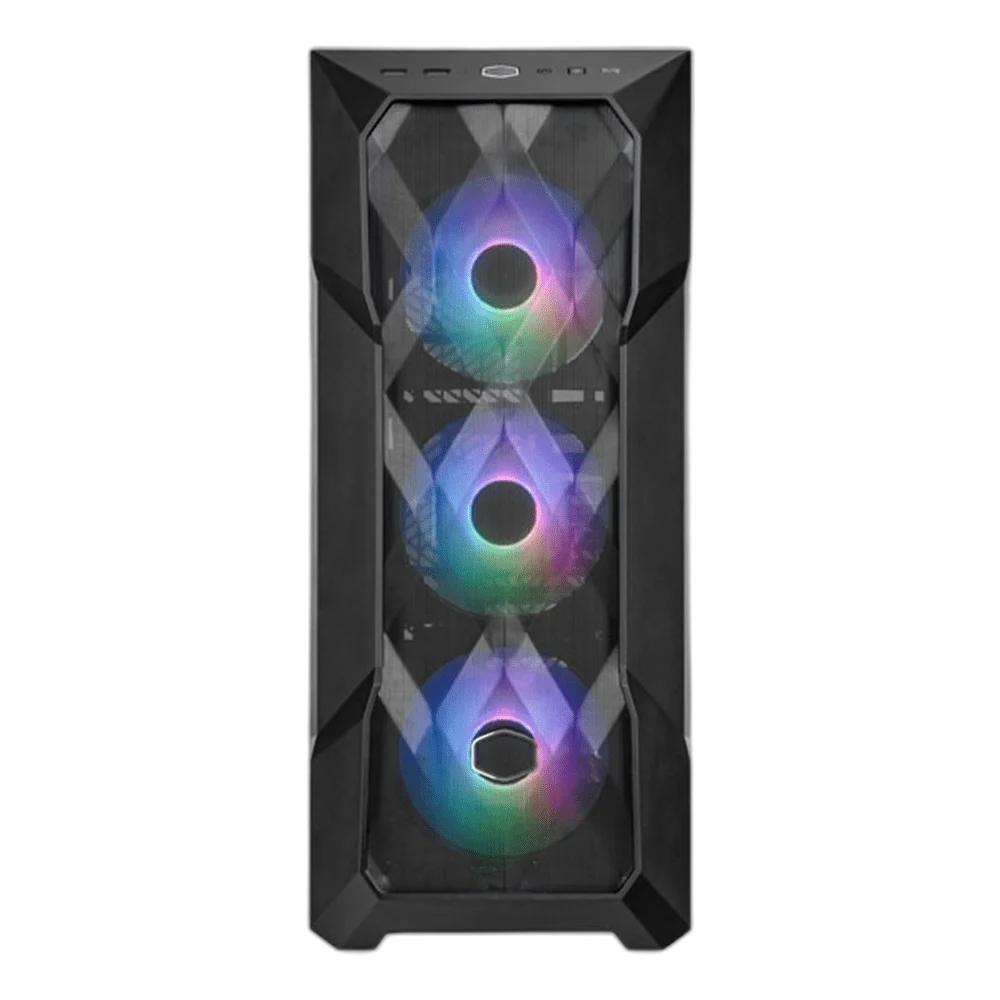

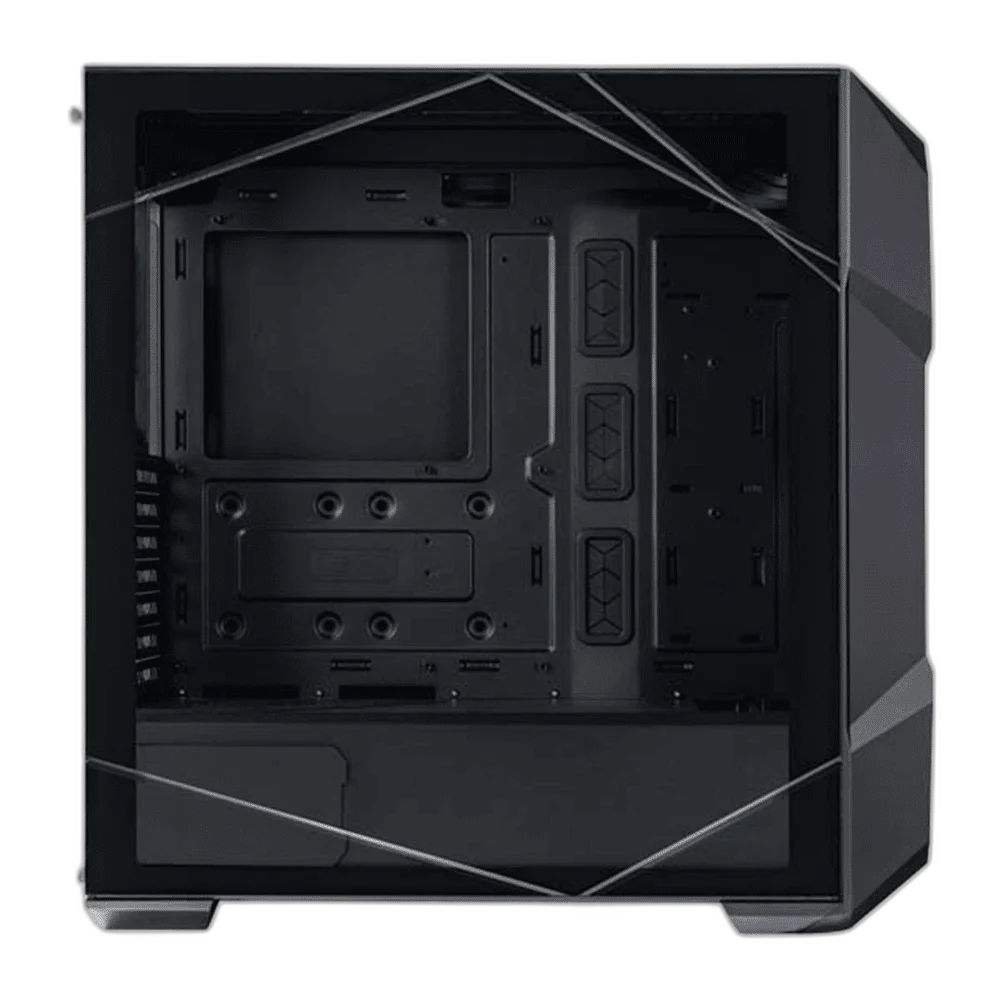

A polygonal mesh front provides ventilation around the illuminated intake fans, with a shaped tempered-glass side panel displaying the main hardware. The V2 frame measures 499 L × 210 W × 500 H mm including protrusions. Choose the listed finish around the visible hardware and leave access for panel removal.
Supplied Cooling and Lighting
Three 120 mm CF120 ARGB fans are supplied at the front, with an ARGB fan hub for the supported connection arrangement. Rear and top fans can be selected separately around the intended airflow path. Match the fan power and lighting leads to their designated connectors before securing the cable runs.
Radiator and Fan Mounting
The front and top each support radiators up to 360 mm, with a 120 mm rear radiator position. The manufacturer recommends a maximum 55 mm radiator thickness for the top installation. Compare the full radiator-and-fan assembly with motherboard heatsinks, memory and power connections when choosing the upper cooling hardware.
Component Clearance
GPU length clearance is 410 mm and CPU-cooler height clearance is 165 mm. E-ATX boards up to 12 × 10.7 inches are supported, with larger boards affecting cable-management features. PSU clearance reaches 200 mm, while a length up to 170 mm is recommended to preserve practical cable space.
Access, Storage and Routing
Two 3.5-inch and three 2.5-inch drive positions provide the storage layout. The removable top panel increases access around the motherboard and upper cooling assembly, while nineteen millimetres of rear routing space serves the power and signal leads. Choose drive and cable positions before closing the rear panel.
Manufacturer model
TD500V2-KGNN-S00
Exterior dimensions
499 L × 210 W × 500 H mm, including protrusions
Included fans
3 × 120 mm CF120 ARGB front fans
Connections and Control
Two USB-A 3.2 Gen 1 ports, USB-C and an audio connection provide front I/O access. Filters at the front, top and bottom support cleaning around the intake paths. Follow the supplied hub and case instructions when connecting the front fans and selecting the supported lighting-control arrangement.
Complete Your Workspace
Explore PC Cases to compare suitable options and complete your setup.
Frequently Asked Questions
Which motherboard formats fit?
E-ATX / ATX / Micro-ATX / Mini-ITX.
Which fans are supplied?
3 × 120 mm CF120 ARGB front fans.
Which fan is supplied?
3 × 120 mm CF120 ARGB front fans.
What graphics-card length is supported?
410 mm.
What CPU-cooler height is supported?
165 mm.
Which radiator positions are supported?
Front / top: up to 360 mm; rear: 120 mm.
Which front connections are available?
2 × USB-A 3.2 Gen 1; USB-C; audio.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Case Hardware
Cooler Master MasterBox TD500 Mesh V2 Black
Mid Tower
E-ATX / ATX / Micro-ATX / Mini-ITX
TD500V2-KGNN-S00
499 L × 210 W × 500 H mm, including protrusions
3 × 120 mm CF120 ARGB front fans
410 mm
165 mm
Up to 200 mm; up to 170 mm recommended
12 × 10.7 inches; may affect cable routing
Front / top: up to 360 mm; rear: 120 mm
Up to 55 mm radiator thickness; check complete assembly clearance
2 × 3.5-inch; 3 × 2.5-inch
2 × USB-A 3.2 Gen 1; USB-C; audio
ARGB fan hub supplied
