Cougar MX340 Mid Tower Elegant Tempered Glass Case

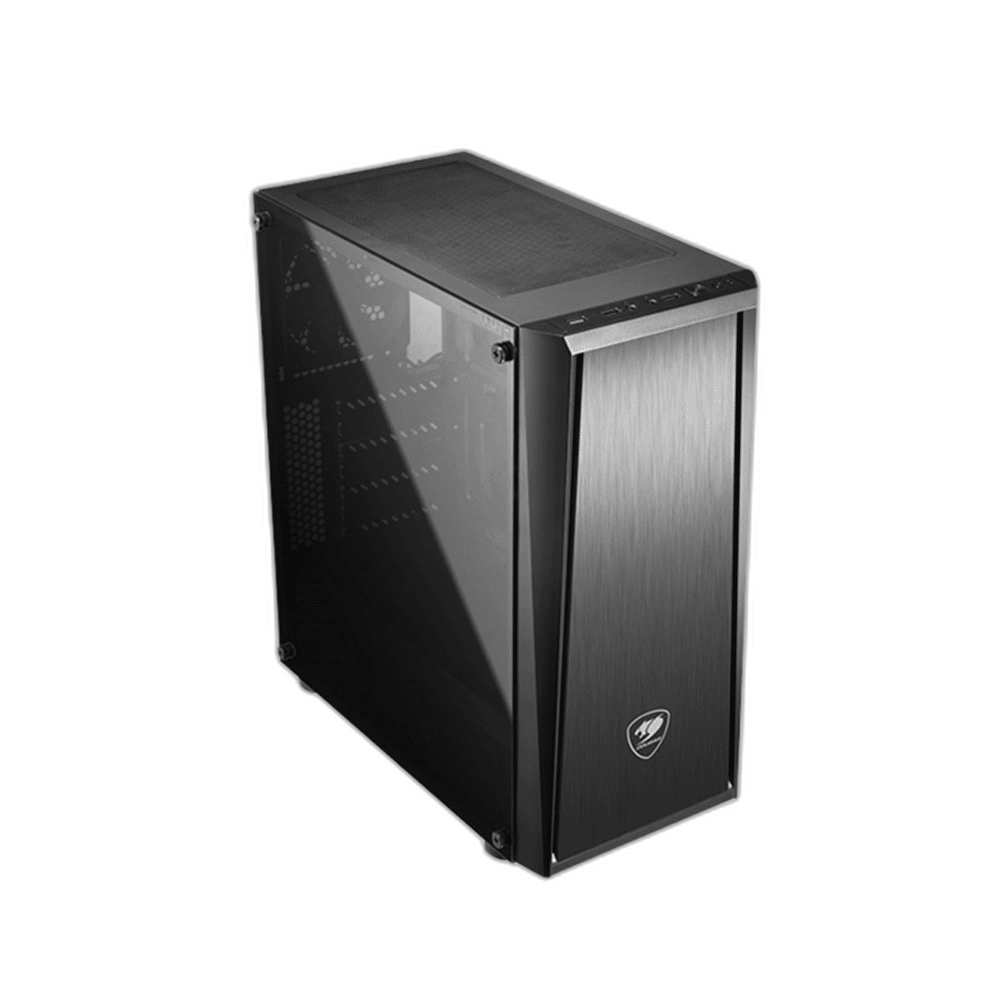

COUGAR MX340 combines a Tempered-Glass ATX Layout with Front 360 mm Radiator Support. The MX340 uses a tempered-glass side window to present an ATX system within a 208 W × 450 H × 405 D mm exterior.
Regular price
12.500 KWD
or 4 payments of 3.125 KWD with
Pay with card & save
12.000 KWD
Save 0.500 KWD
Overview
COUGAR MX340
A Tempered-Glass ATX Layout with Front 360 mm Radiator Support
COUGAR MX340 combines a Tempered-Glass ATX Layout with Front 360 mm Radiator Support. The MX340 uses a tempered-glass side window to present an ATX system within a 208 W × 450 H × 405 D mm exterior.
330 mm
GPU length clearance
360 mm
Front radiator option
160 mm
CPU-cooler clearance
1 × 120 mm
Included rear fan

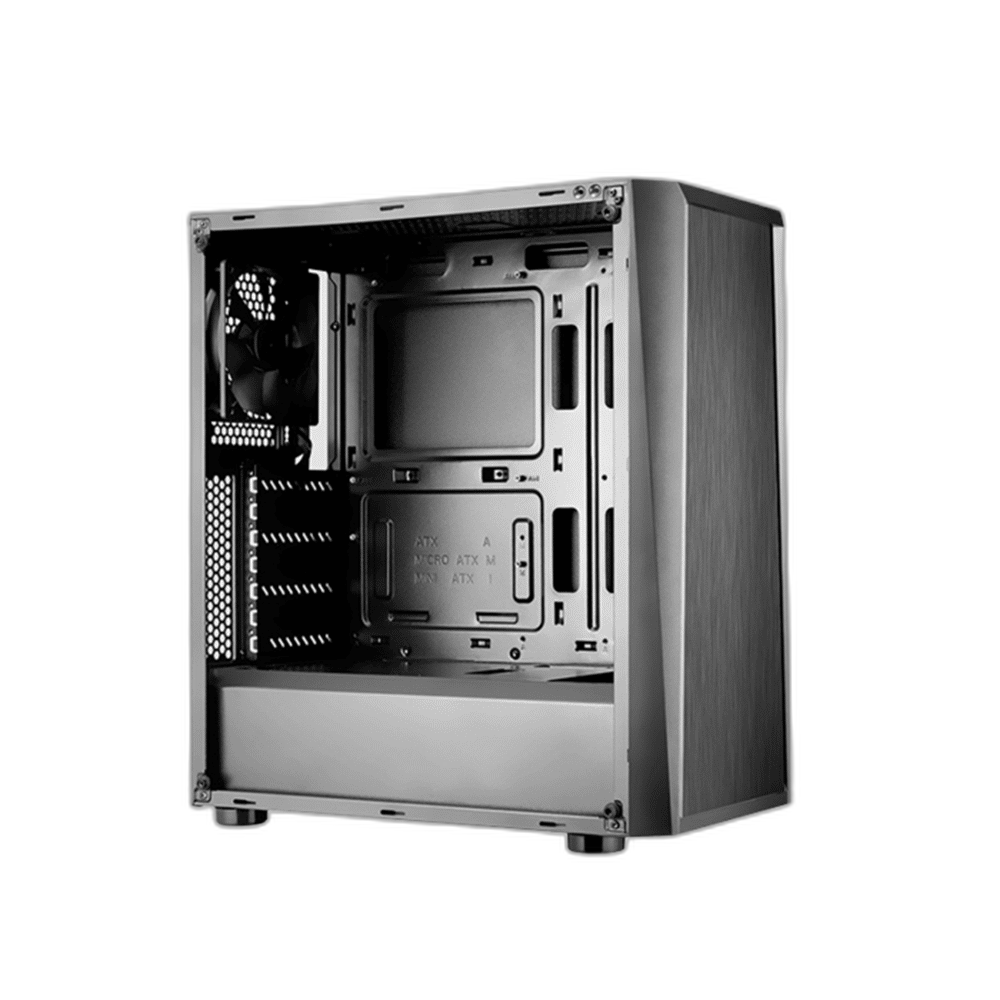

The Chassis Design
The MX340 uses a tempered-glass side window to present an ATX system within a 208 W × 450 H × 405 D mm exterior. Its seven-slot layout separates the main hardware arrangement from the lower power-supply and drive area. Consider its complete exterior dimensions alongside the available desk or floor space, leaving access for the rear cables and the panels used during assembly.
Included Cooling and Lighting
A single 120 mm fan is supplied at the rear. Front and top cooling are selected separately, allowing the final intake and exhaust layout to be built around the installed graphics card, processor and preferred cooling arrangement. Connect fan power and any separate lighting leads to their specified interfaces. Choose additional cooling around the installed components and the positions that remain available.
Radiator and Fan Positions
The front accepts three 120 mm fans and radiators of 120, 240 or 360 mm. The top accepts two 120 mm or two 140 mm fans, with a 120 mm rear radiator position also listed. Plan one compatible assembly for each mounting position, accounting for the full fan-and-radiator thickness around memory, motherboard connections and adjacent cooling hardware.

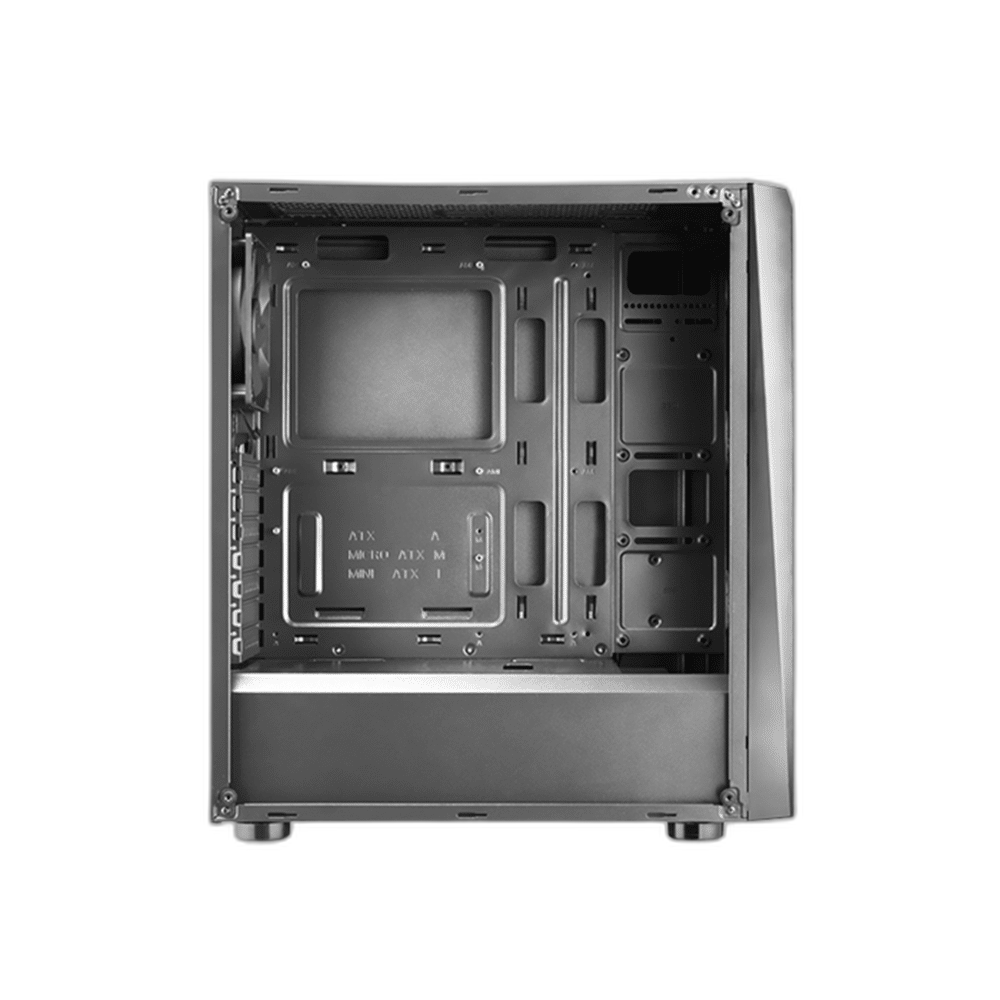

Motherboard and Component Fit
ATX, Micro-ATX and Mini-ITX boards are supported. Maximum GPU length is 330 mm, CPU-cooler height is 160 mm and power-supply length is 180 mm. Include any front cooling assembly when checking the graphics-card installation. Compare complete component dimensions, including protruding plugs and graphics power cables, before securing the final mounting positions. The listed clearances describe individual limits rather than every possible combined installation.

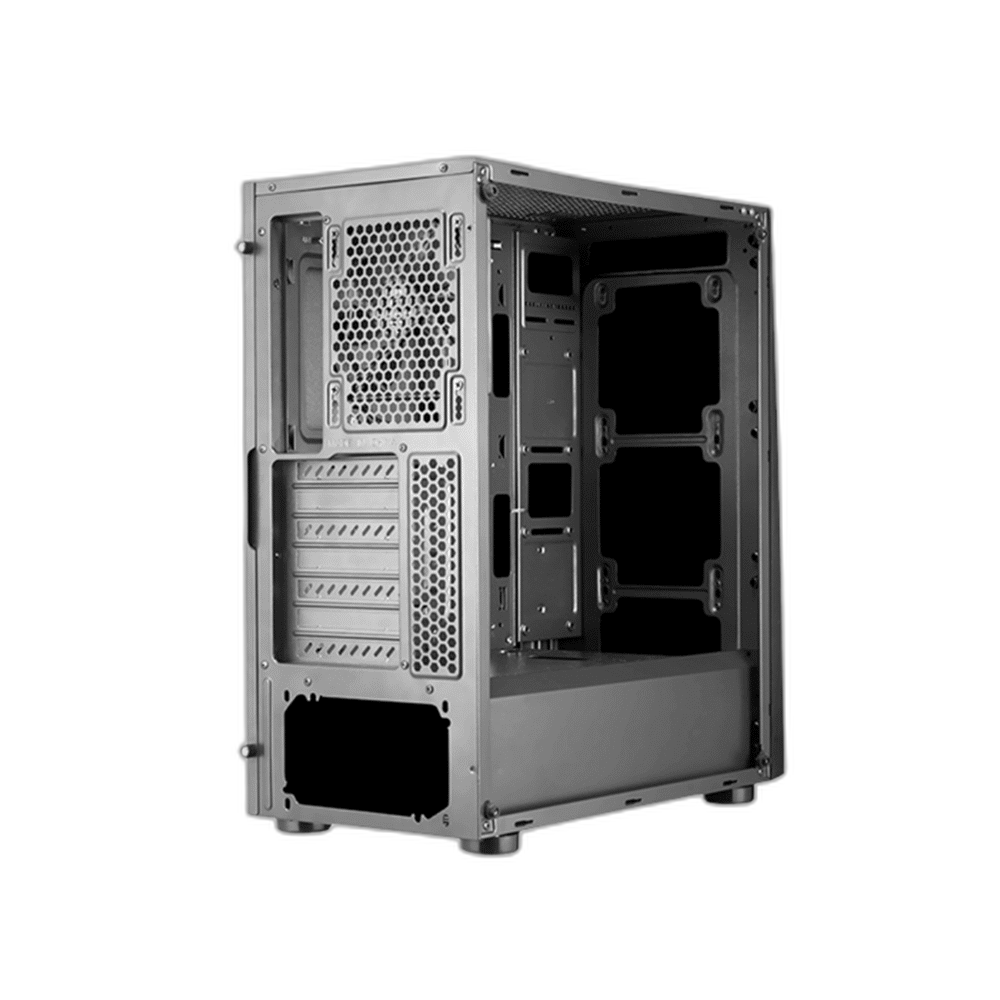

Storage, Access and Routing
Two 3.5-inch HDD positions and two dedicated 2.5-inch SSD positions provide the drive arrangement. The lower power-supply area and rear routing space keep storage and power cables organised away from the visible motherboard chamber. Position the selected drives together with the power and data leads, keeping the cooling paths clear. Leave enough slack at the connectors to remove the relevant panels for maintenance.
Model
COUGAR MX340
Case size
Mid Tower
Motherboard support
ATX / Micro-ATX / Mini-ITX

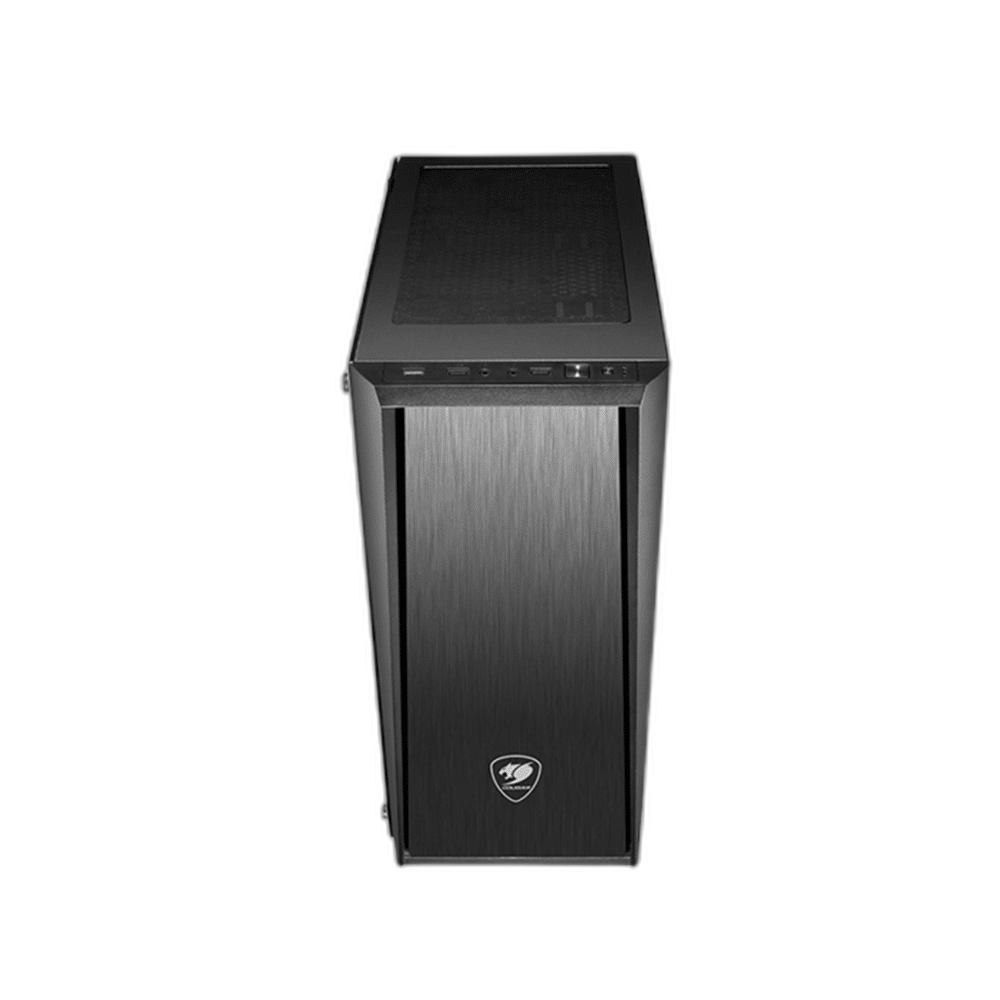

Everyday Connections
One USB-A 3.0 connection, two USB 2.0 ports and separate microphone and headphone connections provide front access. Fit the case’s internal I/O cables while the rear routing area is accessible, before the final panels are secured. Route the internal front-panel leads to the corresponding motherboard headers during assembly. USB performance and available lighting-control features depend on the connected host hardware and supported control arrangement.
Complete Your Workspace
Explore PC Cases to compare suitable options and complete your setup.
Frequently Asked Questions
Which motherboard formats fit COUGAR MX340?
ATX / Micro-ATX / Mini-ITX.
Which fans are included?
1 × 120 mm rear.
What graphics-card length fits?
330 mm.
What CPU-cooler height fits?
160 mm.
Which radiator positions are available?
Front: 120 / 240 / 360 mm; rear: 120 mm.
Which front connections are available?
USB-A 3.0; 2 × USB 2.0; microphone; headphone.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Case Hardware
COUGAR MX340
Mid Tower
ATX / Micro-ATX / Mini-ITX
CGR-5WMWB
208 W × 450 H × 405 D mm
7
1 × 120 mm rear
330 mm
160 mm
180 mm
Front: 120 / 240 / 360 mm; rear: 120 mm
Front: 3 × 120 mm; top: 2 × 120 or 140 mm; rear: 120 mm
2 × HDD; 2 × SSD
USB-A 3.0; 2 × USB 2.0; microphone; headphone
