Corsair Obsidian 500D Mid Tower Case
CORSAIR Obsidian 500D combines smoked tempered-glass side doors with aluminium exterior detailing. Removable cooling trays, cable covers and dedicated drive mounts organise the core hardware within the mid-tower frame.
Regular price
69.500 KWD
or 4 payments of 17.375 KWD with
Pay with card & save
66.000 KWD
Save 3.500 KWD
Overview
CORSAIR OBSIDIAN 500D
CORSAIR Obsidian 500D
CORSAIR Obsidian 500D combines smoked tempered-glass side doors with aluminium exterior detailing. Removable cooling trays, cable covers and dedicated drive mounts organise the core hardware within the mid-tower frame. Available from AX Store in Kuwait.
Hinged glass
Side doors
370 mm
GPU length clearance
170 mm
CPU-cooler clearance
360 mm
Front radiator option

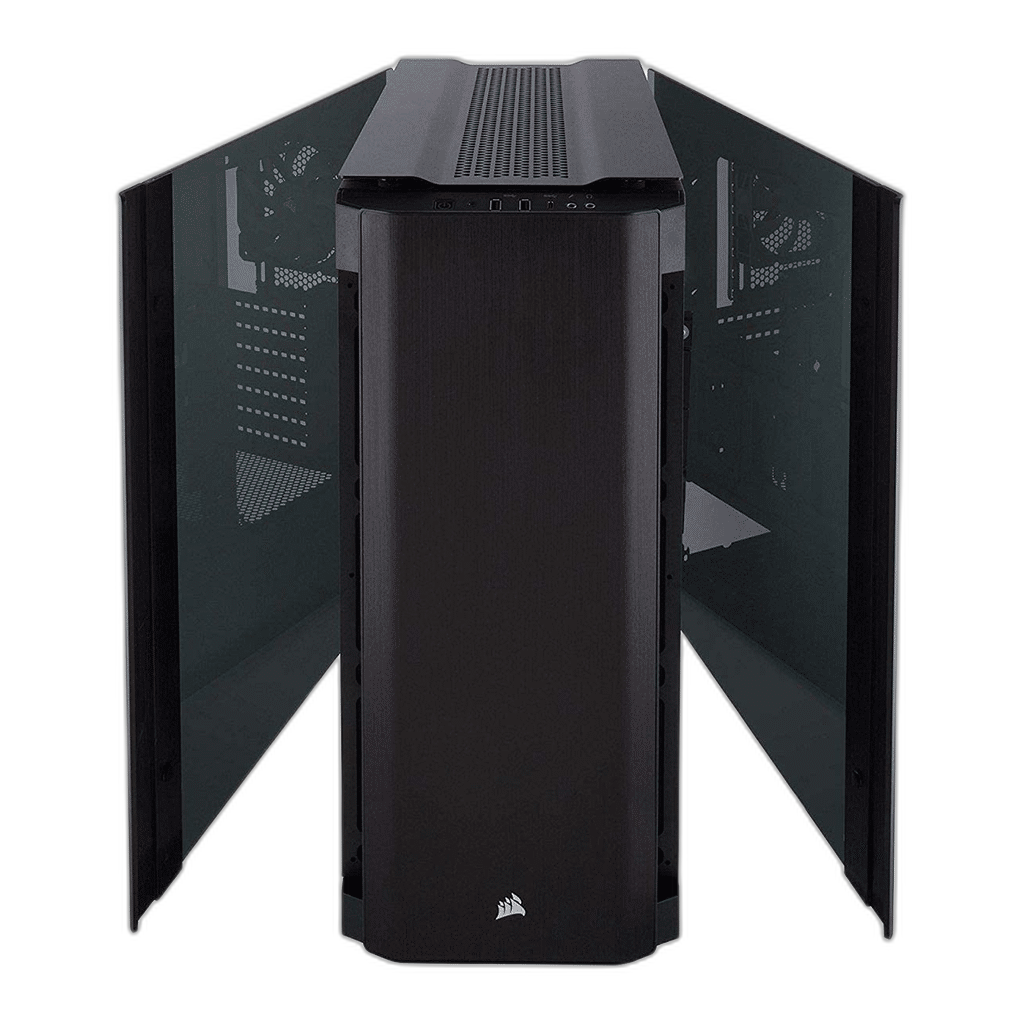

Smoked Glass Doors and Aluminium Details
Hinged smoked-glass side doors provide access to both sides of the hardware layout. The standard 500D uses aluminium front and roof panels with matching door handles. Secure the doors and leave space beside the case when planning the installation location.
Cooling Hardware for This Edition
The standard 500D uses removable front and top cooling trays for the selected fan arrangement. This version does not carry the RGB SE’s three-LL120 and Commander PRO package. Choose additional fans and their control connections to suit the complete airflow layout.

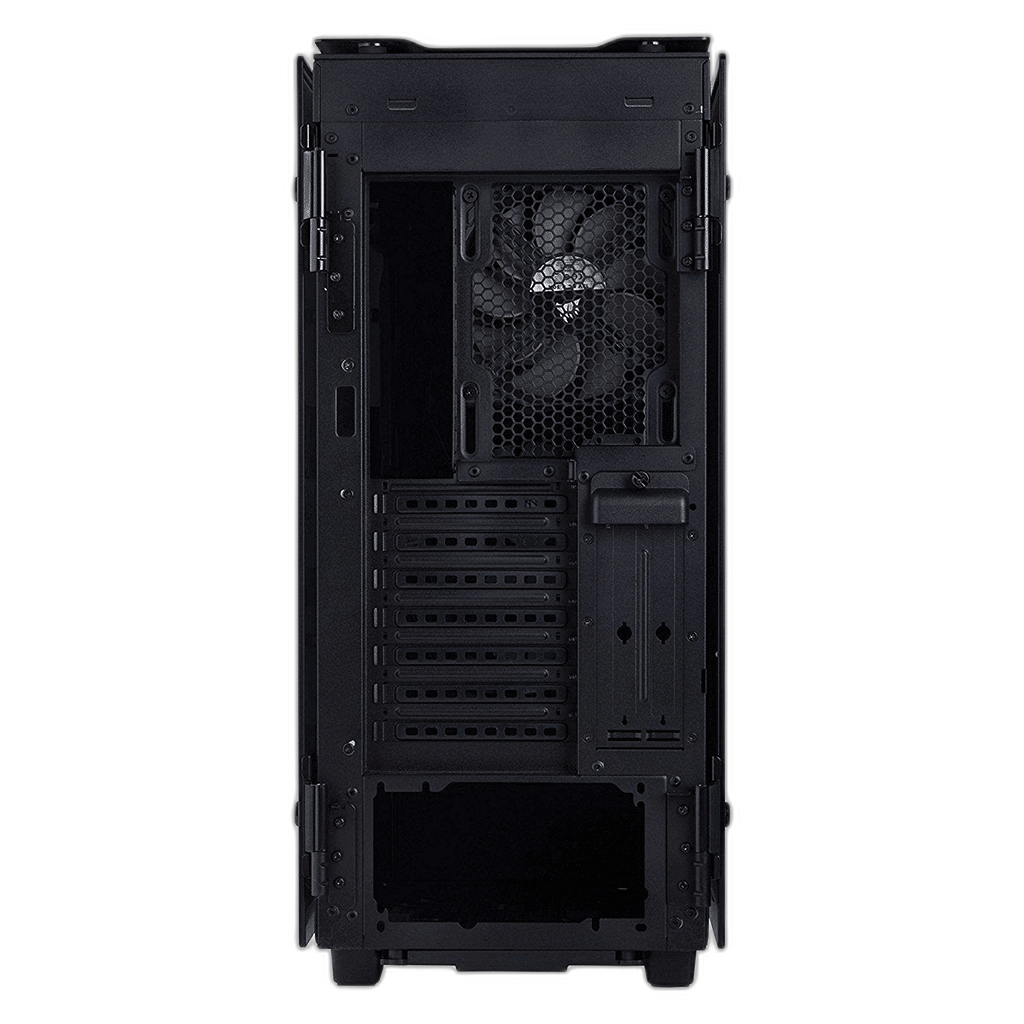

Removable Radiator and Fan Trays
The front accepts a 360 mm or 280 mm radiator, with 280 mm or 240 mm options at the top and a 120 mm position at the rear. Removable trays allow the cooling hardware to be assembled outside the main frame. Check radiator thickness, tube routing and adjacent motherboard components before securing the trays.
Clearance for ATX-Class Hardware
Supported motherboard formats are ATX, Micro-ATX and Mini-ITX. The original guide specifies 370 mm GPU length clearance, 170 mm CPU-cooler clearance and 225 mm PSU length clearance. Compare the complete components with these limits, leaving the required room for power plugs and nearby radiator or fan assemblies.

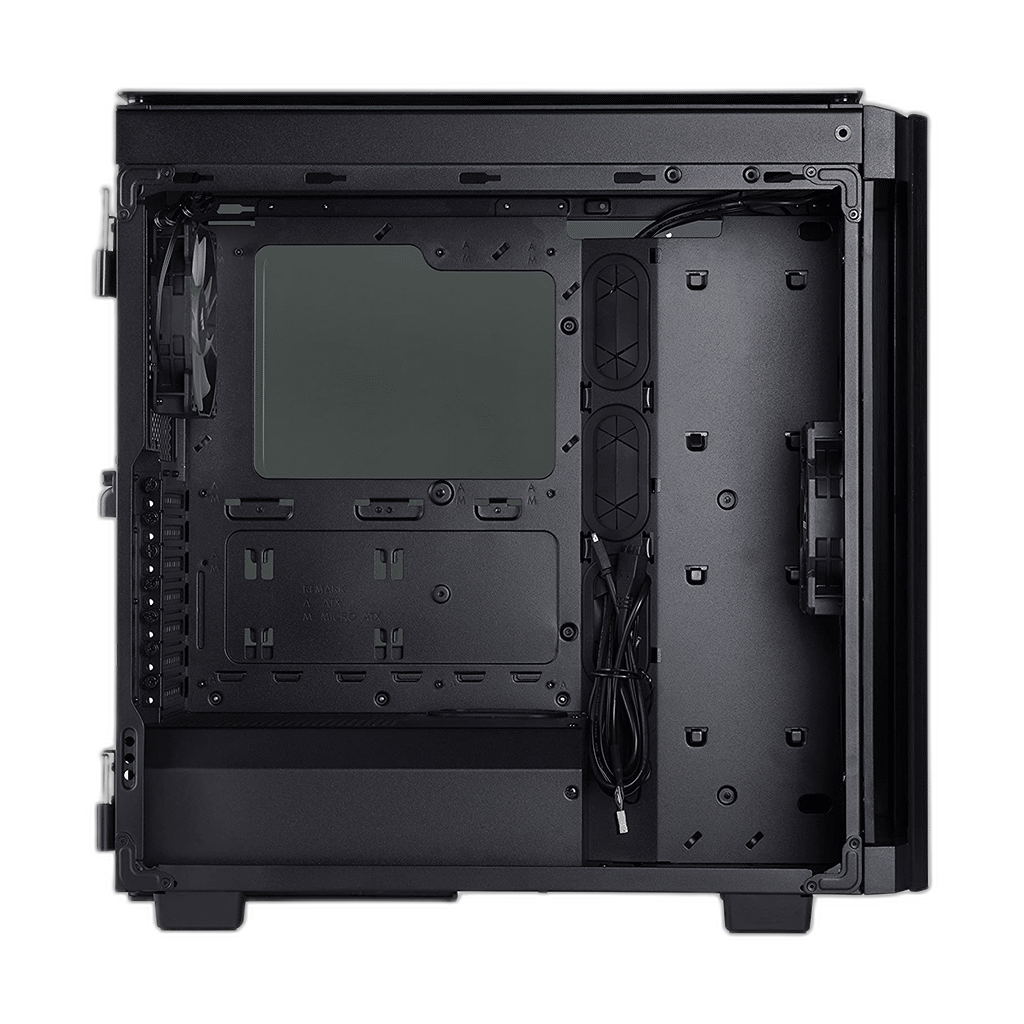

Dedicated Storage and Cable Covers
The case provides mounts for two 3.5-inch hard drives and three 2.5-inch SSDs. A PSU cover and rear cable cover help keep the visible hardware area organised. Route storage power and data leads alongside the selected drive positions, checking access to the removable trays and lower power-supply area.
Dimensions in original guide
500 L × 237 W × 507 H mm
Maximum GPU length
370 mm
Maximum CPU-cooler height
170 mm
Front USB-C and Removable Filtering
The front panel provides USB-C alongside the other peripheral and audio connections. Removable dust filters provide access for cleaning the intake paths. Follow the original installation guide when connecting front-panel leads and removing cooling trays, keeping the case’s ventilation and panel-opening areas accessible after the build is complete.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as XIGMATEK Aquarius Plus Mid Tower Case or LIAN LI O11 Dynamic XL Full Tower Case, USB 3.0, keeping the exact model and configuration in the decision. For the wider setup, explore Corsair iCUE ML120 RGB ELITE 120mm Fan, Triple Pack and check the connection, size or mounting requirements before pairing accessories. Browse the Corsair range at AX for more choices.
CORSAIR Obsidian 500D Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply, Corsair iCUE SP120 RGB ELITE Performance 120mm Triple Fan Pack.
Frequently Asked Questions
Which motherboard formats fit?
ATX / Micro-ATX / Mini-ITX.
What graphics-card length is supported?
370 mm.
What CPU-cooler height is supported?
170 mm.
Which front radiator sizes fit?
360 / 280 mm.
Which top radiator sizes fit?
280 / 240 mm.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Case Hardware
CORSAIR Obsidian 500D
Mid Tower
ATX / Micro-ATX / Mini-ITX
500 L × 237 W × 507 H mm
370 mm
170 mm
225 mm
360 / 280 mm
280 / 240 mm
120 mm
2 × 3.5-inch HDD; 3 × 2.5-inch SSD
Hinged smoked tempered-glass doors
Aluminium
Standard 500D; RGB SE package not supplied
