NZXT H7 Elite Premium ATX Mid Tower Case - White with 4 RGB Fans
NZXT H7 Elite White (2023) combines a tempered-glass front with four supplied fans and radiator mounting positions at the front and roof. The case supports E-ATX boards up to 272 mm wide, with cable-routing channels behind the motherboard.
Regular price
47.500 KWD
or 4 payments of 11.875 KWD with
Pay with card & save
45.000 KWD
Save 2.500 KWD
Overview
NZXT H7 ELITE WHITE (2023)
NZXT H7 Elite White (2023)
NZXT H7 Elite White (2023) combines a tempered-glass front with four supplied fans and radiator mounting positions at the front and roof. The case supports E-ATX boards up to 272 mm wide, with cable-routing channels behind the motherboard. Available from AX Store in Kuwait.
3 × 140 mm
Front RGB fans
400 mm
GPU length clearance
185 mm
CPU-cooler clearance
360 mm
Top / front radiator option
The 2023 H7 Front Design
This version uses a glass front with side ventilation to display its three RGB intake fans. The steel and tempered-glass body measures 505 H × 230 W × 480 D mm. Choose the listed finish and case orientation around the desk, leaving the ventilation paths clear.
Four Fans with the Correct Rear Size
The supplied arrangement is three 140 mm F140 RGB Core front fans and one 140 mm F140Q rear case fan. The Elite’s rear fan is 140 mm and provides the non-RGB exhaust position. Fan speed and lighting use their specified separate connections, so plan power and signal routing before closing the panels.

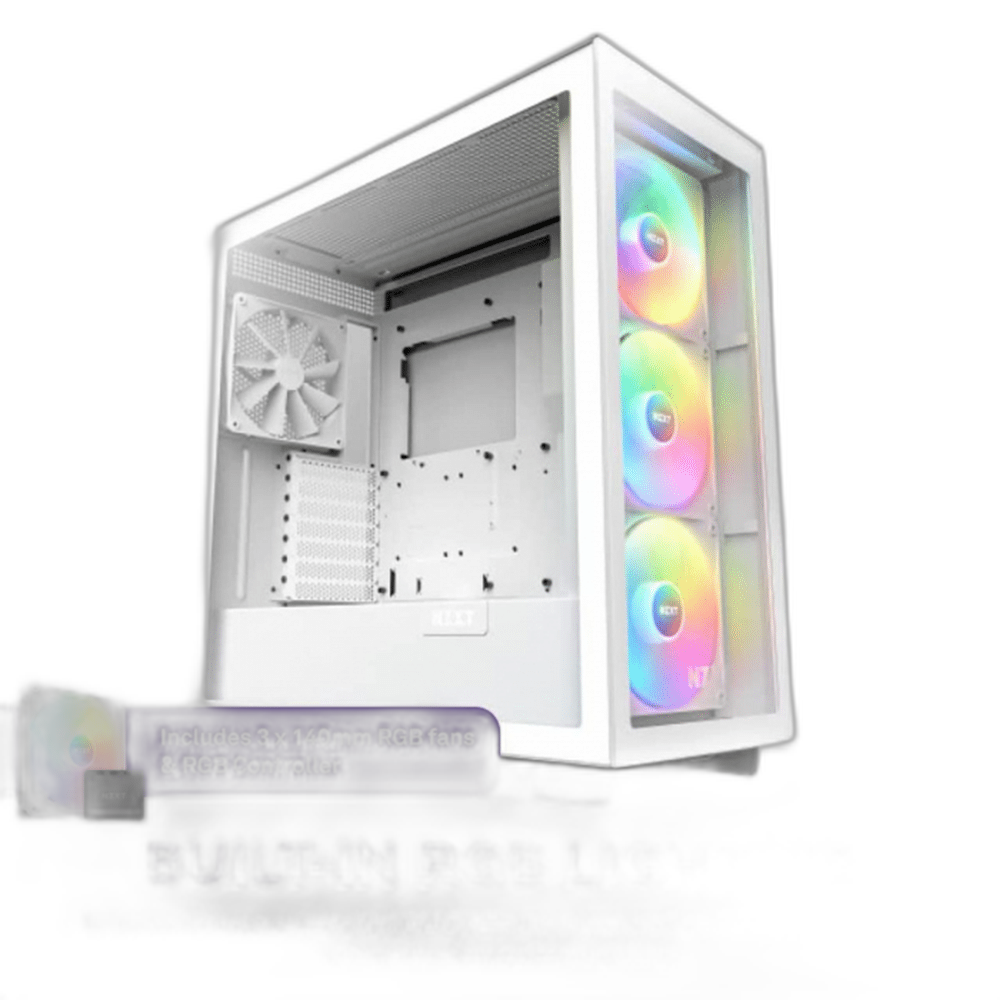

Lighting Control for This Edition
The Elite includes an NZXT RGB Controller for lighting through CAM. This is the RGB controller, so fan-speed connections use the appropriate motherboard or fan-control arrangement. Match the included fans with their intended connectors and maintain the required controller or header power arrangement. Additional RGB devices should be checked against the connection type and supported electrical load before being added to the system.
Front and Top Radiator Mounts
Both the front and top support a 360 mm radiator, with additional smaller supported formats. The top allows a radiator up to 30 mm thick with a suitable fan assembly, while front clearance depends on the radiator and fan combination. Compare the full cooling layout with memory, motherboard heatsinks and graphics hardware.

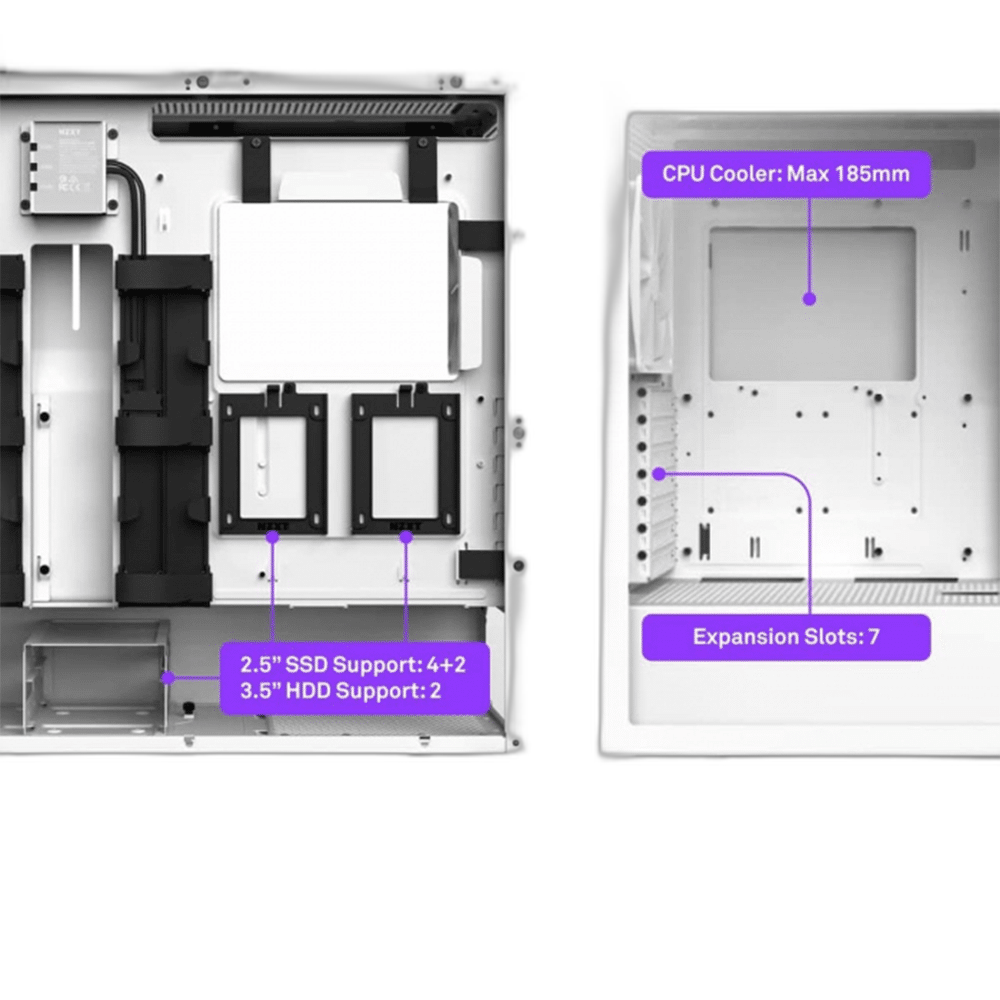

Space for the Core Components
The case supports E-ATX boards up to 272 mm wide, ATX, Micro-ATX and Mini-ITX. Maximum GPU length is 400 mm and CPU-cooler height clearance reaches 185 mm. These dimensions should be checked alongside the selected cooling assemblies and the graphics power connector’s required clearance toward the side panel.
Dimensions
505 H × 230 W × 480 D mm
Included fans
three 140 mm F140 RGB Core front fans and one 140 mm F140Q rear case fan
Maximum E-ATX width
272 mm

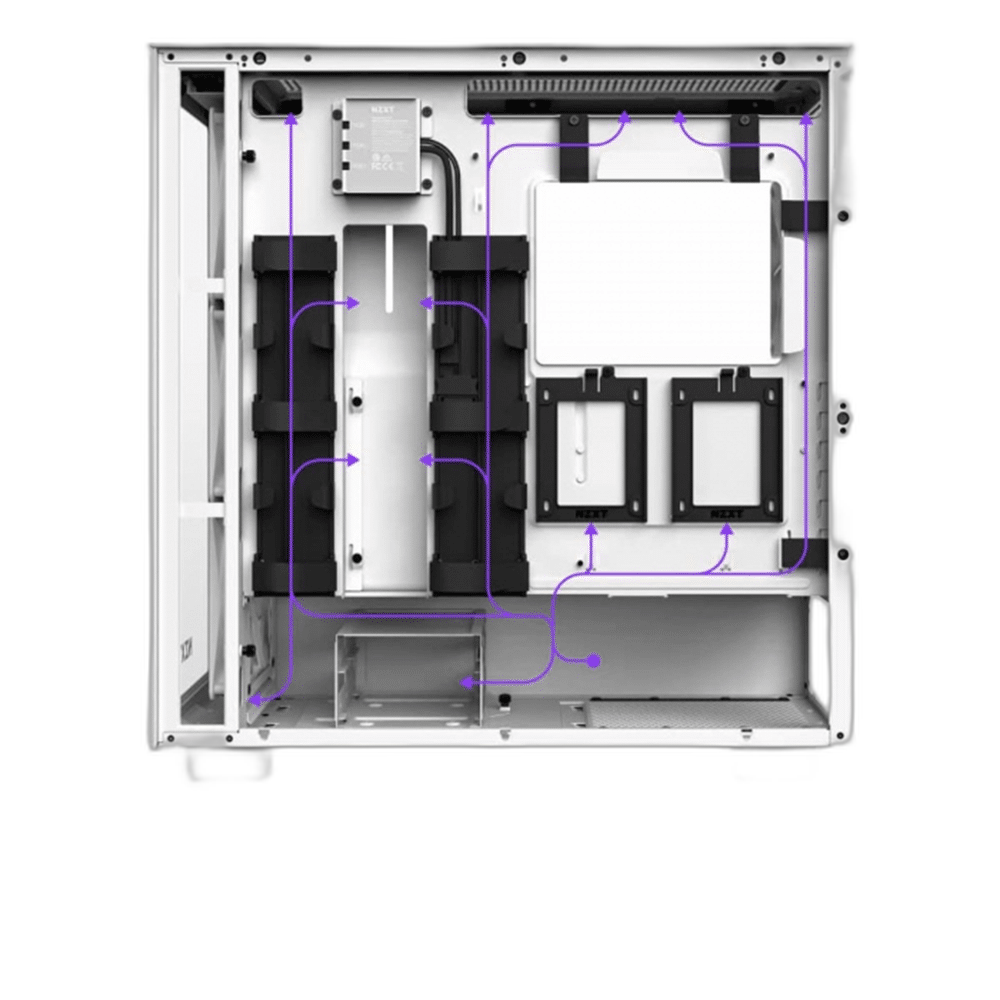

Routing Channels and Front I/O
Cable channels and straps organise power, data and lighting leads behind the motherboard tray. Two USB-A ports, one USB-C port and a combined headset jack provide accessible peripheral connections. Storage positions include shared mounting alternatives, so choose the required drive layout alongside the PSU cabling and lower drive-cage space.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as LIAN LI O11 Dynamic EVO XL Full Tower Case or XIGMATEK Aquarius S Mid Tower Case, keeping the exact model and configuration in the decision. For the wider setup, explore MSI MAG MAX F20A-1 200mm ARGB Case Fan and check the connection, size or mounting requirements before pairing accessories. Browse the NZXT range at AX for more choices.
NZXT H7 Elite White (2023) Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply, Samsung 980 PRO PCIe 4.0 NVMe M.2 SSD.
Frequently Asked Questions
Which motherboard formats fit?
E-ATX / ATX / Micro-ATX / Mini-ITX. Maximum E-ATX width: 272 mm.
What graphics-card length is supported?
400 mm.
What CPU-cooler height is supported?
185 mm.
Which fans are supplied?
three 140 mm F140 RGB Core front fans and one 140 mm F140Q rear case fan.
Where can I fit a radiator?
360 mm at front or top; check complete assembly clearance.
How is lighting control connected?
The Elite includes an NZXT RGB Controller for lighting through CAM. This is the RGB controller, so fan-speed connections use the appropriate motherboard or fan-control arrangement..
Which front connections are available?
2 × USB-A; 1 × USB-C; combined headset jack.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Case Hardware
NZXT H7 Elite White (2023)
Mid Tower
E-ATX / ATX / Micro-ATX / Mini-ITX
505 H × 230 W × 480 D mm
three 140 mm F140 RGB Core front fans and one 140 mm F140Q rear case fan
272 mm
400 mm
185 mm
360 mm at front or top; check complete assembly clearance
Up to 30 mm before fans; check complete assembly clearance
The Elite includes an NZXT RGB Controller for lighting through CAM. This is the RGB controller, so fan-speed connections use the appropriate motherboard or fan-control arrangement.
2 × USB-A; 1 × USB-C; combined headset jack
