Cooler Master
Cooler Master HAF 500 ARGB Mid Tower Case - Black

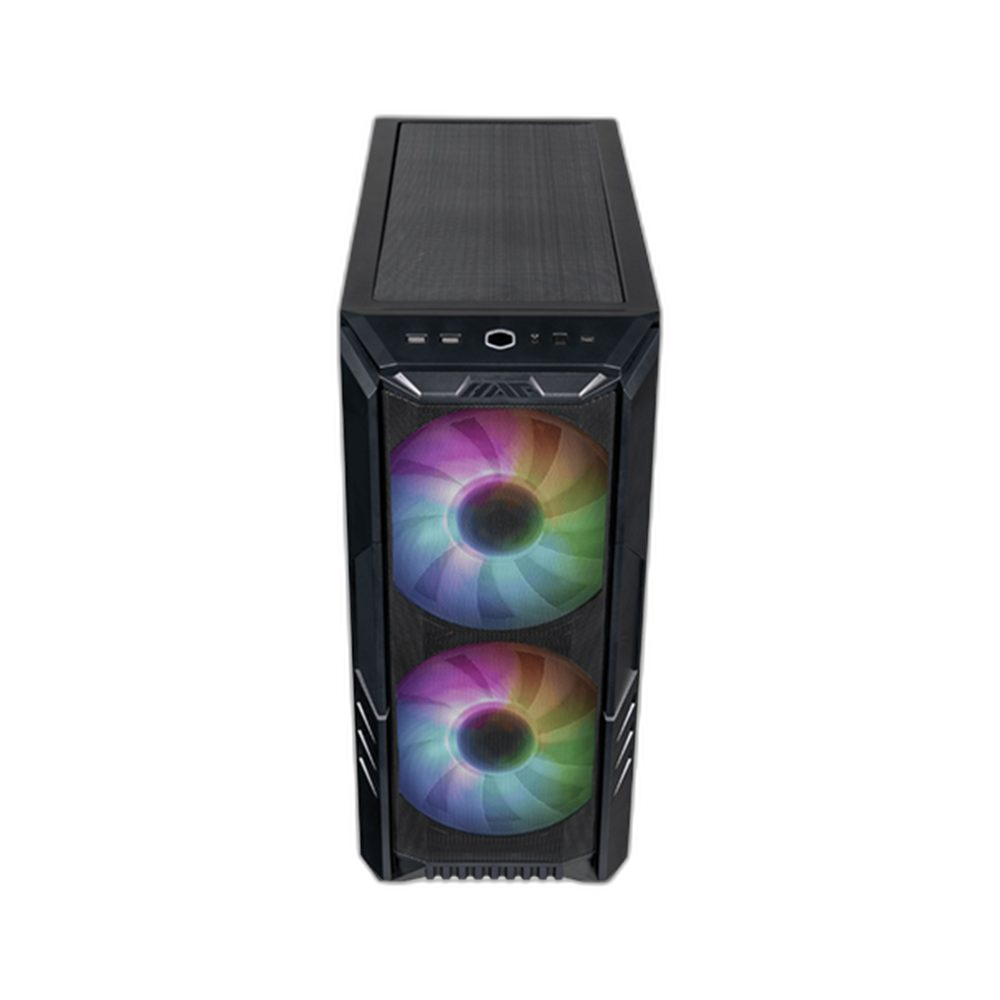

The Cooler Master HAF 500 combines two 200 mm ARGB front fans with a dedicated rotatable 120 mm GPU fan. A rear 120 mm ARGB fan, mesh intake and removable top panel provide the core airflow and installation layout.
Regular price
44.000 KWD
or 4 payments of 11.000 KWD with
Pay with card & save
42.000 KWD
Save 2.000 KWD
Overview
COOLER MASTER HAF 500 BLACK
Cooler Master HAF 500 Black
Cooler Master HAF 500 Black: The Cooler Master HAF 500 combines two 200 mm ARGB front fans with a dedicated rotatable 120 mm GPU fan. A rear 120 mm ARGB fan, mesh intake and removable top panel provide the core airflow and installation layout. Available from AX Store in Kuwait.
2 × 200 mm
Front ARGB fans
Rotatable 120 mm
Dedicated GPU fan
410 mm
GPU length clearance
360 mm
Front / top radiator option
The Case Design

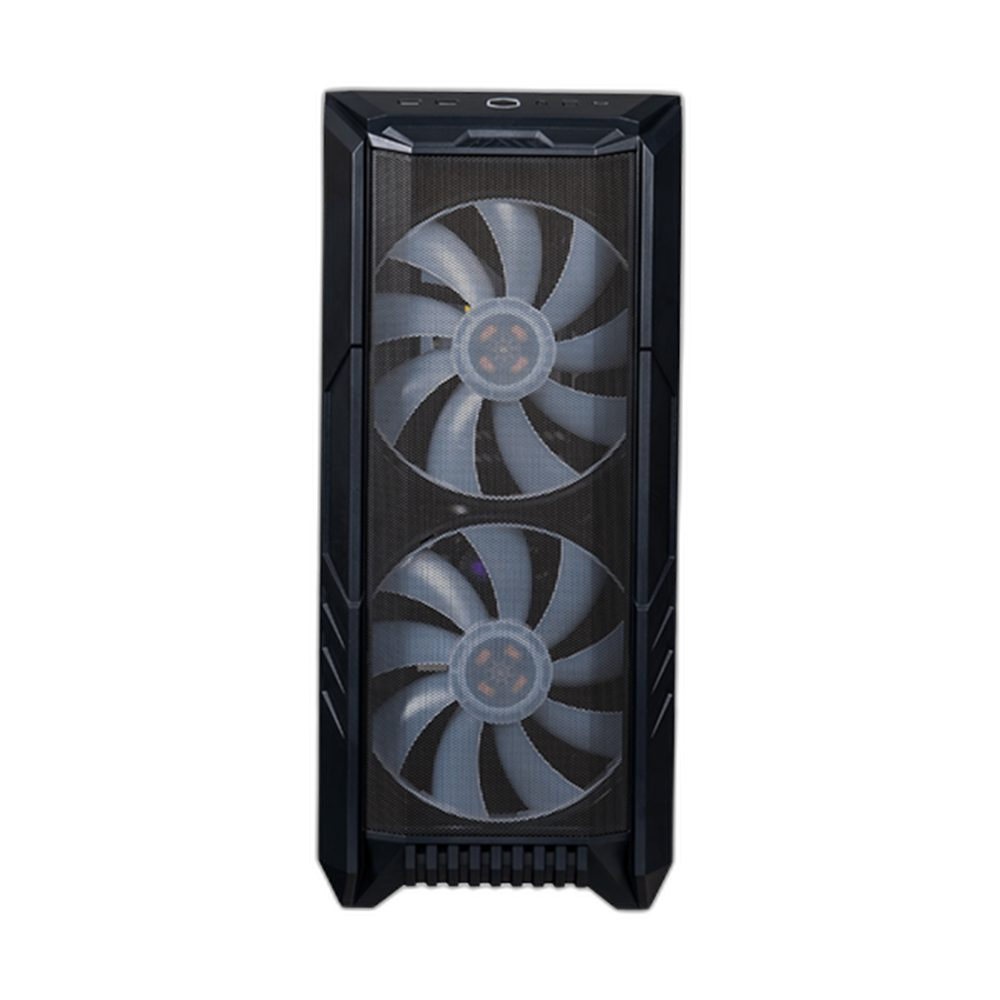

A mesh front surrounds the two large intake fans, with tempered glass at the left side to display the hardware. The HAF 500 measures 516 L × 224 W × 510 H mm including protrusions. The case is designed around accessible cooling positions and a dedicated airflow path toward the graphics card.
Supplied Cooling and Lighting
Two 200 mm ARGB fans are supplied at the front, a 120 mm SickleFlow PWM ARGB fan at the rear and a 120 mm SickleFlow PWM fan on the HDD cage. The internal fan’s bracket rotates to direct its airflow toward the graphics-card area, with the angle chosen around the installed card.
Radiator and Fan Mounting
The top and front each support radiators up to 360 mm, with a 120 mm radiator position at the rear. The removable top makes the upper installation area accessible. Compare the full radiator-and-fan assembly with motherboard power connections, memory and the surrounding case frame before securing the cooling hardware.
Component Clearance

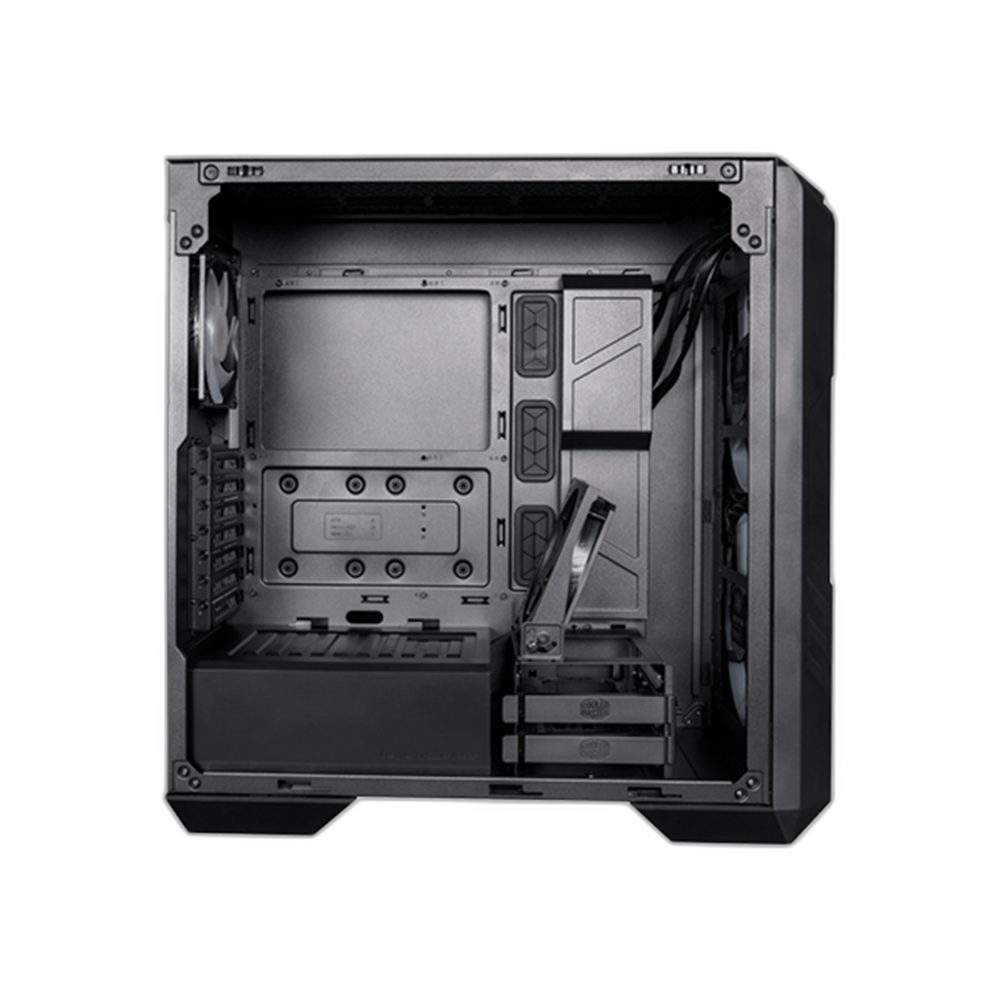

GPU length clearance is 410 mm, CPU-cooler height clearance is 167 mm and PSU length clearance is 180 mm. Motherboard support includes E-ATX up to 12 × 14.1 inches, with larger boards affecting routing and case features. Check the graphics power connection and the rotating internal fan position together.
Access, Storage and Routing
Two combined 2.5/3.5-inch mounts and two dedicated 2.5-inch positions provide storage around the lower and rear areas. The internal GPU fan sits above the HDD cage, so leave its rotation path clear when connecting drive cables. Thirty millimetres of rear routing space helps arrange the larger cable groups.
Manufacturer model
H500-KGNN-S00
Dimensions
516 L × 224 W × 510 H mm, including protrusions
Included fans
2 × 200 mm ARGB front; 1 × 120 mm PWM ARGB rear; 1 × 120 mm PWM rotatable GPU fan
Connections and Control
The front I/O provides two USB-A 3.2 Gen 1 ports, USB-C and a combined audio connection. A supplied ARGB hub supports the lighting arrangement for compatible devices. Top and bottom filters provide cleaning access, while the front mesh and the internal fan route should remain clear of cable bundles.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as Cooler Master MasterCase H500P Mesh Mid Tower or Cooler Master MasterCase H500P White Mid Tower, keeping the exact model and configuration in the decision. For the wider setup, explore Corsair iCUE SP120 RGB ELITE Performance 120mm Triple Fan Pack and check the connection, size or mounting requirements before pairing accessories. Browse the Cooler Master range at AX for more choices.
Cooler Master HAF 500 Black Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply.
Frequently Asked Questions
Which motherboard formats fit?
E-ATX / ATX / Micro-ATX / Mini-ITX.
Which fans are supplied?
2 × 200 mm ARGB front; 1 × 120 mm PWM ARGB rear; 1 × 120 mm PWM rotatable GPU fan.
Which fan is supplied?
2 × 200 mm ARGB front; 1 × 120 mm PWM ARGB rear; 1 × 120 mm PWM rotatable GPU fan.
What graphics-card length is supported?
410 mm.
What CPU-cooler height is supported?
167 mm.
Which radiator positions are supported?
Front / top: up to 360 mm; rear: 120 mm.
Which front connections are available?
2 × USB-A 3.2 Gen 1; USB-C; combined audio.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Case Hardware
Cooler Master HAF 500 Black
Mid Tower
E-ATX / ATX / Micro-ATX / Mini-ITX
H500-KGNN-S00
516 L × 224 W × 510 H mm, including protrusions
2 × 200 mm ARGB front; 1 × 120 mm PWM ARGB rear; 1 × 120 mm PWM rotatable GPU fan
410 mm
167 mm
180 mm
Up to 12 × 14.1 inches; may affect routing and case features
Front / top: up to 360 mm; rear: 120 mm
30 mm
2 × USB-A 3.2 Gen 1; USB-C; combined audio
ARGB hub
