Corsair Obsidian 500D RGB SE Mid Tower Case
CORSAIR Obsidian 500D RGB SE combines smoked tempered-glass side doors with aluminium exterior detailing. Three LL120 RGB fans and the included Commander PRO provide the lighting and control arrangement for this SE version.
Regular price
103.000 KWD
or 4 payments of 25.750 KWD with
Pay with card & save
98.000 KWD
Save 5.000 KWD
Overview
CORSAIR OBSIDIAN 500D RGB SE
CORSAIR Obsidian 500D RGB SE
CORSAIR Obsidian 500D RGB SE combines smoked tempered-glass side doors with aluminium exterior detailing. Three LL120 RGB fans and the included Commander PRO provide the lighting and control arrangement for this SE version. Available from AX Store in Kuwait.
Hinged glass
Side doors
370 mm
GPU length clearance
170 mm
CPU-cooler clearance
360 mm
Front radiator option
Smoked Glass Doors and Aluminium Details

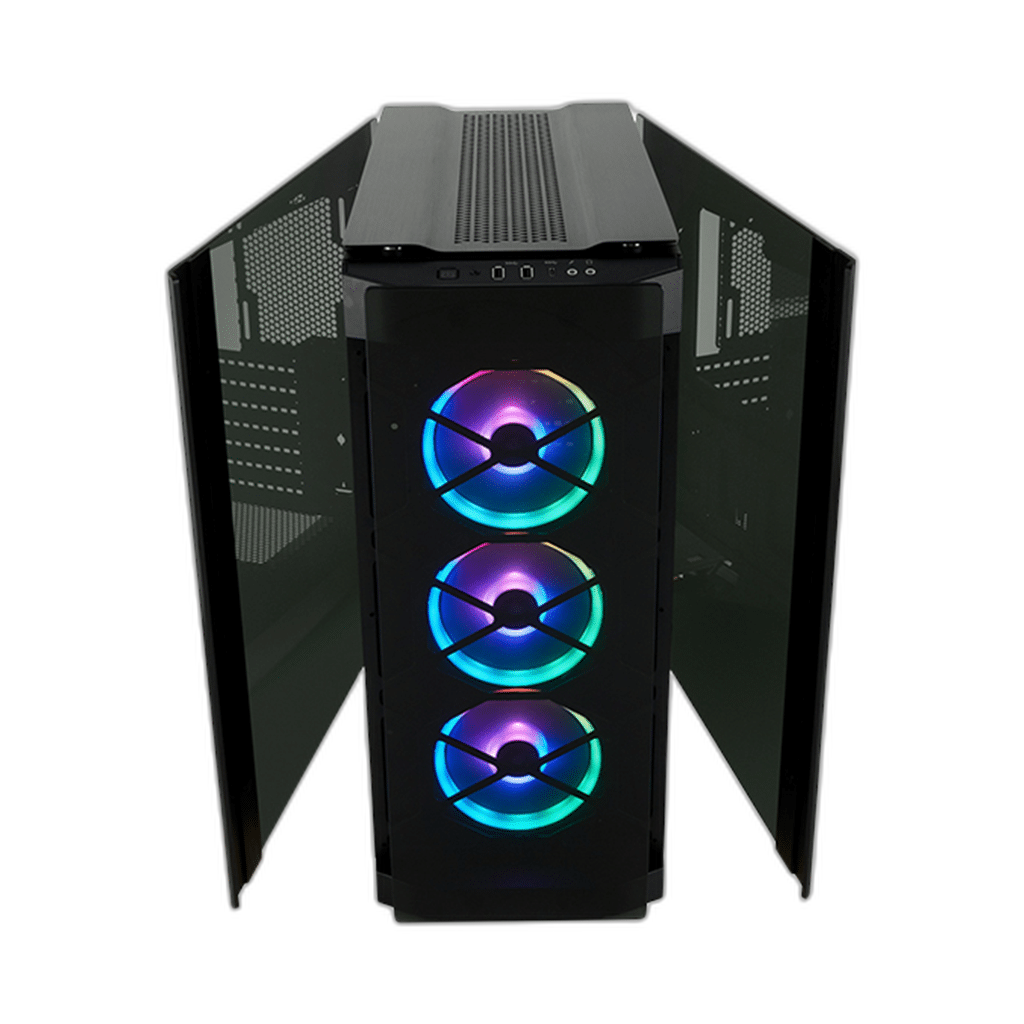

Hinged smoked-glass side doors provide access to both sides of the hardware layout. The RGB SE uses a glass front to display its illuminated intake fans, with aluminium used for the top plate and door handles. Secure the doors and leave space beside the case when planning the installation location.
Cooling Hardware for This Edition

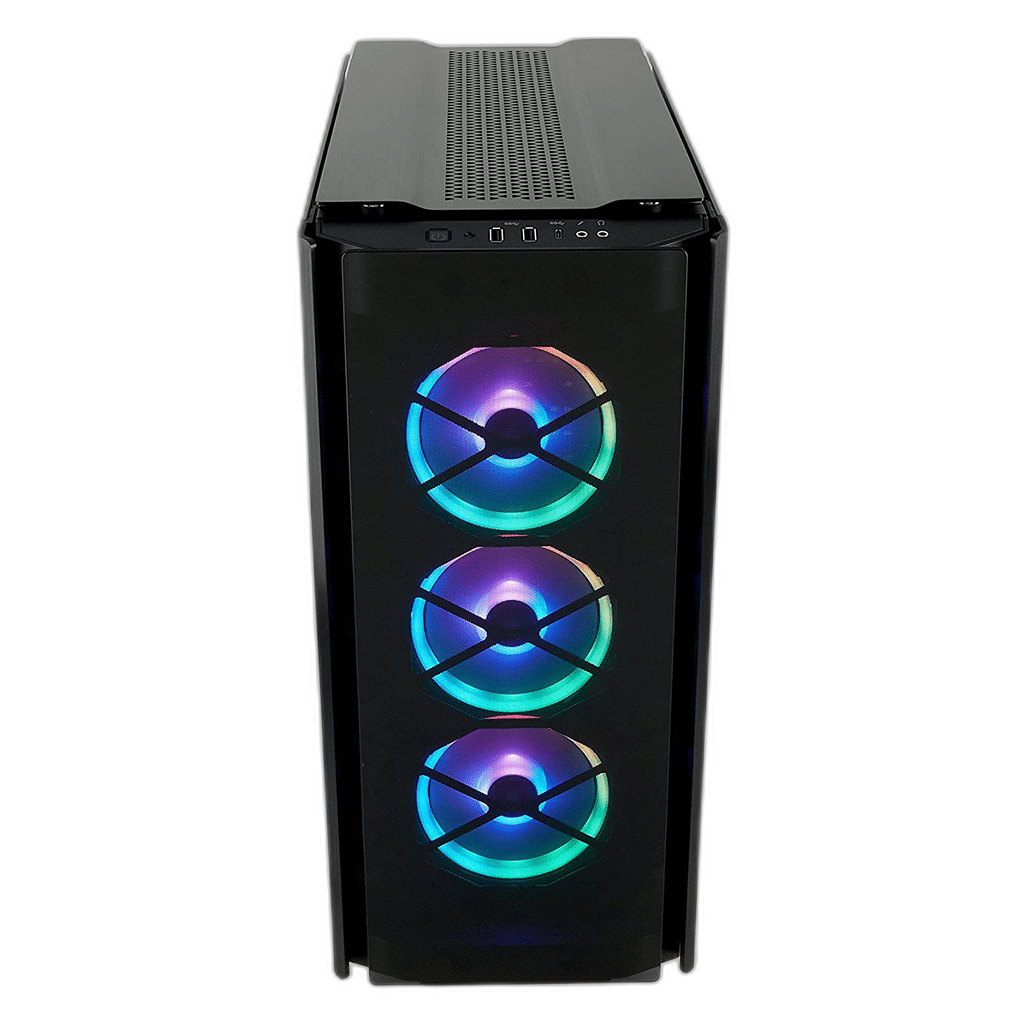

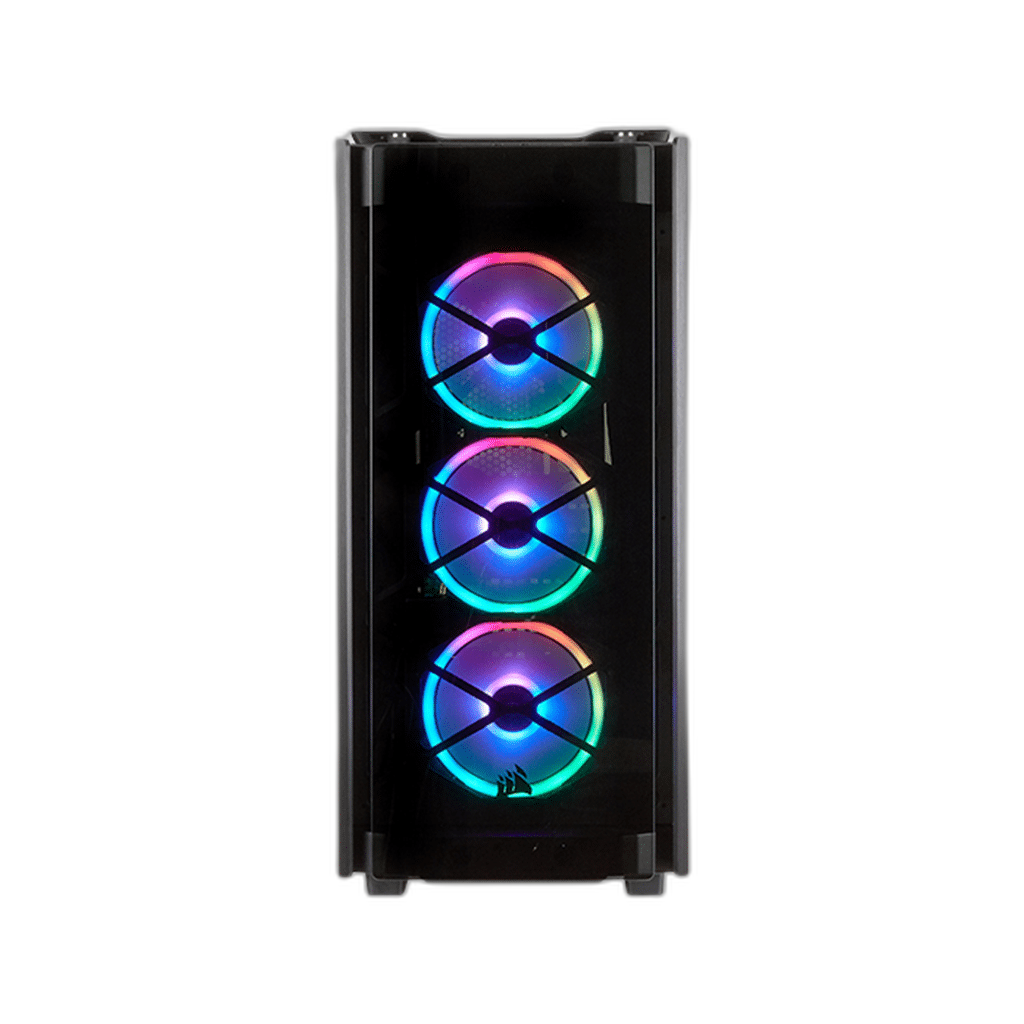

Three LL120 RGB fans are supplied at the front, each with its illuminated lighting arrangement. Commander PRO is included for compatible fan and lighting configuration through iCUE. Choose additional fans and their control connections to suit the complete airflow layout.
Removable Radiator and Fan Trays
The front accepts a 360 mm or 280 mm radiator, with 280 mm or 240 mm options at the top and a 120 mm position at the rear. Removable trays allow the cooling hardware to be assembled outside the main frame. Check radiator thickness, tube routing and adjacent motherboard components before securing the trays.
Clearance for ATX-Class Hardware
Supported motherboard formats are ATX, Micro-ATX and Mini-ITX. The original guide specifies 370 mm GPU length clearance, 170 mm CPU-cooler clearance and 225 mm PSU length clearance. Compare the complete components with these limits, leaving the required room for power plugs and nearby radiator or fan assemblies.
Dedicated Storage and Cable Covers

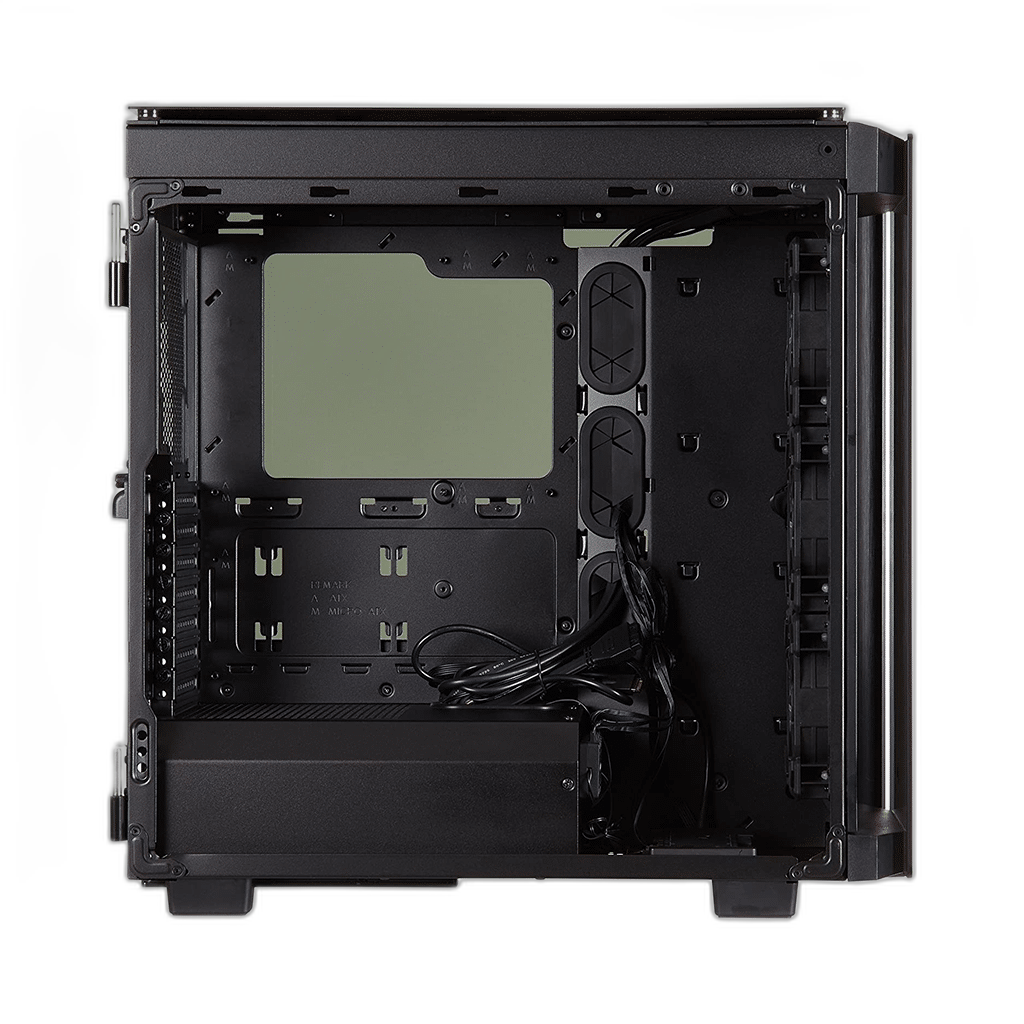

The case provides mounts for two 3.5-inch hard drives and three 2.5-inch SSDs. A PSU cover and rear cable cover help keep the visible hardware area organised. Route storage power and data leads alongside the selected drive positions, checking access to the removable trays and lower power-supply area.
Dimensions in original guide
500 L × 233 W × 507 H mm
Maximum GPU length
370 mm
Maximum CPU-cooler height
170 mm
Front USB-C and Removable Filtering
The front panel provides USB-C alongside the other peripheral and audio connections. Removable dust filters provide access for cleaning the intake paths. Follow the original installation guide when connecting front-panel leads and removing cooling trays, keeping the case’s ventilation and panel-opening areas accessible after the build is complete.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as Lian LI O11 Dynamic Mid Tower Case, Tempered Glass or LIAN LI O11 Dynamic EVO XL Full Tower Case, keeping the exact model and configuration in the decision. For the wider setup, explore MSI MAG MAX F20A-1 200mm ARGB Case Fan and check the connection, size or mounting requirements before pairing accessories. Browse the Corsair range at AX for more choices.
CORSAIR Obsidian 500D RGB SE Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply, Corsair iCUE SP120 RGB ELITE Performance 120mm Triple Fan Pack.
Frequently Asked Questions
Which motherboard formats fit?
ATX / Micro-ATX / Mini-ITX.
What graphics-card length is supported?
370 mm.
What CPU-cooler height is supported?
170 mm.
Which front radiator sizes fit?
360 / 280 mm.
Which top radiator sizes fit?
280 / 240 mm.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Case Hardware
CORSAIR Obsidian 500D RGB SE
Mid Tower
ATX / Micro-ATX / Mini-ITX
500 L × 233 W × 507 H mm
370 mm
170 mm
225 mm
360 / 280 mm
280 / 240 mm
120 mm
2 × 3.5-inch HDD; 3 × 2.5-inch SSD
Hinged smoked tempered-glass doors
Tempered glass
3 × LL120 RGB fans; Commander PRO
