Thermaltake AH T200 Helicopter Styled Micro ATX Case - Turquoise
The Thermaltake AH T200 Turquoise combines an open helicopter-inspired frame with glass side panels and a black-and-turquoise finish. Its compact motherboard layout supports Micro-ATX and Mini-ITX hardware, with front radiator and upper fan positions selected for the build.
Regular price
62.000 KWD
or 4 payments of 15.500 KWD with
Pay with card & save
59.000 KWD
Save 3.000 KWD
Overview
THERMALTAKE AH T200 TURQUOISE
An Open Helicopter-Style Frame for Micro-ATX Builds
The Thermaltake AH T200 Turquoise combines an open helicopter-inspired frame with glass side panels and a black-and-turquoise finish. Its compact motherboard layout supports Micro-ATX and Mini-ITX hardware, with front radiator and upper fan positions selected for the build.
Open frame
Helicopter-inspired design
Micro-ATX
Motherboard format
320 mm
GPU length clearance
280 mm
Front radiator option
The Case Design

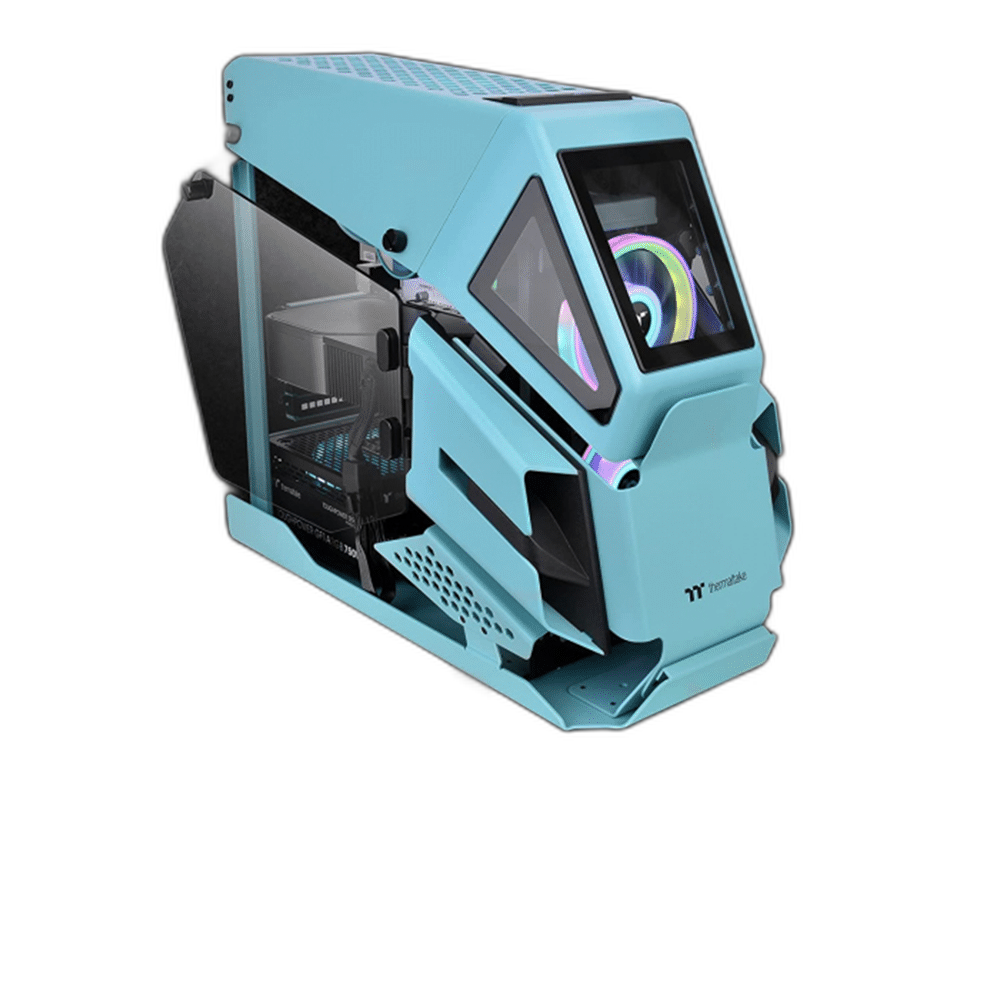

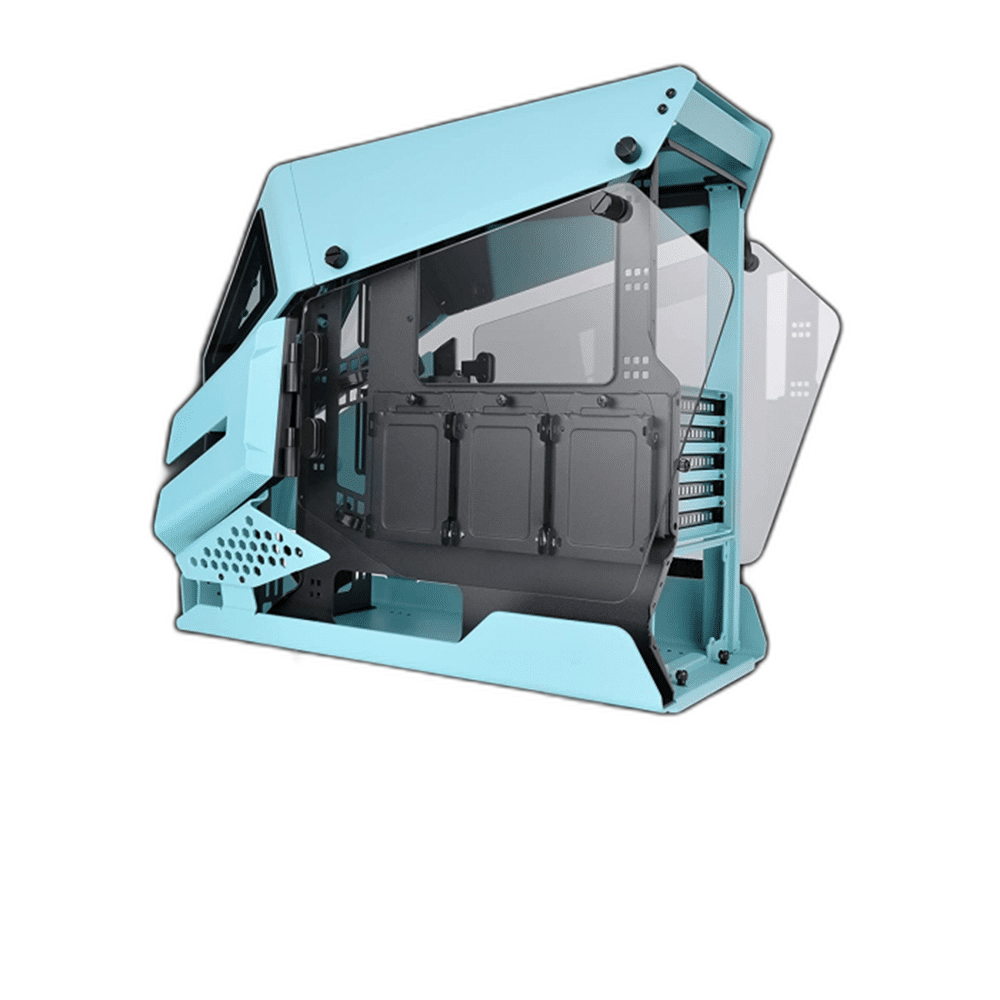

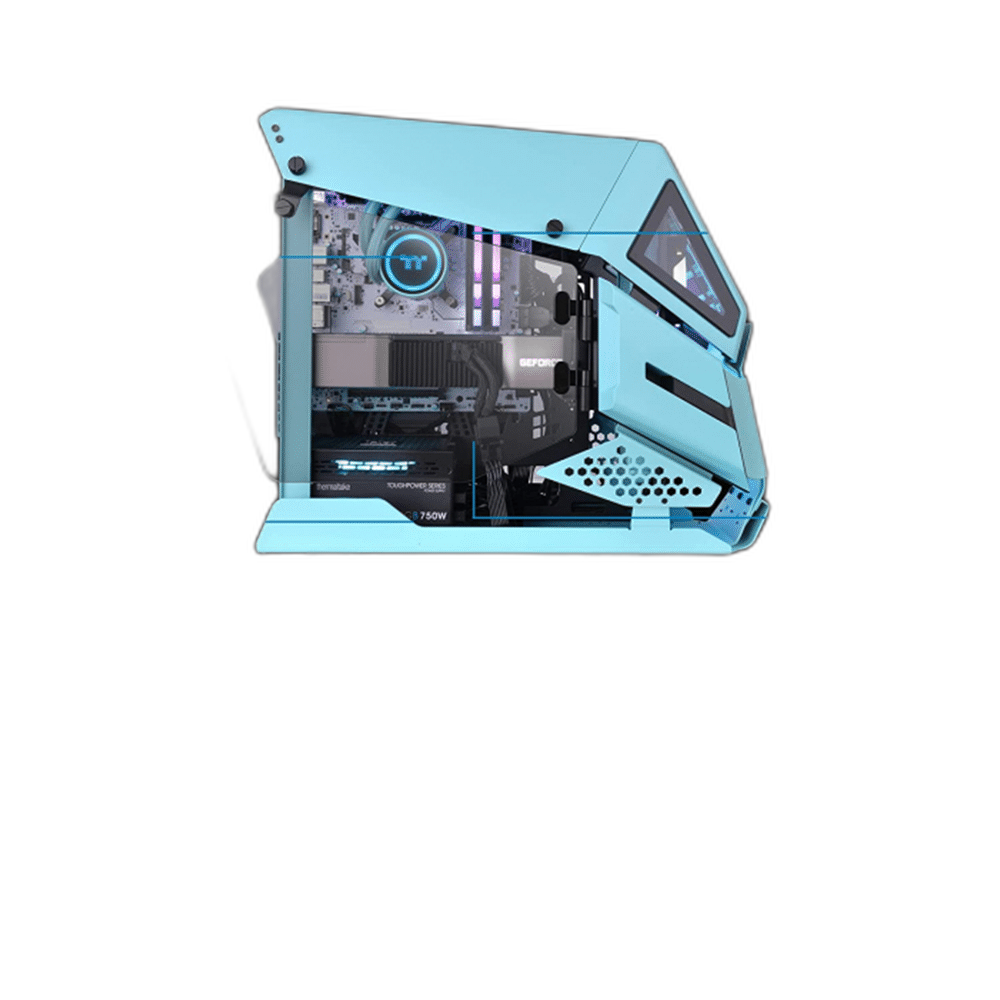

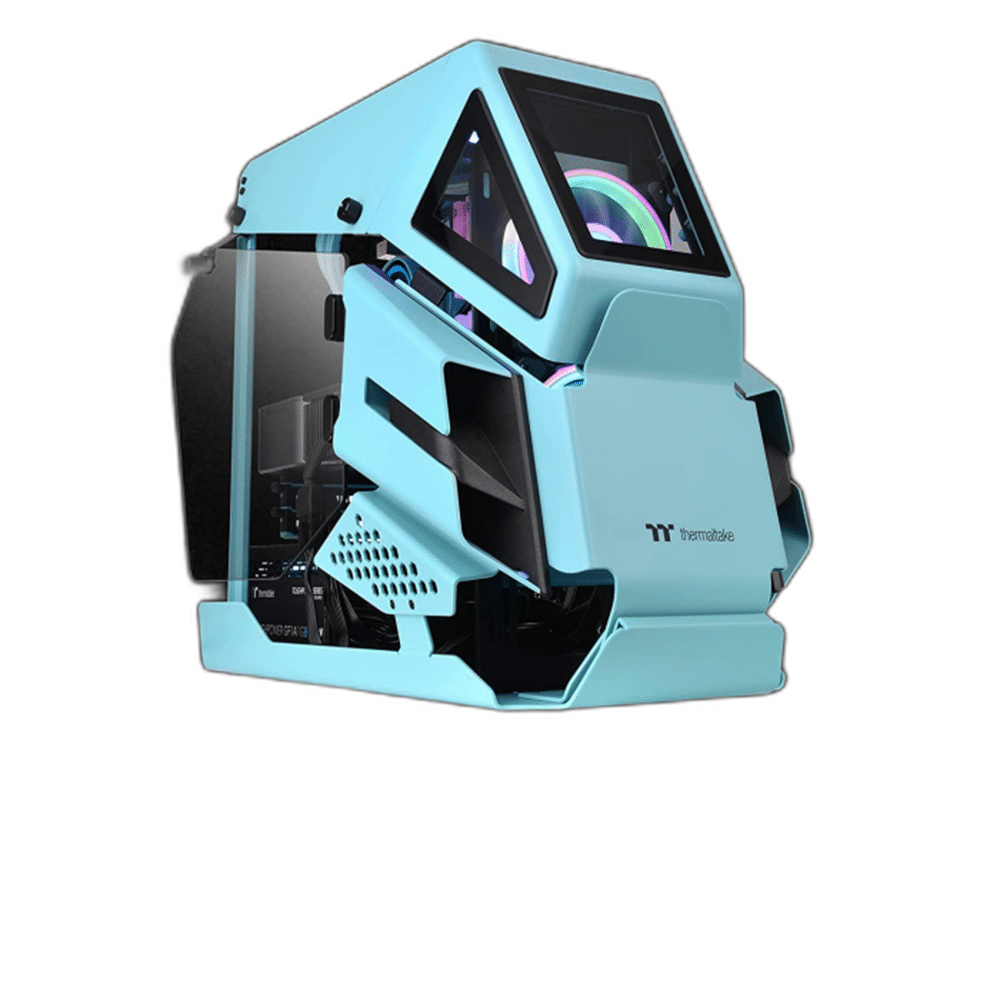

The open-frame structure uses an angular helicopter-inspired front and tempered-glass panels on both sides. The case measures 444.2 H × 282 W × 551.5 D mm. Its exposed sections provide the distinctive appearance, while the glass panels show the motherboard and graphics card inside the compact frame.
Supplied Cooling and Lighting
Fans are selected separately for the AH T200, with no factory cooling fans listed for this configuration. Two 120 mm or two 140 mm fans can be fitted at the front, with another pair at the top. Choose the fan arrangement and any lighting around the desired airflow and visible hardware.
Radiator and Fan Mounting
The front supports a 240 mm or 280 mm radiator, with smaller 120 mm and 140 mm choices. Plan the radiator-and-fan thickness together with tube routing and the graphics card. The upper position provides fan mounts rather than an assumed additional radiator location, so use the documented cooling positions for the final layout.
Component Clearance
Supported motherboards are Micro-ATX and Mini-ITX. GPU length clearance is 320 mm, CPU-cooler height clearance is 150 mm and PSU length clearance is 180 mm. Compare the complete graphics cooler and power leads with the frame and front cooling arrangement before selecting the core components.
Access, Storage and Routing
Modular frame parts and opening side panels provide access around the motherboard and cable routes. Choose the drive positions together with the PSU and cooling layout, following the specified maximum 22 mm thickness for 3.5-inch drives. Keep exposed cables secured away from fans and panel-opening paths.
Manufacturer model
CA-1R4-00SBWN-00
Dimensions
444.2 H × 282 W × 551.5 D mm
Included fans
None listed; cooling fans selected separately
Connections and Control
The front I/O provides USB-C, two USB-A 3.0 ports and HD audio. Match the internal leads with the motherboard headers and plan their route within the open frame. The black-and-turquoise finish is part of this edition, with any additional illuminated fans or cooling components chosen separately.
Complete Your Workspace
Explore PC Cases to compare suitable options and complete your setup.
Frequently Asked Questions
Which motherboard formats fit?
Micro-ATX / Mini-ITX.
Which fans are supplied?
None listed; cooling fans selected separately.
Which fan is supplied?
None listed; cooling fans selected separately.
What graphics-card length is supported?
320 mm.
What CPU-cooler height is supported?
150 mm.
Which front radiator sizes fit?
240 / 280 mm.
Which front connections are available?
USB-C; 2 × USB-A 3.0; HD audio.
Build Your Setup with AX Store Kuwait
Explore computers, displays and accessories for your workspace at AX Store Kuwait. For help choosing the right model or checking an accessory, contact AX Store.
Compare thermaltake Tower 900 Full Tower Case - Black. Match the exact model, connection and configuration to your setup.
THE DETAILS
Technical specifications
Case Hardware
Thermaltake AH T200 Turquoise
Micro Tower
Micro-ATX / Mini-ITX
CA-1R4-00SBWN-00
444.2 H × 282 W × 551.5 D mm
None listed; cooling fans selected separately
320 mm
150 mm
180 mm
240 / 280 mm
2 × 120 mm or 2 × 140 mm at each position
5
22 mm
Black and Turquoise
USB-C; 2 × USB-A 3.0; HD audio
