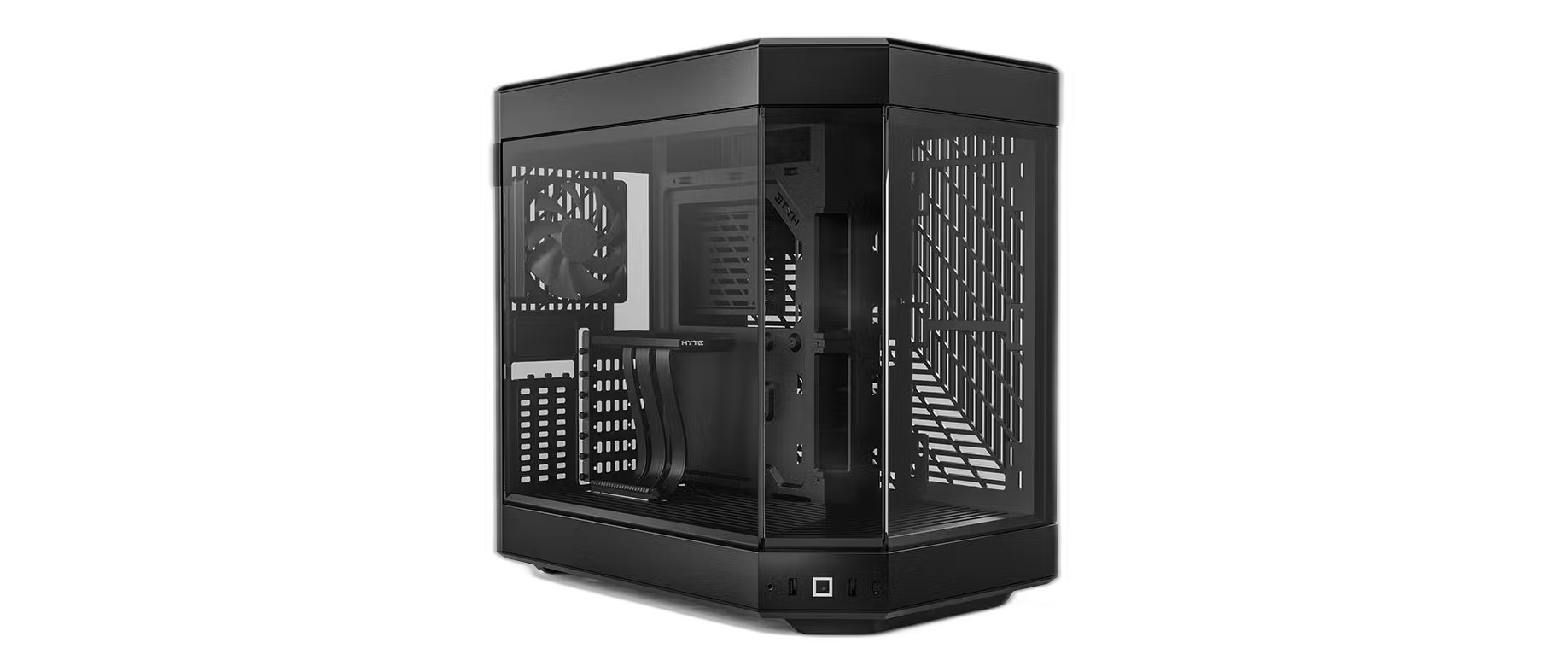

Hyte Y60 Premium Mid-Tower ATX Case with 3 Fans
HYTE Y60 combines a panoramic glass display with a vertical graphics-card position and an included PCIe 4.0 x16 riser. Three supplied 120 mm Flow FE12 fans support the cold-floor intake and rear exhaust arrangement.
Color
Regular price
55.500 KWD
or 4 payments of 13.875 KWD with
Pay with card & save
52.900 KWD
Save 2.600 KWD
Overview
HYTE Y60
HYTE Y60
HYTE Y60 combines a panoramic glass display with a vertical graphics-card position and an included PCIe 4.0 x16 riser. Three supplied 120 mm Flow FE12 fans support the cold-floor intake and rear exhaust arrangement. Available from AX Store in Kuwait.
PCIe 4.0 x16
Riser included
3 × 120 mm
Included fans
375 mm
GPU length clearance
Panoramic glass
Hardware display
The Case Design

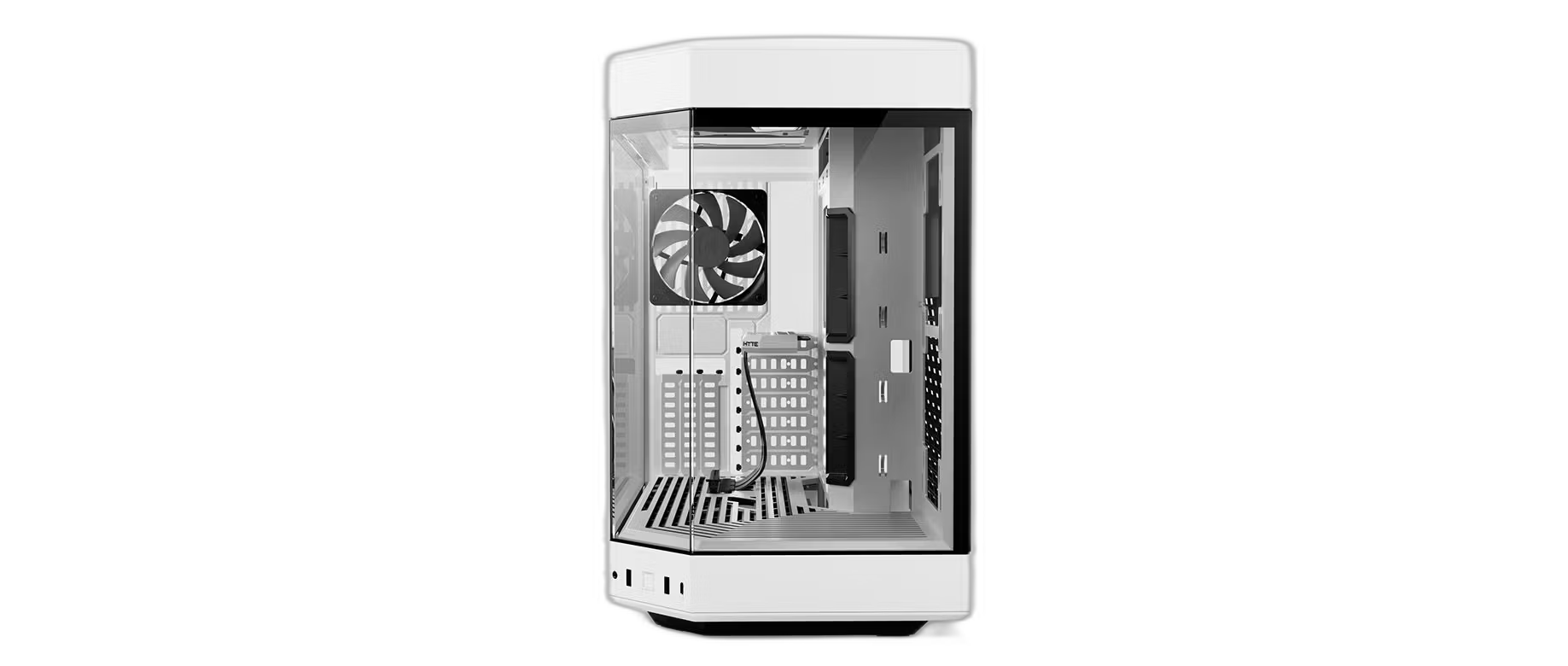

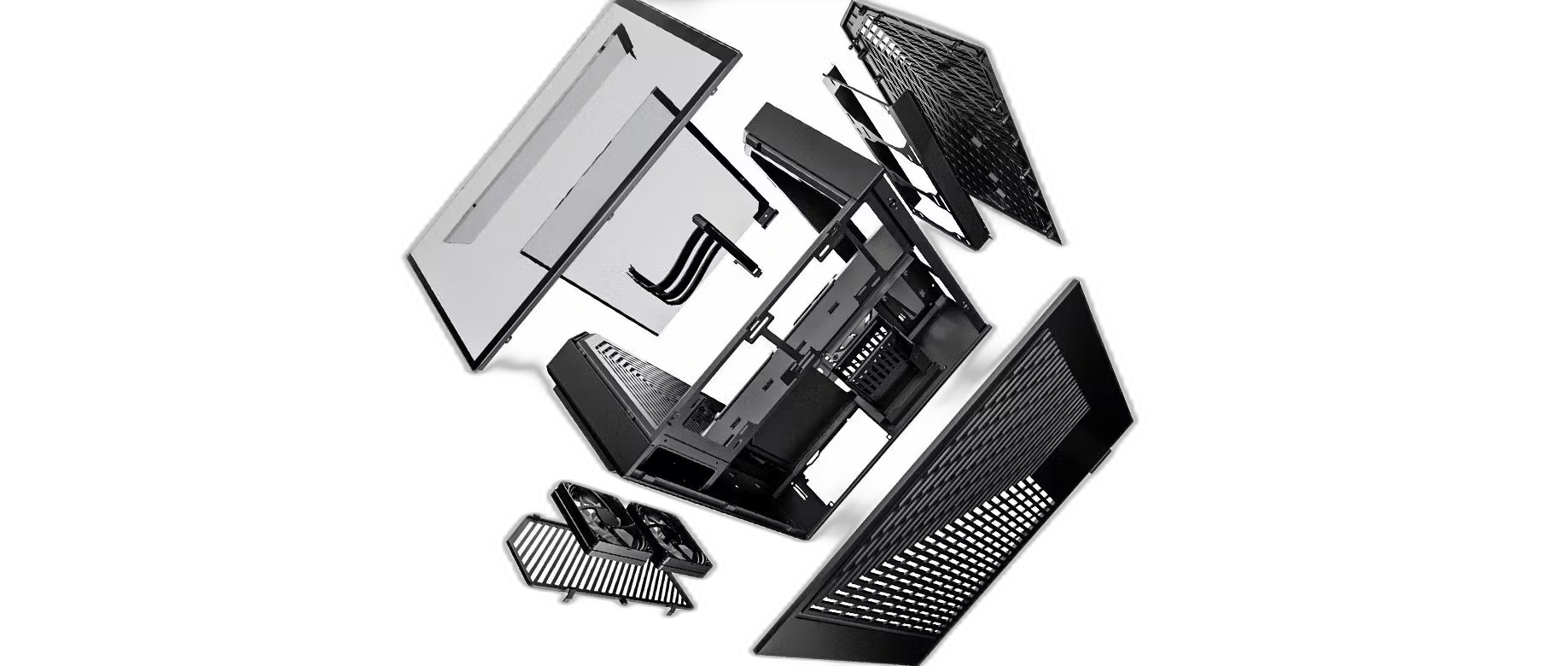

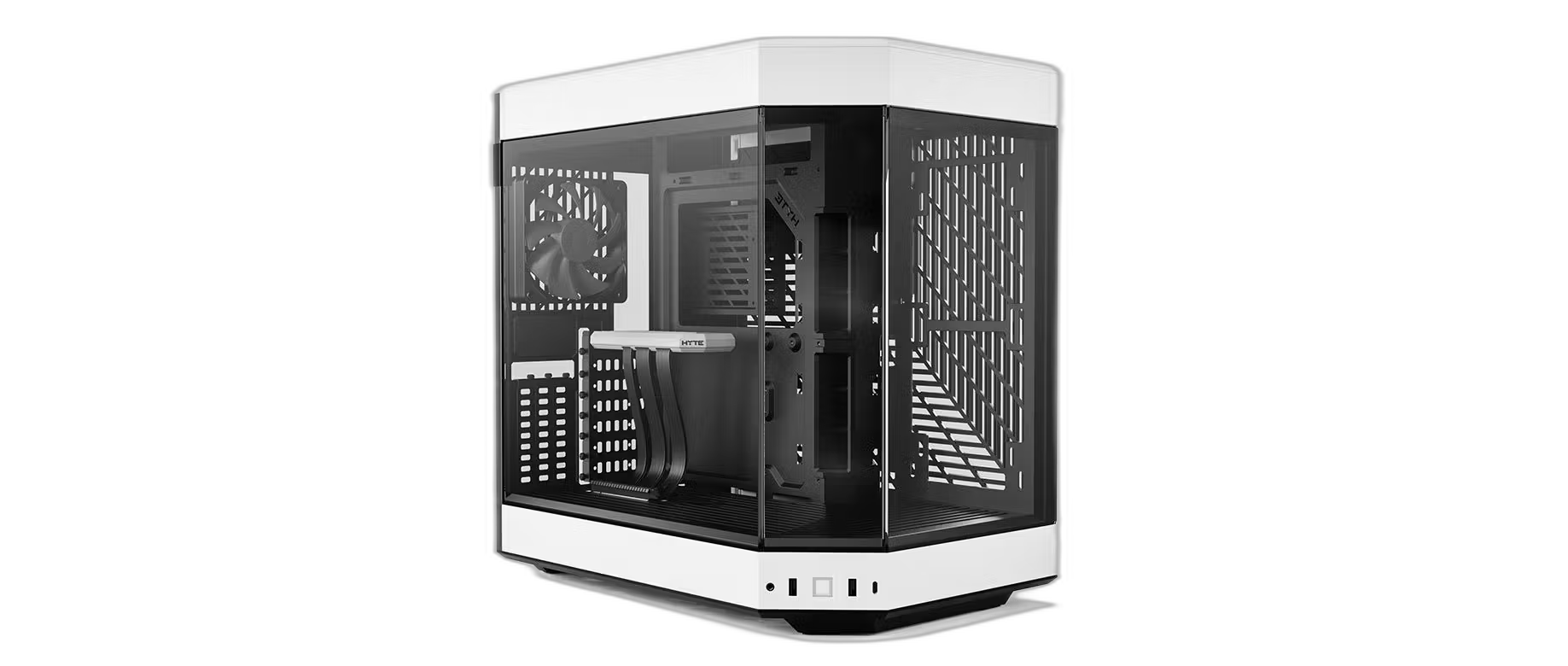

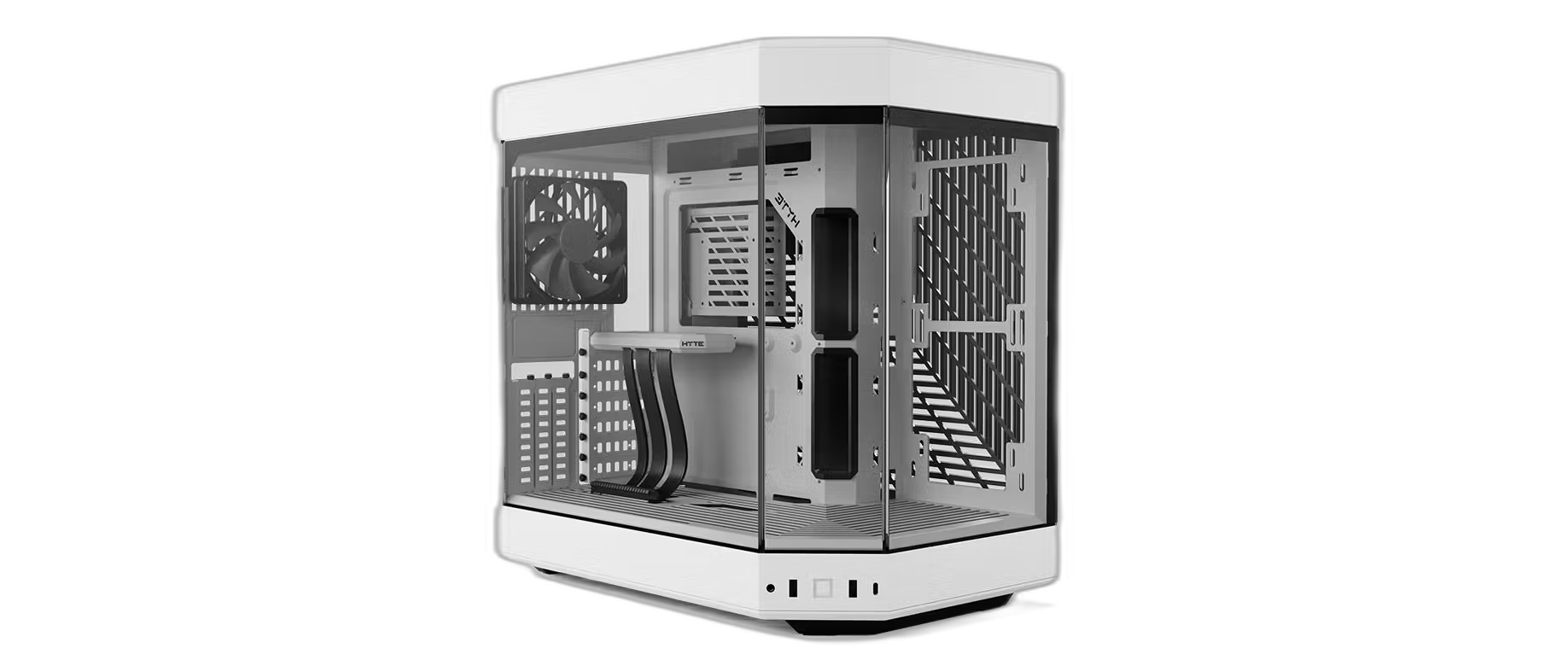

Three-piece panoramic tempered glass forms the front and side hardware display without a corner pillar across the viewing area. The steel and ABS structure measures 456 L × 285 W × 462 H mm. A separate rear chamber carries power, storage and cables behind the motherboard display.
Supplied Cooling and Lighting

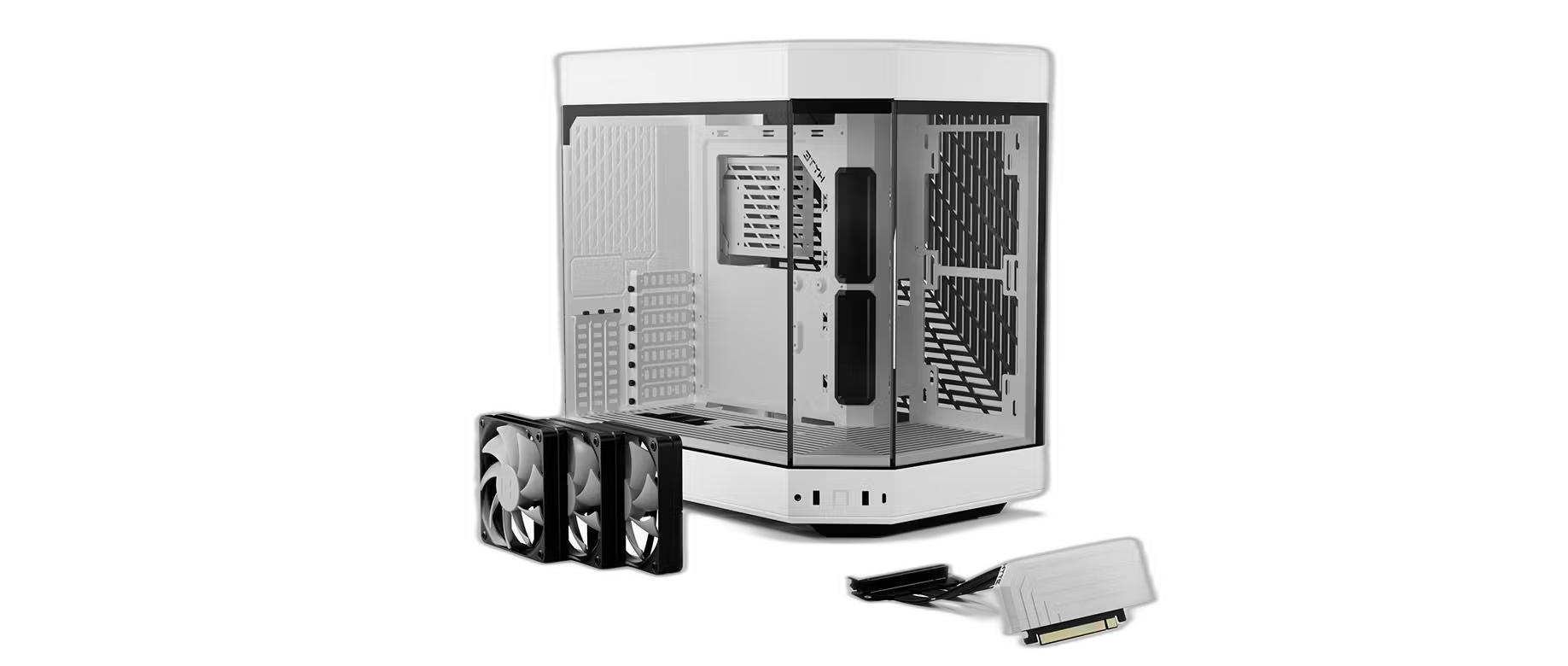

Three 120 mm Flow FE12 fans are supplied: two in the lower intake area and one at the rear, rated at 1,300 RPM with fluid dynamic bearings. Their cold-floor arrangement draws air toward the vertical graphics card while keeping the lower fans beneath the main display. Additional fans are selected for the remaining mounts.
Radiator and Fan Mounting
The top supports a 360 mm radiator with the documented 30 mm radiator-thickness limit, while the side supports up to 280 mm within its stated clearance. The rear supports a 120 mm radiator. Compare the full fan-and-radiator assembly with the motherboard, graphics card and tubing before combining mounting positions.
Component Clearance

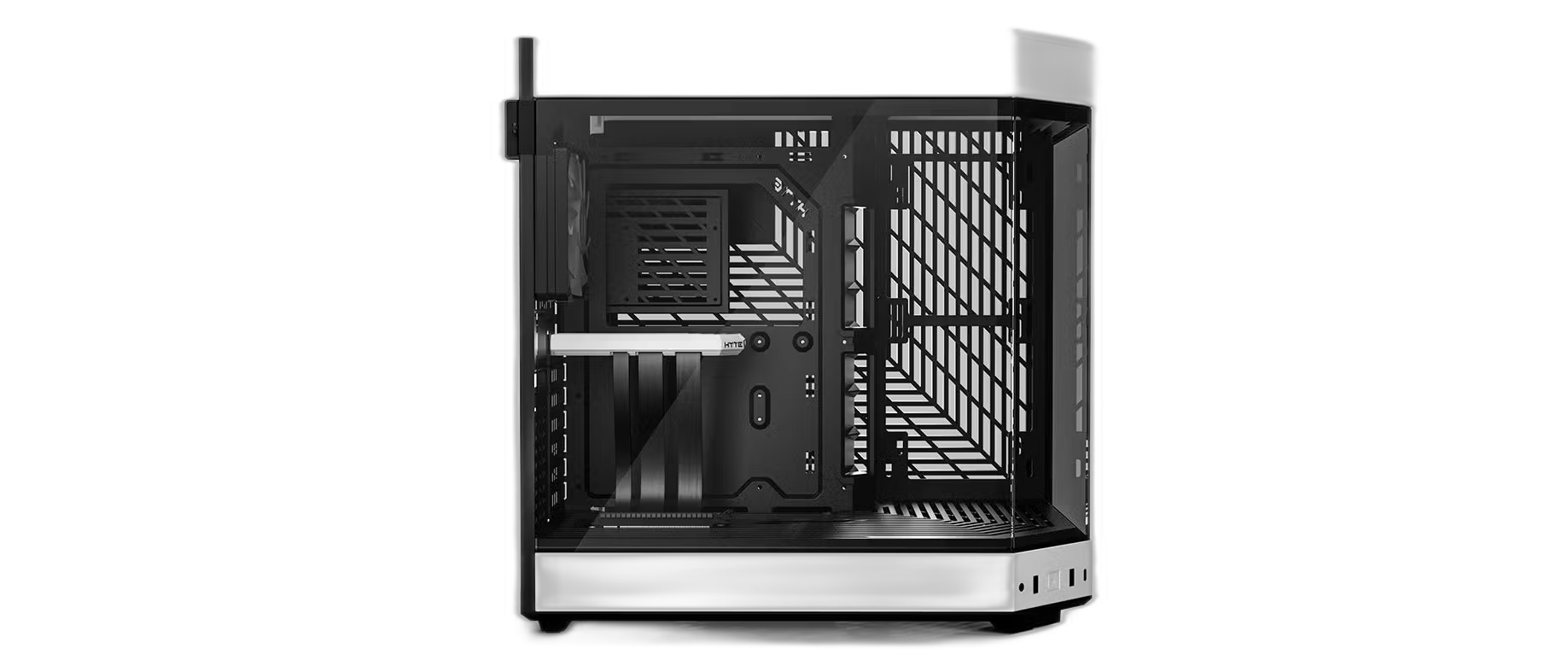

The Y60 supports E-ATX, ATX, Micro-ATX and Mini-ITX boards, with a three-slot vertical GPU arrangement and supplied PCIe 4.0 x16 riser. Maximum GPU length is 375 mm and thickness is 75 mm, although HYTE recommends 60 mm or less for better cooling. CPU-cooler height clearance is 160 mm.
Access, Storage and Routing

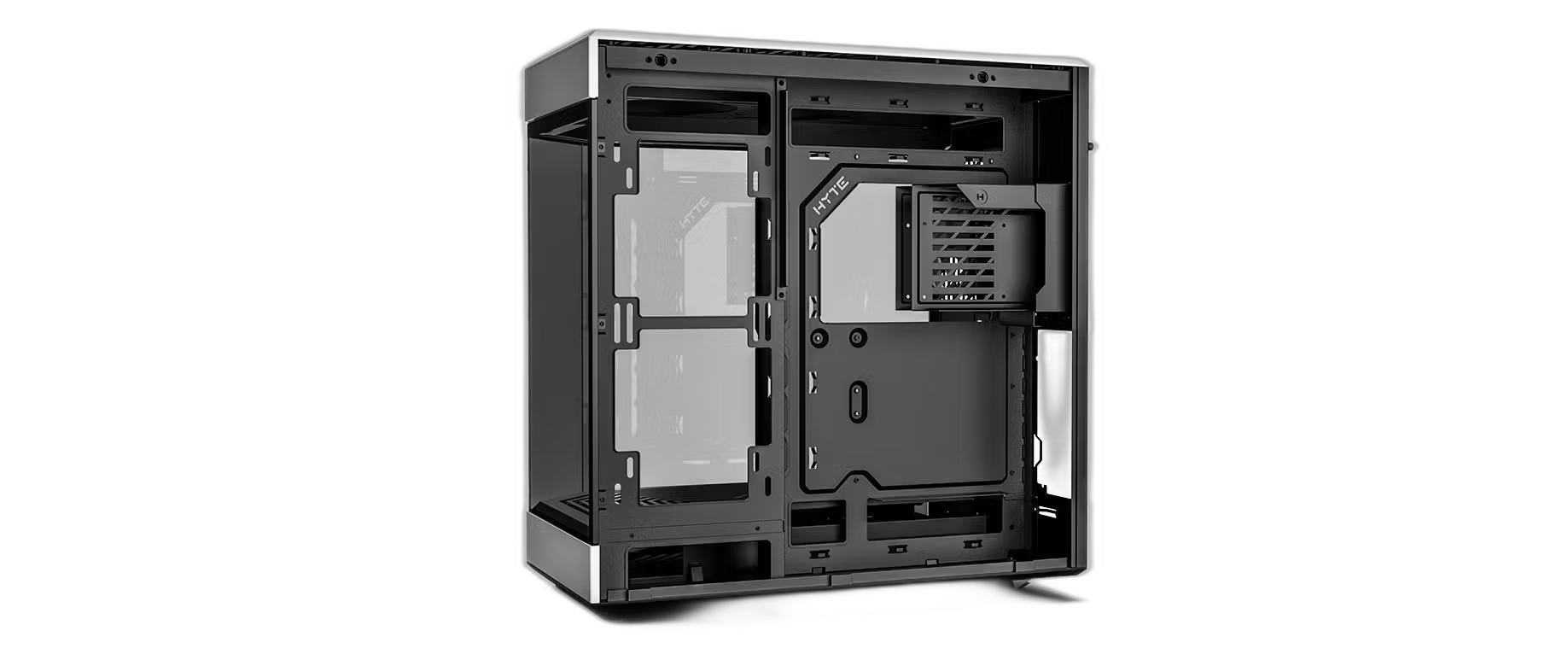

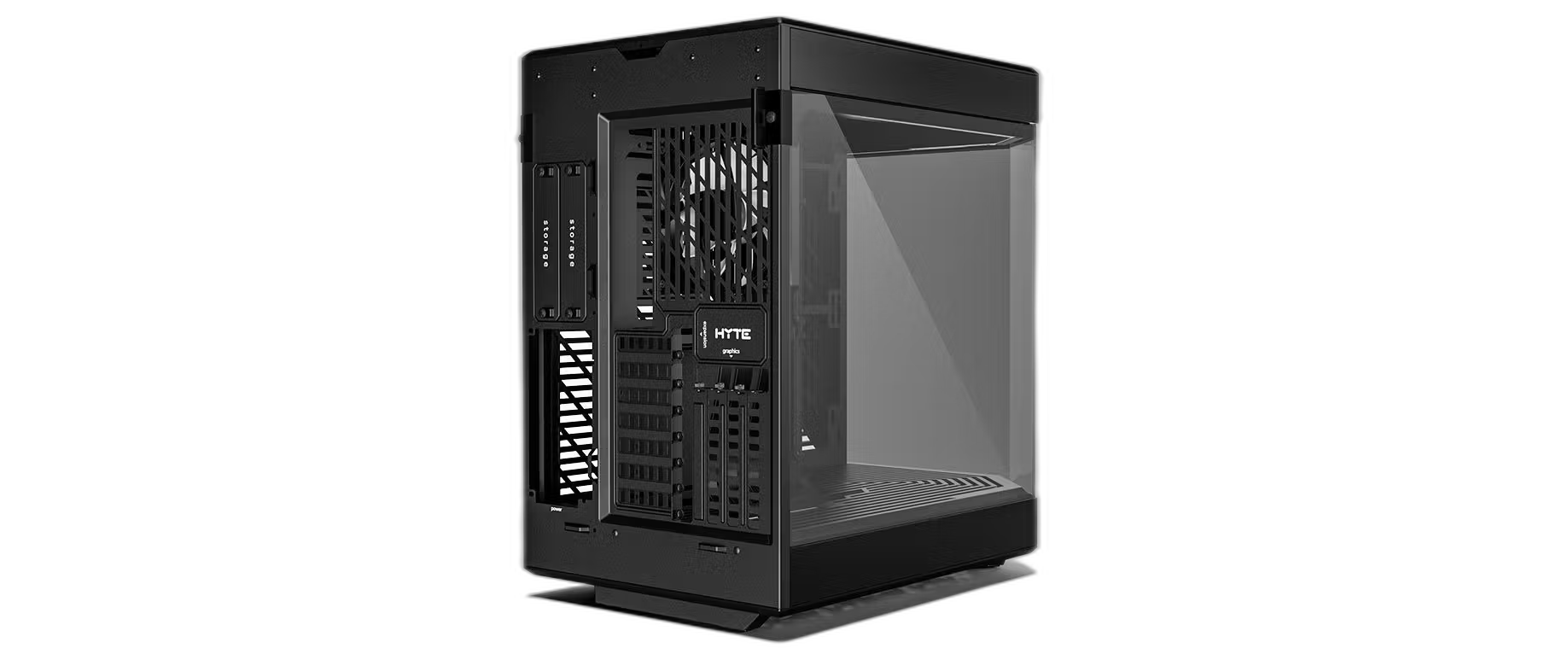

Storage can be arranged with two 3.5-inch drives or four 2.5-inch SSDs, using the rear drive positions. PSU length clearance is 235 mm. The second chamber separates cable runs from the visible cooling area, with the riser canopy organising the vertical GPU connection and low-profile expansion-card space behind it.
Dimensions
456 L × 285 W × 462 H mm
Volume
60 L
Included fans
3 × Flow FE12 120 mm; 2 lower intake and 1 rear; 1,300 RPM
Connections and Control
Front I/O provides two USB-A ports, USB-C and a combined microphone/headphone connection. Bottom, side and top filters support cleaning around the airflow paths. When using an air cooler, HYTE recommends adding two side intake fans; choose them separately around the CPU cooler and the available side mounting space.
Plan the Component Clearances
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Compare related options such as XIGMATEK Aquarius Plus Mid Tower Case or LIAN LI O11 Dynamic XL Full Tower Case, USB 3.0, keeping the exact model and configuration in the decision. For the wider setup, explore MSI MAG MAX F20A-1 200mm ARGB Case Fan and check the connection, size or mounting requirements before pairing accessories. Browse the Hyte range at AX for more choices.
HYTE Y60 Setup Choices
Check motherboard format, graphics-card length, cooler height and radiator positions together. Allow space for the power supply and cable routing before selecting the rest of the build. Explore Corsair RMe Series RM750e Fully Modular Low-Noise Power Supply, Corsair iCUE SP120 RGB ELITE Performance 120mm Triple Fan Pack.
Frequently Asked Questions
Which motherboard formats fit?
E-ATX / ATX / Micro-ATX / Mini-ITX.
Which fans are supplied?
3 × Flow FE12 120 mm; 2 lower intake and 1 rear; 1,300 RPM.
Which fan is supplied?
3 × Flow FE12 120 mm; 2 lower intake and 1 rear; 1,300 RPM.
What graphics-card length is supported?
375 mm.
What graphics-card thickness is supported?
75 mm; 60 mm or less recommended for cooling.
What CPU-cooler height is supported?
160 mm.
Is a PCIe riser supplied?
PCIe 4.0 x16.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
Compare Hyte Persona 3 Reload Y60 Mid Tower Case. Match the exact model, connection and configuration to your setup.
THE DETAILS
Technical specifications
Case Hardware
HYTE Y60
Mid Tower
E-ATX / ATX / Micro-ATX / Mini-ITX
456 L × 285 W × 462 H mm
60 L
3 × Flow FE12 120 mm; 2 lower intake and 1 rear; 1,300 RPM
PCIe 4.0 x16
375 mm
75 mm; 60 mm or less recommended for cooling
160 mm
235 mm
Up to 360 mm; specified radiator thickness up to 30 mm
Up to 280 mm; check the specified clearance for the complete assembly
2 × 3.5-inch HDD or 4 × 2.5-inch SSD
2 × USB-A; USB-C; combined audio
