JDS LABS Stack RCA Cable, Semi-Rigid Design
JDS Labs Stack RCA cables provide a short stereo interconnect pair with semi-rigid, shape-retaining construction. Each cable has a nominal 15 cm length, male RCA connections and 24k gold plating, with one red and one white cable for channel identification.
Regular price
8.000 KWD
or 4 payments of 2.000 KWD with
Pay with card & save
7.500 KWD
Save 0.500 KWD
Overview
JDS LABS STACK RCA CABLE PAIR
JDS Labs Stack RCA Cable Pair
JDS Labs Stack RCA Cable Pair: JDS Labs Stack RCA cables provide a short stereo interconnect pair with semi-rigid, shape-retaining construction. Each cable has a nominal 15 cm length, male RCA connections and 24k gold plating, with one red and one white cable for channel identification. Available from AX Store in Kuwait.
2 cables
Red and white pair

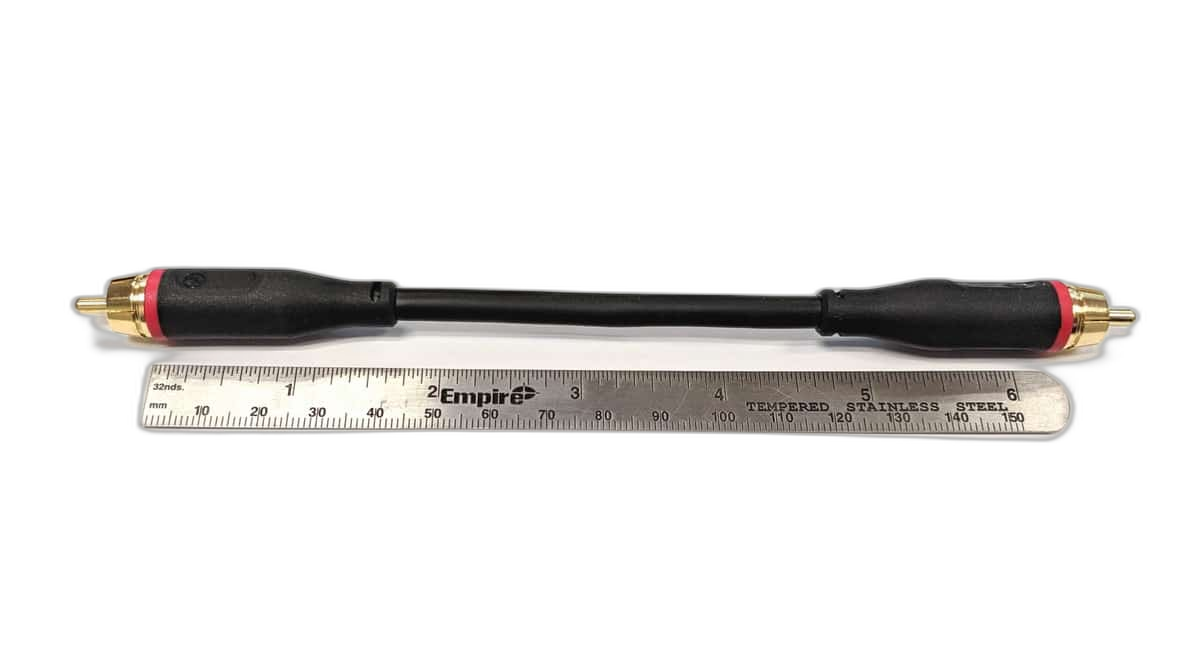

15 cm
Length excluding connectors
24k gold
Connector plating
6 mm
Cable diameter
A Short Pair for Closely Placed Equipment
The pair is intended for a compact analogue connection between suitably positioned audio components, such as a DAC and headphone amplifier. Each cable has a nominal fifteen-centimetre length, excluding the RCA connectors. Measure the distance and the connector positions before choosing the pair for a stacked or closely spaced equipment arrangement.
Bend the Route and Retain the Shape
JDS Labs uses a semi-rigid cable material that holds the shape into which it is bent. Form the route around the planned equipment positions before making the connections. The cable can be reshaped for another arrangement, giving the short interconnect a defined path without leaving a long loose loop behind the stack.
Male RCA Connections at Both Ends
Each interconnect uses male RCA connections at both ends for compatible analogue outputs and inputs. Connect the source output to the amplifier or other suitable destination input. The cable does not convert USB, optical or XLR signals into RCA audio, so check the complete interface arrangement of the two connected devices.

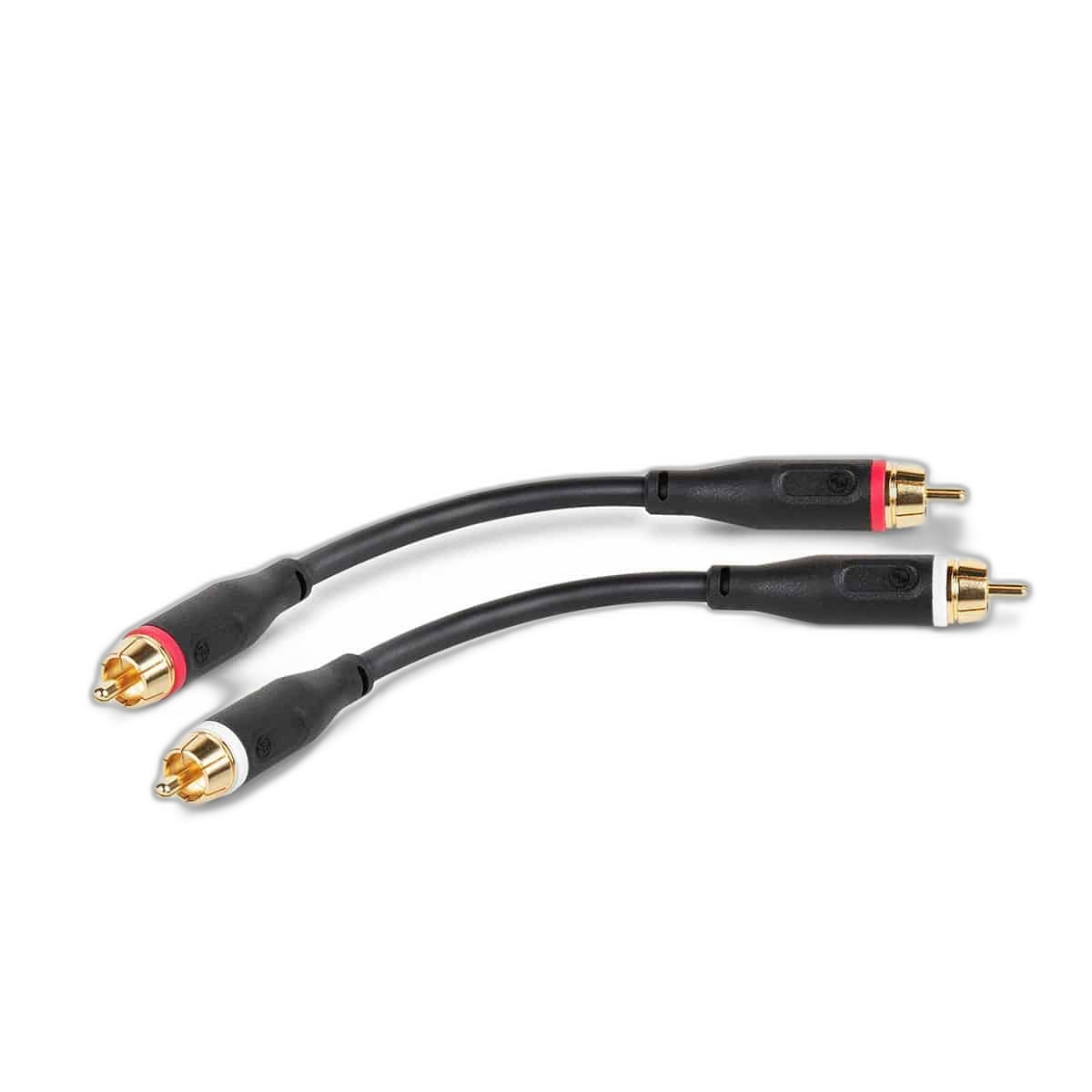

Red and White Channel Identification
The package contains one red cable and one white cable. Use those colours to keep the left and right channels consistent between the source and destination. Channel identification is especially useful behind a small stack where the sockets are close together and another cable may otherwise make the path harder to follow.
Connector Plating and Cable Diameter
The specification lists twenty-four-karat gold connector plating and a six-millimetre cable diameter. Those details describe the physical interconnect construction. Allow space for the connector bodies as well as the nominal cable length, and avoid using a tightly shaped cable to pull against the connected equipment’s sockets.
Model
JDS Labs Stack RCA Cable Pair
Brand
JDS Labs
Package
2 cables: 1 red; 1 white
Shape First, Then Connect
JDS Labs recommends bending the cables into the desired shape before connecting the amplifier and DAC. Set the equipment in its intended position, form both cable routes and then seat the RCA plugs. The package provides the interconnect pair; the audio components and their power connections are separate parts of the setup.
Match Both Ends of the Signal Route
Choose the connectors, signal type and cable length for the equipment at both ends. A passive lead does not add an audio interface, power supply or a different signal protocol; confirm the input function before ordering. Compare related options such as Monoprice Onyx Series Auxiliary 3.5mm TRS AUX Cable, 1.8m or Monoprice Onyx 3.5mm TRRS AUX Cable, 3M Length, keeping the exact model and configuration in the decision. For the wider setup, explore SHURE MV7X Dynamic Broadcast Microphone (XLR Only) and check the connection, size or mounting requirements before pairing accessories. Browse the JDS LABS range at AX for more choices.
JDS Labs Stack RCA Cable Pair Setup Choices
Choose the connectors, signal type and cable length for the equipment at both ends. A passive lead does not add an audio interface, power supply or a different signal protocol; confirm the input function before ordering. Explore JDS LABS ATOM AMP 2 Headphone Amplifier, JDS LABS ATOM DAC 2 USB-C DAC.
Frequently Asked Questions
How many cables are included?
Two: one red and one white.
Does the 15 cm include the connectors?
No. JDS Labs states that the nominal length excludes the RCA connectors.
Can the shape be changed?
Yes. The semi-rigid cable can be bent into a new position.
When should I shape the cables?
Form the intended route before connecting the amplifier and DAC.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Product Specifications
JDS Labs Stack RCA Cable Pair
JDS Labs
2 cables: 1 red; 1 white
15 cm / 6 in / 0.5 ft; excludes RCA connectors
Male RCA to male RCA, each cable
24k gold
6 mm
Semi-rigid; shape retaining
Form desired shape before connecting amp and DAC
