NZXT Kraken Z73 360mm AIO Liquid Cooler, Triple Fan
NZXT

NZXT Kraken Z73 360mm AIO Liquid Cooler, Triple Fan

NZXT Kraken Z73 combines a 360 mm aluminium radiator with 3 120 mm fans and a copper cold plate. Its 2.36-inch, 320 × 320 colour LCD adds a visible focal point, while NZXT CAM provides pump and display configuration for a compatible desktop build.

SKU: RL-KRZ73-01

Regular price 86.000 KWD

or 4 payments of 21.500 KWD with

Pay with card & save

KNET Mastercard Gateway
82.000 KWD Save 4.000 KWD

Overview

NZXT KRAKEN Z73

NZXT Kraken Z73 — product view

NZXT Kraken Z73

NZXT Kraken Z73 combines a 360 mm aluminium radiator with 3 120 mm fans and a copper cold plate. Its 2.36-inch, 320 × 320 colour LCD adds a visible focal point, while NZXT CAM provides pump and display configuration for a compatible desktop build. Explore this model at AX Store in Kuwait.

360 mm

Radiator class

3 × 120 mm

Included fans

2.36 inch

Pump display

400 mm

Sleeved tubes

NZXT Kraken Z73 — product view

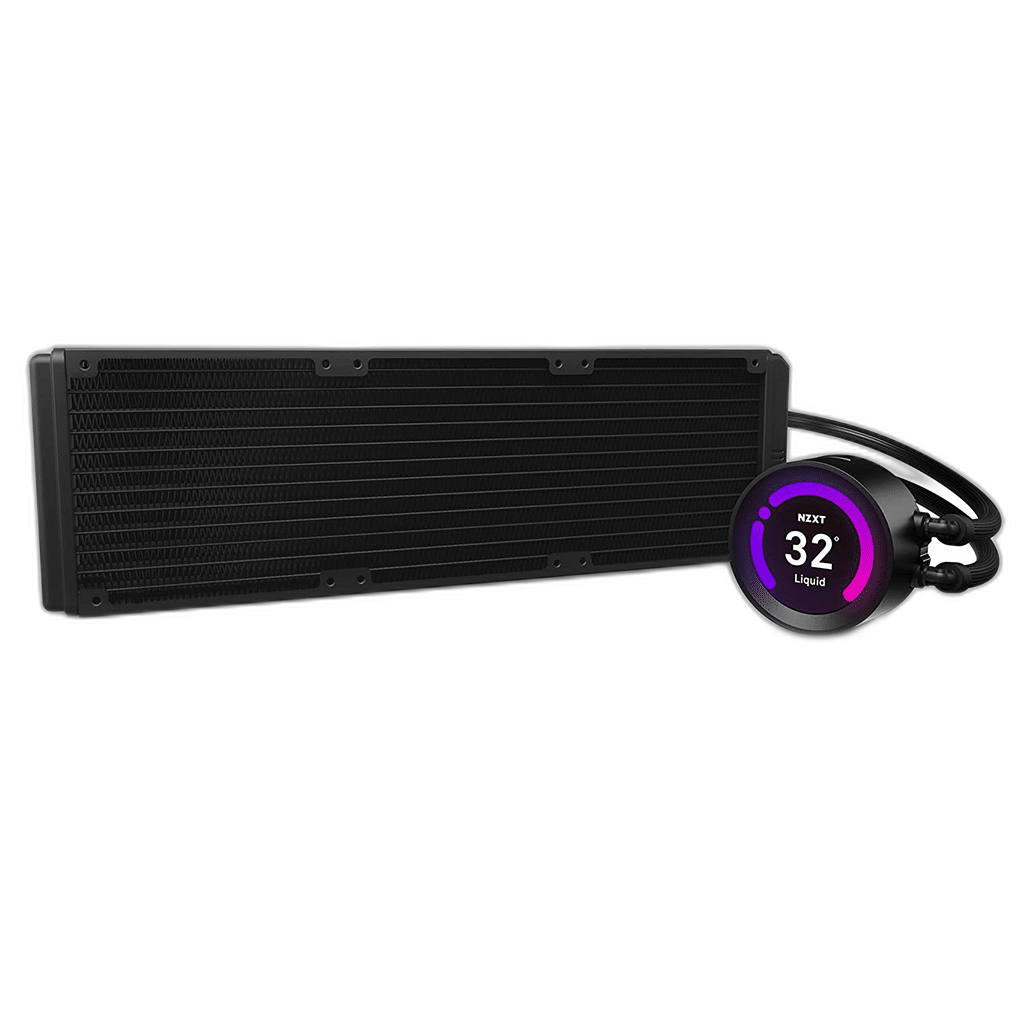

360 mm Radiator Cooling

The 360 mm radiator uses 3 120 mm fans to move air through its aluminium fin assembly. The radiator measures 121 × 394 × 27 mm. Check the full radiator and fan clearance against the intended case mounting position, including the space around memory, motherboard heatsinks and the graphics card.

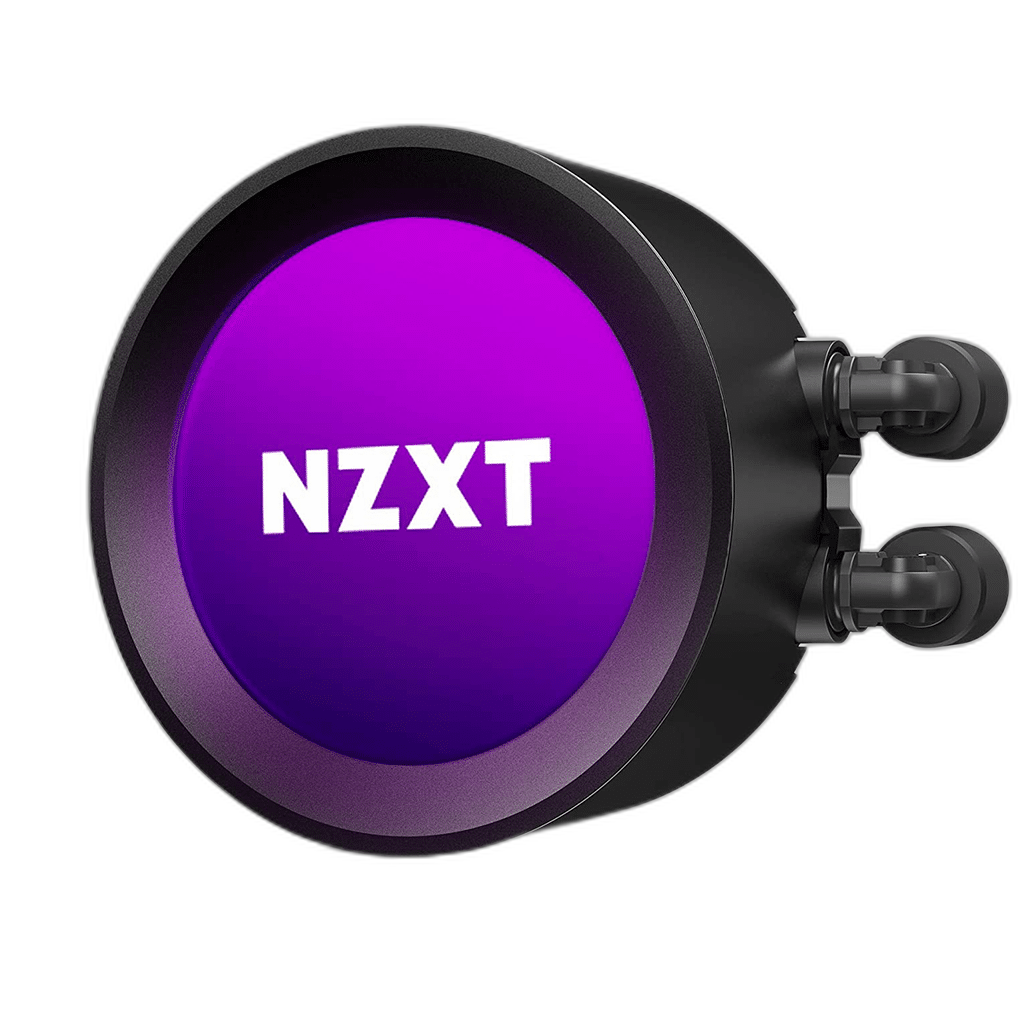

A Colour LCD on the Pump

The pump carries a 2.36-inch colour LCD with a 320 × 320 resolution. NZXT CAM supports display personalisation, making the cooler a useful focal point behind a case window. Choose a display arrangement suited to the system, with the internal USB connection available for software communication.

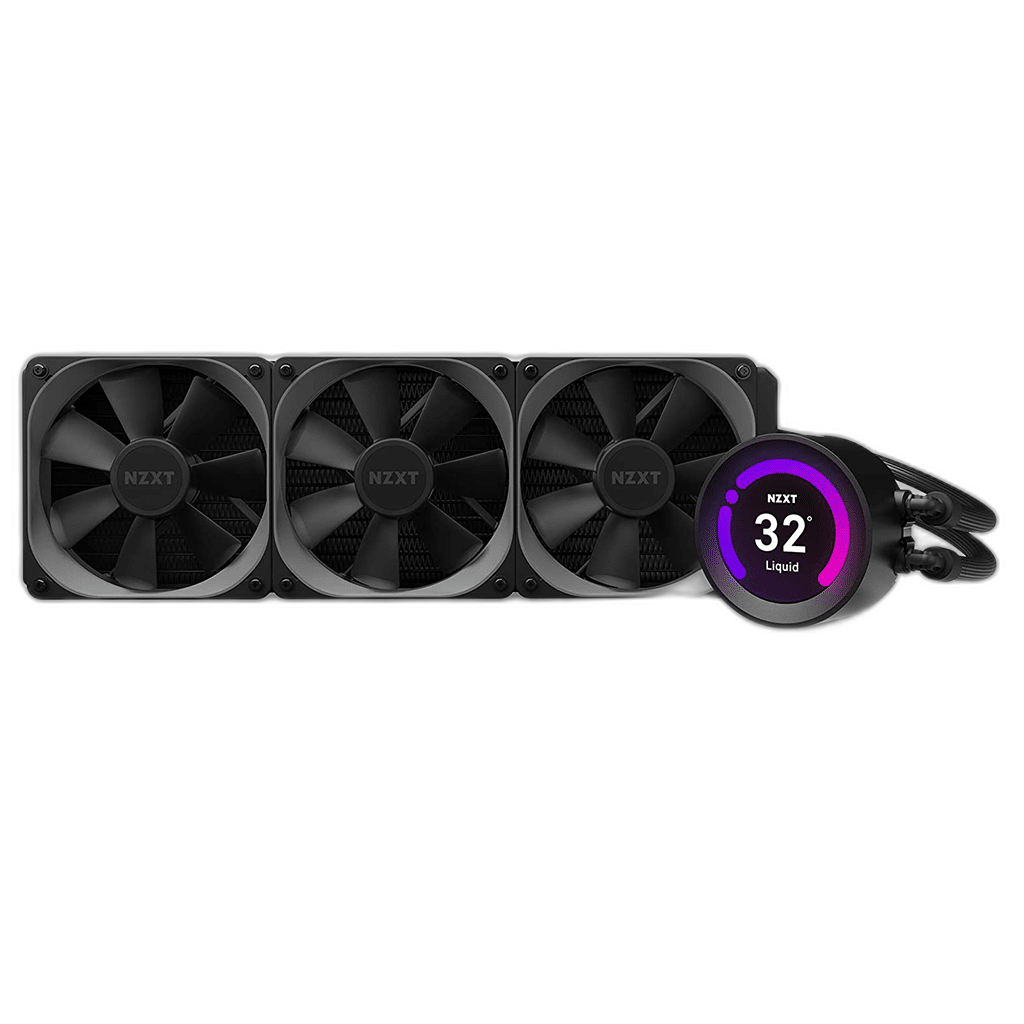

Aer P Radiator Fans

The included 3 Aer P 120 mm fans are designed for the radiator airflow path and use four-pin PWM connections. Their operating speed can be adjusted through the appropriate fan-control connection. Choose a fan curve suited to the system workload and the case airflow arrangement.

Pump, Power and Software Connections

The Asetek Gen7 pump operates at 800–2,800 RPM, with the manufacturer specifying a ± 300 RPM tolerance. SATA supplies power, and the internal USB 2.0 cable enables NZXT CAM communication. The Z-series breakout provides PWM fan connections for fan control.

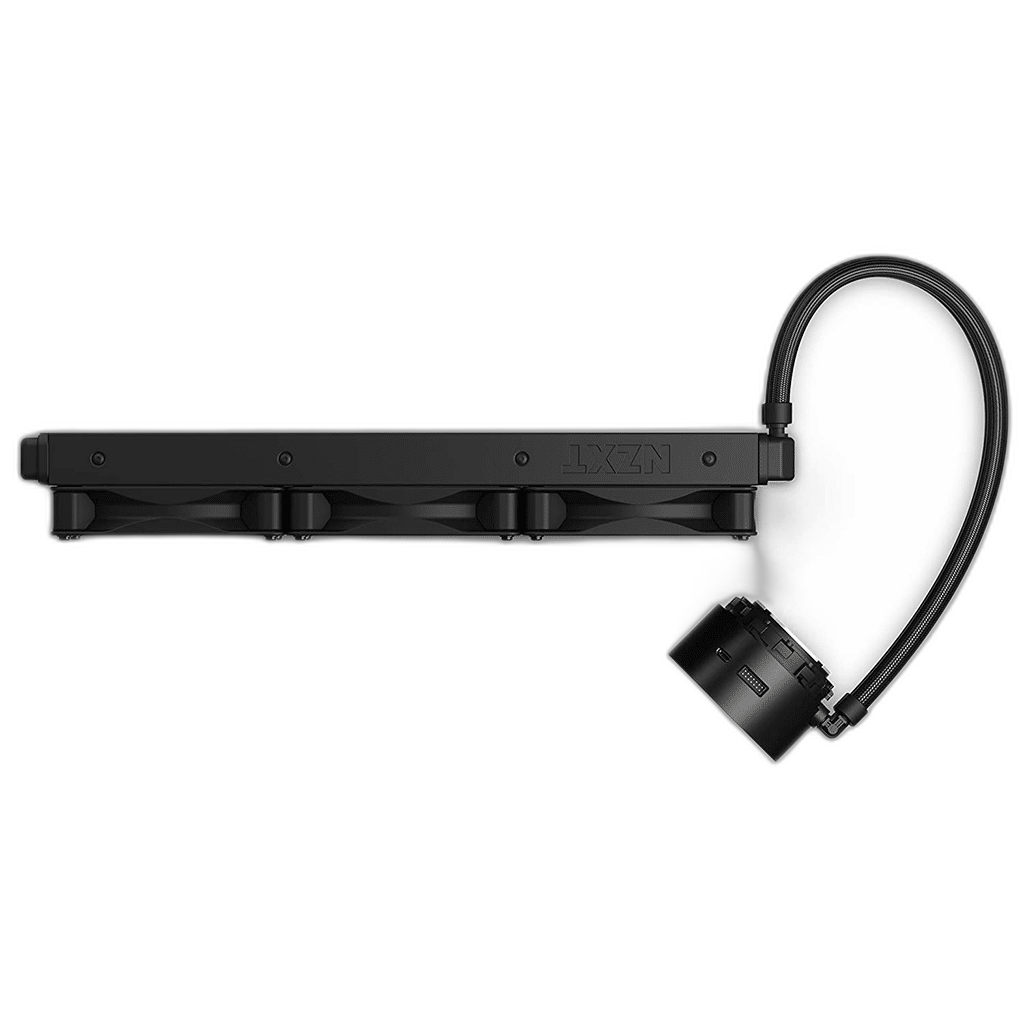

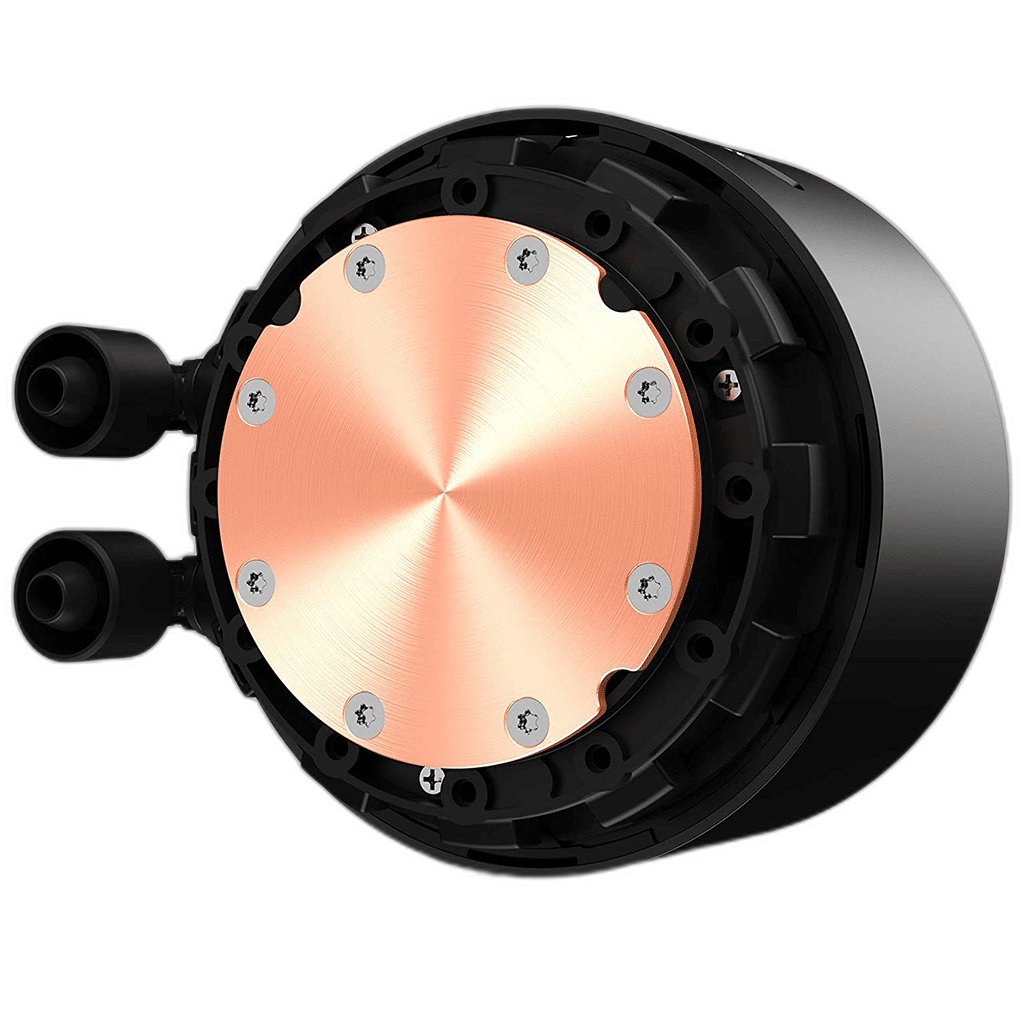

Sleeved Tubes and Copper Contact

A copper cold plate transfers processor heat into the liquid-cooling circuit. The 400 mm rubber tubes use a nylon sleeve, providing room to route the assembly between the CPU socket and radiator position. Arrange the tubes without sharp bends and maintain the required component clearance throughout the installed path.

NZXT Kraken Z73 — product view

Radiator dimensions

121 × 394 × 27 mm

Included fans

3 × 120 mm; Aer P

Fan speed control

Built-in PWM fan connections

Check Socket and Case Fit

Supports compatible AMD AM4 and Intel LGA 115x/1200 systems. AM5, LGA 1700 and LGA 1851 require the appropriate additional mounting hardware; check the bracket set for the actual unit. Threadripper requires its separate compatible bracket. Confirm both the CPU mounting hardware and radiator clearance before installation. Follow the installation sequence for the actual cooler revision, and keep all pump, USB, fan and lighting cables clear of the fan blades.

Match the Cooler to the Socket and Case

Check the supported processor socket, mounting kit and case clearance. For liquid cooling, compare radiator and fan positions with the case layout and other installed components. Compare related options such as Thermaltake Floe RC Ultra 240 AIO Liquid Cooler - Gray or Gameon Kraken N360 360mm Liquid CPU Cooler, RGB, keeping the exact model and configuration in the decision. For the wider setup, explore ASUS Hyperion GR701 Full Tower E-ATX Gaming Case and check the connection, size or mounting requirements before pairing accessories. Browse the NZXT range at AX for more choices.

NZXT Kraken Z73 Setup Choices

Check the supported processor socket, mounting kit and case clearance. For liquid cooling, compare radiator and fan positions with the case layout and other installed components.

Frequently Asked Questions

Which radiator size does it use?

360 mm, with 3 120 mm fans.

What is on the pump?

2.36-inch, 320 × 320 colour LCD.

How are fan speeds controlled?

The Z-series breakout provides PWM fan connections for software fan control.

Can it be fitted to AM5 or LGA 1700/1851?

The appropriate additional mounting kit is required. Confirm the mounting hardware supplied with the actual unit before installation.

What connections should I reserve?

A SATA power connection, an internal USB 2.0 header and the appropriate pump tach and fan connections. RGB fan versions also use the NZXT RGB lighting connection.

Build Your Setup with AX Store

Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.

THE DETAILS

Technical specifications

Cooling Hardware

Model

NZXT Kraken Z73

Cooling system

All-in-one liquid CPU cooler

Radiator class

360 mm

Radiator dimensions

121 × 394 × 27 mm

Radiator material

Aluminium

Cold plate

Copper

Included fans

3 × 120 mm; Aer P

Tube length

400 mm; nylon-sleeved rubber

Pump speed

800–2,800 ± 300 RPM

Power / software connections

SATA power; internal USB 2.0; pump tach

Fan speed control

Built-in PWM fan connections

LCD size

2.36 inches

LCD resolution

320 × 320 pixels

LCD colour

24-bit true colour

Fan speed

500–2000 ± 300 RPM

Compatibility and Installation

Socket compatibility

Supports compatible AMD AM4 and Intel LGA 115x/1200 systems. AM5, LGA 1700 and LGA 1851 require the appropriate additional mounting hardware; check the bracket set for the actual unit. Threadripper requires its separate compatible bracket.

Software

NZXT CAM

Lighting connection

Proprietary 4-pin NZXT RGB

Case requirement

Compatible 360 mm radiator mount and sufficient total clearance
