LIAN LI ARGB Device Converter Cable Kit
The LIAN LI UF-EX ARGB Device Cable Kit contains five cable types, with two of each, for compatible LIAN LI fan and lighting connections. The set provides PWM splitters, ARGB adapter leads and lighting extensions for supported UNI HUB or motherboard arrangements.
Regular price
4.000 KWD
or 4 payments of 1.000 KWD with
Pay with card & save
3.900 KWD
Save 0.100 KWD
Overview
LIAN LI ARGB DEVICE CABLE KIT UF-EX
LIAN LI ARGB Device Cable Kit UF-EX
LIAN LI ARGB Device Cable Kit UF-EX: The LIAN LI UF-EX ARGB Device Cable Kit contains five cable types, with two of each, for compatible LIAN LI fan and lighting connections. The set provides PWM splitters, ARGB adapter leads and lighting extensions for supported UNI HUB or motherboard arrangements. Explore this model at AX Store in Kuwait.
10
Cables in the kit
5
Cable types
PWM
Fan splitting
ARGB
Lighting adapters
Five Cable Types, Two of Each
The kit provides ten cables across five connection types: Fan Y cables, Motherboard Adaptor Y-Type cables, Y-Type 3P Signal cables, Lightbar Extension cables and Fan LED Extension cables. Choose the lead according to the connector and function of the devices being linked, rather than treating every adapter as interchangeable.

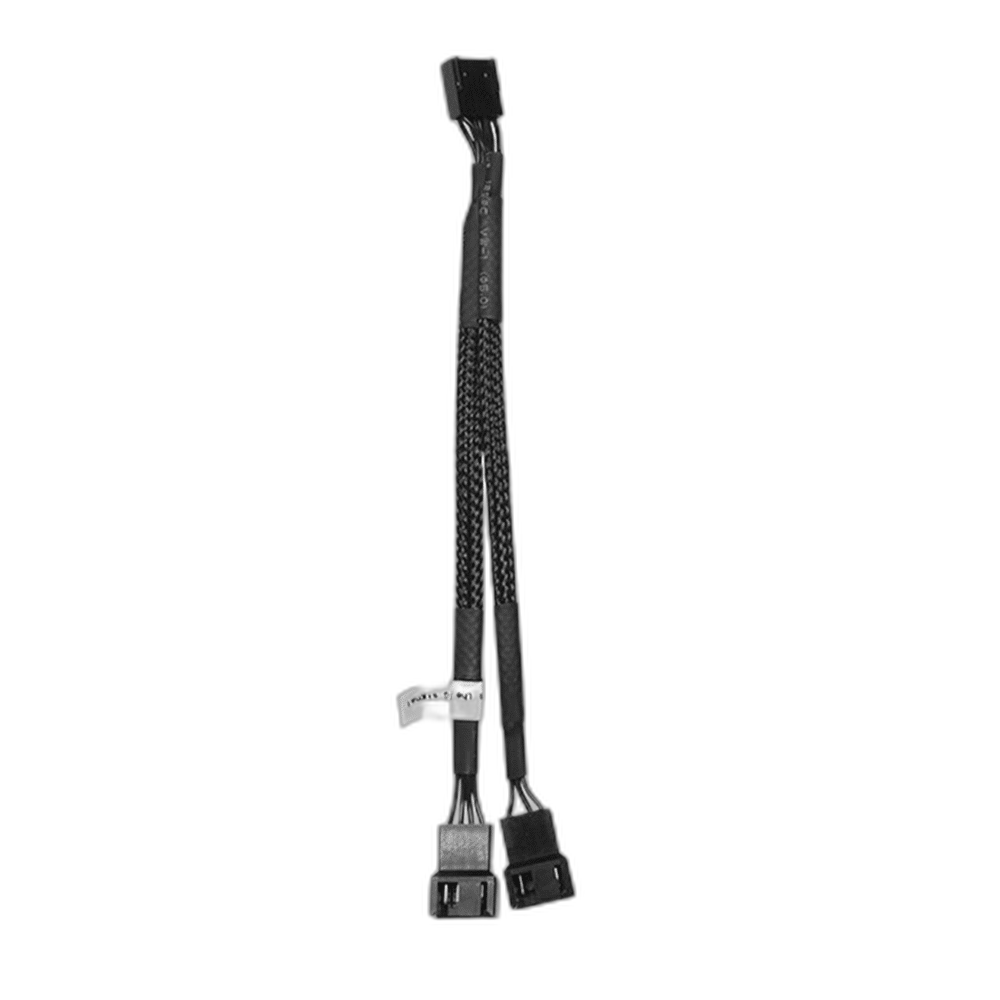

Fan Y Cables for PWM Sharing
The Fan Y cable lets compatible fans share a motherboard PWM fan-control connection. The supplied pair can be arranged for supported ST120 or Bora Digital fan connections according to the manufacturer’s guide. Set the motherboard header to PWM mode and keep the combined fan load within the appropriate header rating.
Motherboard ARGB Adapter Leads
The Motherboard Adaptor Y-Type cable provides the supported connection between compatible UNI FAN lighting and a motherboard addressable RGB interface. This offers an alternative to the documented UNI HUB lighting arrangement. Match the connector type, lighting voltage and header power capability with the connected devices before installation.
Signal and Lighting Extensions
The Y-Type 3P Signal, Lightbar Extension and Fan LED Extension leads serve different compatible lighting connections. The lighting-side cables are for the specified 5 V ARGB arrangements, while the Fan Y cable serves its separate 12 V fan role. These signal adapters and extensions do not convert a 12 V RGB output into 5 V ARGB.
Supported LIAN LI Device Families
The documented connections cover selected products including original Strimer and Strimer Plus, Galahad AIO lighting, ST120, Bora Digital and compatible LIAN LI light bars. Strimer Plus connections require their specified controller and SATA power arrangement. Follow the exact wiring guidance for the chosen devices and controller generation.
Total cables
10
Cable types
5 types; 2 of each
Conversion function
Signal adaptation and extension; not 12 V RGB-to-5 V ARGB conversion
Observe the Connection and LED Limits
For the documented UNI HUB connection, each group supports up to 10 W and no more than 100 LEDs. Count the connected lighting load and use the required powered-controller arrangement where specified. In the documented Strimer Plus controller connection, do not add another device to the second Y branch.
Match the Accessory to the Case and Components
Check the exact case, mounting points and connector or controller requirements. Accessories from a similar-looking case or lighting system may use a different mounting or control arrangement. Compare related options such as Lian Li O11D EVO Upright GPU Kit - PCIe 4.0 Riser Cable or Lian LI O11DXL-1 PCI-E Riser Card & Back Panel, keeping the exact model and configuration in the decision. For the wider setup, explore LIAN LI Lancool III RGB Mid Tower Case, Tempered Glass, White and check the connection, size or mounting requirements before pairing accessories. Browse the Lian LI range at AX for more choices.
LIAN LI ARGB Device Cable Kit UF-EX Setup Choices
Check the exact case, mounting points and connector or controller requirements. Accessories from a similar-looking case or lighting system may use a different mounting or control arrangement.
Frequently Asked Questions
How many cables are supplied?
Ten: two of each of the five cable types.
Does it convert 12 V RGB into 5 V ARGB?
No. Use each adapter or extension for its specified connection and voltage.
Which devices are documented?
Selected original LIAN LI Strimer/Strimer Plus, Galahad AIO lighting, ST120, Bora Digital and supported light bars.
What is the documented UNI HUB group limit?
Up to 10 W and no more than 100 LEDs per group for the documented connection.
What should I check for Strimer Plus?
Use its specified controller and SATA power arrangement, and follow the dedicated signal-cable connection guidance.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Cable Set
UF-EX
10
5 types; 2 of each
150 mm; 12 V fan connection
150 mm; 5 V lighting connection
250 mm / 150 mm; 5 V lighting
250 mm + 100 + 100 + 100 mm; 5 V lighting
250 mm + 100 + 100 + 100 mm; 5 V lighting
10 W; 100 LEDs
Signal adaptation and extension; not 12 V RGB-to-5 V ARGB conversion
