Lian Li O11D Mini PCIe 3.0 Vertical GPU Bracket Kit

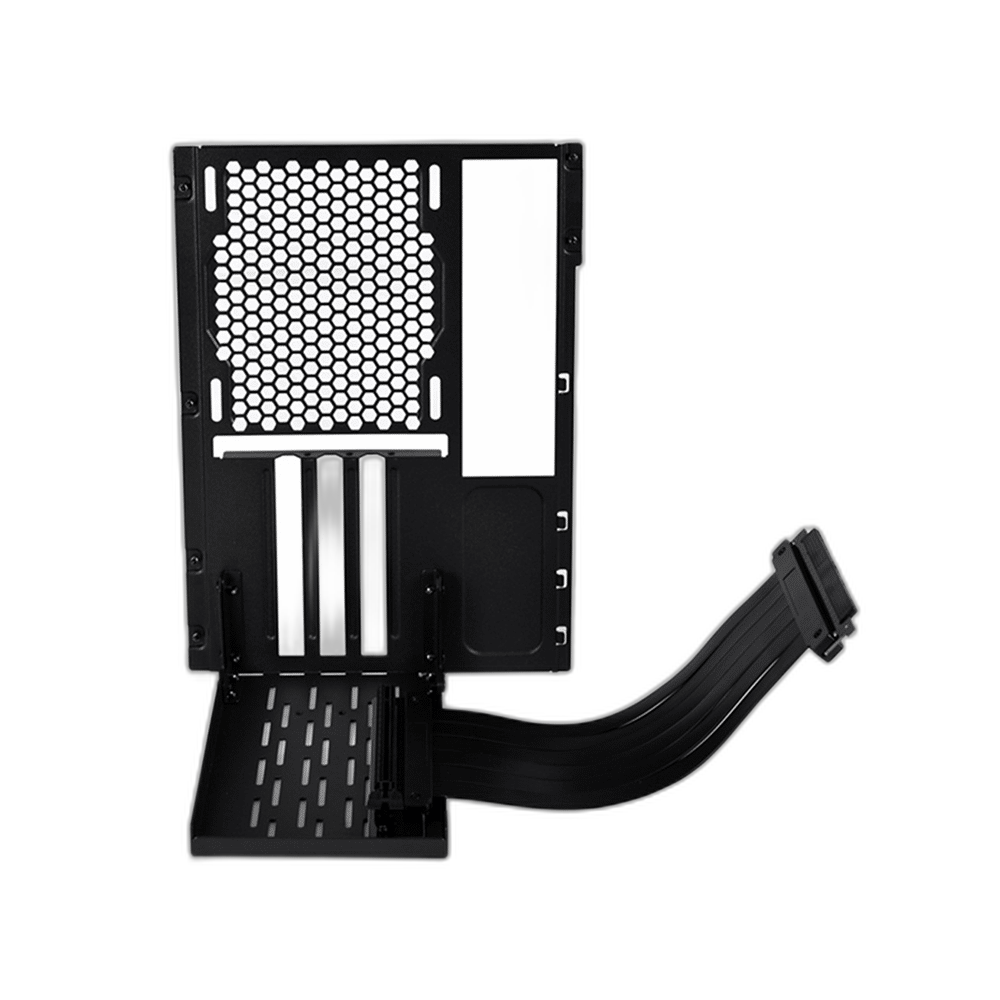

LIAN LI O11D MINI / O11 AIR MINI Vertical GPU Kit PCIe 3.0 places a compatible graphics card in a vertical arrangement inside O11D MINI and O11 AIR MINI. A supplied 200 mm PCIe 3.0 x16 riser connects the graphics card to the motherboard. The replacement rear-panel assembly uses 1 mm SPCC steel and provides three graphics expansion slots.
Color
Regular price
21.000 KWD
or 4 payments of 5.250 KWD with
Pay with card & save
19.900 KWD
Save 1.100 KWD
Overview
LIAN LI O11D MINI / O11 AIR MINI VERTICAL GPU KIT PCIE 3.0
LIAN LI O11D MINI / O11 AIR MINI Vertical GPU Kit PCIe 3.0
LIAN LI O11D MINI / O11 AIR MINI Vertical GPU Kit PCIe 3.0 places a compatible graphics card in a vertical arrangement inside O11D MINI and O11 AIR MINI. A supplied 200 mm PCIe 3.0 x16 riser connects the graphics card to the motherboard. The replacement rear-panel assembly uses 1 mm SPCC steel and provides three graphics expansion slots. Available from AX Store in Kuwait.
PCIe 3.0
Riser generation
200 mm
Riser cable
3 slots
Graphics panel
MINI
Intended case family
Built for O11D MINI and O11 AIR MINI
The mounting arrangement is intended for O11D MINI and O11 AIR MINI. Use the correct case model and mounting locations when planning the installation; similar case names do not always share the same rear panel or bracket layout. Check the selected graphics card and the available space around the intended mount before assembly.
Vertical GPU Presentation
The bracket changes the position of the graphics card so its visible surfaces face a different direction within the case. The back panel supports alternative mounting heights with the case’s five-slot or seven-slot motherboard arrangement. Choose a position that provides room for the graphics cooler, its power connections and the nearby case hardware, rather than relying only on the card’s nominal length.
The Graphics Connection
A supplied 200 mm PCIe 3.0 x16 riser connects the graphics card to the motherboard. Match the motherboard slot, riser and graphics card to the intended PCIe link configuration. Route the connection without sharp bends or excess strain at the plugs, and follow the installation guidance for the actual cable revision supplied with or selected for the kit.
A Supported Mounting Structure
The replacement rear-panel assembly uses 1 mm SPCC steel and provides three graphics expansion slots. Secure the mounting frame at the intended case attachment points before fitting the graphics card. The card’s cooler size, expansion-slot bracket and power plugs should all be considered together, with suitable access to the display connections after the system is assembled.
Leave Room for Cooling
Check the gap around the graphics-card fans, case panels and any nearby radiator or fan positions. The back panel supports alternative mounting heights with the case’s five-slot or seven-slot motherboard arrangement. The final clearance depends on the card and cooling hardware selected for the build. Keep the GPU intake path open and leave enough room for its power cable to sit correctly.
Intended case
O11D MINI and O11 AIR MINI
GPU orientation
Vertical
Graphics connection
A supplied 200 mm PCIe 3.0 x16 riser connects the graphics card to the motherboard.
Plan the Complete Installation
Confirm the exact case, graphics-card dimensions and supplied riser arrangement before starting the installation. The supplied cable is 200 mm PCIe 3.0 x16. Follow the case and bracket installation instructions, then check that the card, bracket and connection leads are secured without putting unnecessary strain on any connector.
Match the Accessory to the Case and Components
Check the exact case, mounting points and connector or controller requirements. Accessories from a similar-looking case or lighting system may use a different mounting or control arrangement. Compare related options such as Cooler Master Mini Addressable RGB LED Controller or Lian Li O11D Mini PCIe 4.0 Vertical GPU Bracket Kit, keeping the exact model and configuration in the decision. For the wider setup, explore XIGMATEK Aquarius Plus Mid Tower Case and check the connection, size or mounting requirements before pairing accessories.
LIAN LI O11D MINI / O11 AIR MINI Vertical GPU Kit PCIe 3.0 Setup Choices
Check the exact case, mounting points and connector or controller requirements. Accessories from a similar-looking case or lighting system may use a different mounting or control arrangement.
Frequently Asked Questions
Which case is it intended for?
O11D MINI and O11 AIR MINI.
How is the graphics card positioned?
Vertical. The back panel supports alternative mounting heights with the case’s five-slot or seven-slot motherboard arrangement.
What graphics connection should I use?
A supplied 200 mm PCIe 3.0 x16 riser connects the graphics card to the motherboard.
What clearance should I check?
The graphics card’s length, width, thickness, fan intake space and power-plug clearance, together with nearby case fans or radiators.
Is a riser cable included?
200 mm PCIe 3.0 x16.
What if the motherboard and GPU use PCIe 4.0?
The manufacturer instructs users to install the GPU directly first, set the motherboard PCIe slot to Gen 3 in BIOS, then power down and install this Gen 3 riser.
Build Your Setup with AX Store
Explore computers, displays and accessories for your workspace at AX Store. For help choosing the right model or checking an accessory, contact AX Store.
THE DETAILS
Technical specifications
Mounting Hardware
LIAN LI O11D MINI / O11 AIR MINI Vertical GPU Kit PCIe 3.0
O11D MINI and O11 AIR MINI
Vertical
A supplied 200 mm PCIe 3.0 x16 riser connects the graphics card to the motherboard.
The replacement rear-panel assembly uses 1 mm SPCC steel and provides three graphics expansion slots.
The back panel supports alternative mounting heights with the case’s five-slot or seven-slot motherboard arrangement.
PCIe 3.0
200 mm
180 × 191.5 × 272.5 mm
3
1 mm SPCC steel
