MSI GeForce RTX 5070Ti Gaming Trio OC Edition 16GB

Graphics memory

CUDA cores

Memory interface

Listed boost clock

Dedicated RTX 5070 Ti Graphics

The NVIDIA RTX 5070 Ti GPU provides 8960 CUDA cores for supported graphics and computing work. Use the card with compatible drivers and applications, choosing the rendering, display and graphics settings around the work being done. The final experience also depends on the processor, memory and software in the complete computer; core count alone does not describe every application’s performance.

16 GB GDDR7 Graphics Memory

This model has 16 GB GDDR7 on a 256-bit memory interface, with a listed memory data rate of 28 Gbps. Dedicated graphics memory holds the data used by the GPU during supported workloads. Choose application settings and project requirements around the card’s actual memory capacity, especially when comparing different capacities within the same GPU family.

A Model-Specific Boost Specification

The listed boost clock is 2572 MHz. The 2572 MHz boost is listed for GAMING and SILENT modes. MSI Center Extreme Performance is separately rated at 2580 MHz. A clock specification is not a frame-rate guarantee: workload, temperature, power configuration and the rest of the system affect the result achieved in use.

Connect the Displays to the Card

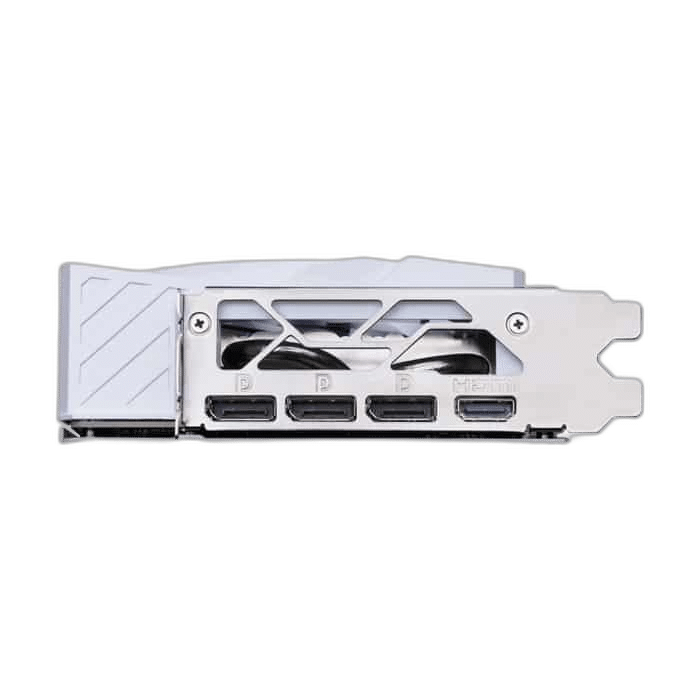

3 × DisplayPort 2.1b and 1 × HDMI 2.1b. 4 simultaneous displays are supported within the card’s display capabilities. Connect the monitors directly to the graphics card and check the display mode, cable and monitor requirements together. Port specifications describe supported output capabilities; they do not promise that a game will render at the same frame rate as a display’s maximum refresh setting.

Physical Size and Installation

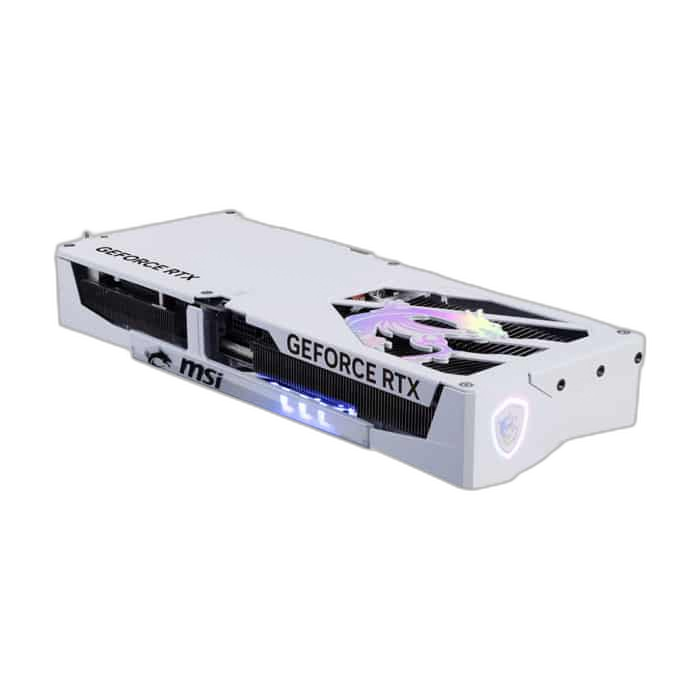

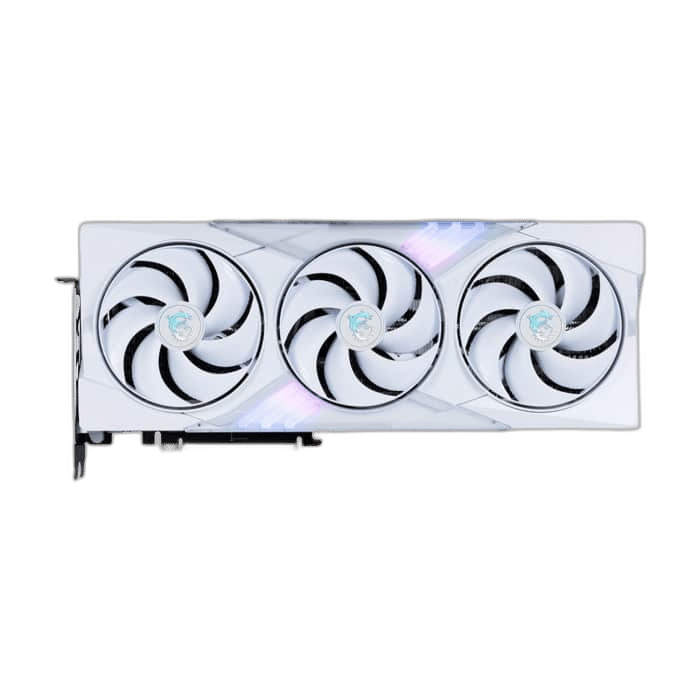

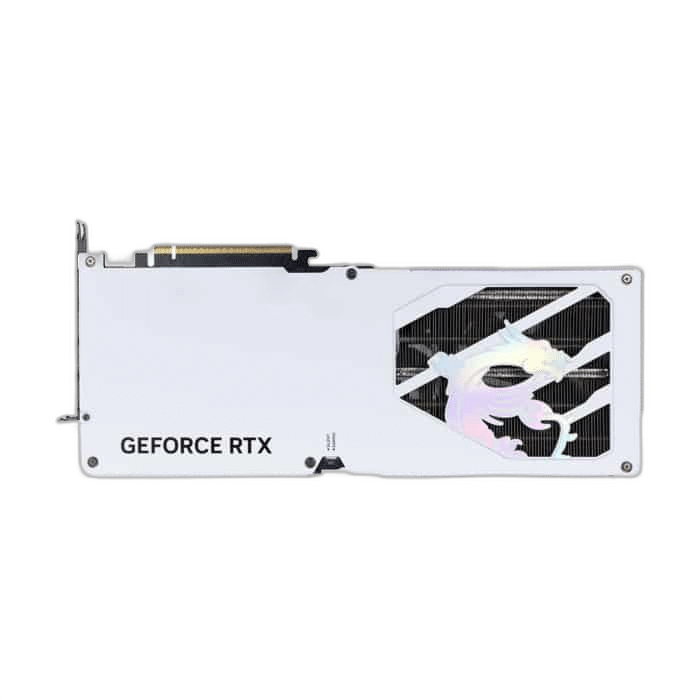

The card’s physical specification is 338 × 140 × 50 mm. TRI FROZR 4 cooling uses STORMFORCE fans, a nickel-plated copper baseplate, Core Pipes and a vented metal backplate. Check the case’s graphics-card space and nearby expansion slots before fitting it, allowing room for the complete card and its power connector. The host interface is PCI Express Gen 5. Install the card in a suitable motherboard graphics slot and follow the case and card mounting guidance.

Graphics card

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC WHITE

GPU

NVIDIA RTX 5070 Ti

Graphics memory

16 GB GDDR7

Which GPU and memory does this card use?

NVIDIA RTX 5070 Ti with 16 GB GDDR7.

What boost clock is specified?

2572 MHz. The 2572 MHz boost is listed for GAMING and SILENT modes. MSI Center Extreme Performance is separately rated at 2580 MHz.

What physical space does it require?

338 × 140 × 50 mm. Allow additional space for the power connection and follow the case’s installation guidance.

Which power connections are needed?

The manufacturer recommends a 750 W system power supply. The card’s listed power figure is 300 W. Its supplementary connection is 1 × 16-pin; ATX 3.1 PSU recommended.

How can displays be connected?

3 × DisplayPort 2.1b and 1 × HDMI 2.1b. Up to 4 displays can be used within supported display configurations.
