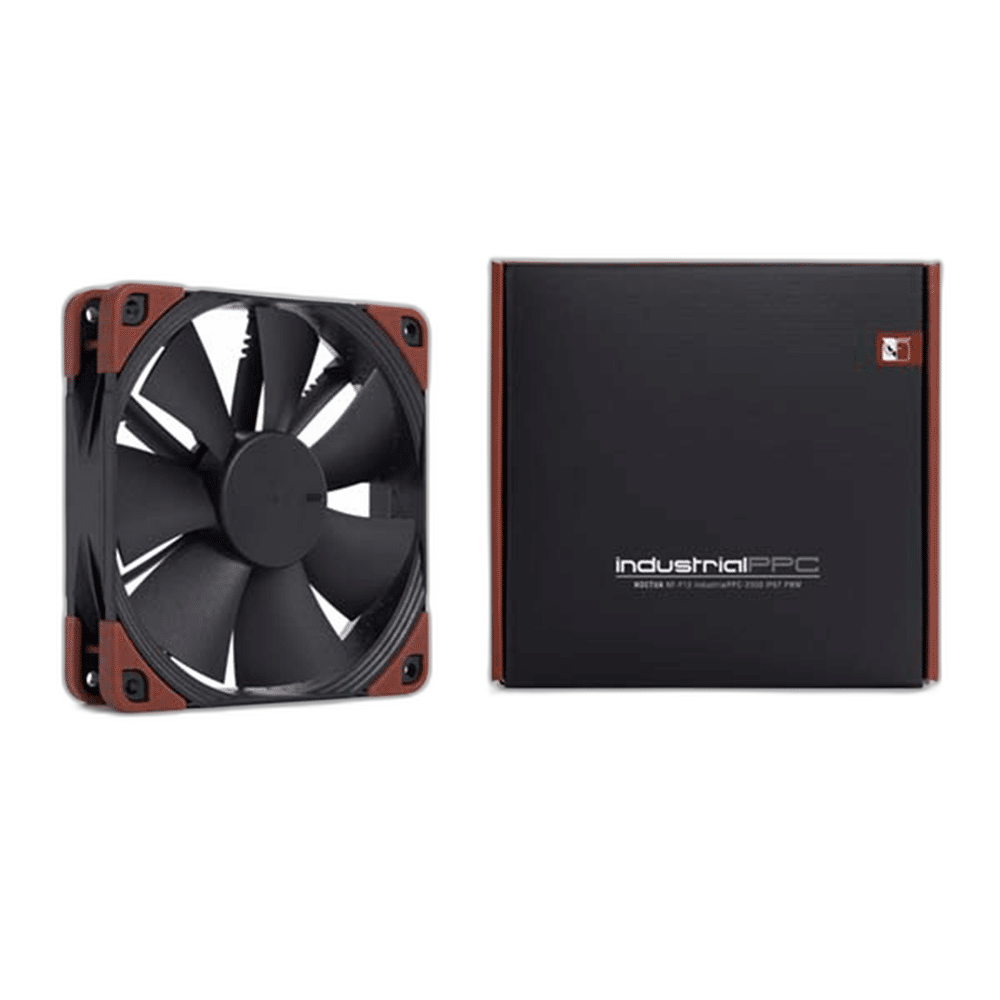

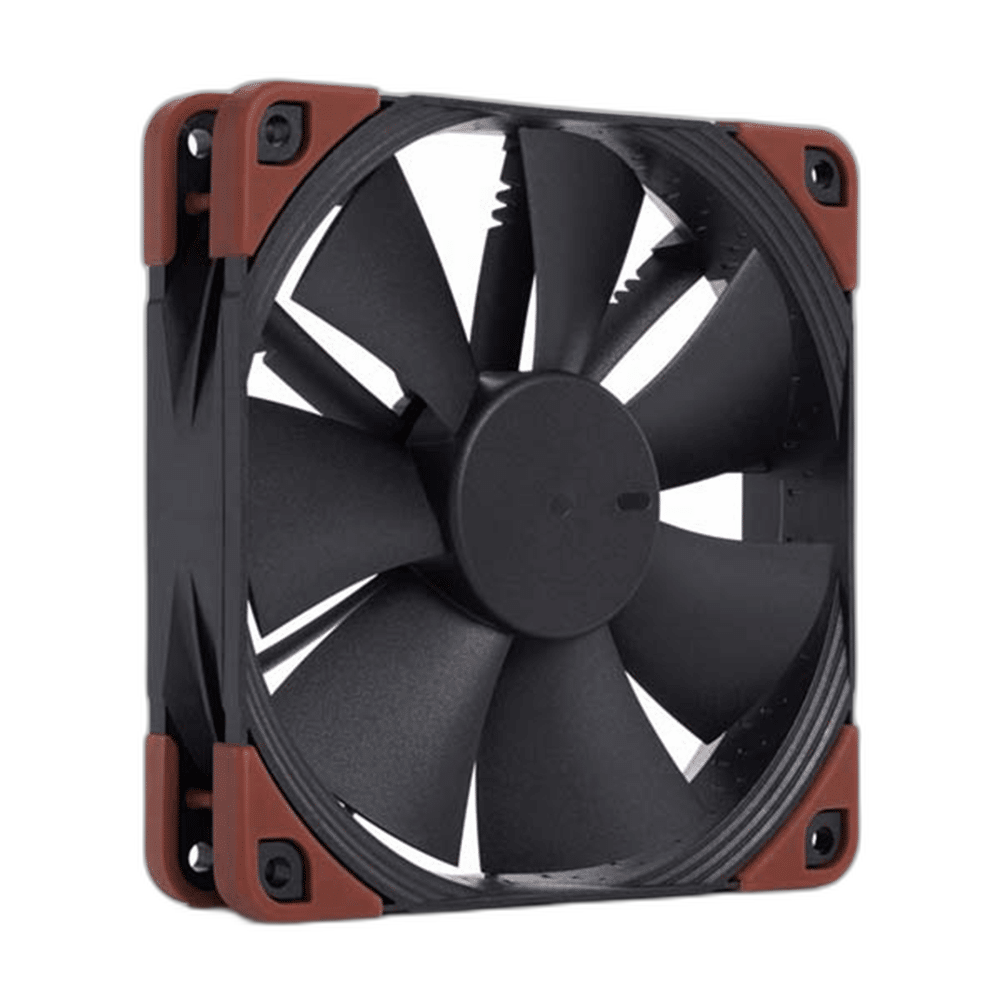

Noctua NF-F12 Industrial PPC-2000 IP67 PWM Fan, 120mm - Black

Fan size

Maximum speed

Speed control

Fan in pack

120 mm Mounting Format

The fan measures 120 × 120 × 25 mm, with standard 105 × 105 mm mounting-hole spacing. Check the available case, radiator or heatsink mount before fitting it. Leave additional room for the cable and any vibration pads used by the selected mounting arrangement.

Controlled Speed up to 2000 RPM

The four-pin PWM interface supports adjustment through a compatible motherboard header or fan controller. Maximum rotational speed is 2000 RPM. Set the fan curve for the cooling load and the acoustic preference of the system, rather than running at the maximum continuously when the workload does not need it.

Airflow and Static Pressure

Maximum airflow is 121.8 m³/h / 71.69 CFM, with static pressure rated up to 3.94 mm H₂O. These ratings describe the fan under the manufacturer’s measurement conditions. Consider the restriction of dust filters, radiator fins and case grilles when choosing where to place the fan and how to arrange the complete airflow path.

SSO2 Bearing Design

The fan uses Noctua’s SSO2 bearing design. The IP67-rated fan design provides specified dust and water ingress protection for the fan itself. Secure the frame correctly and keep the blades clear of cables. The bearing and motor work together across the selected speed range, while the installed mounting arrangement affects how vibration is transmitted into the case.

A 12 V Fan Connection

Use the fan’s four-pin connector with a suitable 12 V fan header or controller. The typical input power is 1.06 W. Check the combined electrical load before placing several fans on a splitter or controller channel, and choose a cable route that leaves the airflow path clear.

Maximum airflow

121.8 m³/h / 71.69 CFM

Maximum static pressure

3.94 mm H₂O

Rated voltage

12 V

How many fans are included?

One Noctua NF-F12 industrialPPC-2000 IP67 PWM fan.

Which size does it use?

120 × 120 × 25 mm, with 105 × 105 mm mounting-hole spacing.

How is speed controlled?

Through a suitable four-pin PWM motherboard header or fan controller.

What voltage does it use?

12 V.

What are its maximum airflow and noise ratings?

121.8 m³/h / 71.69 CFM and 29.7 dB(A), respectively.
